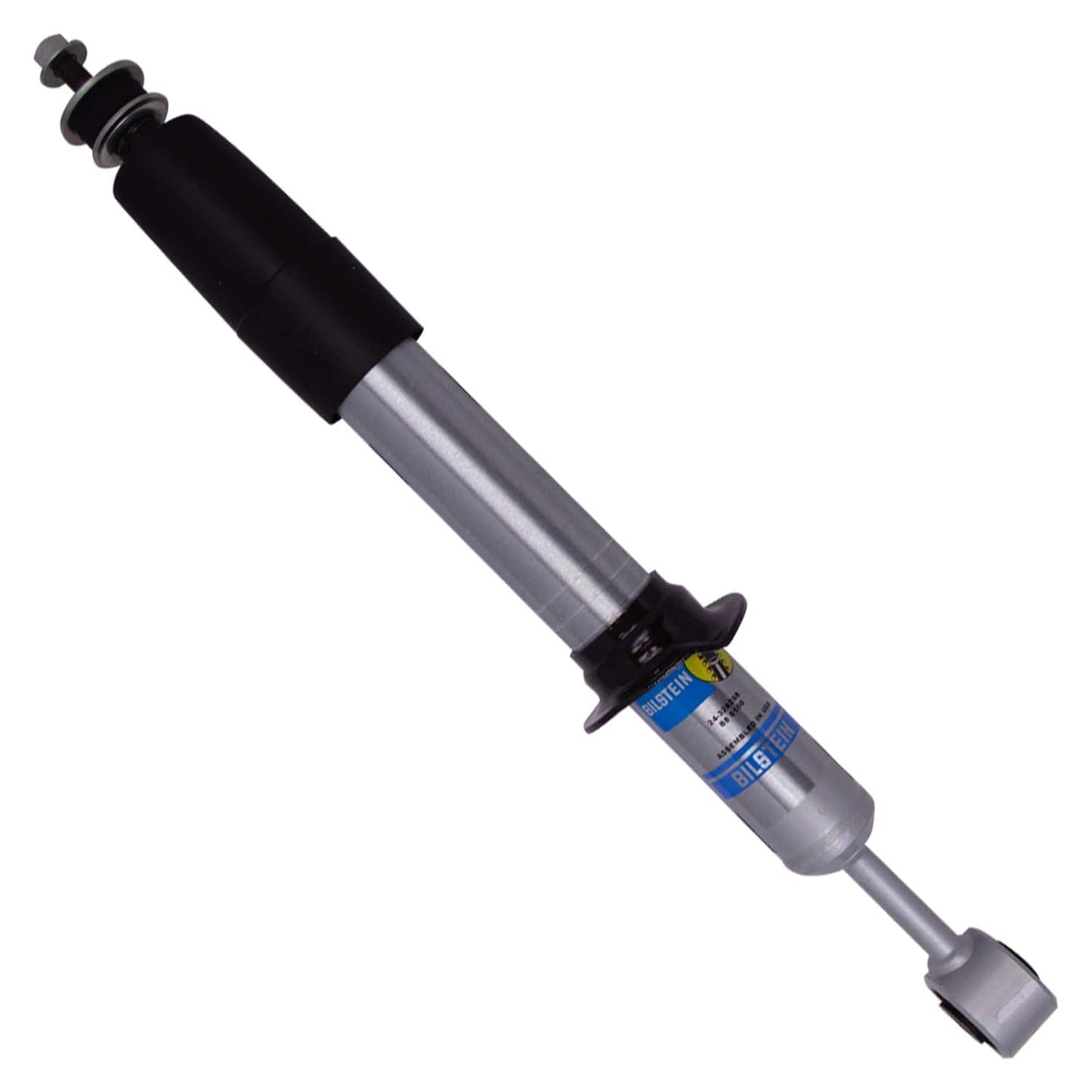

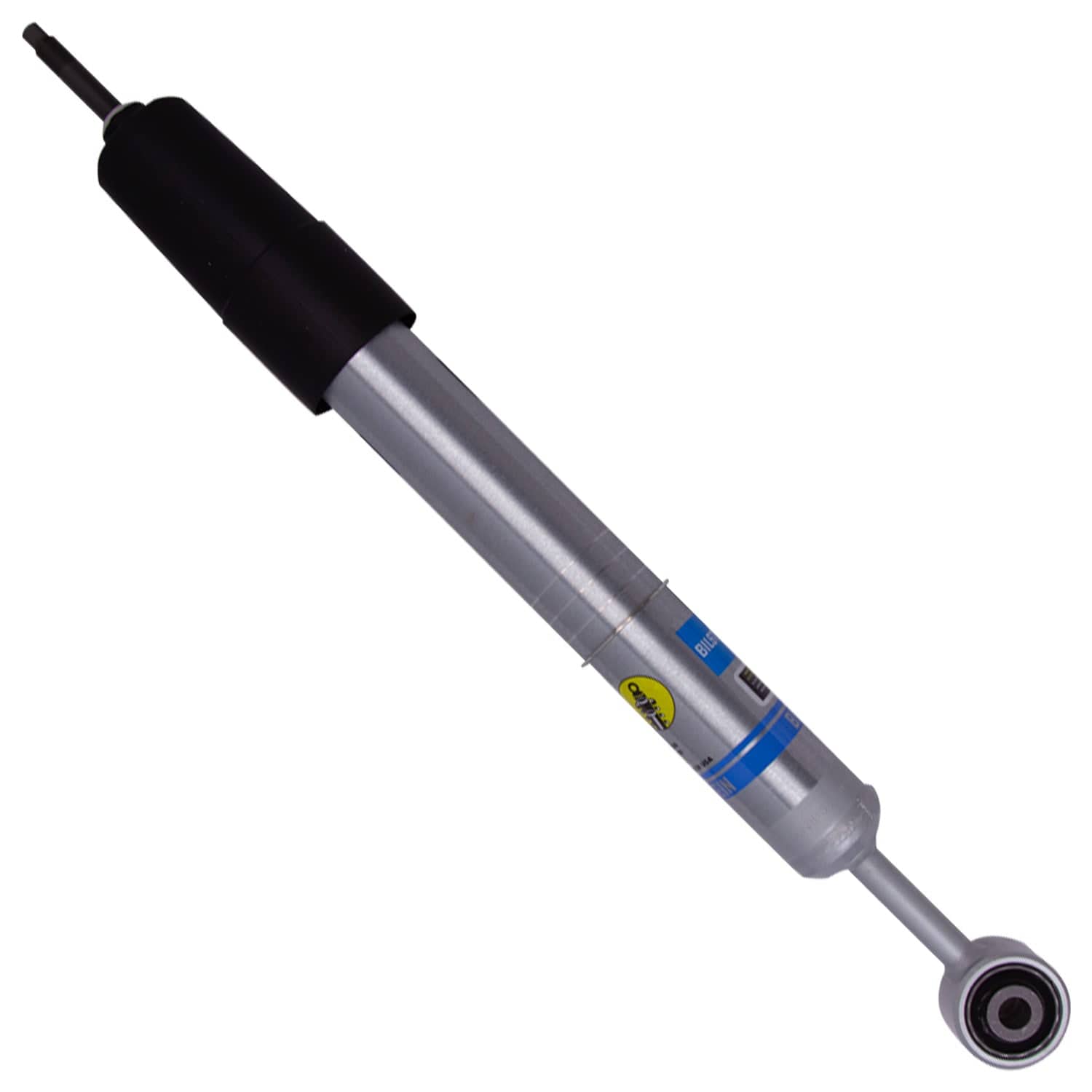

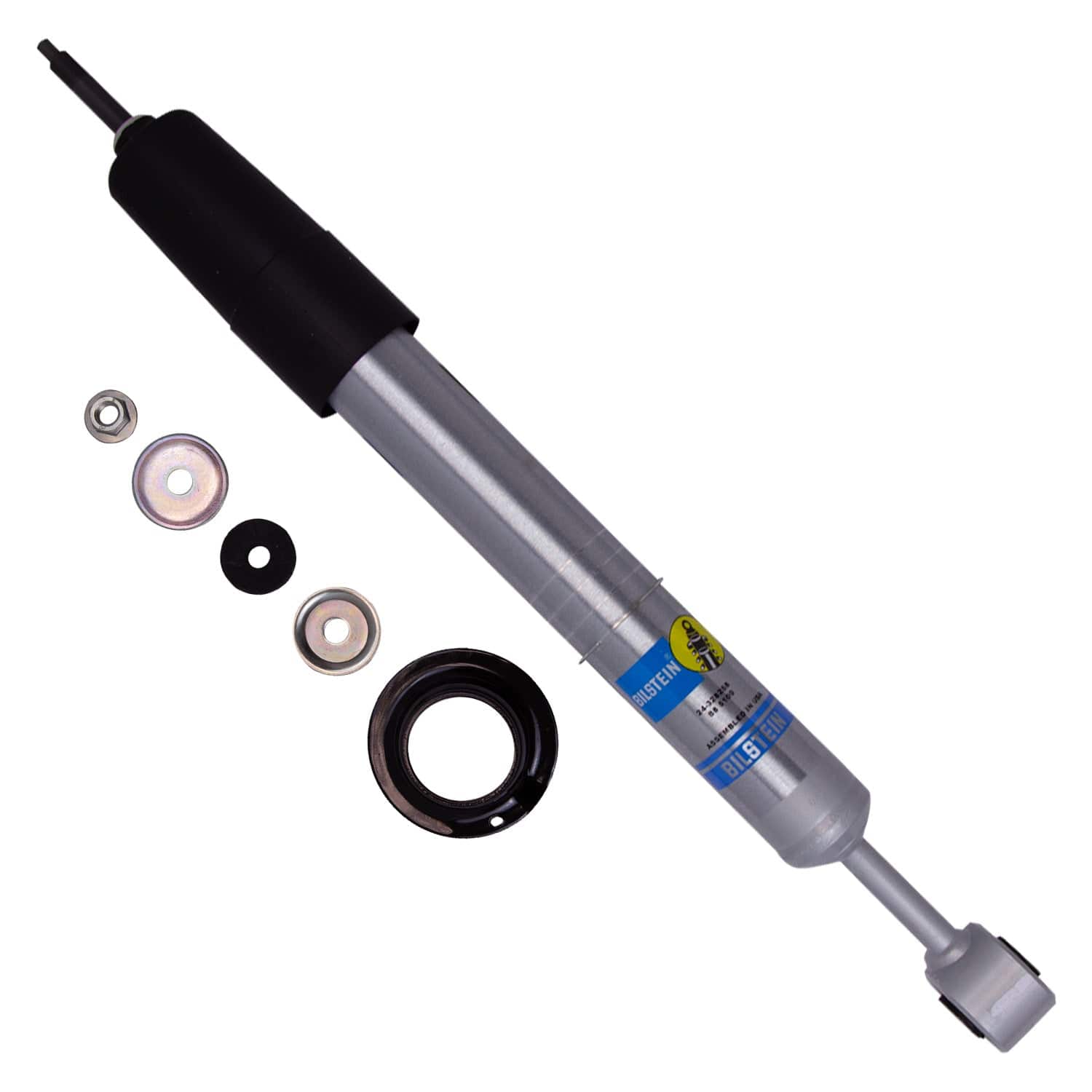

Bilstein B8 5100 Series 10-14 Toyota FJ Crusier/10-22 4Runner Front Shock Absorber

Bilstein B8 5100 Series 10-14 Toyota FJ Crusier/10-22 4Runner Front Shock Absorber

SKU:24-328258

Regular price $168.00 USD
Regular price $235.00 USD Sale price $168.00 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2010-2024 Toyota 4Runner are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.

Standard Features

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
  • Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
Part Number 24-328258
Part Name Shock Absorber
Vehicle 2010-2024 Toyota 4Runner
UPC 651860896977
Front Lift Height 0 - 2.5 in.
Body Design Snap Ring Grooved Body (Coilover)
Body Diameter (ID) 46 mm
Boot Included Black Straight
Collapsed Length 17.50 in.
Collapsed Length 444.6 mm
Damping Adjustable No
Extended Length 22.31 in.
Extended Length 566.8 mm
Finish Zinc Plated
Internal Design Monotube
Lower Mount Type Eye 14.2 mm
Reservoir No
Segment Light Truck
Series B8 5100 (Ride Height Adjustable)
Spring Seat Included Yes
Upper Mount Type Stem
Notes Without Ultimate Edition Package
Vehicle Fitment
  • 2010 Toyota 4Runner
  • 2011 Toyota 4Runner
  • 2012 Toyota 4Runner
  • 2013 Toyota 4Runner
  • 2014 Toyota 4Runner
  • 2015 Toyota 4Runner
  • 2016 Toyota 4Runner
  • 2017 Toyota 4Runner
  • 2018 Toyota 4Runner
  • 2019 Toyota 4Runner
  • 2020 Toyota 4Runner
  • 2021 Toyota 4Runner
  • 2022 Toyota 4Runner
  • 2023 Toyota 4Runner
  • 2024 Toyota 4Runner
