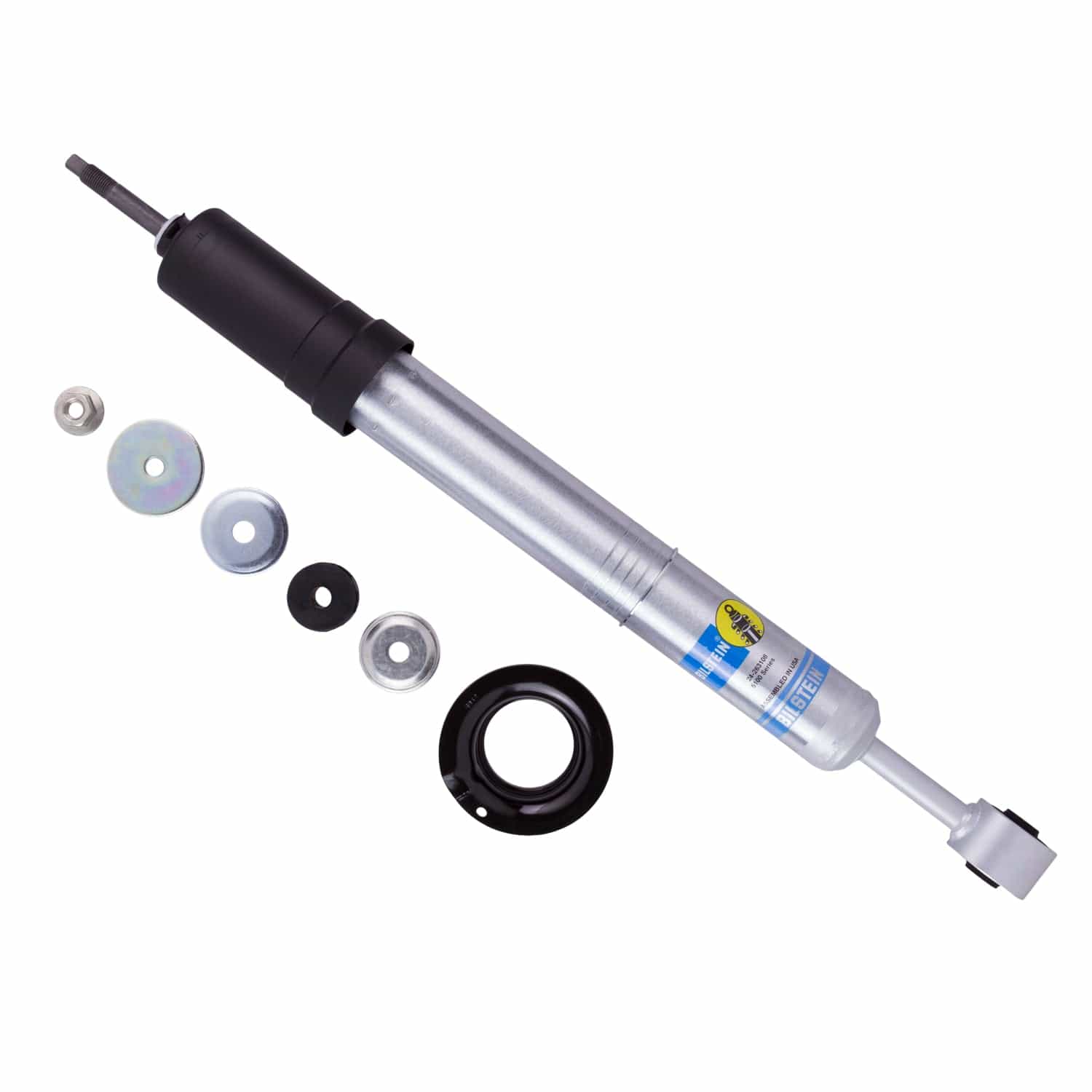

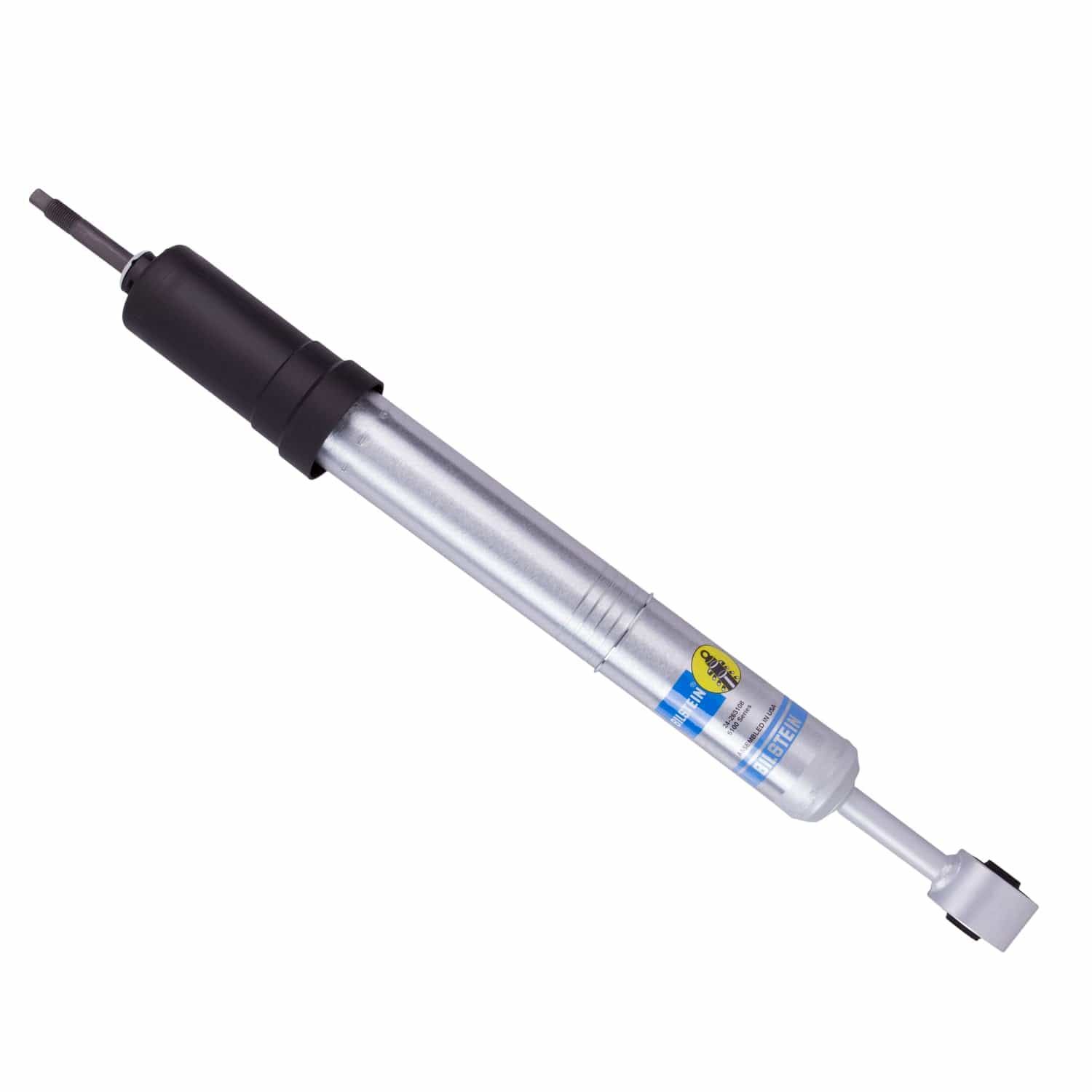

Bilstein B8 5100 Series 2016 Toyota Tacoma TRD/ Limited /SR /SR5 Front 46mm Monotube Shock Absorber

Bilstein B8 5100 Series 2016 Toyota Tacoma TRD/ Limited /SR /SR5 Front 46mm Monotube Shock Absorber

SKU:24-263108

Regular price $168.00 USD
Regular price $235.00 USD Sale price $168.00 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers for the 2016-2023 Toyota Tacoma are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube Shock Absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) Shock Absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) Shock Absorber is the easiest way to level out your vehicle.

Standard Features

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
  • Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
Part Number 24-263108
Part Name Shock Absorber
Vehicle 2016-2023 Toyota Tacoma
UPC 651860783581
Front Lift Height 0 - 2 in.
Body Design Snap Ring Grooved Body (Coilover)
Body Diameter (ID) 46 mm
Boot Included Black Straight
Collapsed Length 17.58 in.
Collapsed Length 446.5 mm
Damping Adjustable No
Extended Length 22.22 in.
Extended Length 564.5 mm
Finish Zinc Plated
Internal Design Monotube
Lower Mount Type Eye 14.2 mm
Reservoir No
Segment Light Truck
Series B8 5100 (Ride Height Adjustable)
Spring Seat Included Yes
Upper Mount Type Stem
Vehicle Fitment
  • 2016 Toyota Tacoma
  • 2017 Toyota Tacoma
  • 2018 Toyota Tacoma
  • 2019 Toyota Tacoma
  • 2020 Toyota Tacoma
  • 2021 Toyota Tacoma
  • 2022 Toyota Tacoma
  • 2023 Toyota Tacoma
