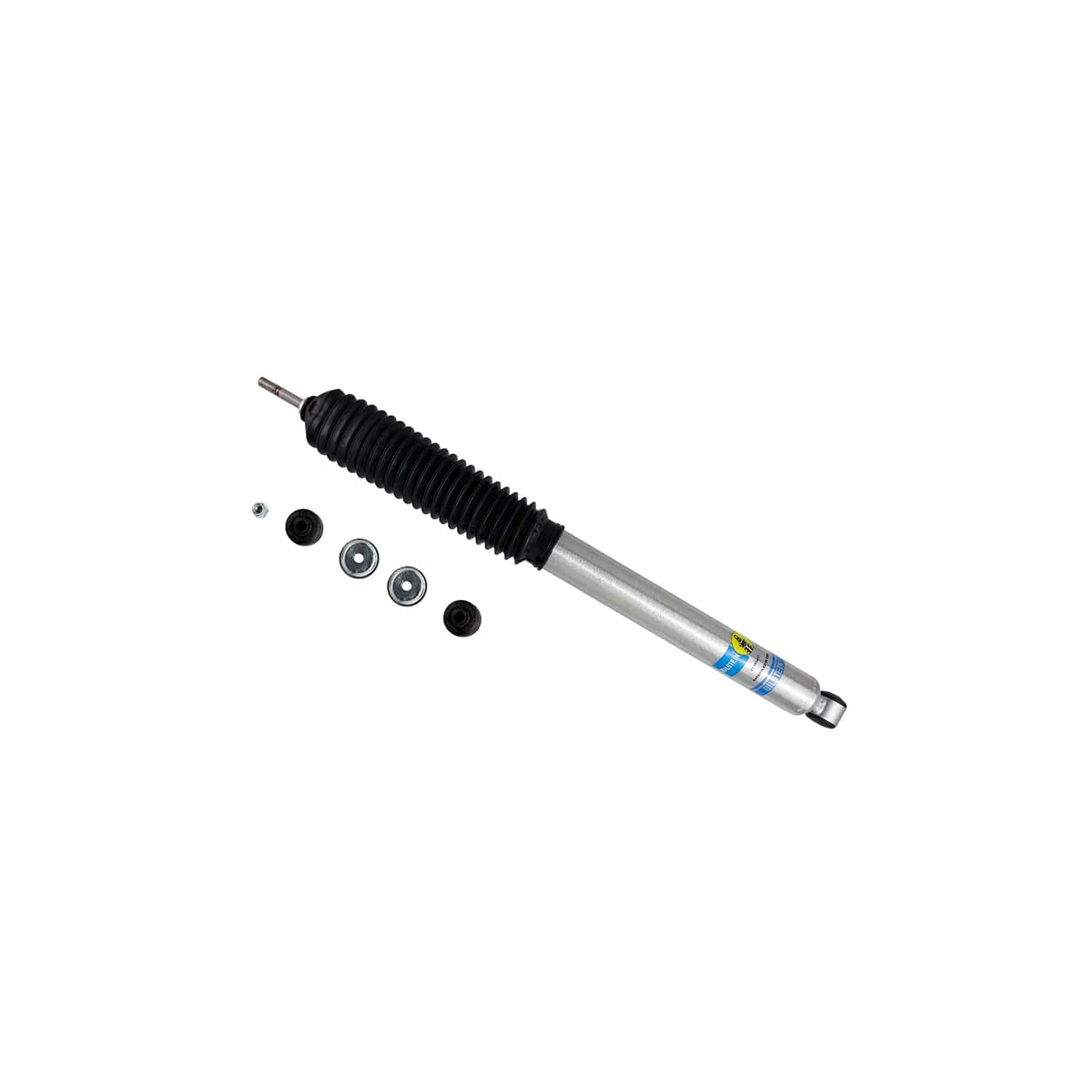

Bilstein B8 5100 Suspension Shock Absorber for 1997-2003 Ford F-150 4WD - 27.32 in. Extended

Bilstein B8 5100 Suspension Shock Absorber for 1997-2003 Ford F-150 4WD - 27.32 in. Extended

24-185417

In stock

$101.21 USD
$164.00 USD $101.21 USD
vADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

Bilstein B8 5100 Shock Absorbers for the 1997-2003 Ford F-150 are designed as a direct fit solution for lifted trucks and SUV's. These Shock Absorbers feature a monotube design which provides consistent fade free performance. B8 5100 Shock Absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 Shock Absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 Shock Absorbers offer a significant improvement in ride quality, handling, and comfort.

Standard Features

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
Specifications
Part Number 24-185417
Part Name Shock Absorber
Vehicle 1997-2003 Ford F-150
UPC 651860453439
Rear Lift Height 0 - 2 in.
Body Design Smooth Body (Non-Coilover)
Body Diameter (ID) 46 mm
Boot Included Black Bellows
Collapsed Length 16.38 in.
Collapsed Length 416.0 mm
Damping Adjustable No
Extended Length 27.32 in.
Extended Length 694.0 mm
Finish Zinc Plated
Internal Design Monotube
Lower Mount Type Eye 12 mm
Reservoir No
Segment Light Truck
Series B8 5100
Spring Seat Included No
Upper Mount Type Stem
Notes With Light Duty Suspension (5-lug wheels)
Vehicle Fitment
  • 1997 Ford F-150
  • 1998 Ford F-150
  • 1999 Ford F-150
  • 2000 Ford F-150
  • 2001 Ford F-150
  • 2002 Ford F-150
  • 2003 Ford F-150
