| Year | Make | Model | Engine |
|---|---|---|---|
| 2006-2008 | Dodge | Ram 1500 | 3.7L 226Cu. In. V6 GAS SOHC Naturally Aspirated |
| 2006-2008 | Dodge | Ram 1500 | 4.7L 287Cu. In. V8 FLEX SOHC Naturally Aspirated |
| 2006-2008 | Dodge | Ram 1500 | 4.7L 287Cu. In. V8 GAS SOHC Naturally Aspirated |
| 2006-2008 | Dodge | Ram 1500 | 5.7L 345Cu. In. V8 GAS OHV Naturally Aspirated |
| 2006 | Dodge | Ram 1500 | 8.3L 8275CC 505Cu. In. V10 GAS OHV Naturally Aspirated |
| 2002-2010 | Dodge | Ram 2500 | 4.7L 287Cu. In. V8 GAS SOHC Naturally Aspirated |
| 1995-1996 | Dodge | Ram 2500 | 5.2L 5211CC 318Cu. In. V8 CNG OHV Naturally Aspirated |
| 1994-2001 | Dodge | Ram 2500 | 5.2L 5211CC 318Cu. In. V8 GAS OHV Naturally Aspirated |
| 2003-2010 | Dodge | Ram 2500 | 5.7L 345Cu. In. V8 GAS OHV Naturally Aspirated |
| 1994-2009 | Dodge | Ram 2500 | 5.9L 359Cu. In. l6 DIESEL OHV Turbocharged |
| 1994-2002 | Dodge | Ram 2500 | 5.9L 360Cu. In. V8 GAS OHV Naturally Aspirated |
| 1998 | Dodge | Ram 2500 | 5.9L 360Cu. In. V8 GAS SOHC Naturally Aspirated |
| 2002 | Dodge | Ram 2500 | 5.9L 360Cu. In. V8 GAS SOHC Naturally Aspirated |
| 2007-2010 | Dodge | Ram 2500 | 6.7L 408Cu. In. l6 DIESEL OHV Turbocharged |
| 1994-2003 | Dodge | Ram 2500 | 8.0L 7990CC 488Cu. In. V10 GAS OHV Naturally Aspirated |
| 2003-2009 | Dodge | Ram 3500 | 5.7L 345Cu. In. V8 GAS OHV Naturally Aspirated |
| 1994-2008 | Dodge | Ram 3500 | 5.9L 359Cu. In. l6 DIESEL OHV Turbocharged |
| 1994-2002 | Dodge | Ram 3500 | 5.9L 360Cu. In. V8 GAS OHV Naturally Aspirated |
| 2007-2010 | Dodge | Ram 3500 | 6.7L 408Cu. In. l6 DIESEL OHV Turbocharged |
| 1994-2003 | Dodge | Ram 3500 | 8.0L 7990CC 488Cu. In. V10 GAS OHV Naturally Aspirated |
| 2011-2013 | Ram | 2500 | 4.7L 287Cu. In. V8 FLEX SOHC Naturally Aspirated |
| 2012 | Ram | 2500 | 5.7L 345Cu. In. V8 BI-FUEL OHV Naturally Aspirated |
| 2013 | Ram | 2500 | 5.7L 345Cu. In. V8 CNG OHV Naturally Aspirated |
| 2011-2013 | Ram | 2500 | 5.7L 345Cu. In. V8 GAS OHV Naturally Aspirated |
| 2011-2013 | Ram | 2500 | 6.7L 408Cu. In. l6 DIESEL OHV Turbocharged |
| 2011-2012 | Ram | 3500 | 5.7L 345Cu. In. V8 GAS OHV Naturally Aspirated |
| 2011-2012 | Ram | 3500 | 6.7L 408Cu. In. l6 DIESEL OHV Turbocharged |
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 25-311761 | 0-2" Lift | Rear | Shock Absorber | 2 |
| 25-311754 | 0-3" Lift | Front | Shock Absorber | 2 |

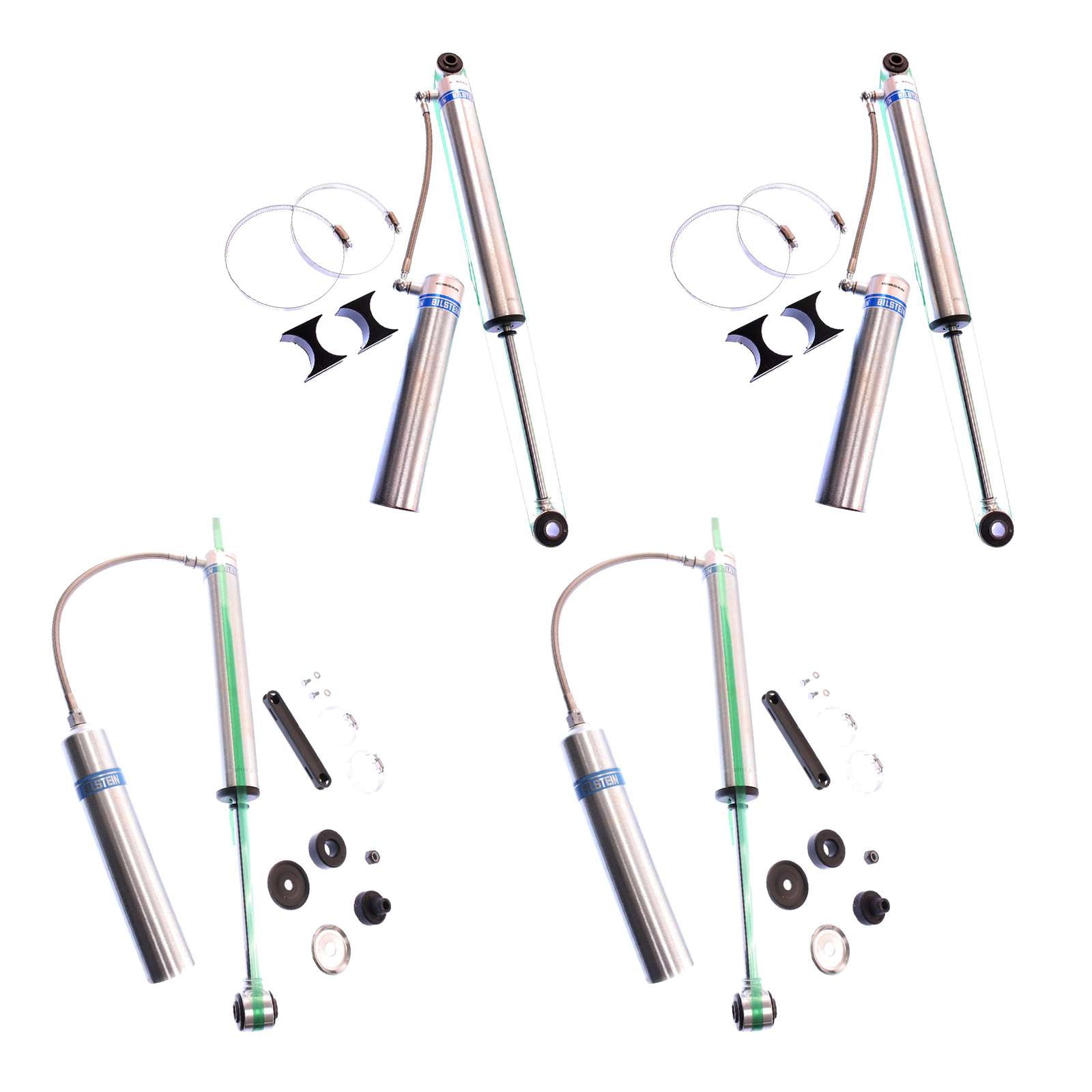

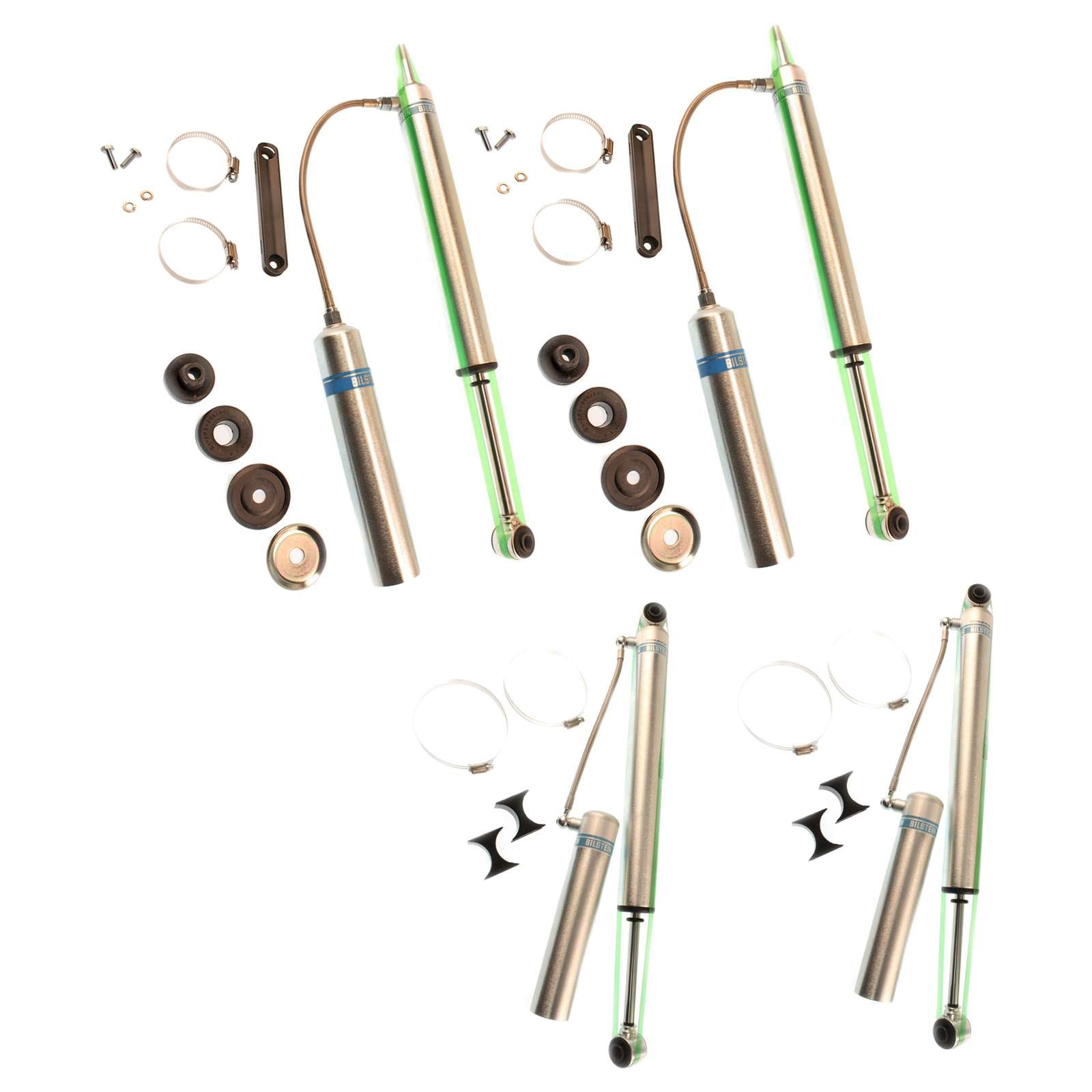

Bilstein B8 5160 w/ Remote Reservoir Shocks Set w/0-3" lift - 2011-2012 Ram 3500 4WD
Bilstein B8 5160 w/ Remote Reservoir Shocks Set w/0-3" lift - 2011-2012 Ram 3500 4WD
SKU:10547499532575_52689462427935
In stock
Couldn't load pickup availability
▶ Vehicle Fitments
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 25-311761 | 0-2" Lift | Rear | Shock Absorber | 2 |
| 25-311754 | 0-3" Lift | Front | Shock Absorber | 2 |
The Bilstein B8 5160 remote reservoir shocks set is a high-performance suspension upgrade designed for 4WD vehicles. This set includes four shocks—two for the front and two for the rear—featuring a rugged reservoir design that enhances control and durability over challenging terrain. Equipped with digressive valving, these shocks provide increased control over body motions and improved bump compliance. Constructed with zinc plating and increased oil capacity, they dissipate heat effectively for long-term reliability. The inclusion of reservoir mounts and hardware allows for straightforward installation, with an optional billet aluminum reservoir clamp available for a cleaner appearance.
Designed specifically for 2011-2012 Ram 3500 4WD models at factory height or with up to a 3-inch front lift and up to 2-inch rear lift, these shocks are ideal for off-road use and demanding terrains. They are compatible with vehicles that have no suspension modifications or minor lift systems, ensuring a precise fit. The kit reuses factory shock mounting bolts and includes all necessary components for installation. Perfect for off-road enthusiasts and those seeking enhanced vehicle control, these shocks deliver superior performance and durability in extreme conditions.
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 25-311761 | 0-2" Lift | Rear | Shock Absorber | 2 |
| 25-311754 | 0-3" Lift | Front | Shock Absorber | 2 |
Share
Overview
Overview
Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
