| Year | Make | Model |
|---|---|---|
| 2013 - 2024 | Ram | 3500 Big Horn |
| 2013 - 2024 | Ram | 3500 Laramie |
| 2014 - 2015 | Ram | 3500 Laramie Limited |
| 2013 - 2020 | Ram | 3500 Laramie Longhorn |
| 2016 - 2024 | Ram | 3500 Limited |
| 2021 - 2024 | Ram | 3500 Limited Longhorn |
| 2013 - 2015 | Ram | 3500 Lone Star |
| 2017 | Ram | 3500 Lone Star |
| 2019 - 2022 | Ram | 3500 Lone Star |
| 2013 - 2018 | Ram | 3500 SLT |
| 2013 | Ram | 3500 ST |
| 2013 - 2024 | Ram | 3500 Tradesman |
Bilstein B8 5162 Suspension Leveling Kit for 2013-2024 Ram 3500
Bilstein B8 5162 Suspension Leveling Kit for 2013-2024 Ram 3500
SKU:46-264503
Out of stock
Couldn't load pickup availability
▶ Vehicle Fitments
The Bilstein B8 5162 Suspension Leveling Kit for the 2013-2024 Ram 3500 is a high-performance upgrade designed to enhance ground clearance and accommodate larger tires. This kit features front-specific components, including two B8 5160 shock absorbers and matched coil springs, engineered to improve wheel travel and overall suspension performance. Constructed with durable materials, the kit ensures a smooth, stable ride while maintaining factory ride quality. Its straightforward bolt-on installation allows for a hassle-free upgrade without modifications, making it an ideal choice for owners seeking improved off-road capability and load handling.
Designed specifically for 2013-2024 Ram 3500 models, this leveling kit fits vehicles equipped with factory suspension components. It is suitable for applications requiring increased ground clearance for off-road use, larger tires, or aesthetic enhancements. The kit replaces factory front suspension parts, providing a direct fit and reliable performance. Perfect for daily driving, off-road adventures, or towing, this suspension upgrade enhances vehicle capability while maintaining ride comfort. The kit includes all necessary components for a complete installation, ensuring optimal suspension alignment and durability.
Share
Overview
Overview

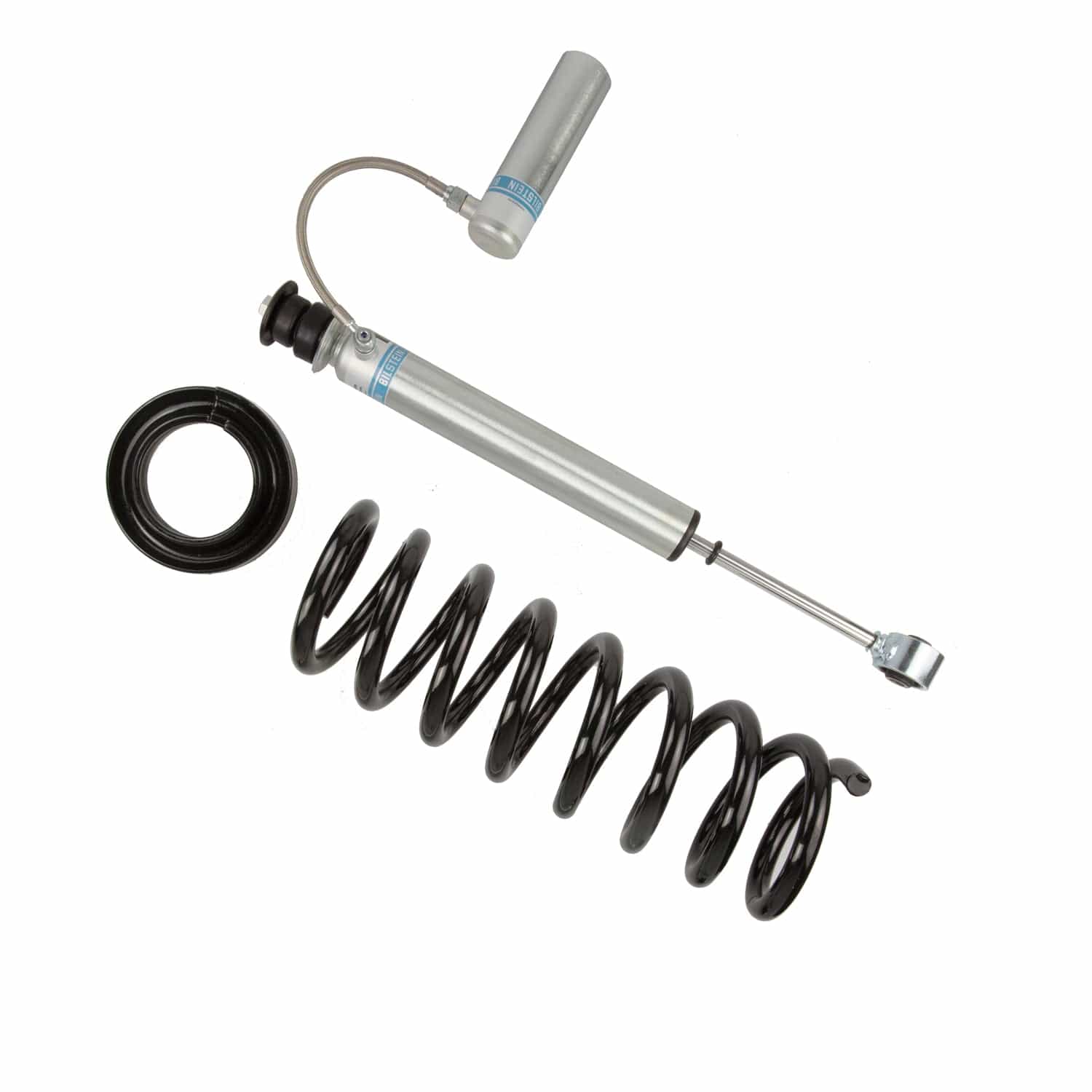

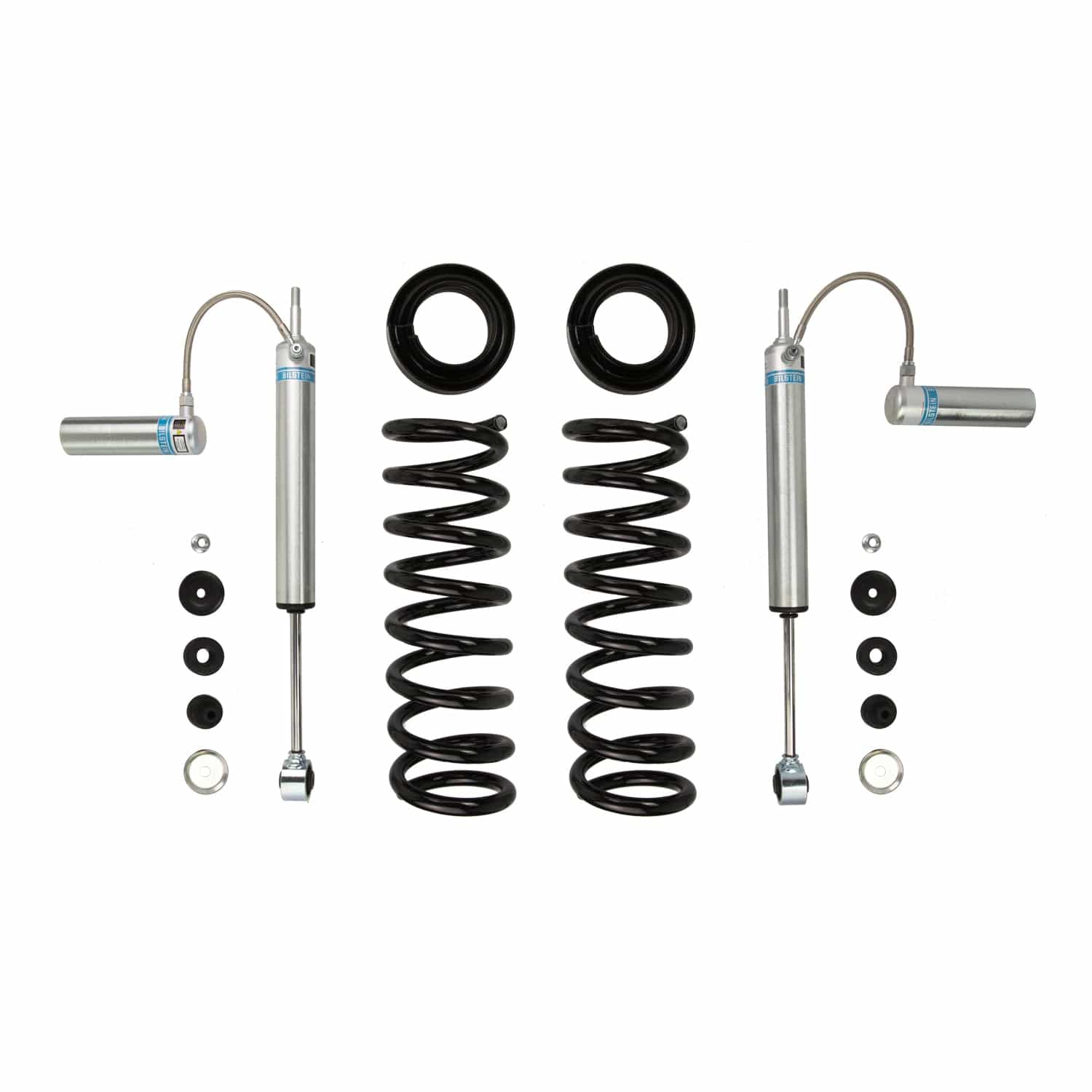

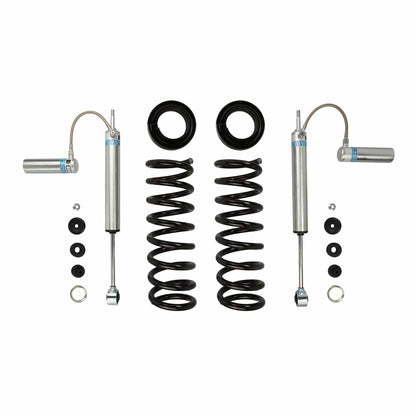

Bilstein B8 5162 Suspension Kit for the 2013-2024 Ram 3500 is a high performance leveling kit which provides more ground clearance, allows for larger tires, and increases wheel travel. The Bilstein B8 5162 suspension kit is for front applications and consists of (2) B8 5160 Shock Absorbers combined with (2) matched coil springs. This simple yet effective kit will bolt into the factory locations with no modifications. The Bilstein B8 5162 suspension kit provides a smooth and stable ride both on and off-road.
Standard Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- Remote reservoir increases shock oil capacity for greater heat dissipation
Specifications
| Part Number | 46-264503 |
| Part Name | Suspension Leveling Kit |
| Vehicle | 2013-2024 Ram 3500 |
| UPC | 651860786742 |
| Front Lift Height | 2 in. |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Boot Included | No |
| Damping Adjustable | No |
| Finish | Dampers: Zinc Plated / Springs: Black |
| Internal Design | Monotube |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 5162 |
| Spring Seat Included | No |
| Notes | Adjustable Track Bar Recommended |
Vehicle Fitment
- 2013 Ram 3500
- 2014 Ram 3500
- 2015 Ram 3500
- 2016 Ram 3500
- 2017 Ram 3500
- 2018 Ram 3500
- 2019 Ram 3500
- 2020 Ram 3500
- 2021 Ram 3500
- 2022 Ram 3500
- 2023 Ram 3500
- 2024 Ram 3500
