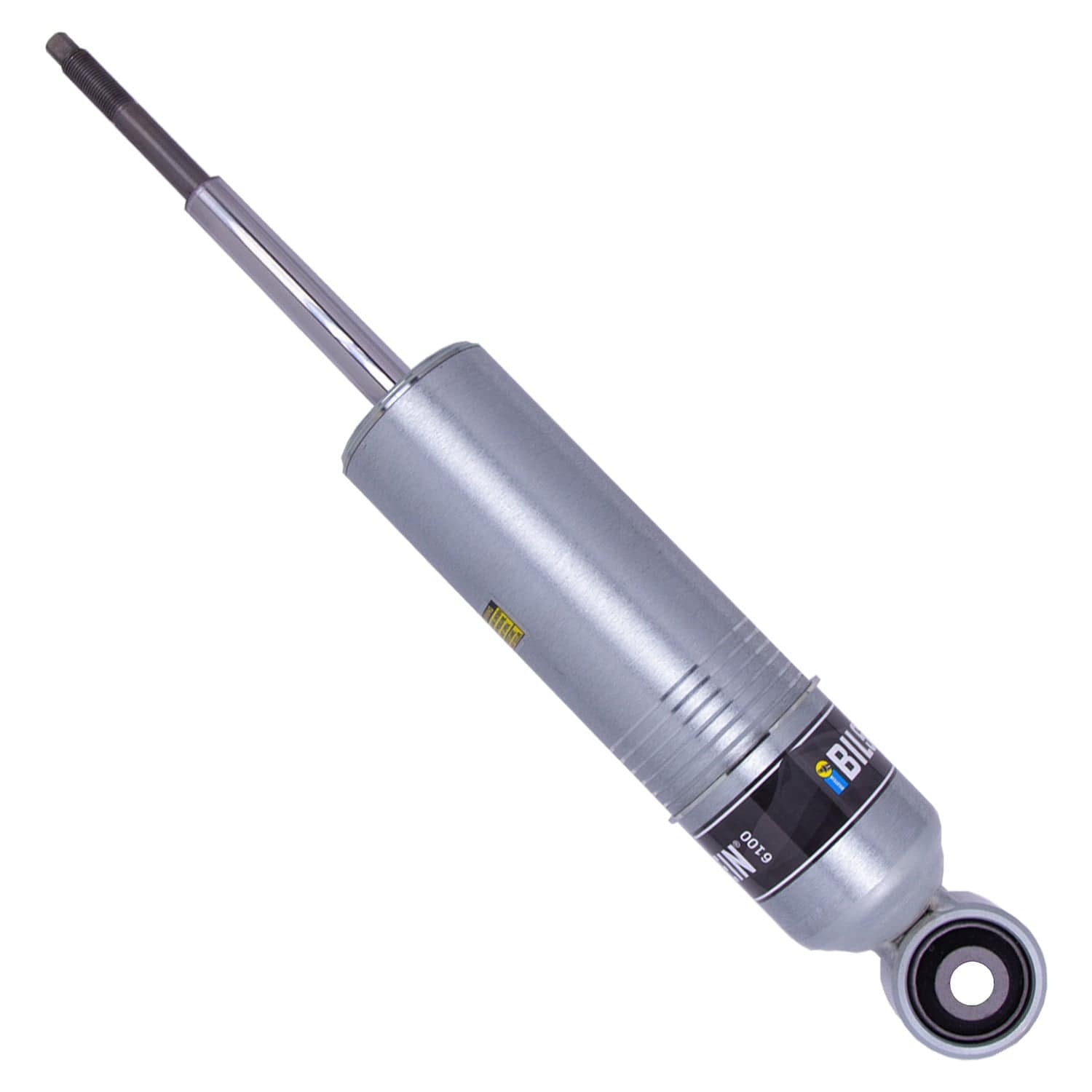

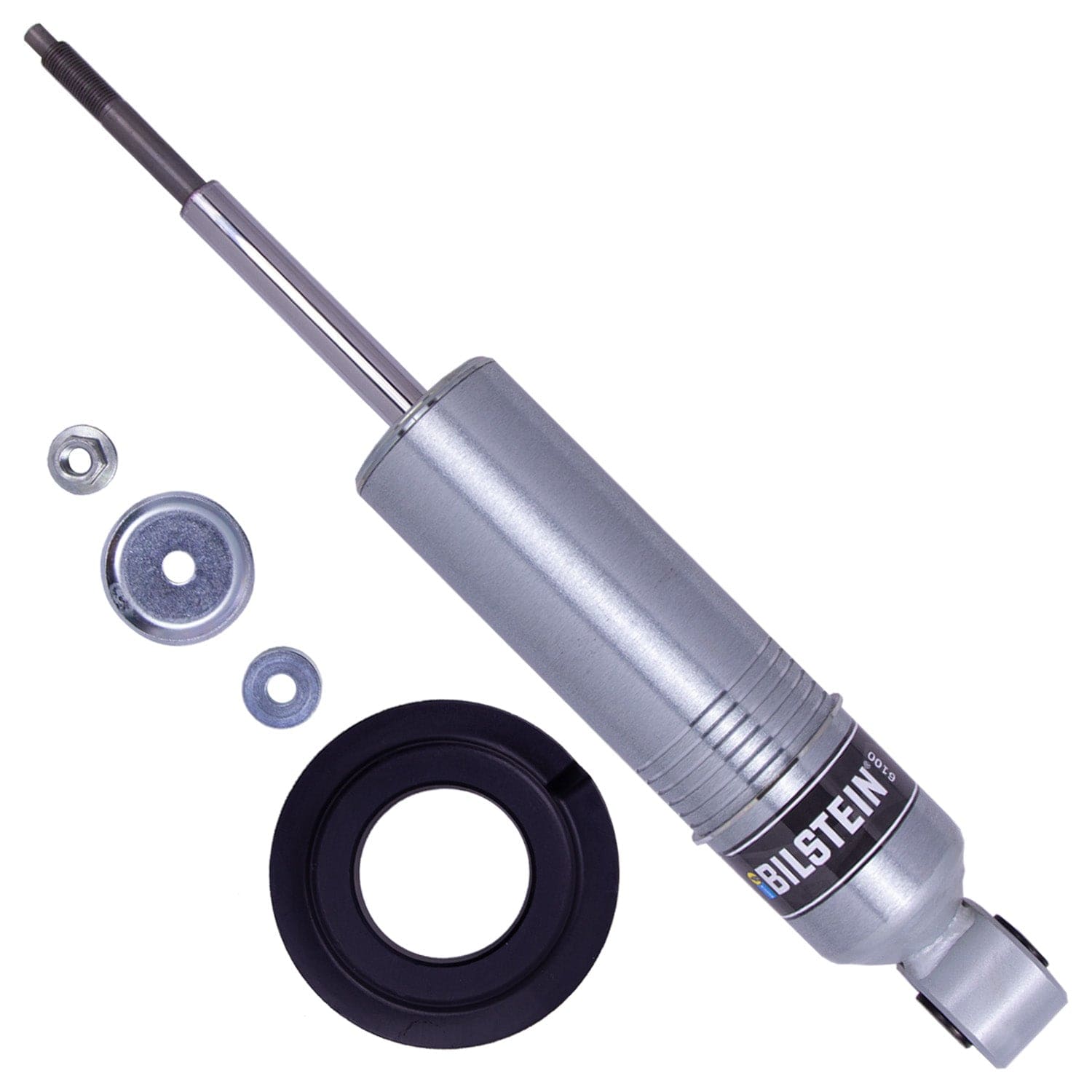

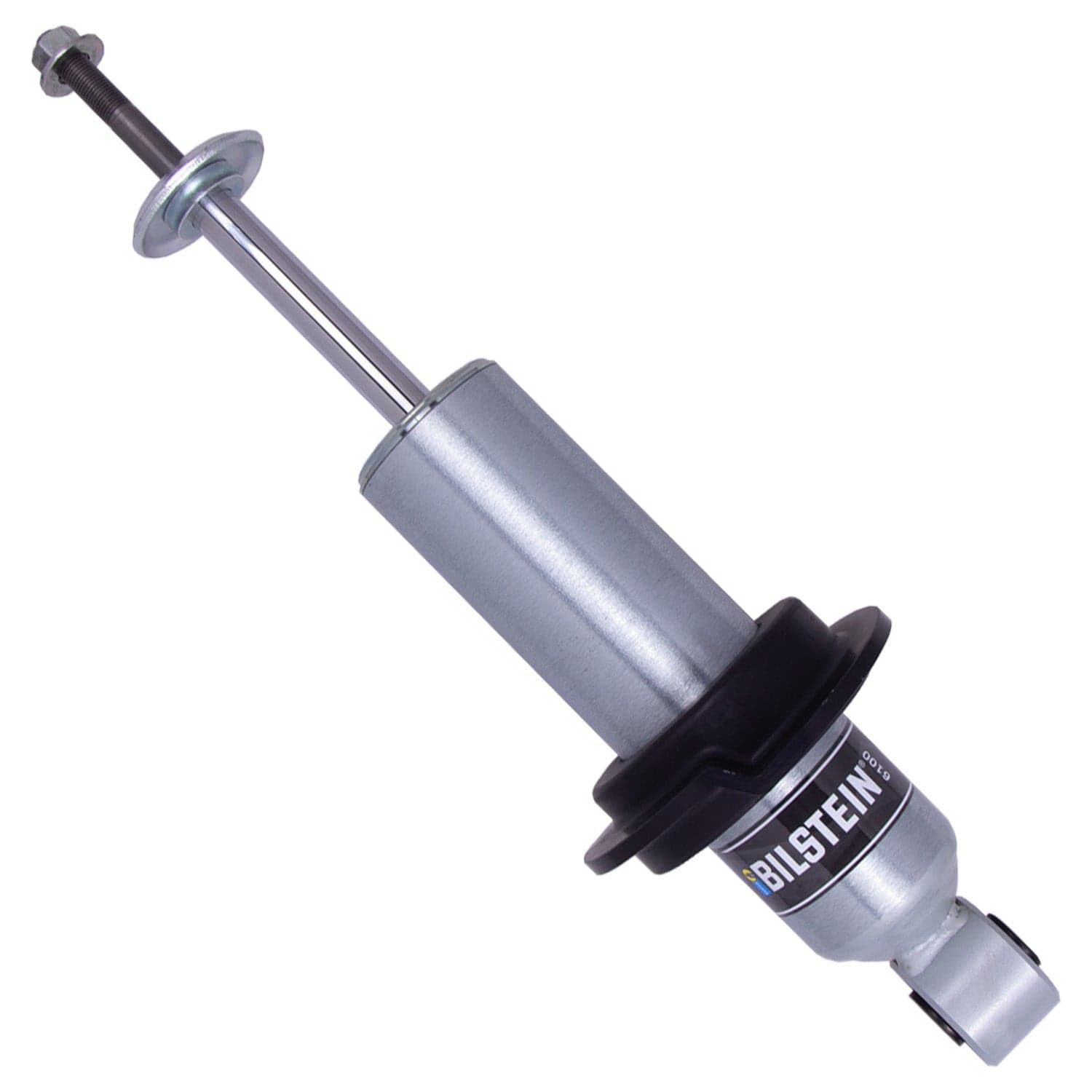

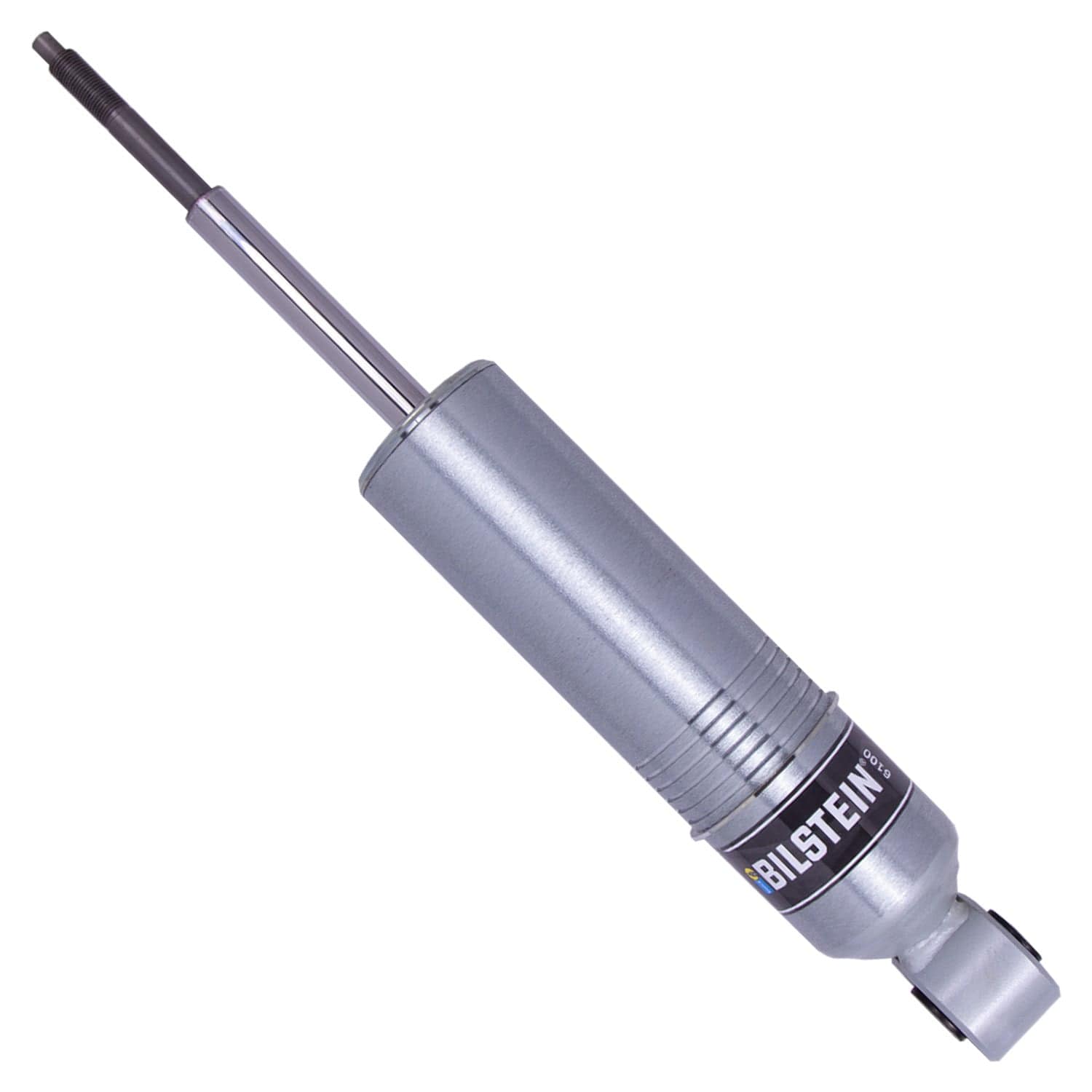

Bilstein B8 6100 (Ride Height Adjustable) Suspension Shock Absorber for 2012-2015 Nissan TITAN 4WD - 15.14 in. Extended, 11.07 in. Collapsed
Bilstein B8 6100 (Ride Height Adjustable) Suspension Shock Absorber for 2012-2015 Nissan TITAN 4WD - 15.14 in. Extended, 11.07 in. Collapsed
SKU:24-311137
In stock
Regular price
$218.49 USD
Regular price
$325.00 USD
Sale price
$218.49 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
Bilstein B8 6100 (Ride Height Adjustable) Shock Absorbers for the 2012-2015 Nissan TITAN are designed for trucks and SUV's with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-3 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 60mm digressive piston. This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation, making them perfect for vehicles subjected to rugged roads and harsh conditions.
Standard Features
- Large 60mm body for increased oil capacity, cooling, and long-term durability
- 60mm digressive piston improves ride comfort and control over rough terrain
- Vehicle specific tuning
Specifications
Part Number | 24-311137 |
Part Name | Shock Absorber |
Vehicle | 2012-2015 Nissan TITAN |
UPC | 651860868523 |
Front Lift Height | 0 - 1.2 in. |
Body Design | Snap Ring Grooved Body (Coilover) |
Body Diameter (ID) | 60 mm |
Boot Included | No |
Collapsed Length | 11.07 in. |
Collapsed Length | 281.2 mm |
Damping Adjustable | No |
Extended Length | 15.14 in. |
Extended Length | 384.5 mm |
Finish | Zinc Plated |
Internal Design | Monotube |
Lower Mount Type | Eye 14.2 mm |
Reservoir | No |
Segment | Light Truck |
Series | B8 6100 (Ride Height Adjustable) |

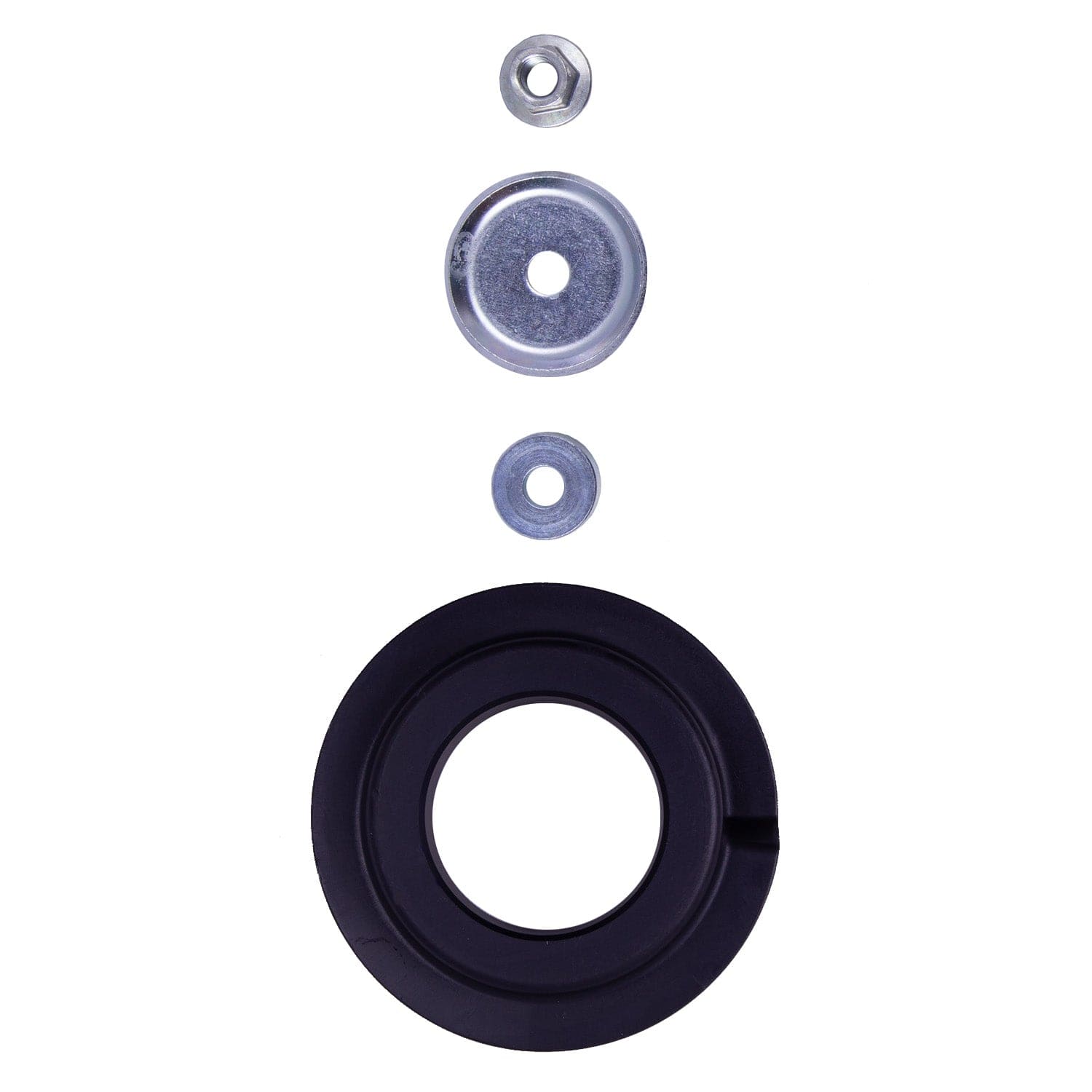

Spring Seat Included | Yes |
Upper Mount Type | Stem |
Vehicle Fitment
- 2012 Nissan TITAN
- 2013 Nissan TITAN
- 2014 Nissan TITAN
- 2015 Nissan TITAN
