Bilstein B8 6112 10-22 Lexus GX460 / 10-22 Toyota 4Runner Front Suspension Kit
Bilstein B8 6112 10-22 Lexus GX460 / 10-22 Toyota 4Runner Front Suspension Kit
SKU:47-310025
Couldn't load pickup availability

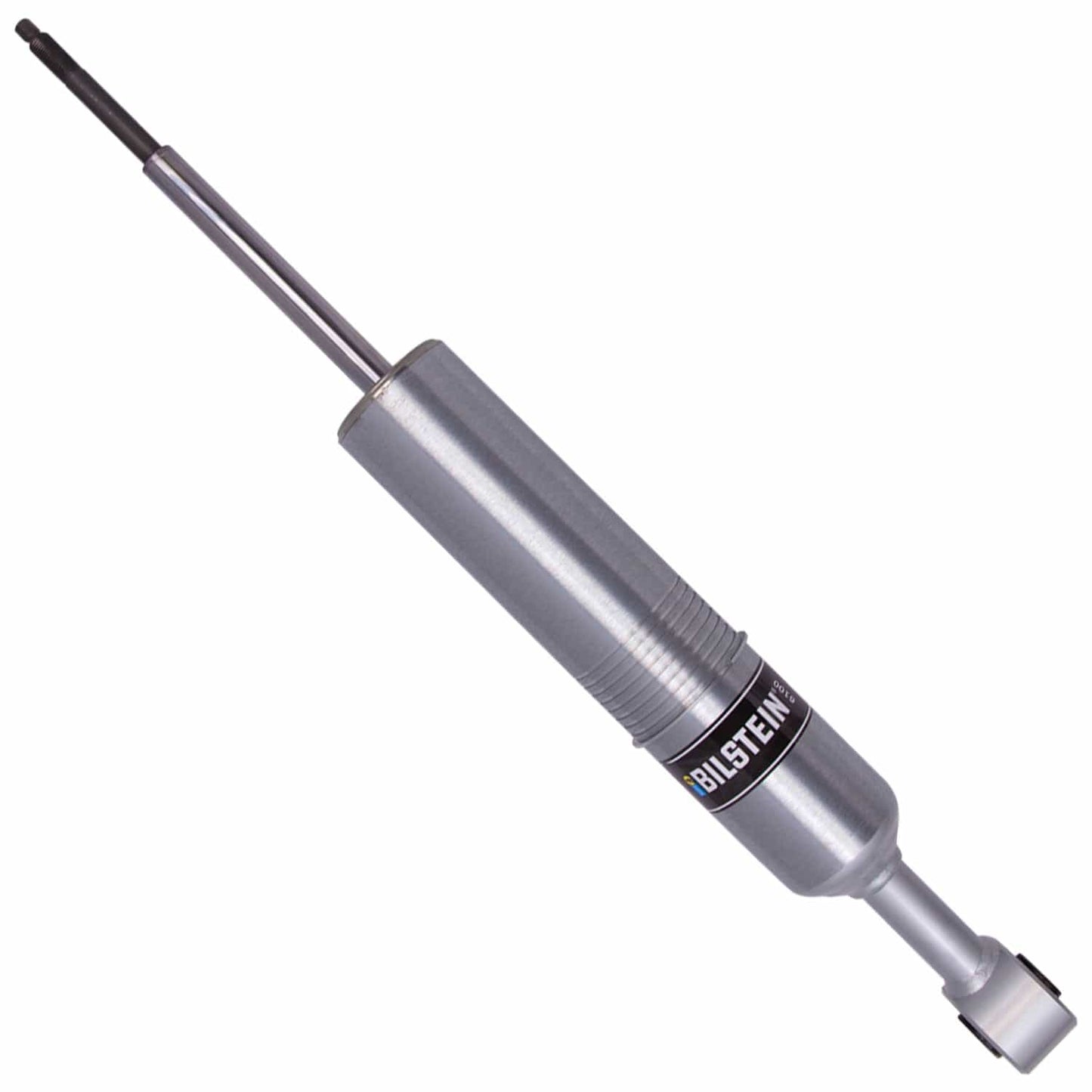

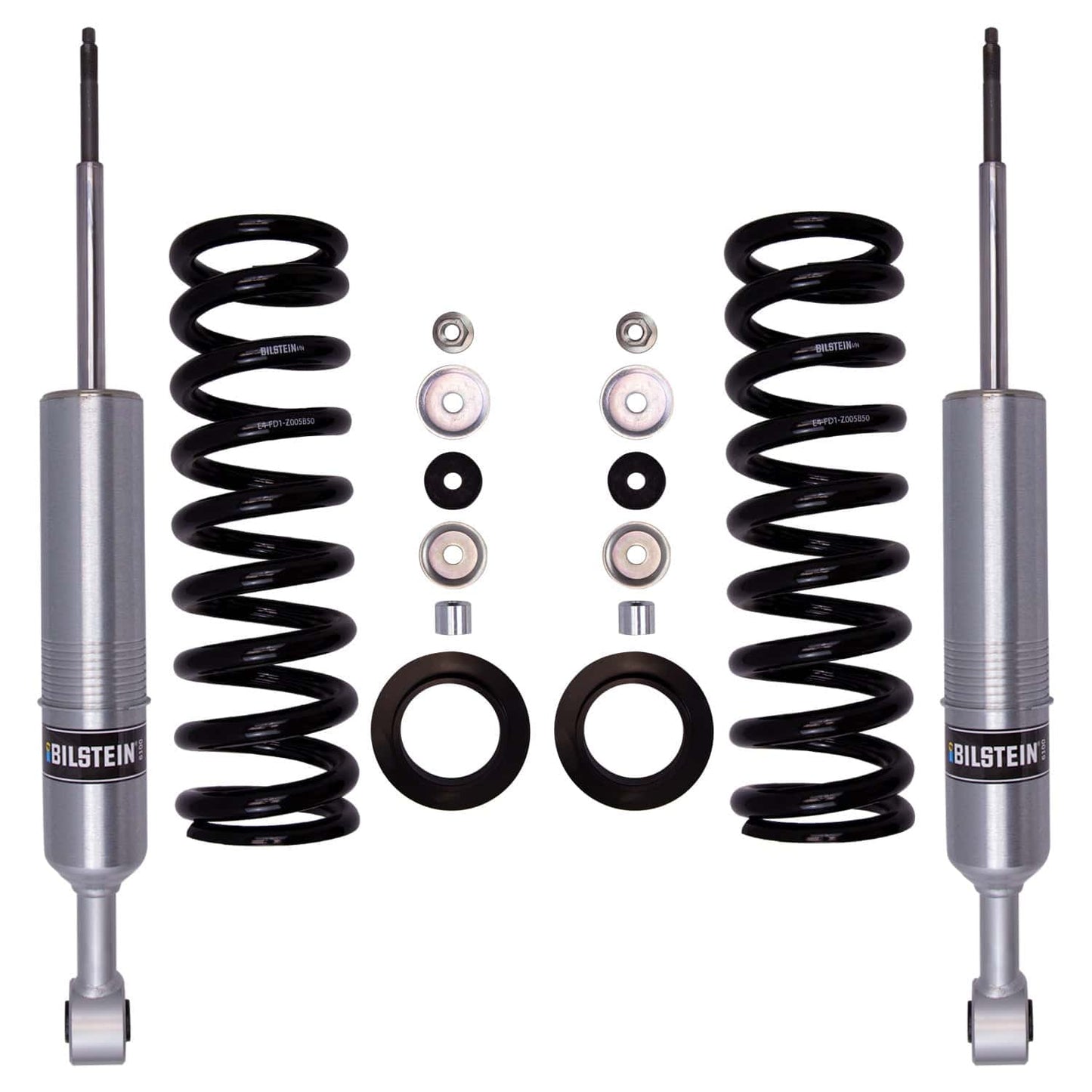

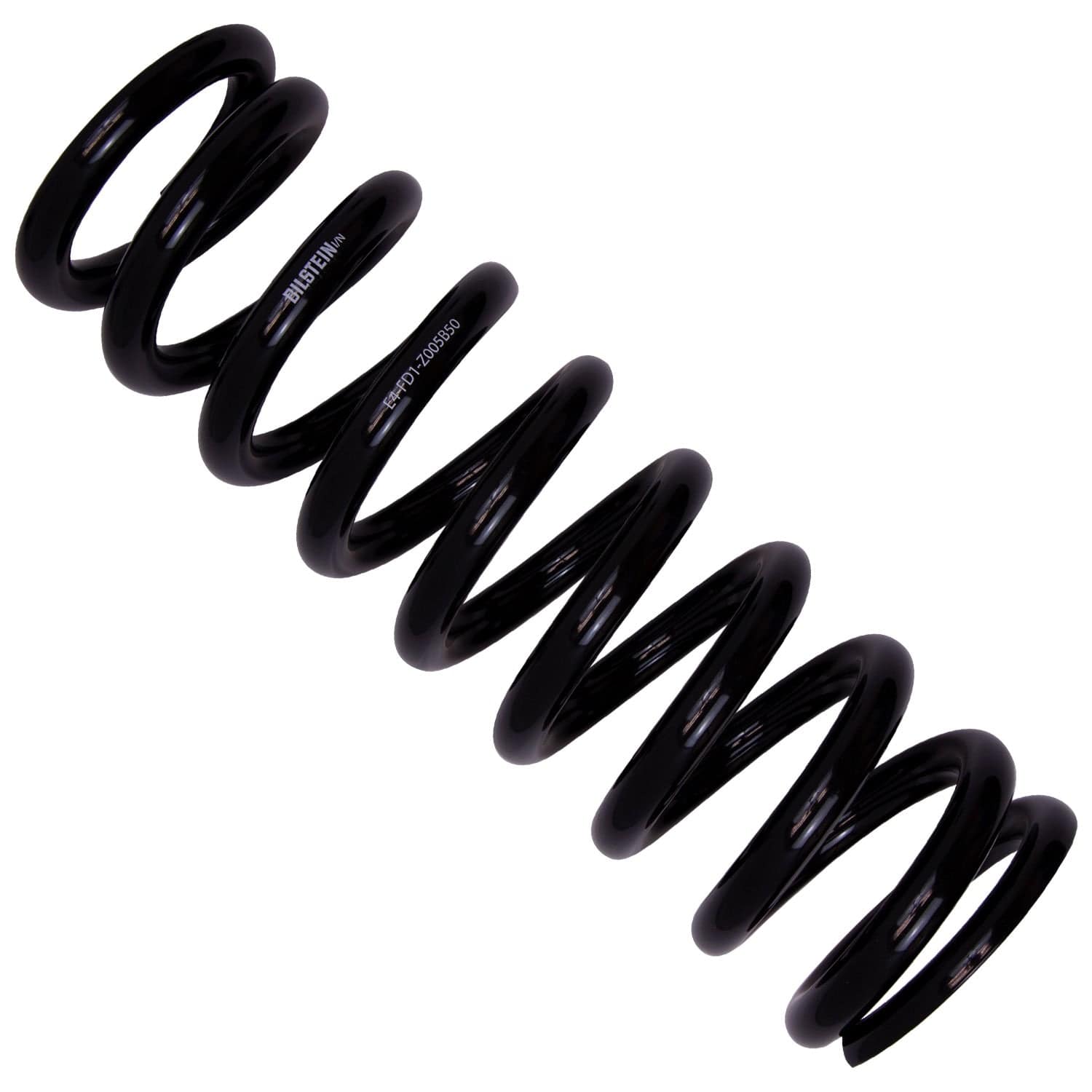

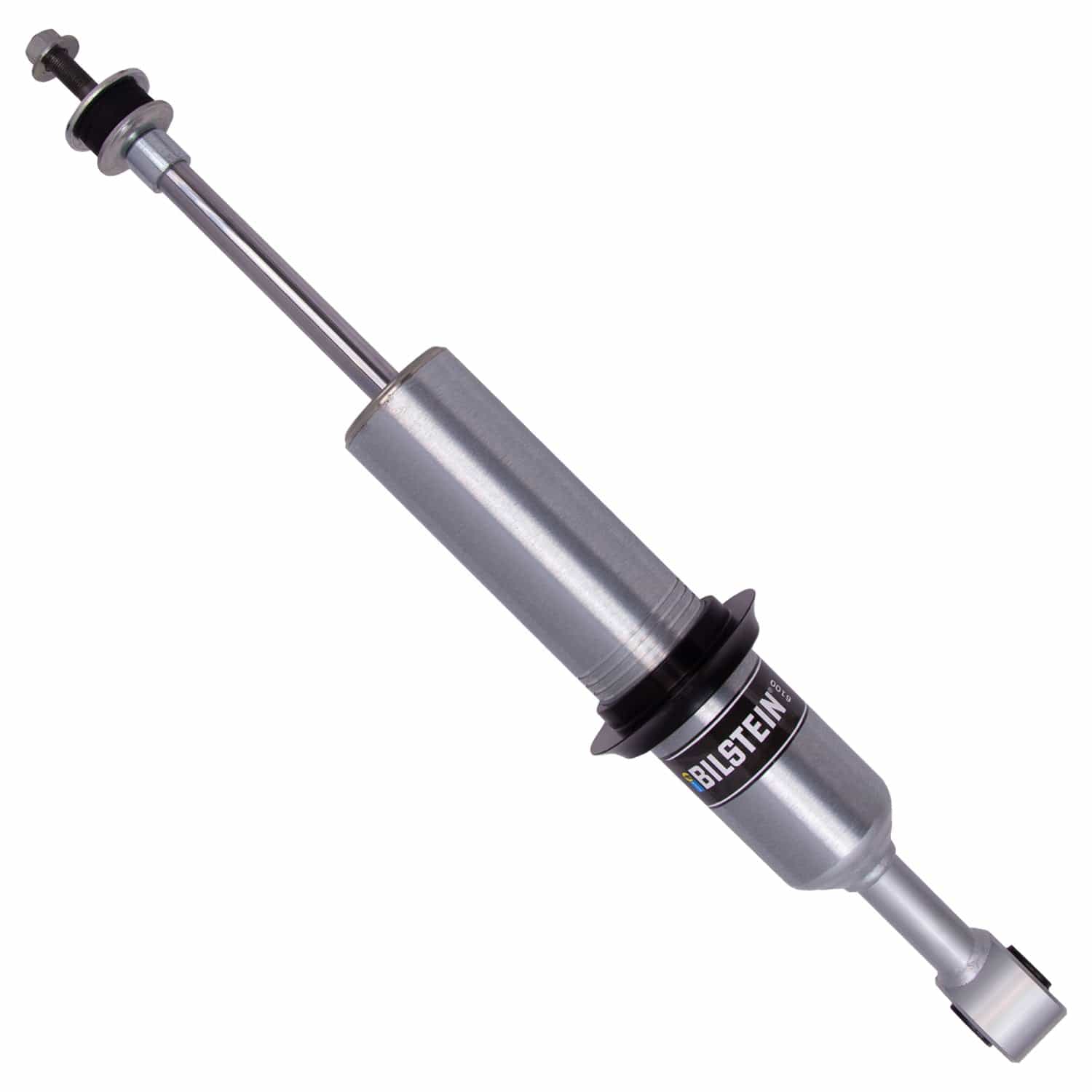

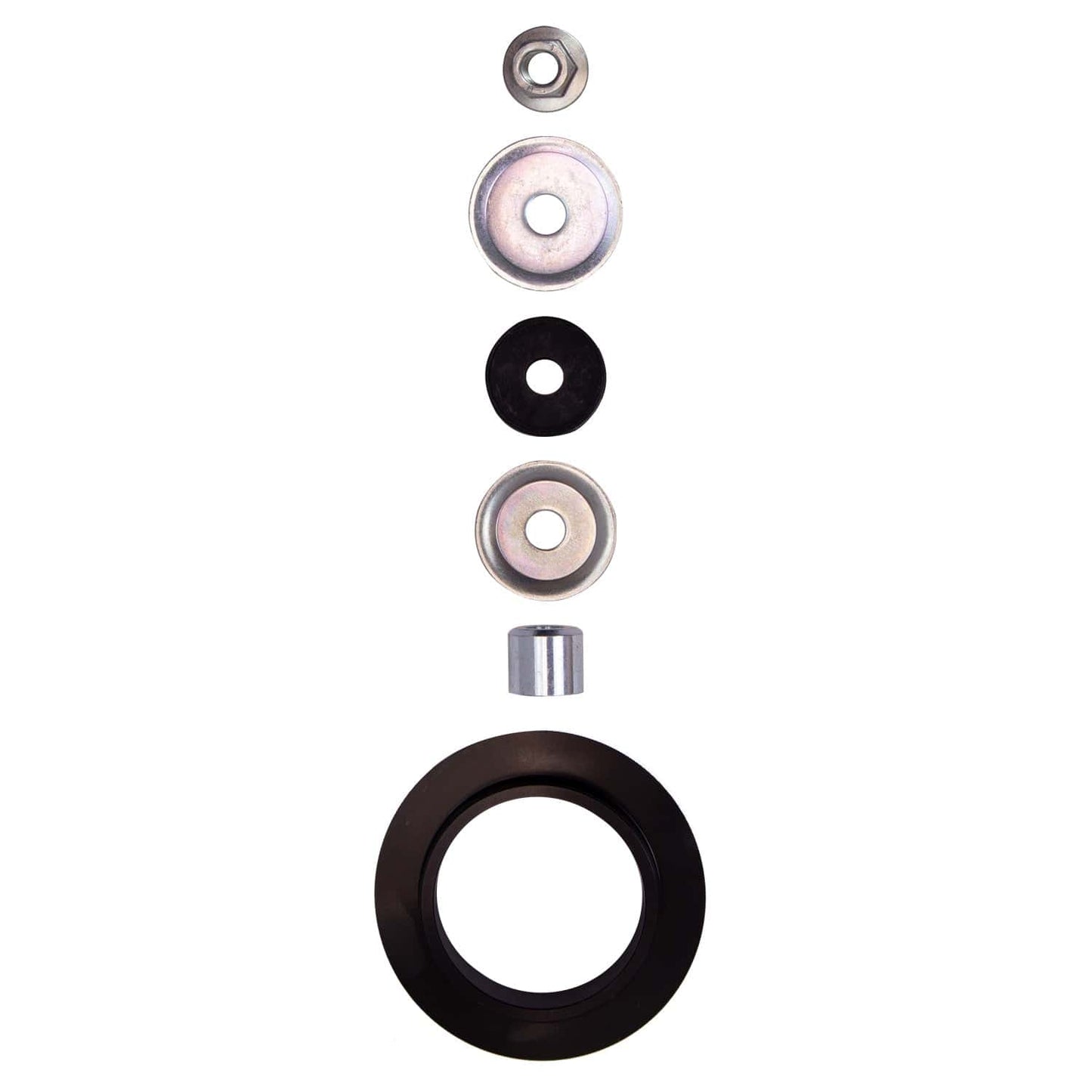

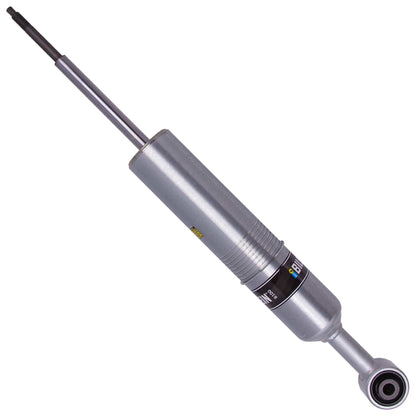

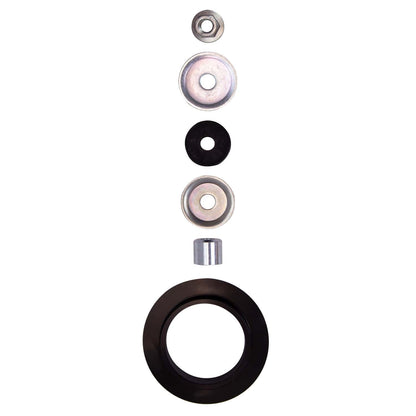

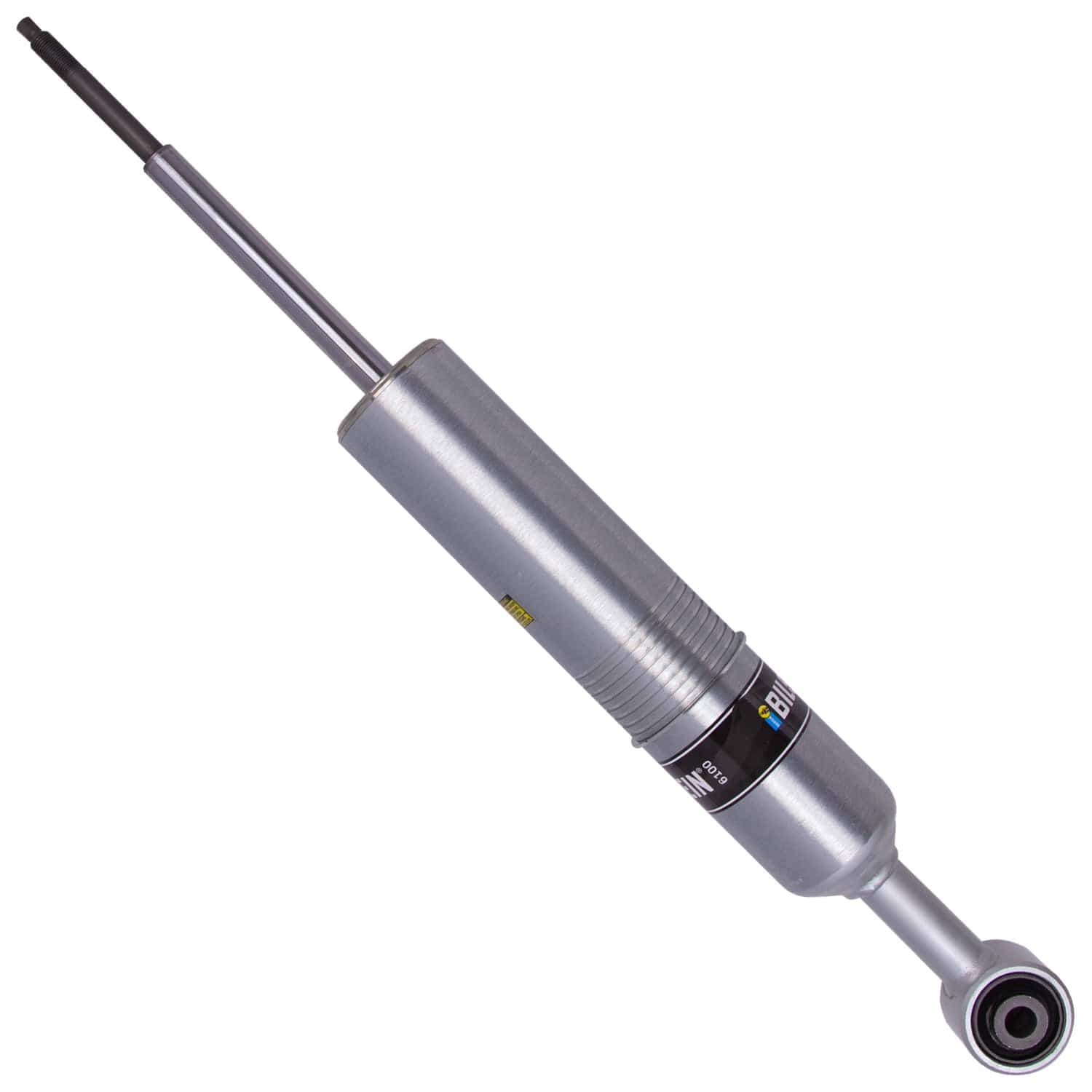

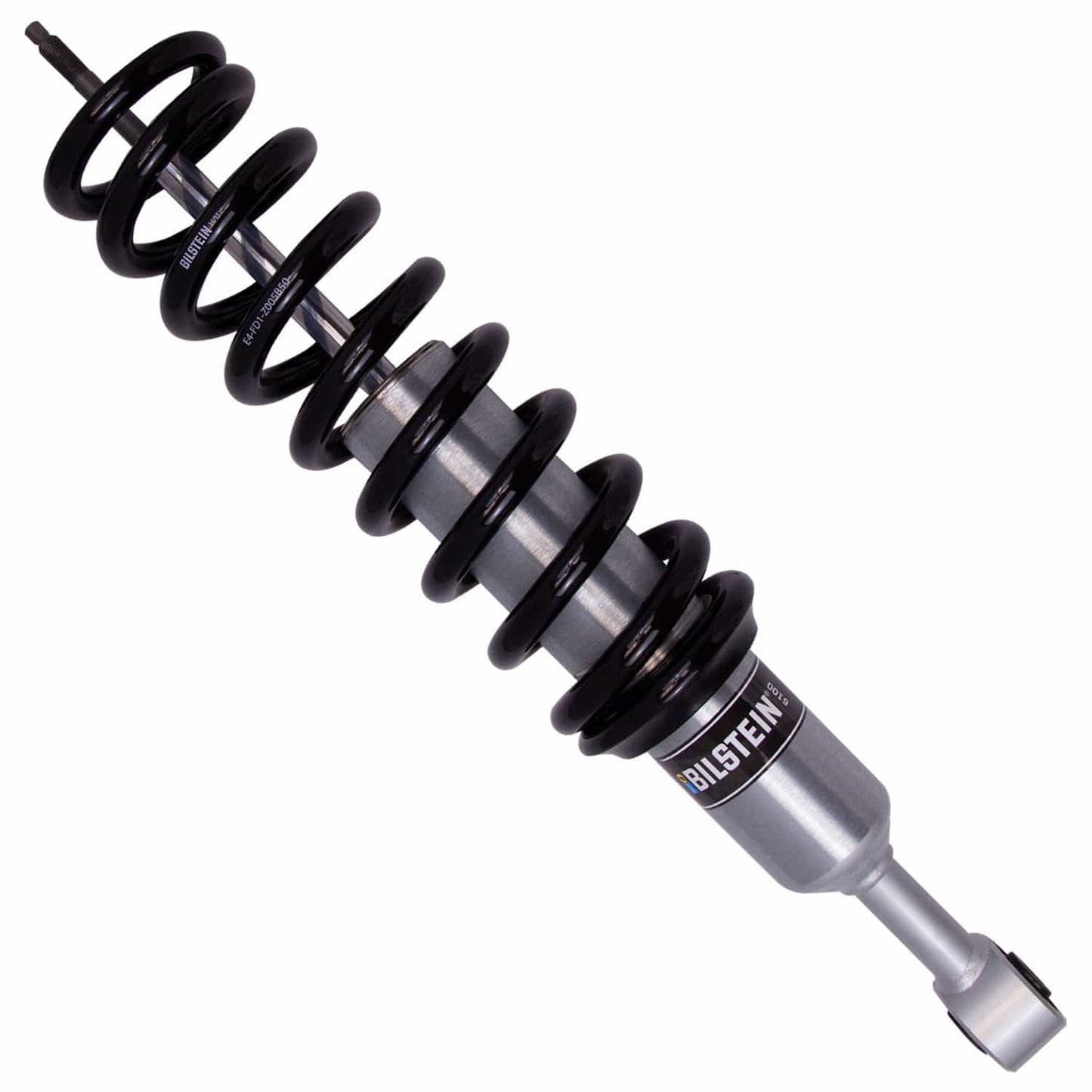

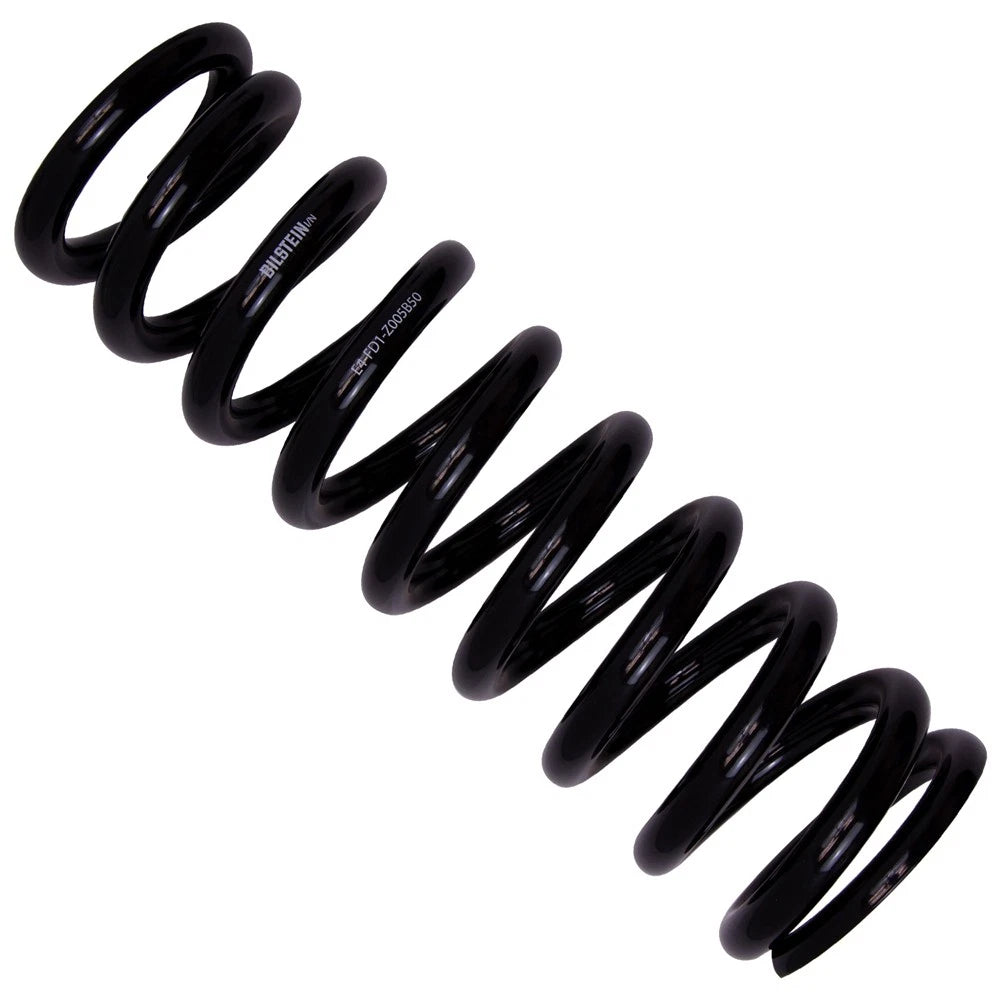

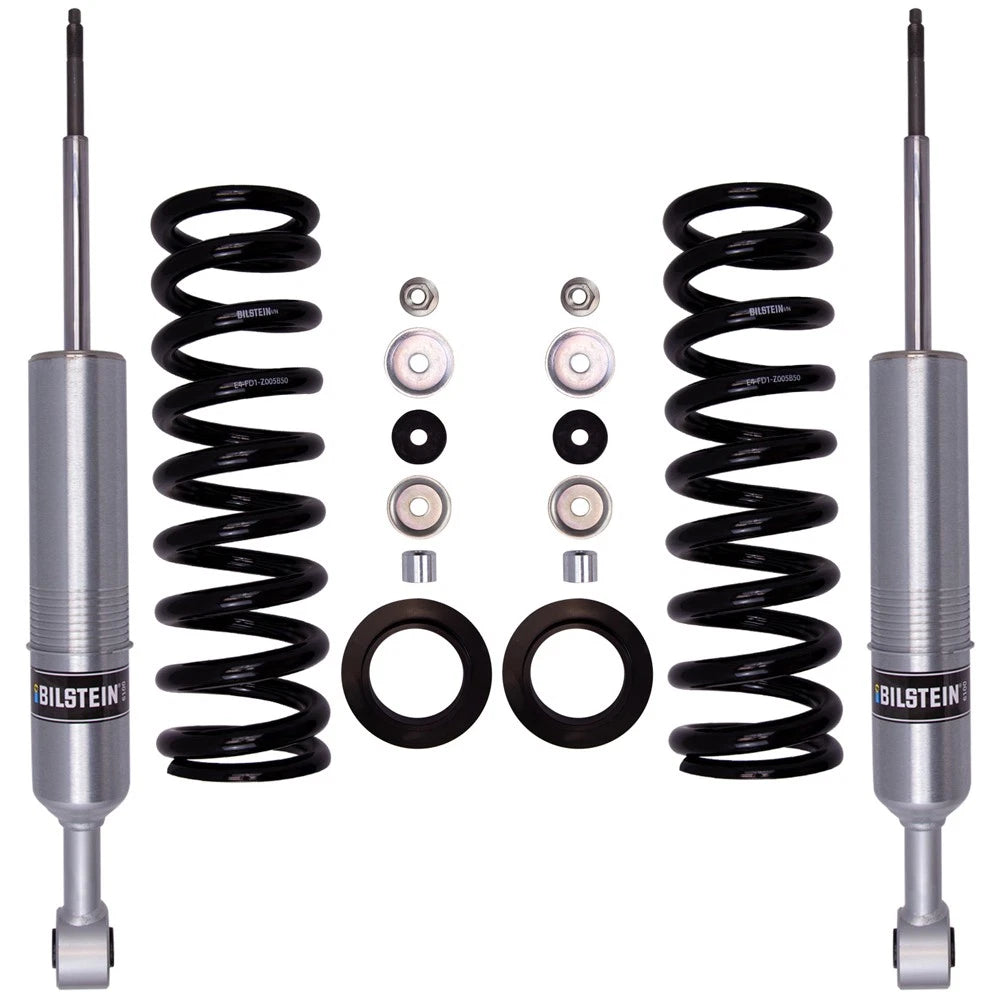

Bilstein B8 6112 leveling Kit for the 2010-2024 Toyota 4Runner are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm Shock Absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
Standard Features
- Large 60mm body for increased oil capacity, cooling, and long-term durability
- 60mm digressive piston improves ride comfort and control over rough terrain
- Vehicle specific tuning
Specifications
Part Number | 47-310025 |
Part Name | Suspension Kit |
Vehicle | 2010-2024 Toyota 4Runner |
UPC | 651860869094 |
Front Lift Height | 0.7 - 3 in. |
Body Design | Snap Ring Grooved Body (Coilover) |
Body Diameter (ID) | 60 mm |
Boot Included | No |
Finish | Dampers: Zinc Plated / Springs: Black |
Internal Design | Monotube |
Reservoir | No |
Segment | Light Truck |
Series | B8 6112 |
Spring Seat Included | Yes |
Notes | Without KDSS |
Vehicle Fitment
- 2010 Toyota 4Runner
- 2011 Toyota 4Runner
- 2012 Toyota 4Runner
- 2013 Toyota 4Runner
- 2014 Toyota 4Runner
- 2015 Toyota 4Runner
- 2016 Toyota 4Runner
- 2017 Toyota 4Runner
- 2018 Toyota 4Runner
- 2019 Toyota 4Runner
- 2020 Toyota 4Runner
- 2021 Toyota 4Runner
- 2022 Toyota 4Runner
- 2023 Toyota 4Runner
- 2024 Toyota 4Runner
