Bilstein B8 6112 19-20 GMC Sierra / Chevrolet Silverado 1500 Front Suspension Kit
Bilstein B8 6112 19-20 GMC Sierra / Chevrolet Silverado 1500 Front Suspension Kit
SKU:47-293557
Couldn't load pickup availability

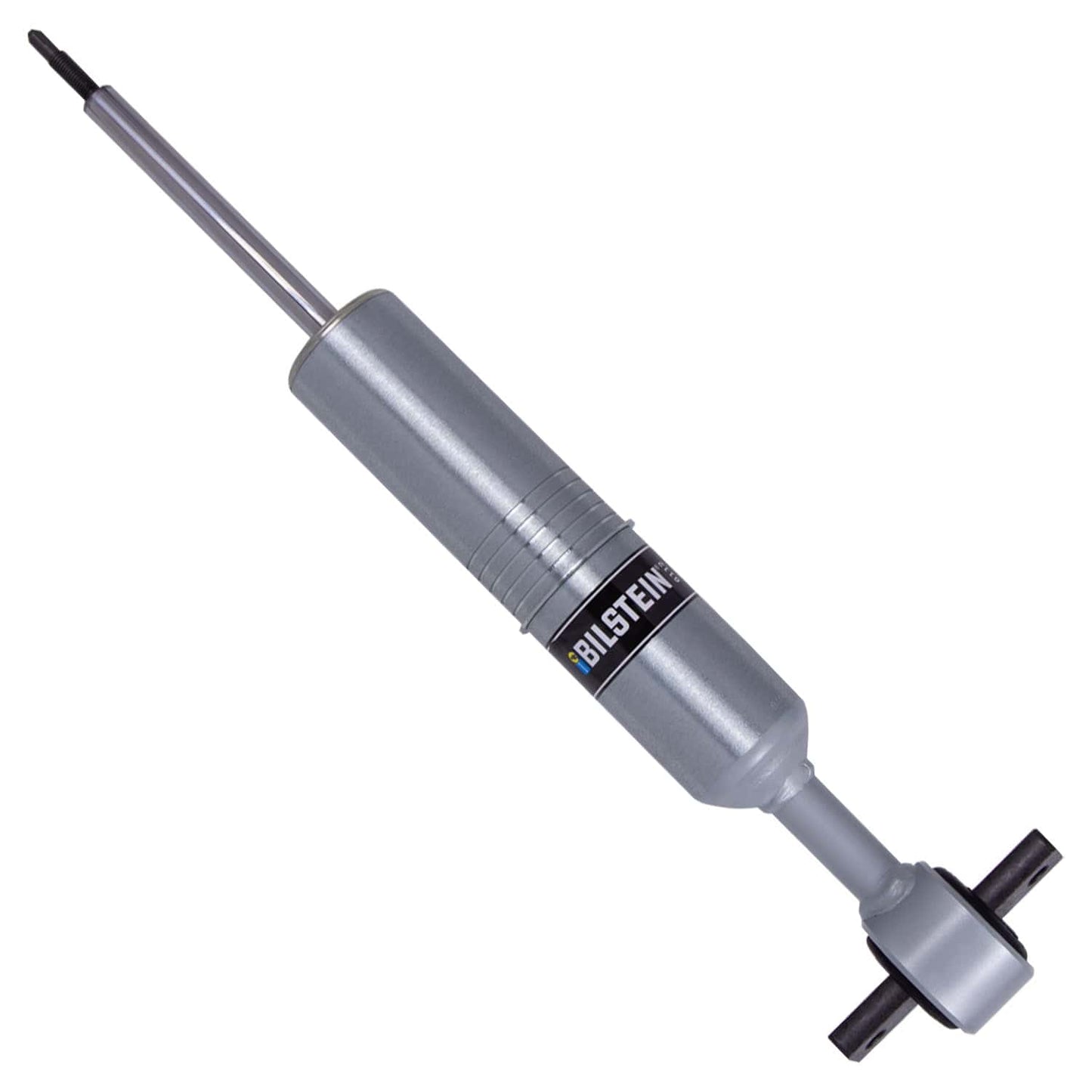

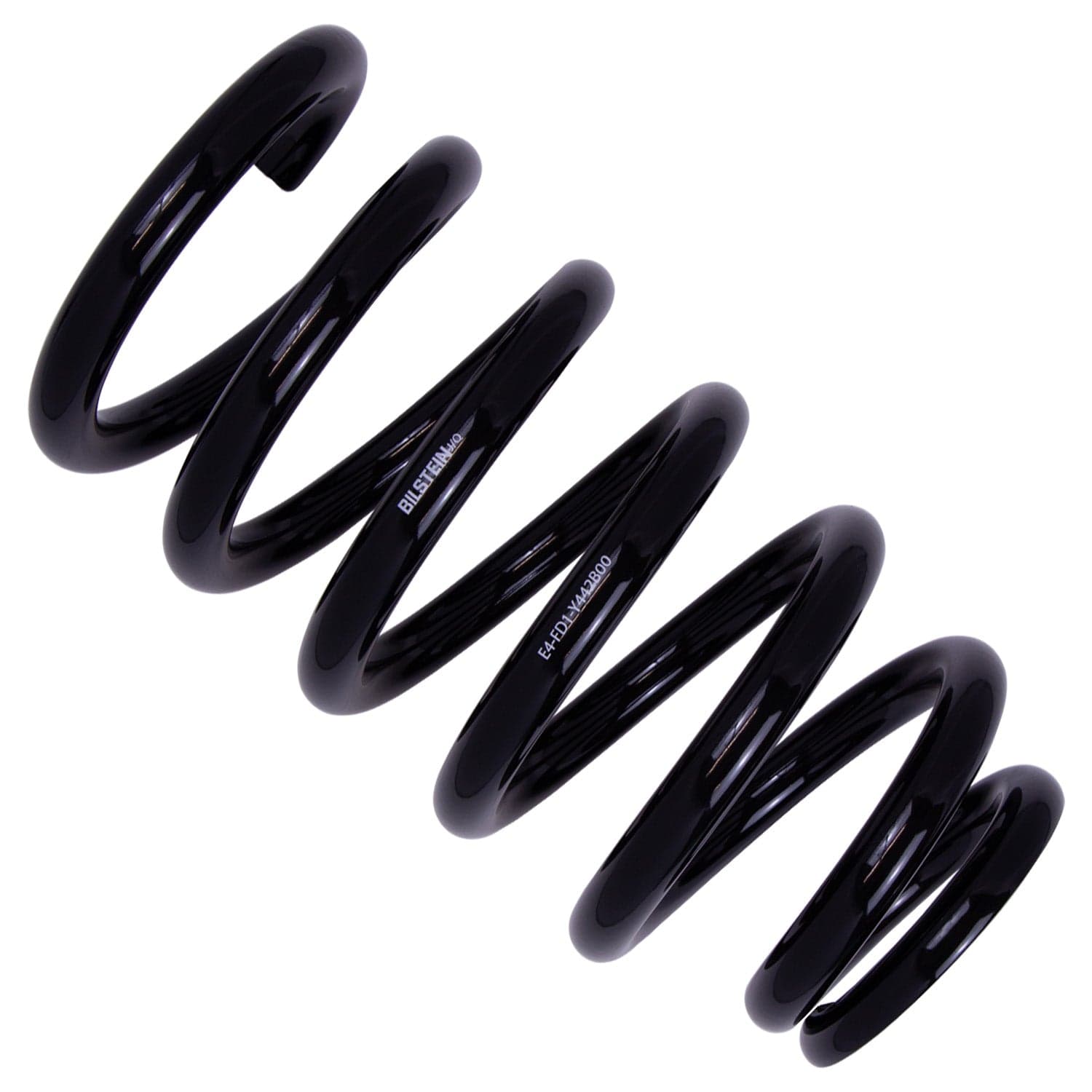

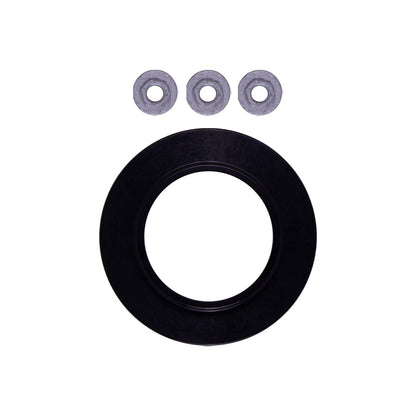

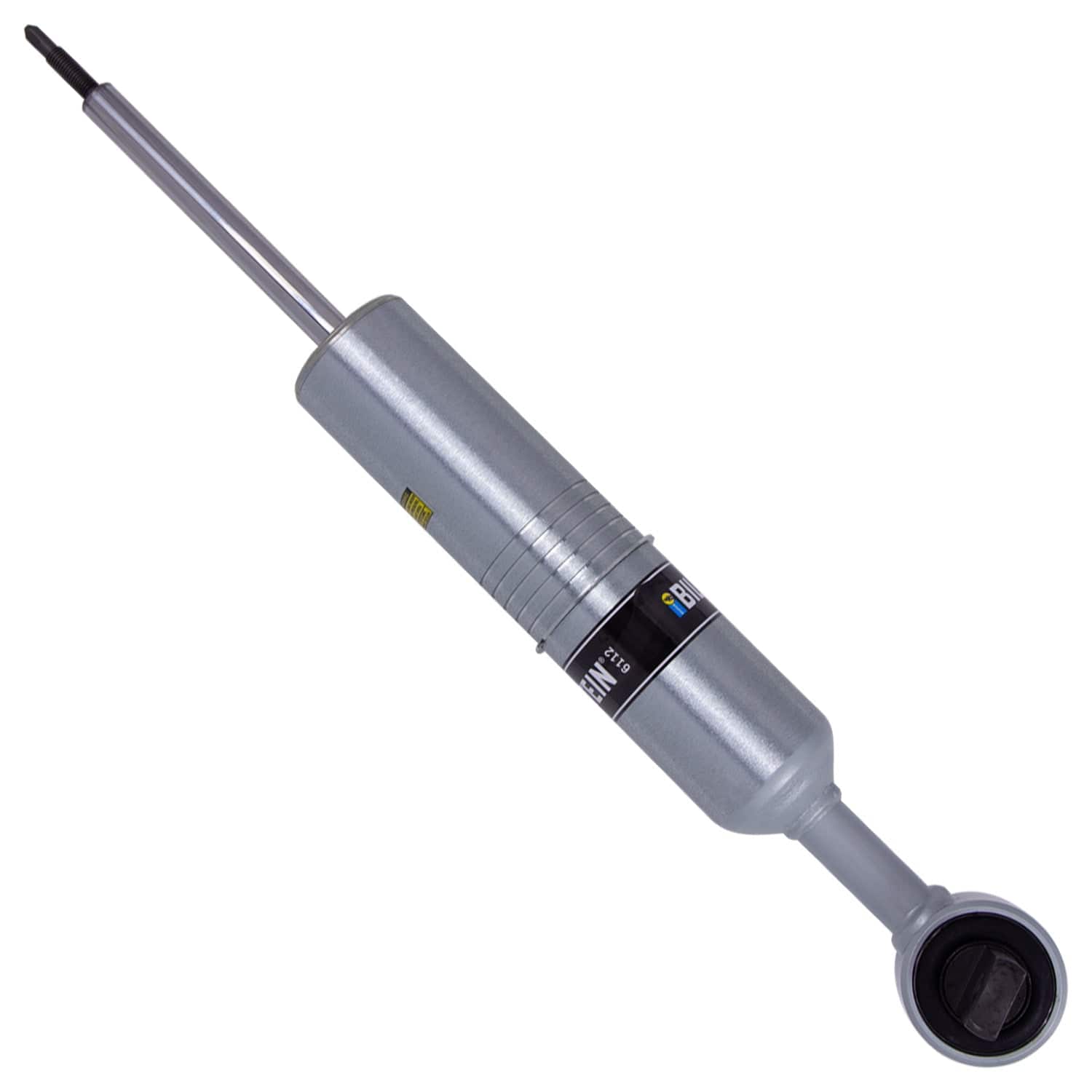

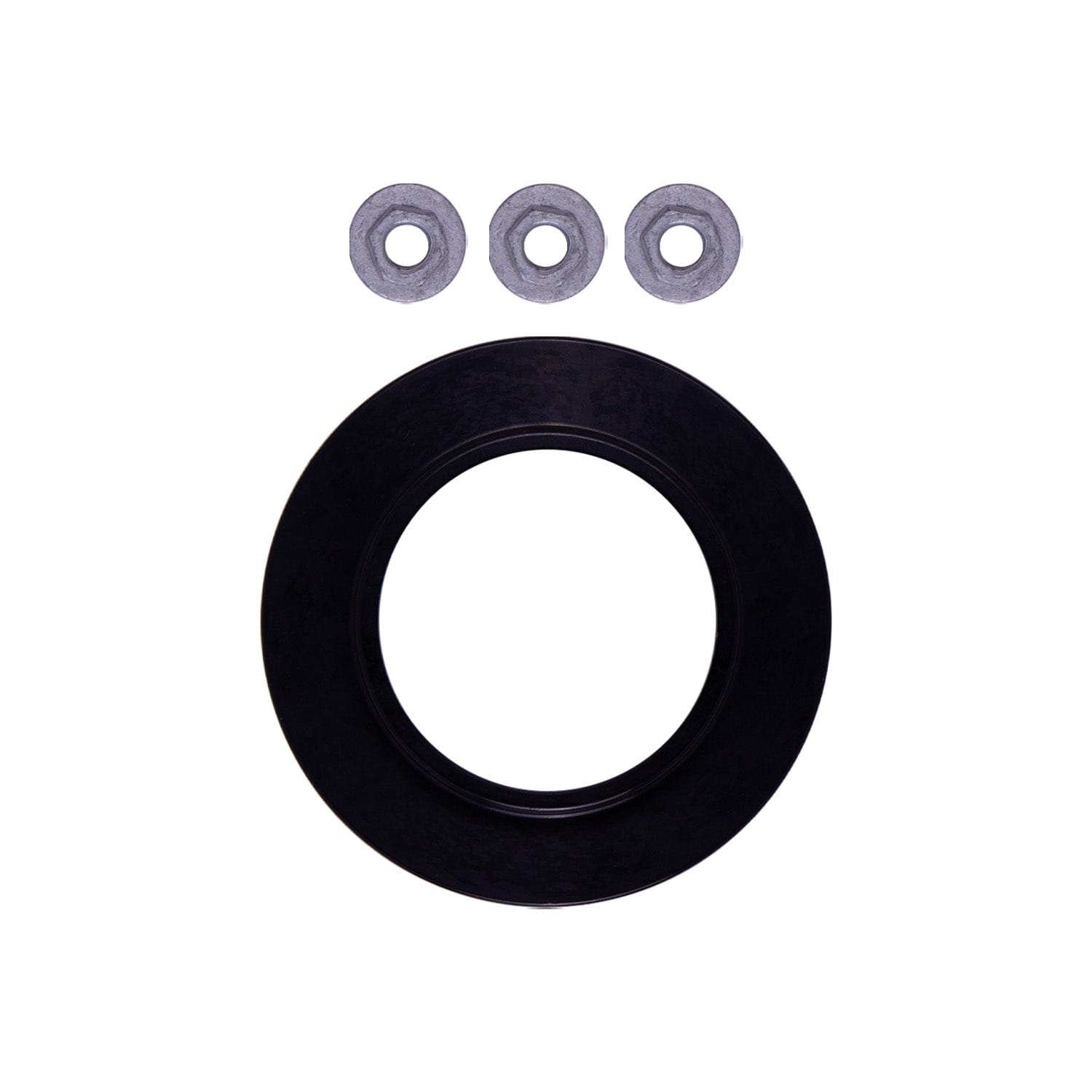

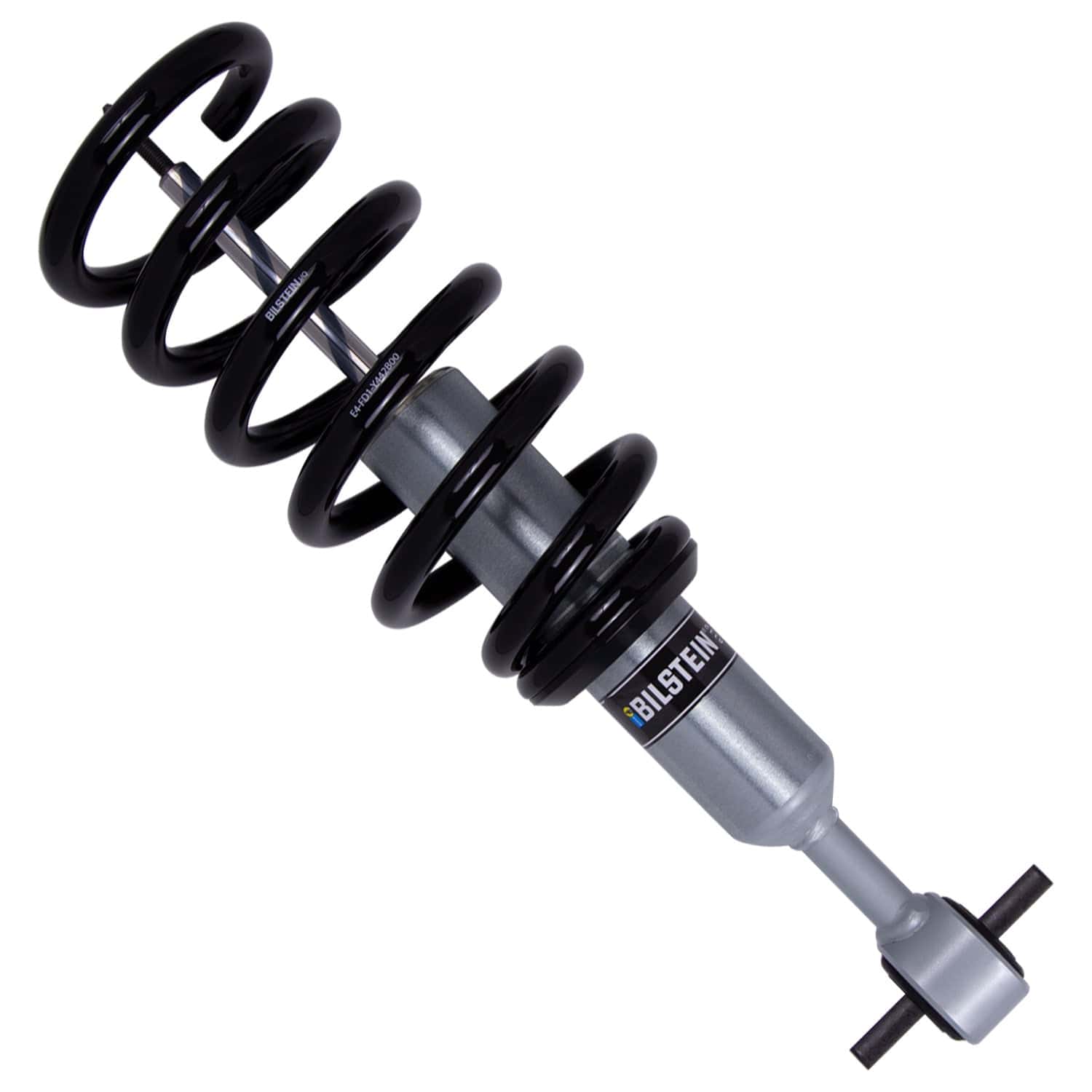

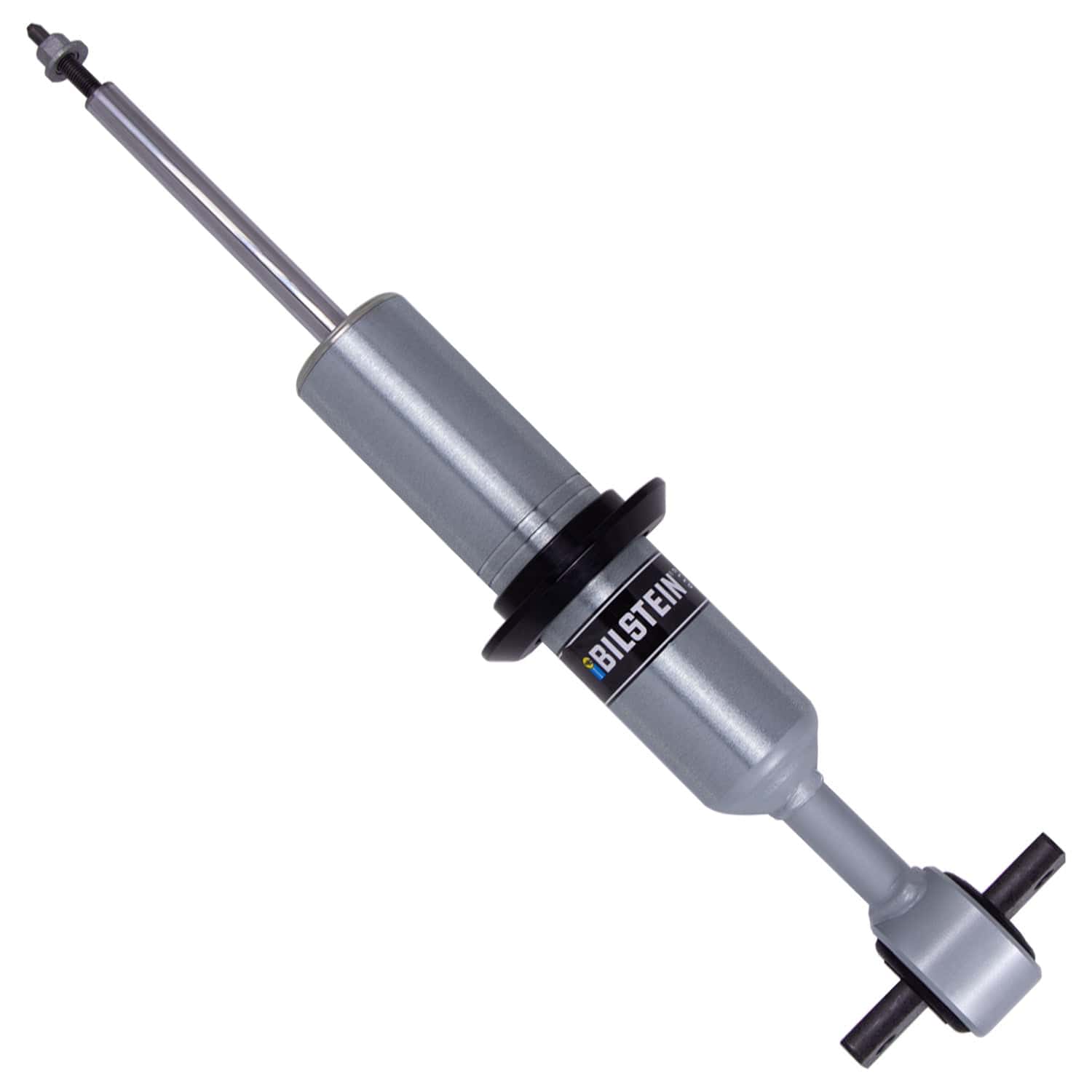

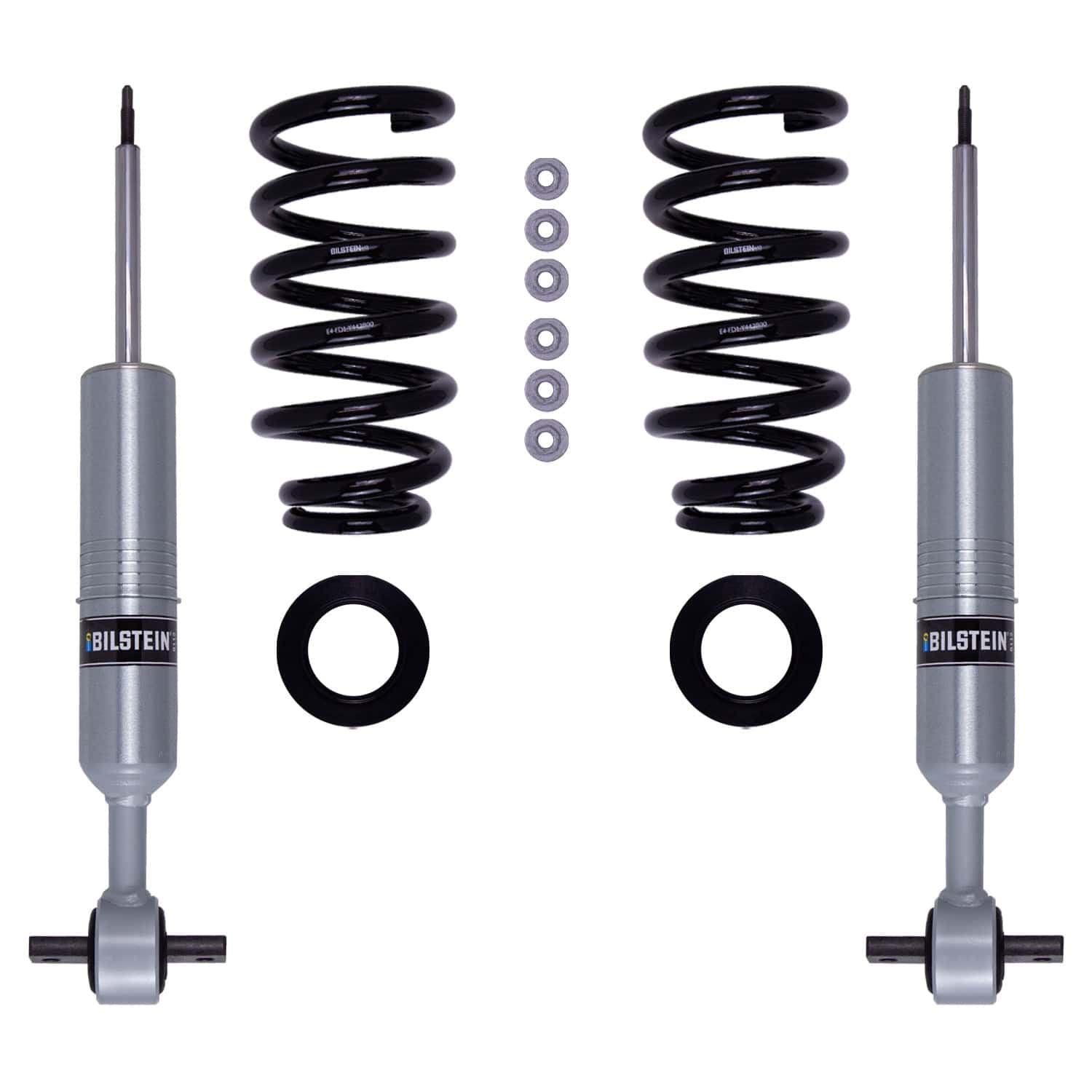

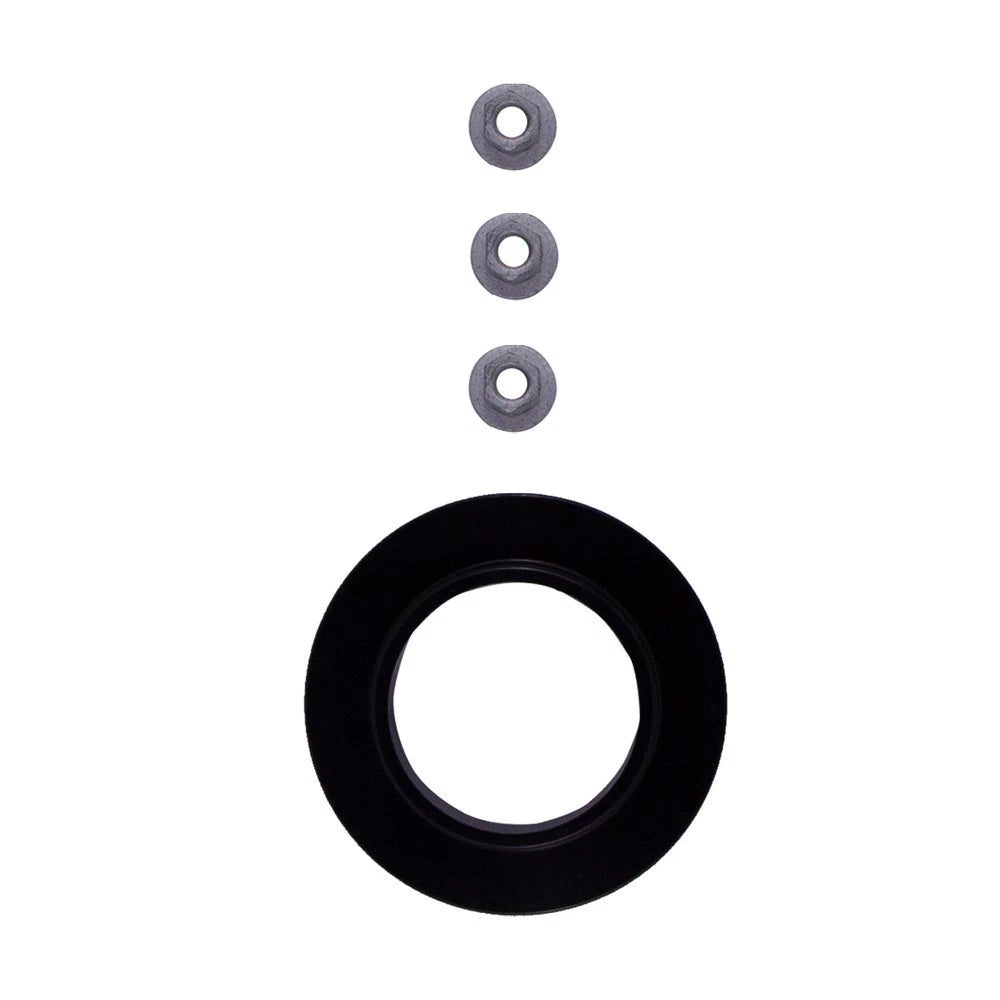

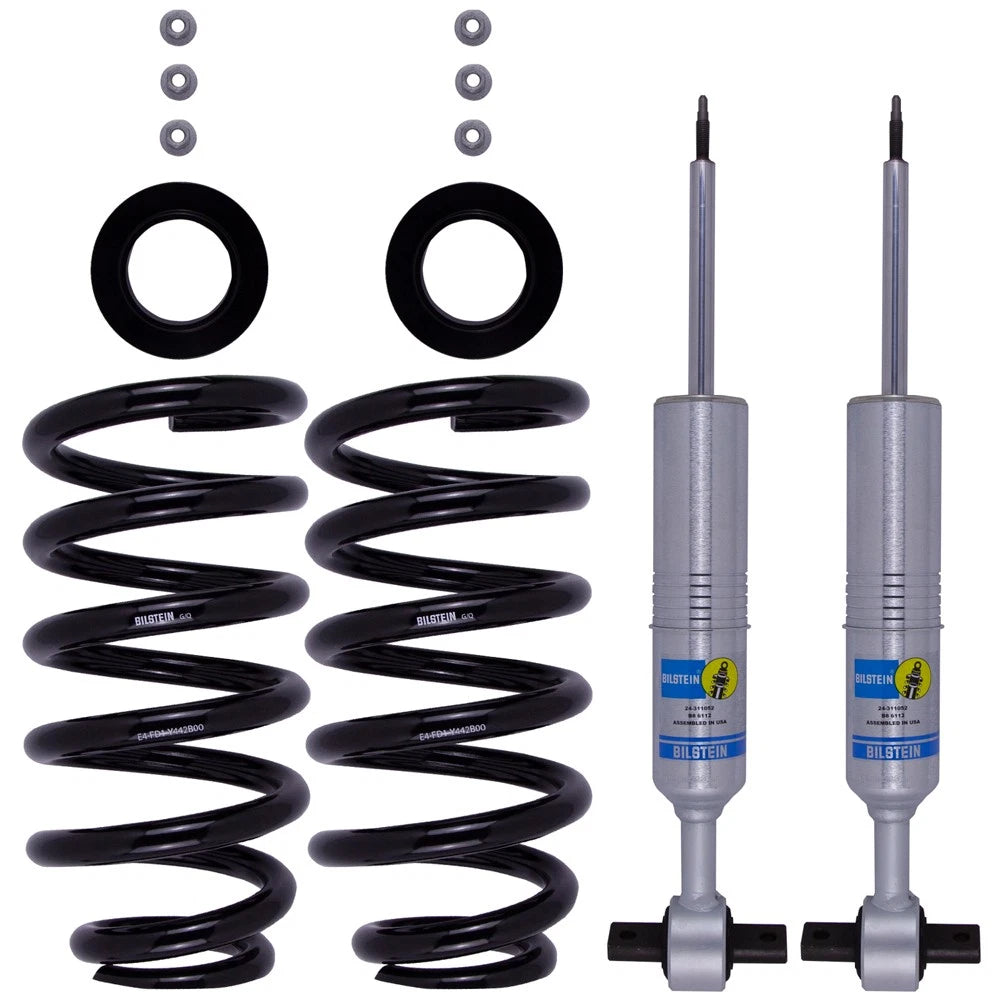

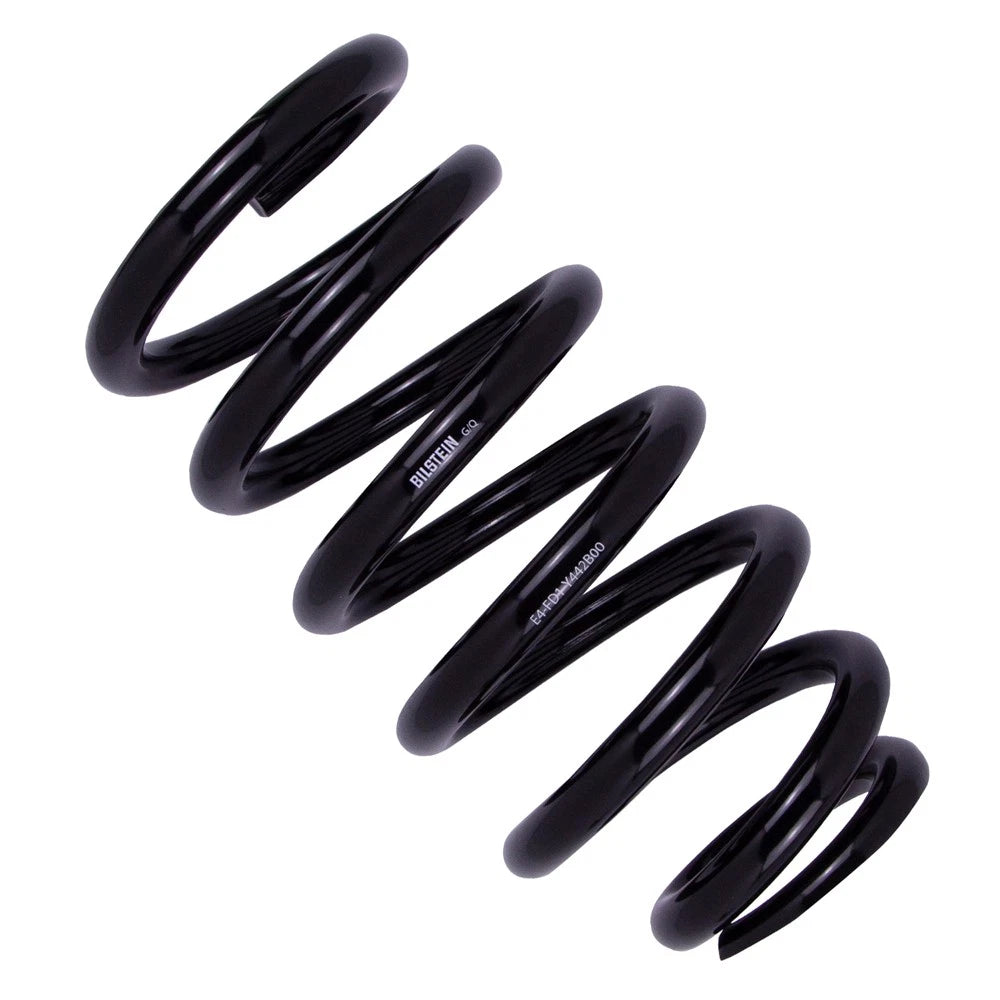

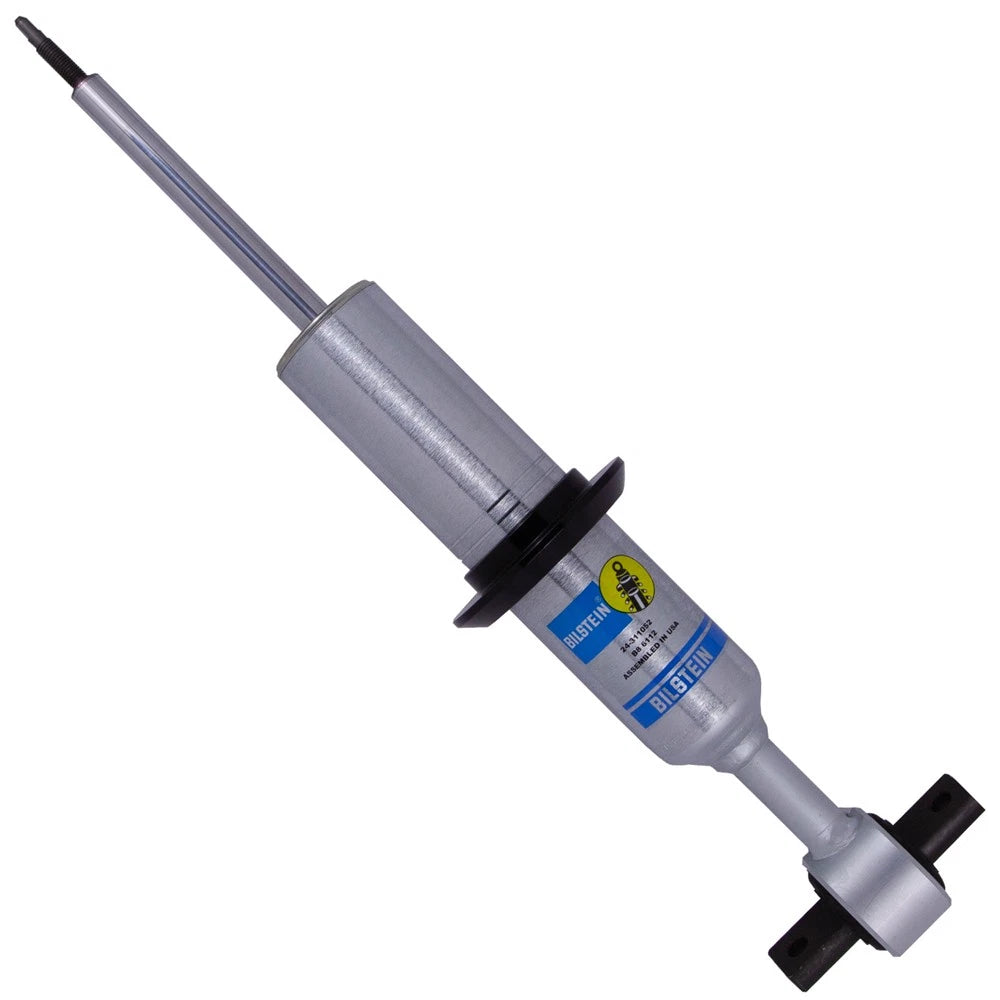

Bilstein B8 6112 leveling Kit for the 2022 Chevrolet Silverado 1500 LTD are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm Shock Absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
Standard Features
- Large 60mm body for increased oil capacity, cooling, and long-term durability
- 60mm digressive piston improves ride comfort and control over rough terrain
- Vehicle specific tuning
Specifications
Part Number | 47-293557 |
Part Name | Suspension Kit |
Vehicle | 2022 Chevrolet Silverado 1500 LTD |
UPC | 651860859934 |
Front Lift Height | 0.3 - 2.5 in. |
Body Design | Snap Ring Grooved Body (Coilover) |
Body Diameter (ID) | 60 mm |
Boot Included | No |
Finish | Dampers: Zinc Plated / Springs: Black |
Internal Design | Monotube |
Reservoir | No |
Segment | Light Truck |
Series | B8 6112 |
Spring Seat Included | Yes |
Notes | Without Active Ride Control Suspension |
Vehicle Fitment
- 2022 Chevrolet Silverado 1500 LTD
