â–¶ Vehicle Fitments
Year
Make
Model
2003 - 2009
Lexus
GX470 Base
2007 - 2009
Toyota
FJ Cruiser Base
2008
Toyota
FJ Cruiser Trail Teams Special Edition

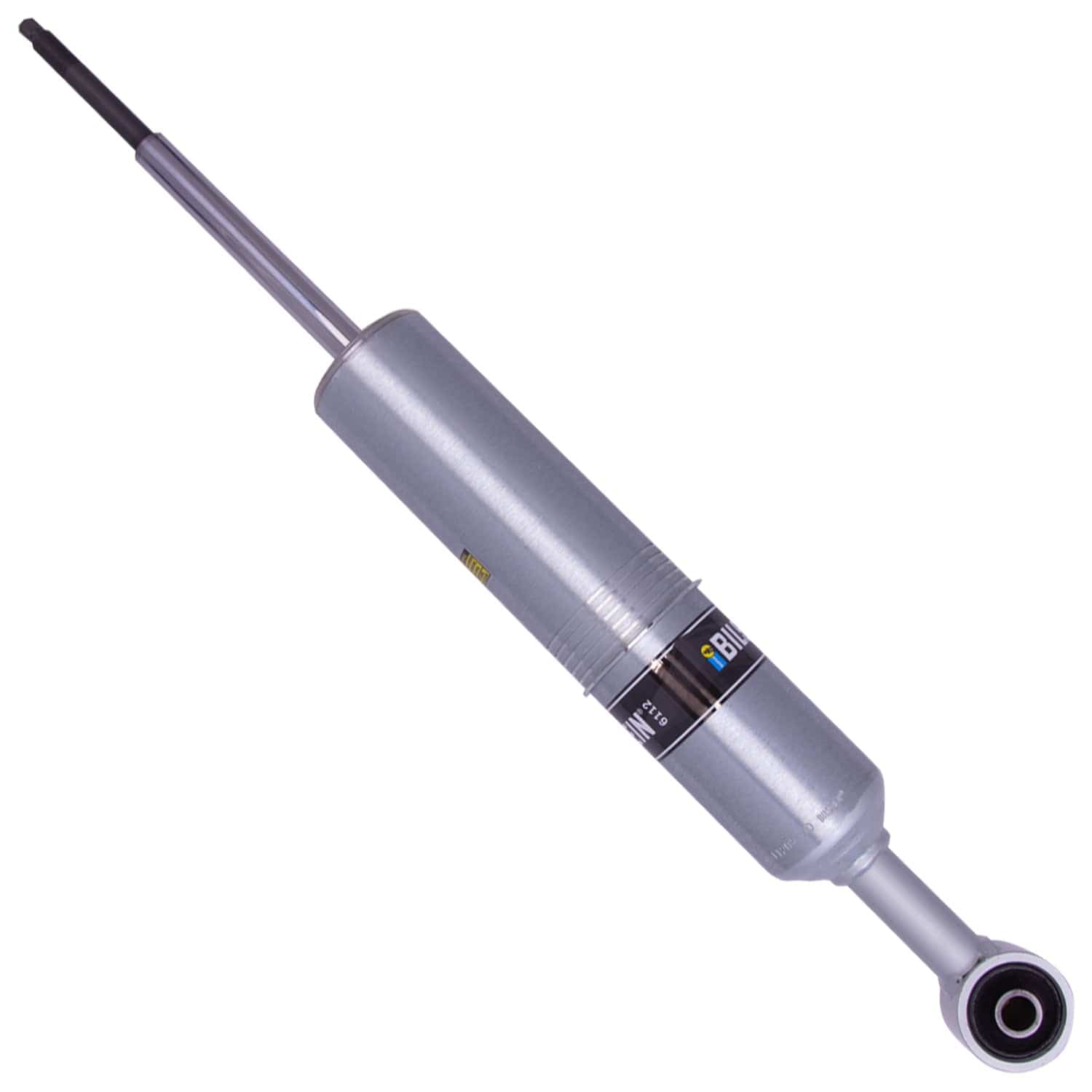

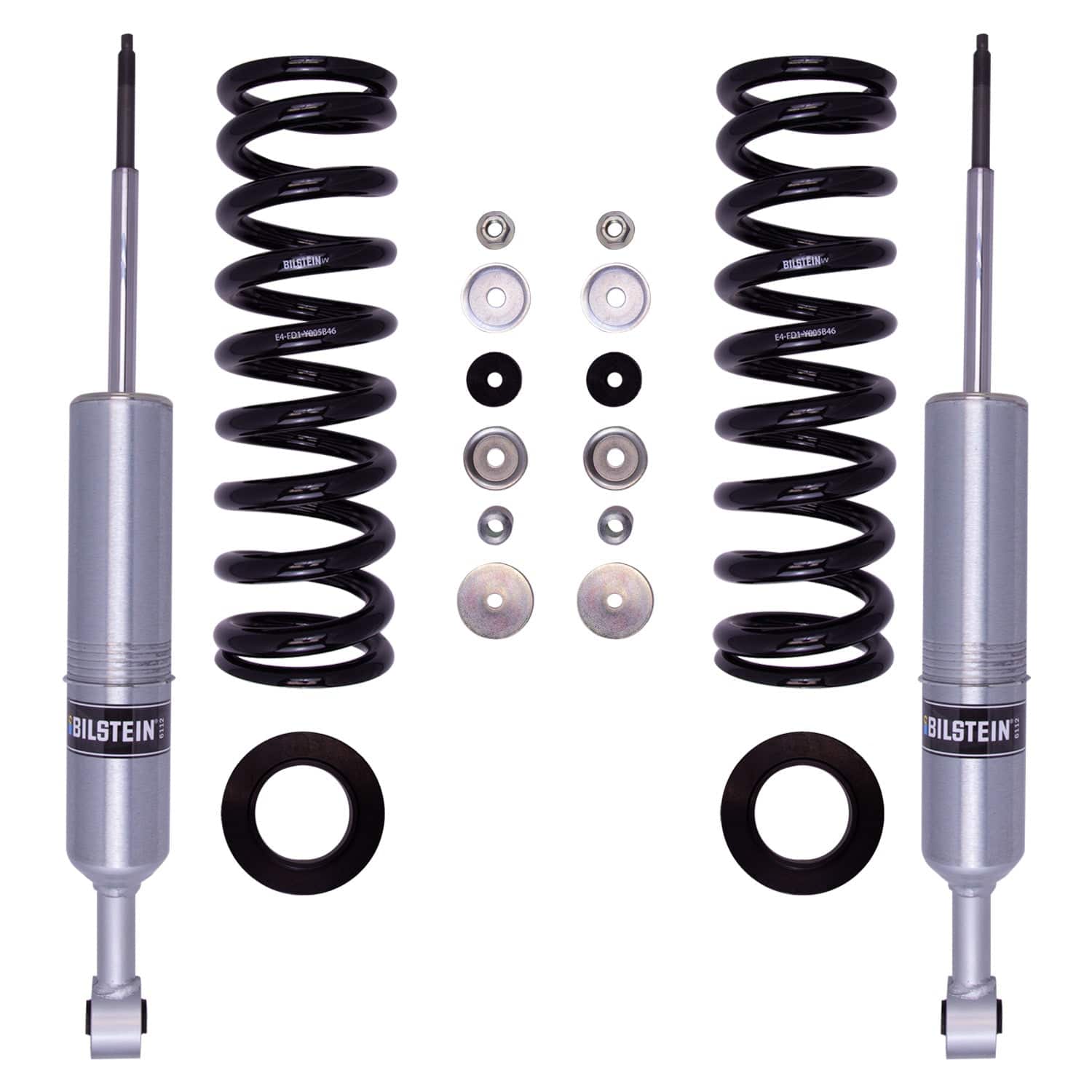

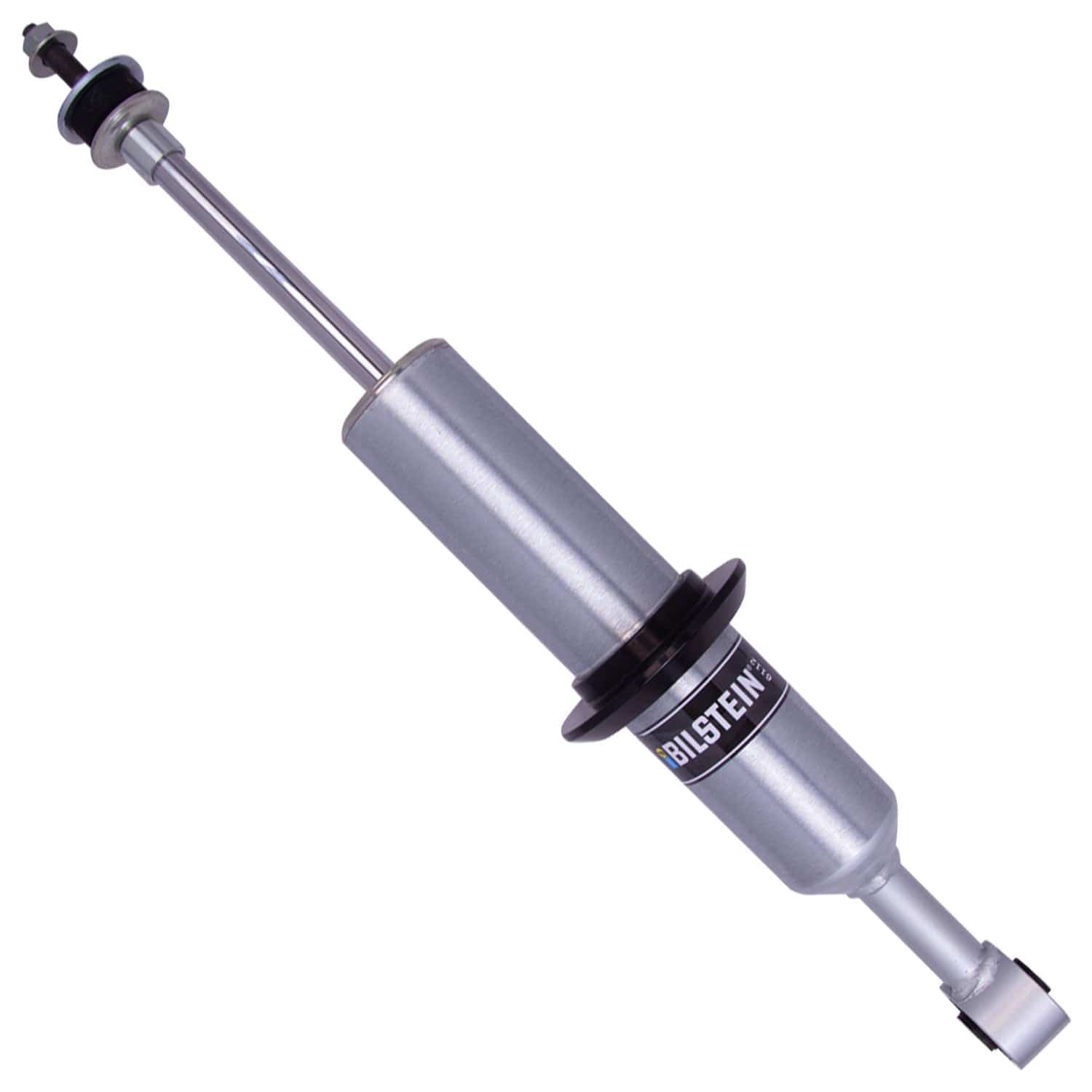

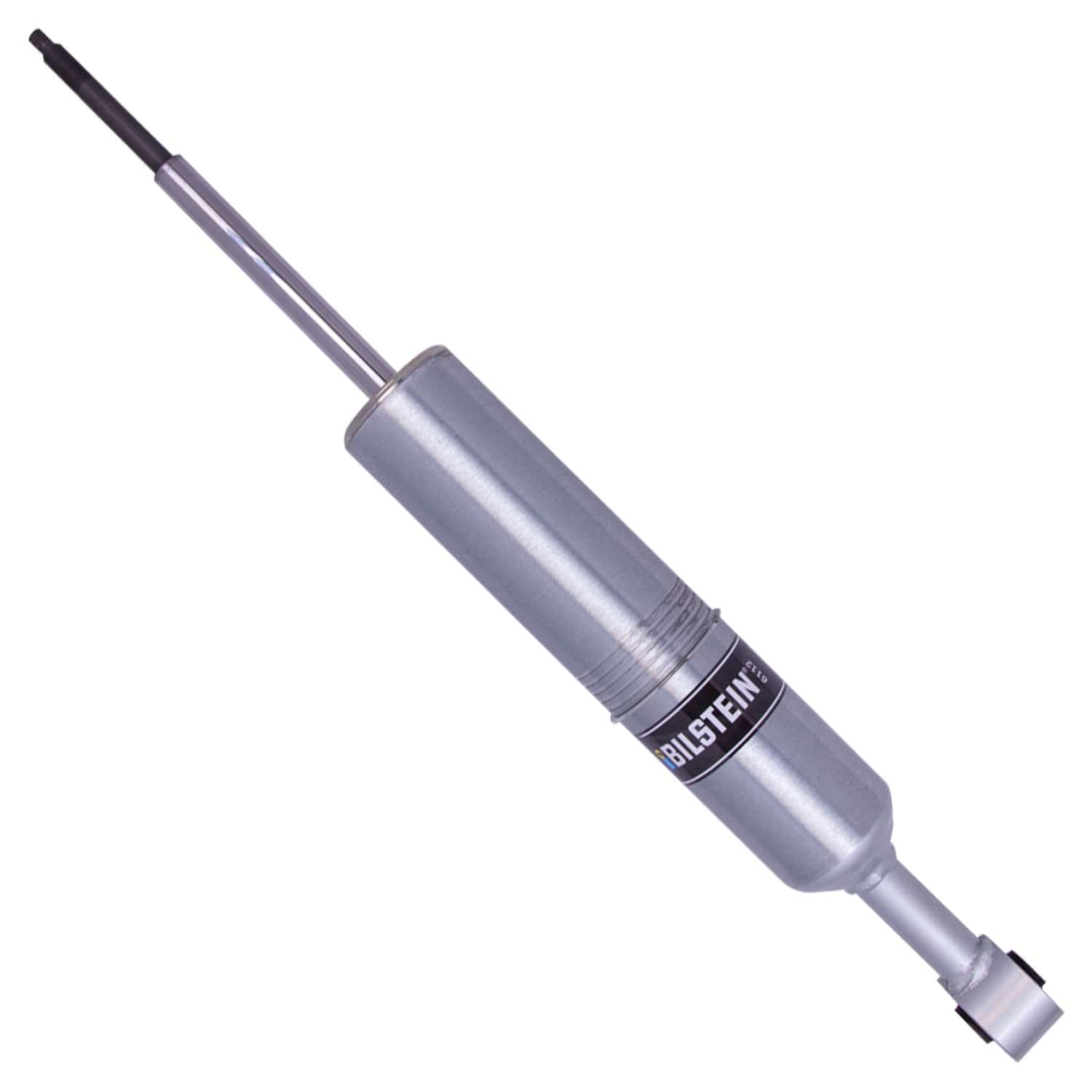

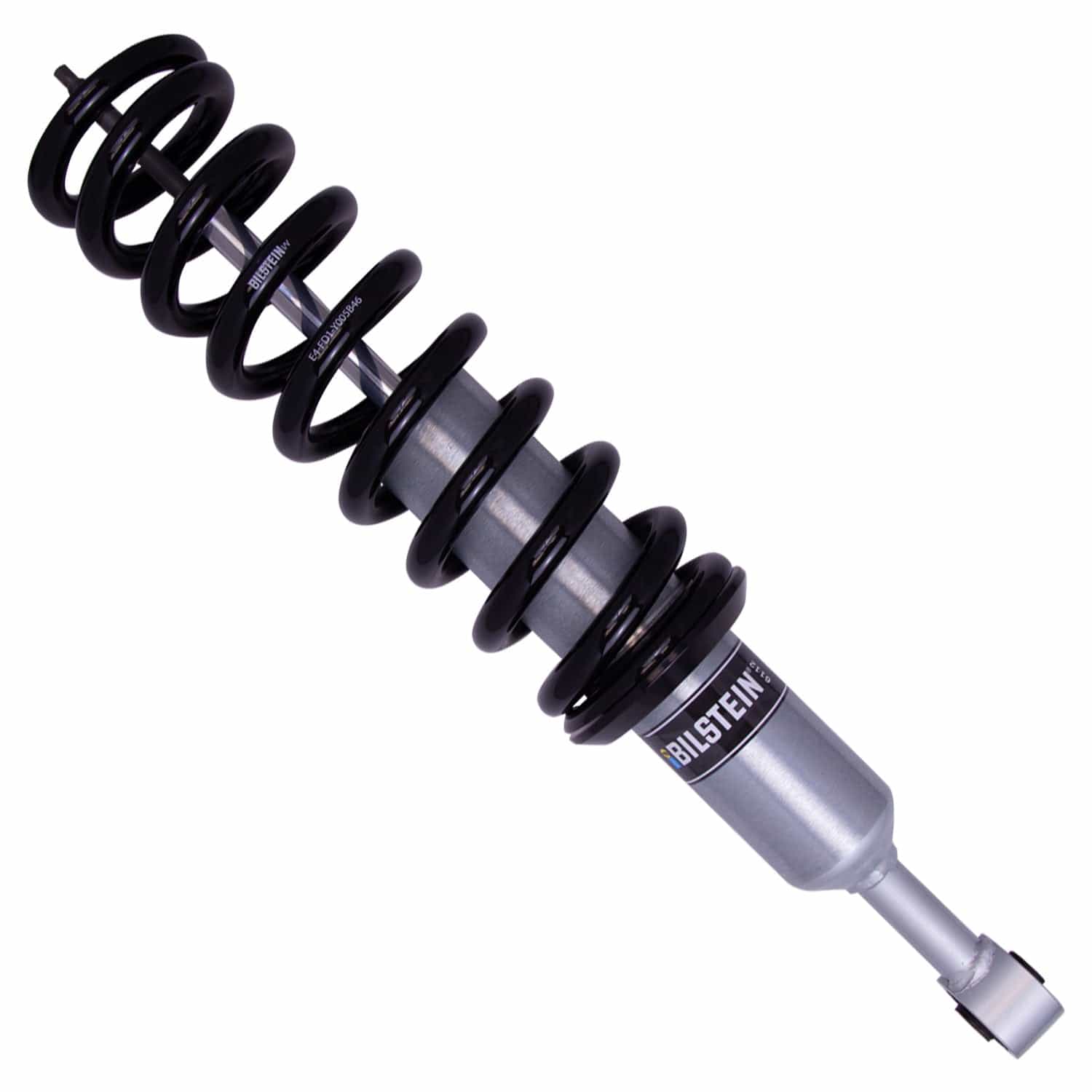

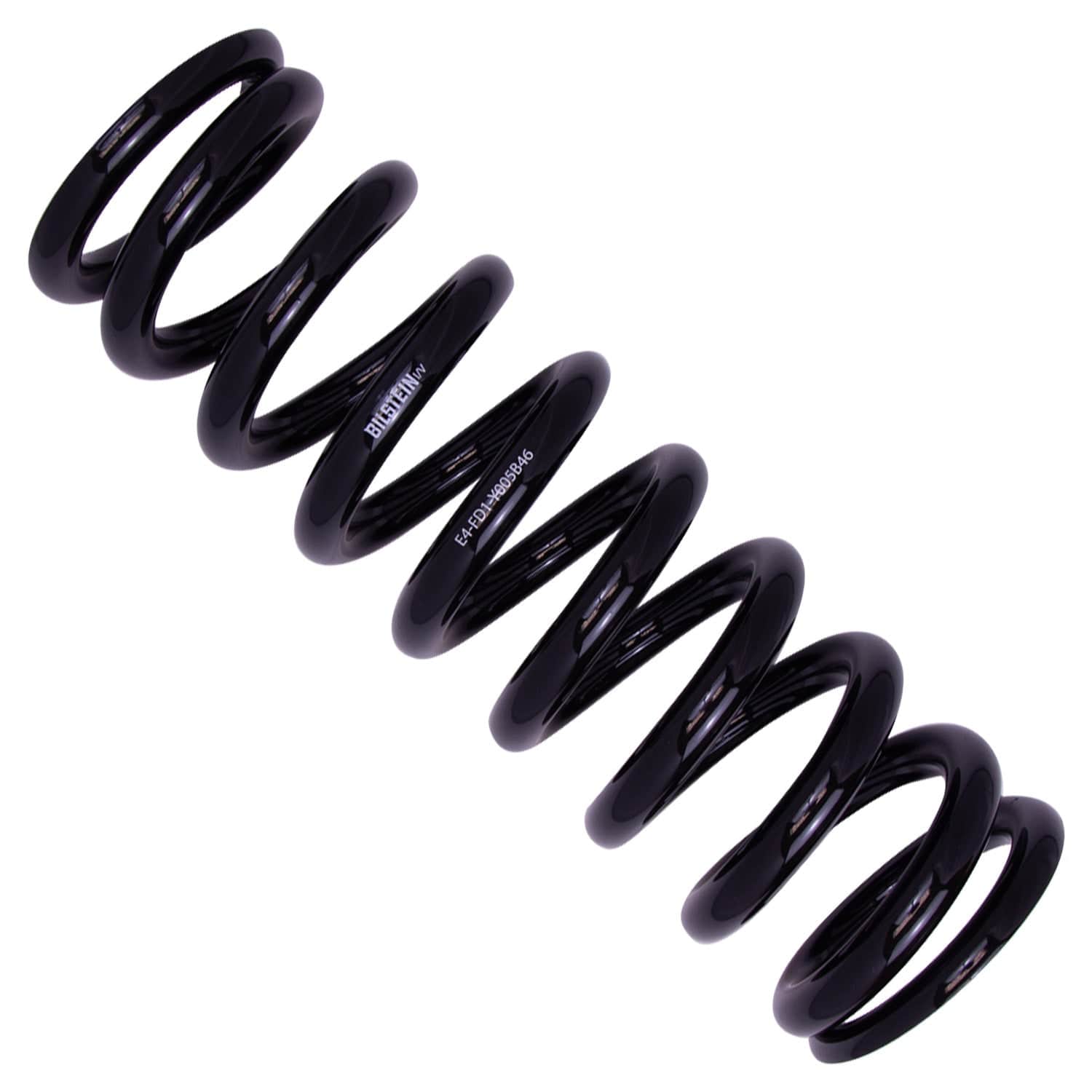

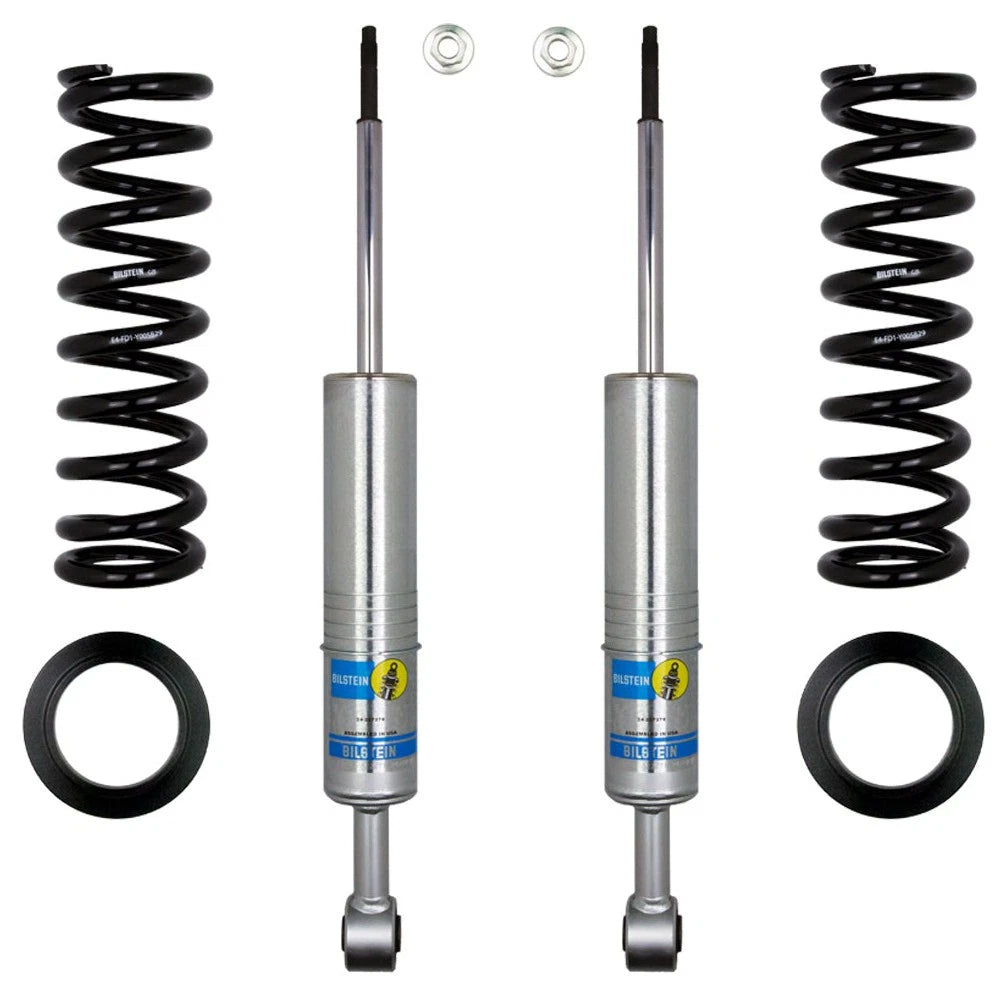

Bilstein B8 6112 leveling Kit for the 2003-2009 Lexus GX470 are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm Shock Absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
Standard Features
Large 60mm body for increased oil capacity, cooling, and long-term durability
60mm digressive piston improves ride comfort and control over rough terrain
Vehicle specific tuning
Specifications
Part Number
47-311190
Part Name
Suspension Kit
Vehicle
2003-2009 Lexus GX470
UPC
651860868912
Front Lift Height
1.7 - 3.2 in.
Body Design
Snap Ring Grooved Body (Coilover)
Body Diameter (ID)
60 mm
Boot Included
No
Finish
Dampers: Zinc Plated / Springs: Black
Internal Design
Monotube
Reservoir
No
Segment
Light Truck
Series
B8 6112
Spring Seat Included
Yes
Notes
For 150-200 lbs. additional front weight; Requires use of 2X Toyota Upper Shock Mount Assy 48609-60100
