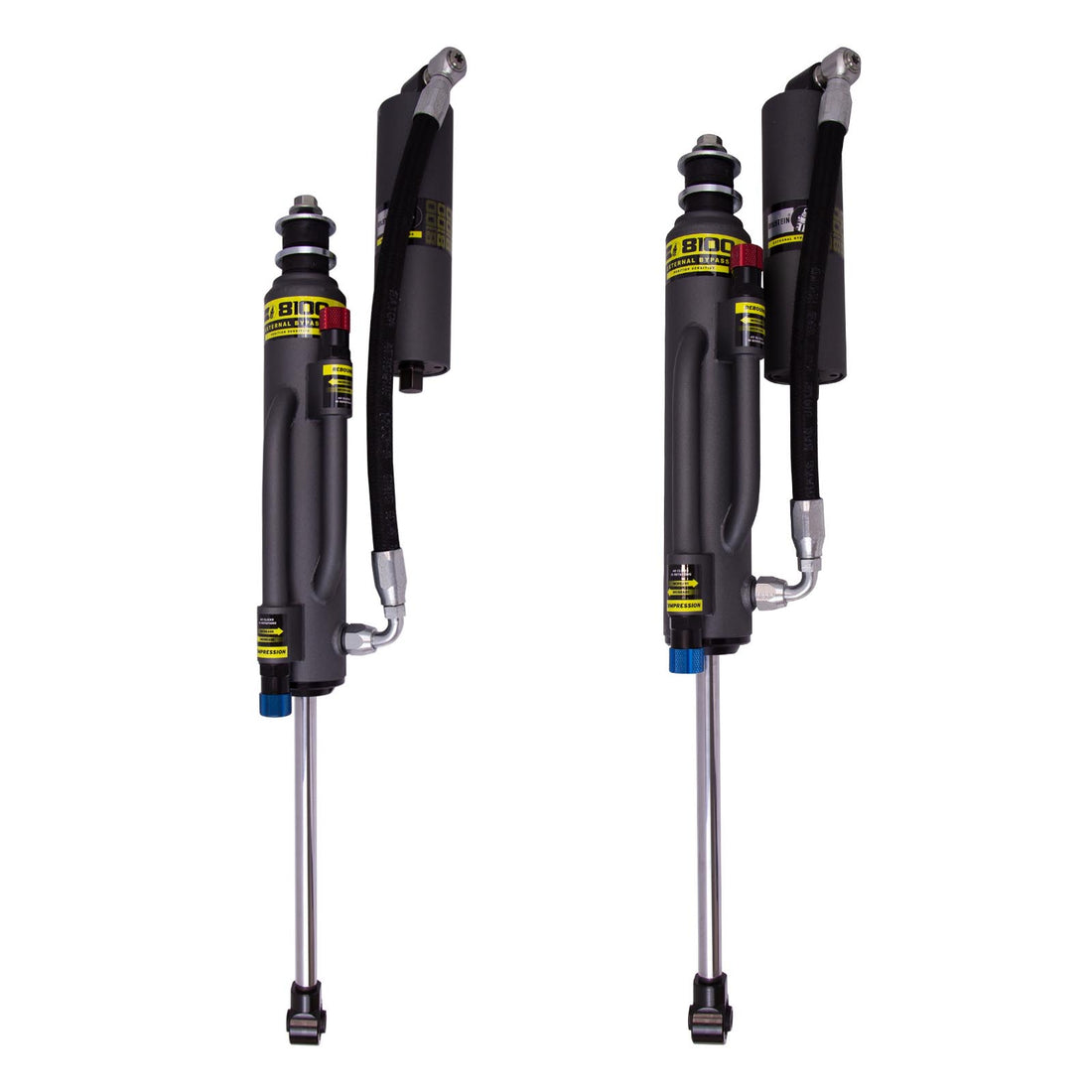

• Bilstein B8 8100 Bypass Reservoir Shocks Rear Pair - 2005-2023 Toyota Tacoma 4WD RWD
1 1
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
25-3204420-1.5" LiftRear LeftShock Absorber1
25-3204590-1.5" LiftRear RightShock Absorber1

Bilstein B8 8100 Bypass Reservoir Shocks Rear Pair - 2005-2023 Toyota Tacoma 4WD RWD

Bilstein B8 8100 Bypass Reservoir Shocks Rear Pair - 2005-2023 Toyota Tacoma 4WD RWD

10552446583071_52706315763999

In stock

$1,218.00 USD
$1,327.85 USD $1,218.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
25-3204420-1.5" LiftRear LeftShock Absorber1
25-3204590-1.5" LiftRear RightShock Absorber1

The Bilstein B8 8100 Bypass Reservoir Shocks Rear Pair are high-performance, externally adjustable shocks designed for light trucks and SUVs. Featuring dual-tube external bypass technology, these shocks provide position-sensitive damping with independent rebound and compression adjustments, allowing precise tuning for various driving conditions. Constructed with a 60mm large bore hard anodized aluminum piston, they deliver enhanced damping control and long-term durability. Incorporating Bilstein’s twin-tube and gas-pressure technologies, these shocks resist oil foaming and damping fade under extreme stress, ensuring consistent performance. The reservoir mounts, washers, bushings, and nuts are included for straightforward installation, with factory shock mounting bolts reused. An optional billet aluminum reservoir clamp offers a cleaner, more compact appearance, making these shocks ideal for off-road and demanding driving environments.

Designed to fit 2005–2023 Toyota Tacoma models with 6-lug wheels, these shocks are compatible with vehicles at factory height or with up to a 1.5-inch rear lift. Suitable for both 4WD and RWD configurations, they serve as a direct replacement or upgrade for stock shocks, enhancing ride quality and bottom-out control on rough terrain. The kit includes two shocks, reservoir mounts, and all necessary hardware, making installation straightforward. These shocks are perfect for off-road enthusiasts and those seeking adjustable, durable suspension components to improve handling and comfort in demanding conditions.

Part NumberLift/LoweredPositionItemQuantity
25-3204420-1.5" LiftRear LeftShock Absorber1
25-3204590-1.5" LiftRear RightShock Absorber1

Overview

  • Package Contains 2 Shocks
    Rear pair of two shock absorbers.
  • Bilstein 2 Year Warranty
    Manufacturer Warranty protects against defects and premature failure.
  • Fits vehicles at factory height or with up to 1.5" rear lift
  • For vehicles with no suspension modifications or up to 1.5" rear lift systems
  • Fits 4WD & RWD vehicles
    This product works for 4WD and RWD vehicles.
  • Important Fitment Note
  • Fits 6 Lug vehicles only
  • Reservoir Mounts Included
    All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look.
  • Adjustable Rebound & Compression
    Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression.
  • Durable Design
    60mm large bore hard anodized aluminum piston provides a greater ranger of damping control and long term durability.
  • Bilstein twin-tube technology
    Twin-tube shocks utilize double-walled technology, where the piston divides the interior oil chamber into two working chambers. Under load, the piston pushes the oil down through the inner working chamber and up into the outer chamber. During rebound, the oil flows back through the piston valve to create a damping effect.
  • Bilstein Gas-Pressure Technology
    Traditional oil shock absorbers, when put under extreme stress, can lead to oil foaming which causes shock fading and results in damping power reduction. In the 1950s Bilstein found the solution to this problem by developing gas-pressure technology.

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive damper specifically designed for light trucks and SUVs. Bypass shock absorbers offer the most compliant ride in all conditions and provide maximum bottom out control when the road gets rough. Utilizing an adjustable external bypass shock is the easiest and most effective way to tune your suspension for ultimate performance. Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments.
