| Year | Make | Model |
|---|---|---|
| 2007 - 2022 | Toyota | Tundra |
1
/
of
1
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 25-326048 | 0-2.5" Lift | Rear Left | Shock Absorber | 1 |
| 25-326055 | 0-2.5" Lift | Rear Right | Shock Absorber | 1 |

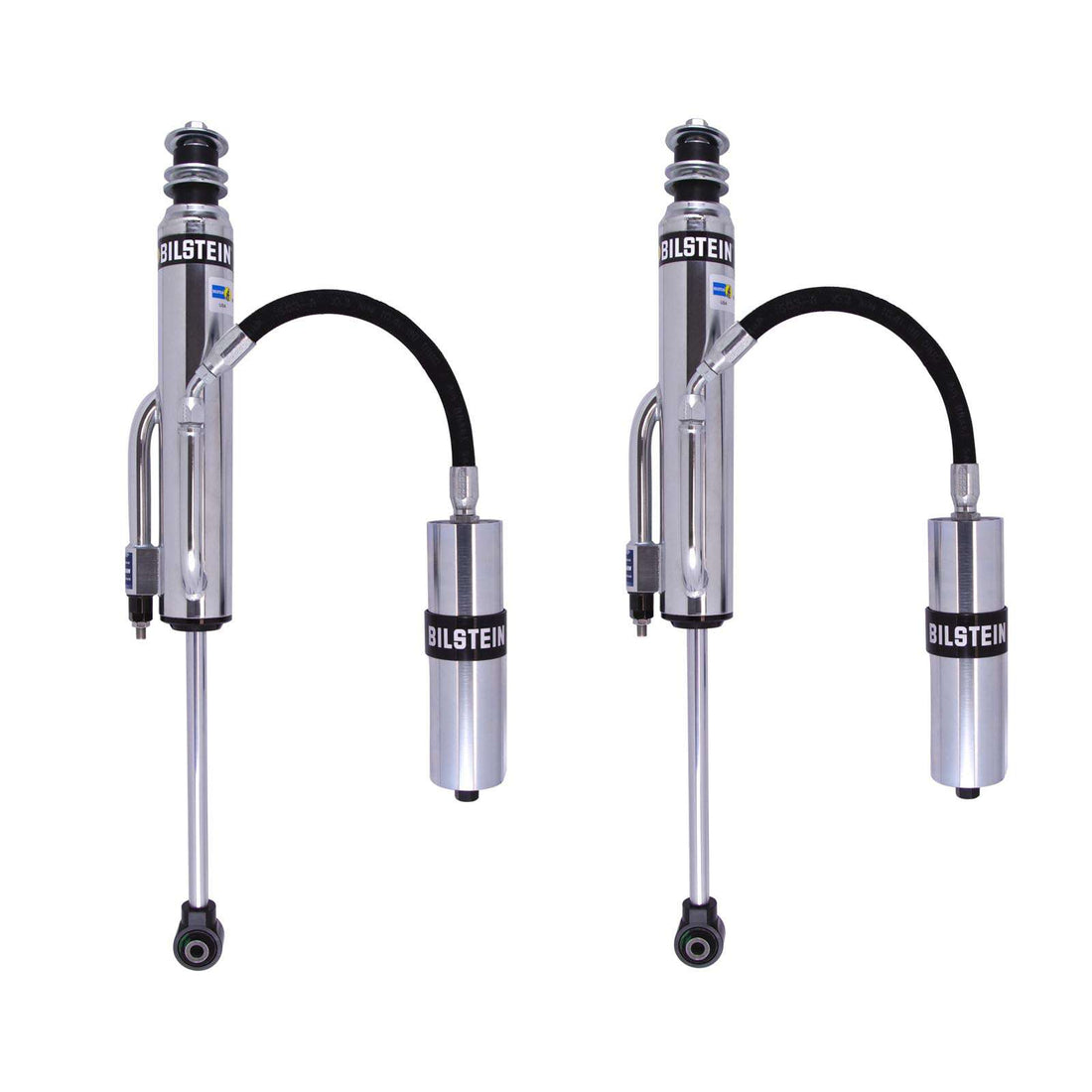

Bilstein B8 8100 Bypass Reservoir Shocks Rear Pair w/0-2.5" lift - 2007-2021 Toyota Tundra 4WD RWD
Bilstein B8 8100 Bypass Reservoir Shocks Rear Pair w/0-2.5" lift - 2007-2021 Toyota Tundra 4WD RWD
SKU:10552446615839_52706315796767
In stock
Regular price
$1,218.00 USD
Regular price
$1,327.85 USD
Sale price
$1,218.00 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 25-326048 | 0-2.5" Lift | Rear Left | Shock Absorber | 1 |
| 25-326055 | 0-2.5" Lift | Rear Right | Shock Absorber | 1 |
The Bilstein B8 8100 Bypass Reservoir Shocks Rear Pair is a high-performance suspension upgrade designed for light trucks and SUVs. Featuring dual tube external bypass technology, these shocks provide position-sensitive damping with independent rebound and compression adjustments, ensuring optimal ride quality across various terrains. Constructed with a 60mm large bore hard anodized aluminum piston, they deliver enhanced damping control and long-term durability. The shocks utilize Bilstein’s twin-tube technology and gas-pressure design to prevent oil foaming and damping fade under extreme conditions, offering a compliant ride and maximum bottom-out control. The included reservoir mounts, washers, bushings, and nuts facilitate straightforward installation, with factory shock mounting bolts reused. An optional billet aluminum reservoir clamp is available for a cleaner look, and the incremental flow adjuster allows precise tuning for customized performance.
Designed to fit 2007–2021 Toyota Tundra 4WD and RWD models at factory height or with up to 2.5" rear lift, these shocks are suitable for vehicles with no suspension modifications or minor lift systems. They are compatible with both 4WD and RWD configurations, providing a direct bolt-on replacement that enhances off-road capability and ride comfort. The package includes two shocks, making it ideal for rear suspension upgrades. Perfect for off-road enthusiasts and those seeking improved damping performance, these shocks ensure a smooth, controlled ride in demanding conditions while maintaining factory compatibility and ease of installation.
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 25-326048 | 0-2.5" Lift | Rear Left | Shock Absorber | 1 |
| 25-326055 | 0-2.5" Lift | Rear Right | Shock Absorber | 1 |
Share
Overview
Overview
-
Package Contains 2 Shocks
Rear pair of two shock absorbers. -
Bilstein 2 Year Warranty
Manufacturer Warranty protects against defects and premature failure. - Fits vehicles at factory height or with up to 2.5" rear lift
- For vehicles with no suspension modifications or up to 2.5" rear lift systems
-
Fits 4WD & RWD vehicles
This product works for 4WD and RWD vehicles. -
Reservoir Mounts Included
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look. -
Adjustable Rebound & Compression
Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression. -
Durable Design
60mm large bore hard anodized aluminum piston provides a greater ranger of damping control and long term durability. -
Bilstein twin-tube technology
Twin-tube shocks utilize double-walled technology, where the piston divides the interior oil chamber into two working chambers. Under load, the piston pushes the oil down through the inner working chamber and up into the outer chamber. During rebound, the oil flows back through the piston valve to create a damping effect. -
Bilstein Gas-Pressure Technology
Traditional oil shock absorbers, when put under extreme stress, can lead to oil foaming which causes shock fading and results in damping power reduction. In the 1950s Bilstein found the solution to this problem by developing gas-pressure technology.
Bilstein B8 8100 (Bypass) is a direct fit, position sensitive damper specifically designed for light trucks and SUVs. Bypass shock absorbers offer the most compliant ride in all conditions and provide maximum bottom out control when the road gets rough. Utilizing an adjustable external bypass shock is the easiest and most effective way to tune your suspension for ultimate performance. Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments.
