• Bilstein B8 8100 Bypass Shocks Set - 2007-2017 Jeep Wrangler
1 1
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
25-2913083.5-5" LiftFront LeftShock Absorber1
25-2912923.5-5" LiftFront RightShock Absorber1
25-2913223.5-5" LiftRear LeftShock Absorber1
25-2913153.5-5" LiftRear RightShock Absorber1

Bilstein B8 8100 Bypass Shocks Set - 2007-2017 Jeep Wrangler

Bilstein B8 8100 Bypass Shocks Set - 2007-2017 Jeep Wrangler

10623831736607_52933049057567

In stock

$1,169.00 USD
$1,274.00 USD $1,169.00 USD
Special Discounts May Apply at Checkout Sold out
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
25-2913083.5-5" LiftFront LeftShock Absorber1
25-2912923.5-5" LiftFront RightShock Absorber1
25-2913223.5-5" LiftRear LeftShock Absorber1
25-2913153.5-5" LiftRear RightShock Absorber1

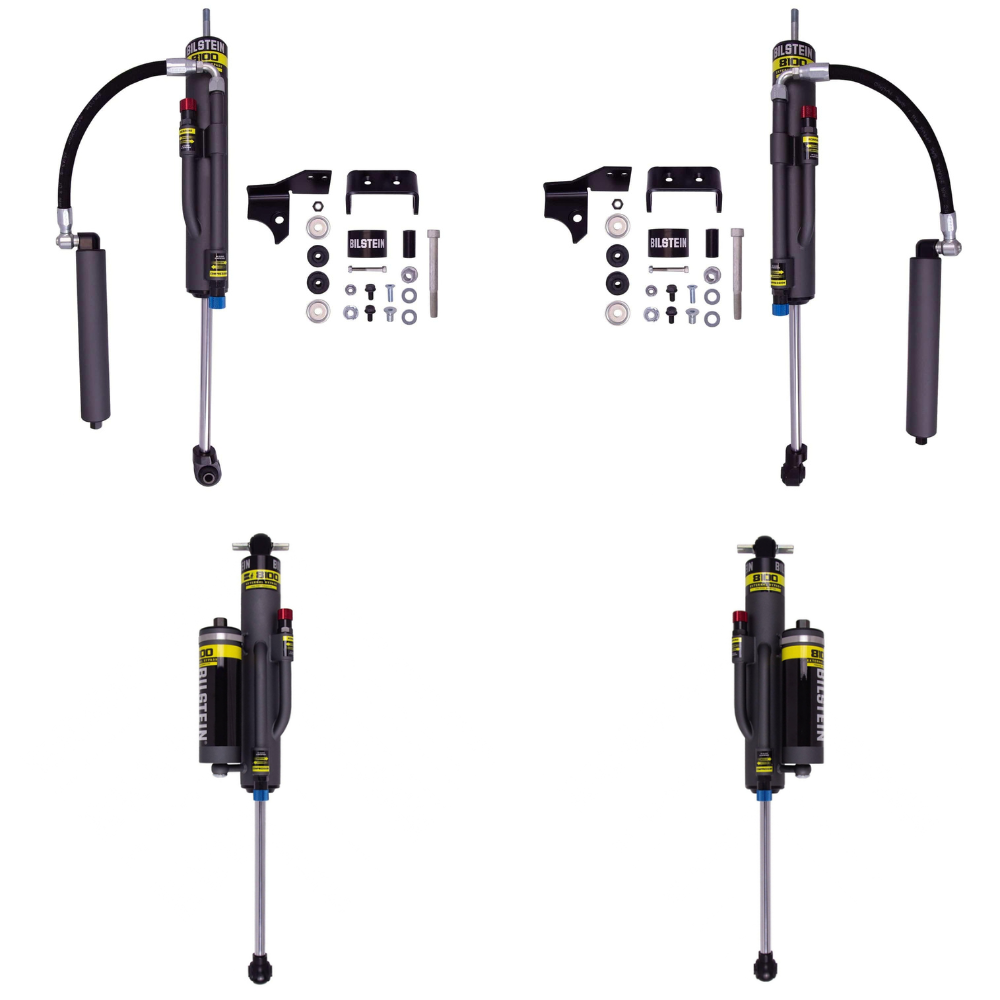

Bilstein B8 8100 (Bypass) for the 2007-2017 Jeep Wrangler is a direct fit, position sensitive, damper for light trucks and SUV's. These motorsports inspired Shock Absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature "Incremental Flow" bypass adjusters, allowing for finite and incremental changes for rebound and compression.

The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

Part NumberLift/LoweredPositionItemQuantity
25-2913083.5-5" LiftFront LeftShock Absorber1
25-2912923.5-5" LiftFront RightShock Absorber1
25-2913223.5-5" LiftRear LeftShock Absorber1
25-2913153.5-5" LiftRear RightShock Absorber1

Overview

Bilstein B8 8100 (Bypass) for the 2007-2017 Jeep Wrangler is a direct fit, position sensitive, damper for light trucks and SUV's. These motorsports inspired Shock Absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature "Incremental Flow" bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

Standard Features

  • Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
  • Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
  • 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
Specifications
Part Number 25-291308
Part Name Shock Absorber
Vehicle 2007-2017 Jeep Wrangler
UPC 651860916972
Front Lift Height 3.5 - 5 in.
Body Design Bypass Body (Non-Coilover)
Body Diameter (ID) 60 mm
Boot Included No
Collapsed Length 17.20 in.
Collapsed Length 437.0 mm
Damping Adjustable Yes
Extended Length 27.03 in.
Extended Length 686.6 mm
Finish EVO Grey
Internal Design Monotube
Lower Mount Type Eye 12.1 mm
Reservoir Yes
Segment Light Truck
Series B8 8100 (Bypass)
Spring Seat Included No
Upper Mount Type Stem
Vehicle Fitment
  • 2007 Jeep Wrangler
  • 2008 Jeep Wrangler
  • 2009 Jeep Wrangler
  • 2010 Jeep Wrangler
  • 2011 Jeep Wrangler
  • 2012 Jeep Wrangler
  • 2013 Jeep Wrangler
  • 2014 Jeep Wrangler
  • 2015 Jeep Wrangler
  • 2016 Jeep Wrangler
  • 2017 Jeep Wrangler
