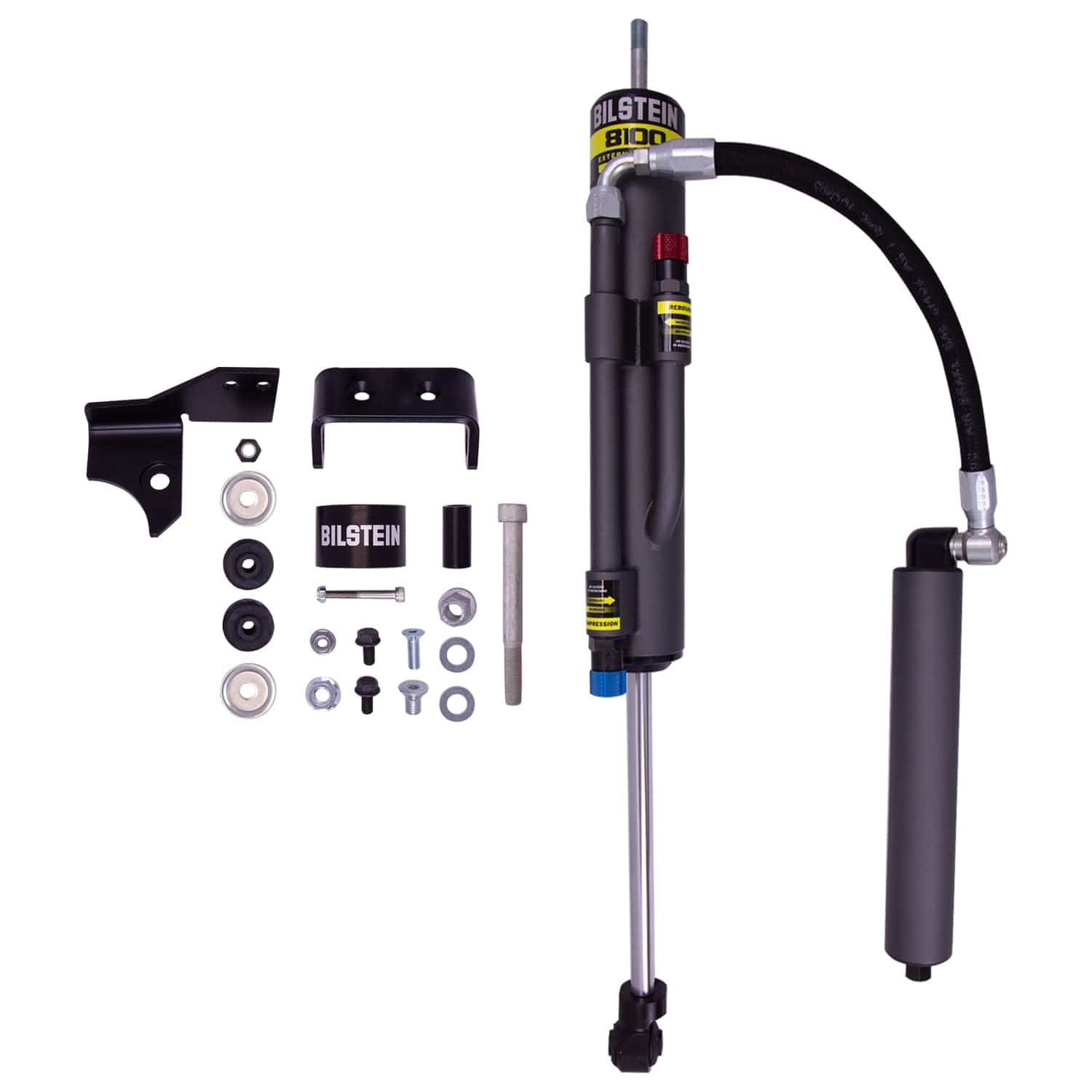

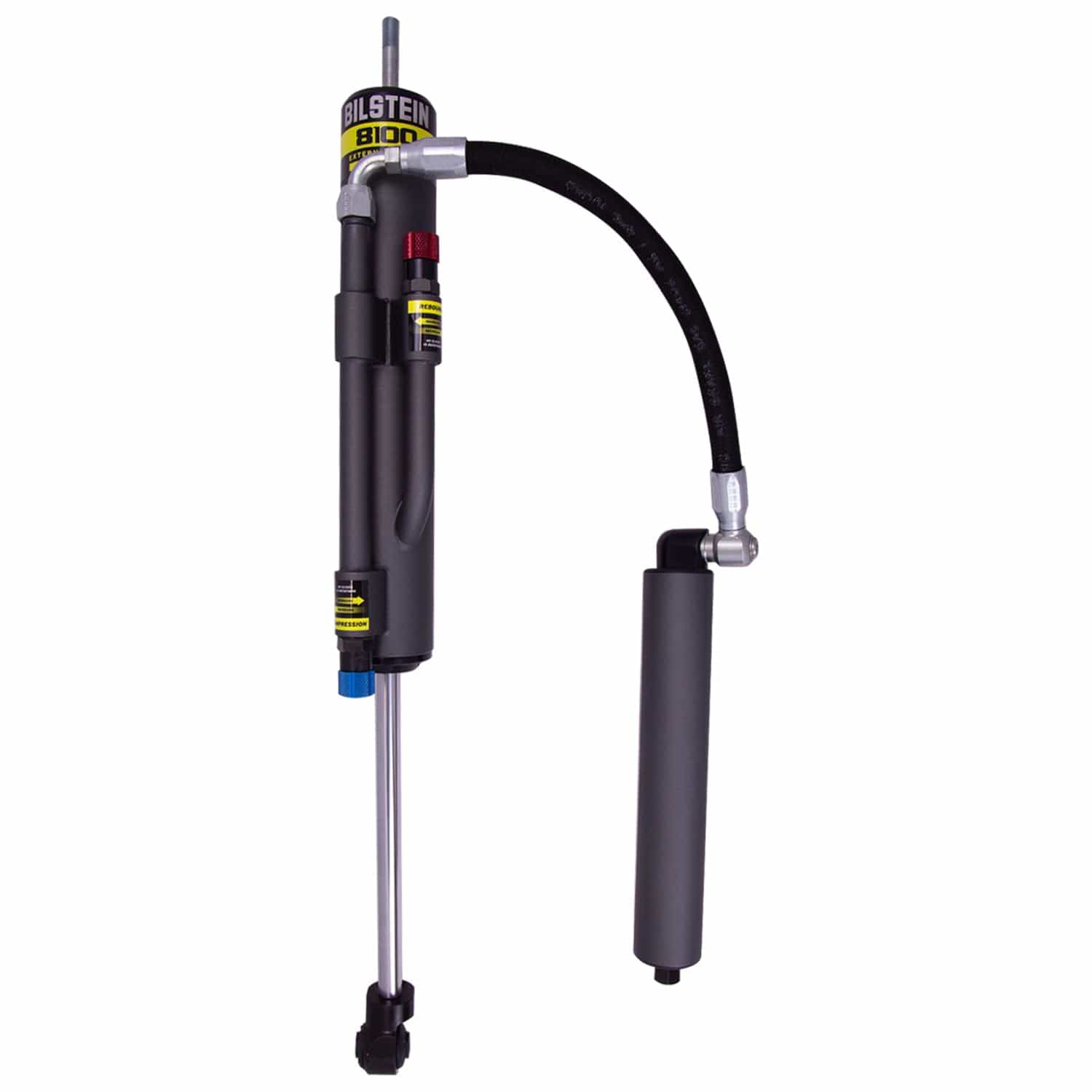

Bilstein B8 8100 (Bypass) Front Right Shock Jeep JK 07-17 (25-291292) | JK (07-17)

Bilstein B8 8100 (Bypass) Front Right Shock Jeep JK 07-17 (25-291292) | JK (07-17)

SKU:25-291292

In stock

Regular price $1,169.00 USD
Regular price $1,274.00 USD Sale price $1,169.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Bilstein B8 8100 (Bypass) front right shock absorber is a high-performance damper designed specifically for the 2007-2017 Jeep Wrangler JK models. Engineered with motorsports-inspired technology, this shock features a dual-tube externally adjustable bypass system that allows precise tuning of rebound and compression damping. The "Incremental Flow" bypass adjusters enable fine adjustments for optimal ride quality and handling, making it suitable for both on-road and off-road applications. The shock incorporates a remote reservoir with a bottom hose exit port, which enhances compression control throughout the full suspension cycle. Constructed with durable materials, it provides increased responsiveness and durability under demanding conditions, ensuring improved vehicle stability and ride comfort.

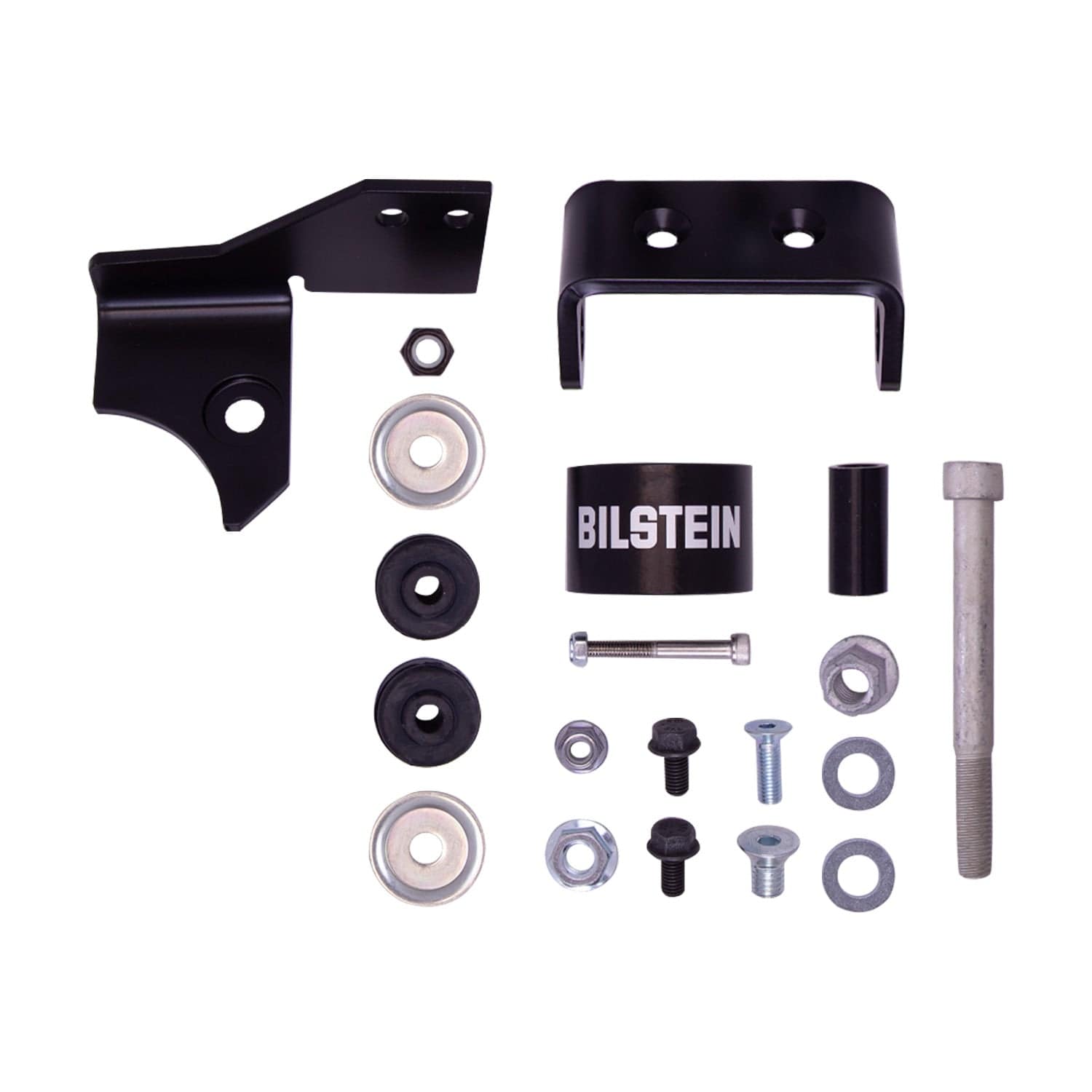

This shock is a direct fit for Jeep JK models from 2007 to 2017, compatible with light trucks and SUVs. It is designed for users seeking enhanced off-road performance, track capability, or improved ride quality on rugged terrain. The B8 8100 (Bypass) is a bolt-on upgrade that replaces factory shocks, offering adjustable damping for customized performance. Installation involves straightforward mounting, and the kit includes the shock absorber with all necessary hardware. Ideal for off-road enthusiasts, daily drivers, or those pushing their vehicle’s limits, this shock absorber delivers superior control and durability for demanding driving conditions.

Overview

Bilstein B8 8100 (Bypass) for the 2007-2017 Jeep Wrangler is a direct fit, position sensitive, damper for light trucks and SUV's. These motorsports inspired Shock Absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature "Incremental Flow" bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

Standard Features

  • Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
  • Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
  • 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
Specifications
Part Number 25-291292
Part Name Shock Absorber
Vehicle 2007-2017 Jeep Wrangler
UPC 651860899244
Front Lift Height 3.5 - 5 in.
Body Design Bypass Body (Non-Coilover)
Body Diameter (ID) 60 mm
Boot Included No
Collapsed Length 17.20 in.
Collapsed Length 437.0 mm
Damping Adjustable Yes
Extended Length 27.03 in.
Extended Length 686.6 mm
Finish EVO Grey
Internal Design Monotube
Lower Mount Type Eye 12.1 mm
Reservoir Yes
Segment Light Truck
Series B8 8100 (Bypass)
Spring Seat Included No
Upper Mount Type Stem
Vehicle Fitment
  • 2007 Jeep Wrangler
  • 2008 Jeep Wrangler
  • 2009 Jeep Wrangler
  • 2010 Jeep Wrangler
  • 2011 Jeep Wrangler
  • 2012 Jeep Wrangler
  • 2013 Jeep Wrangler
  • 2014 Jeep Wrangler
  • 2015 Jeep Wrangler
  • 2016 Jeep Wrangler
  • 2017 Jeep Wrangler
