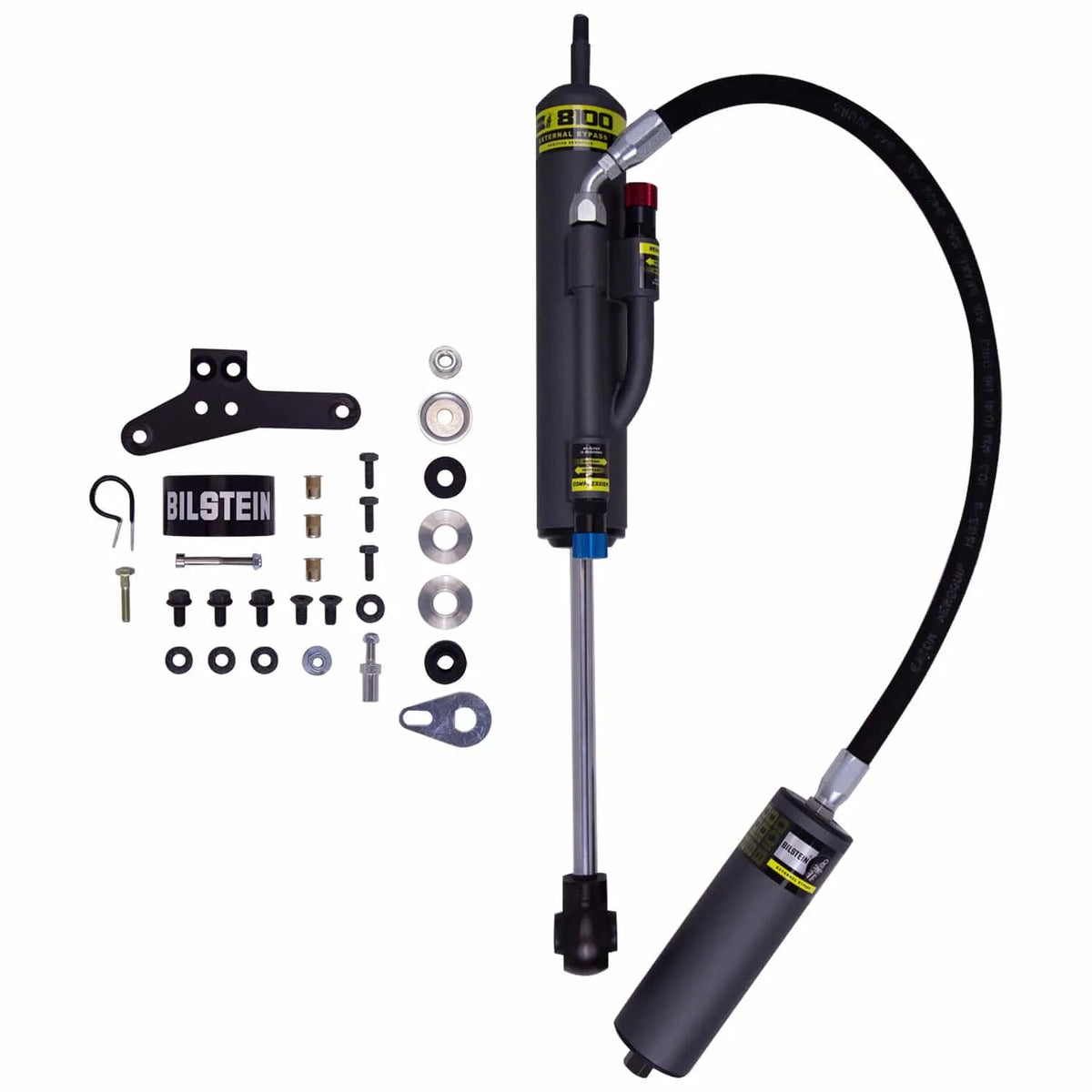

Bilstein B8 8100 (Bypass) Suspension Rear Left Shock Absorber for 2003-2009 Lexus GX470 - 14.72 in. Extended

Bilstein B8 8100 (Bypass) Suspension Rear Left Shock Absorber for 2003-2009 Lexus GX470 - 14.72 in. Extended

SKU:25-326369

In stock

Regular price $1,226.06 USD
Regular price $1,341.00 USD Sale price $1,226.06 USD
xADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

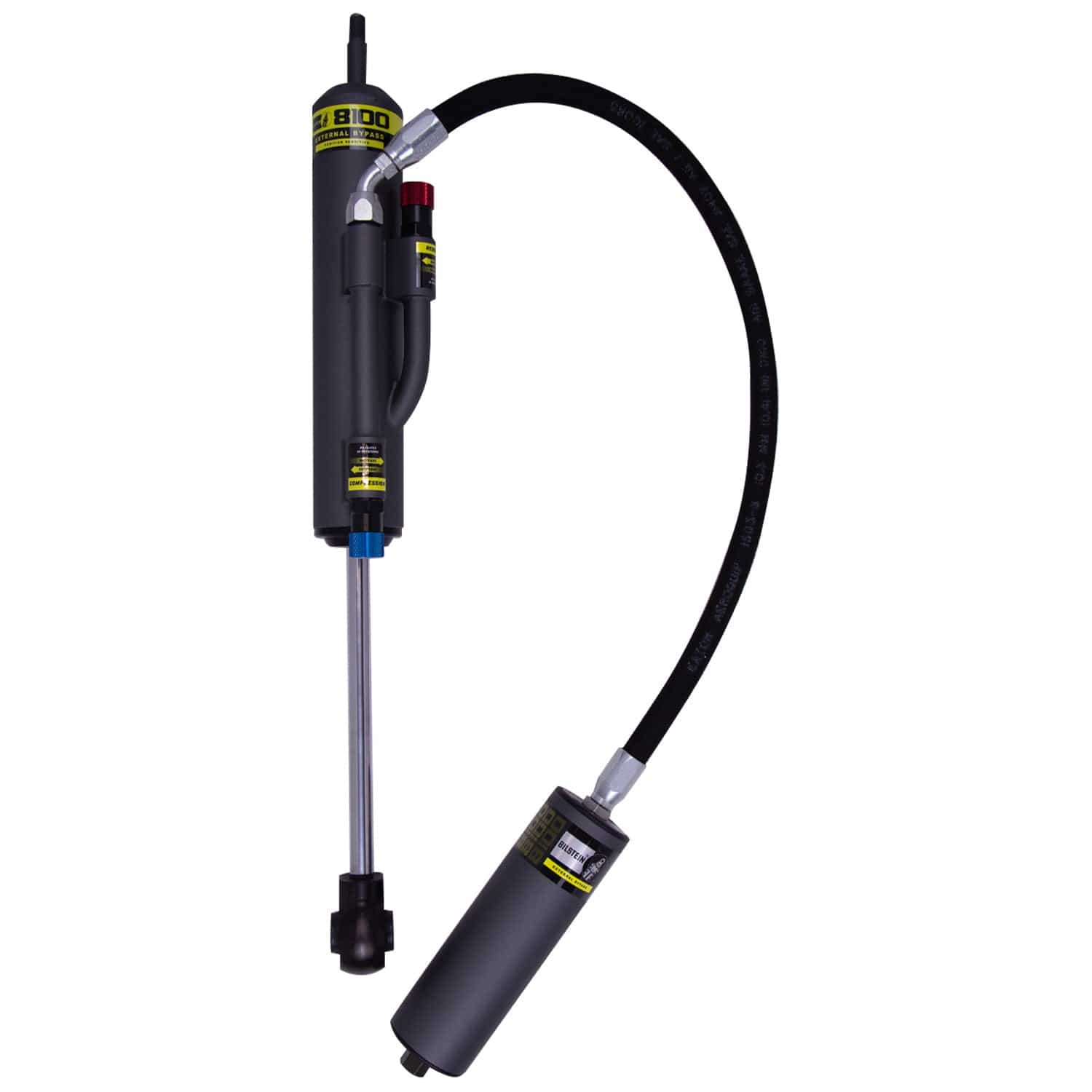

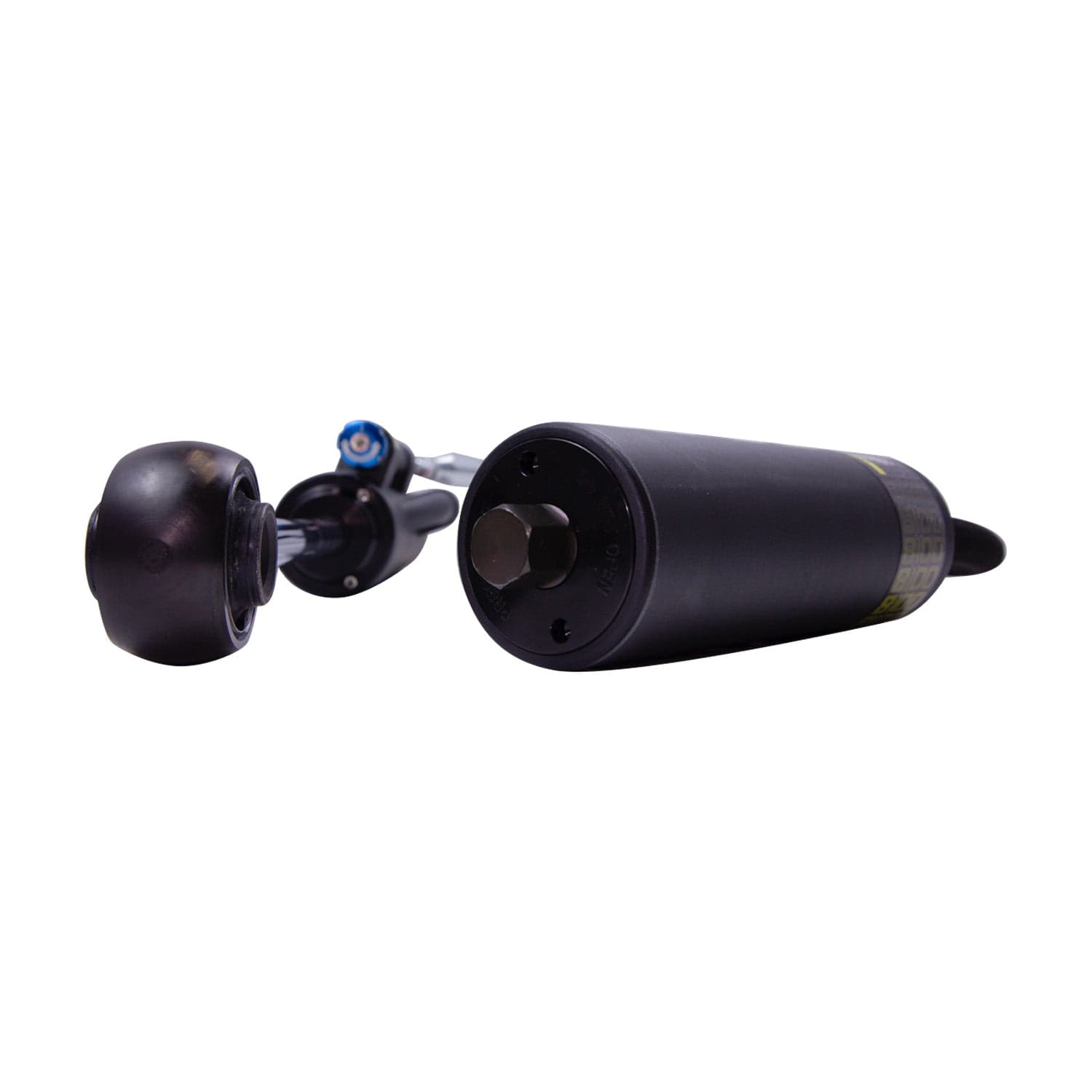

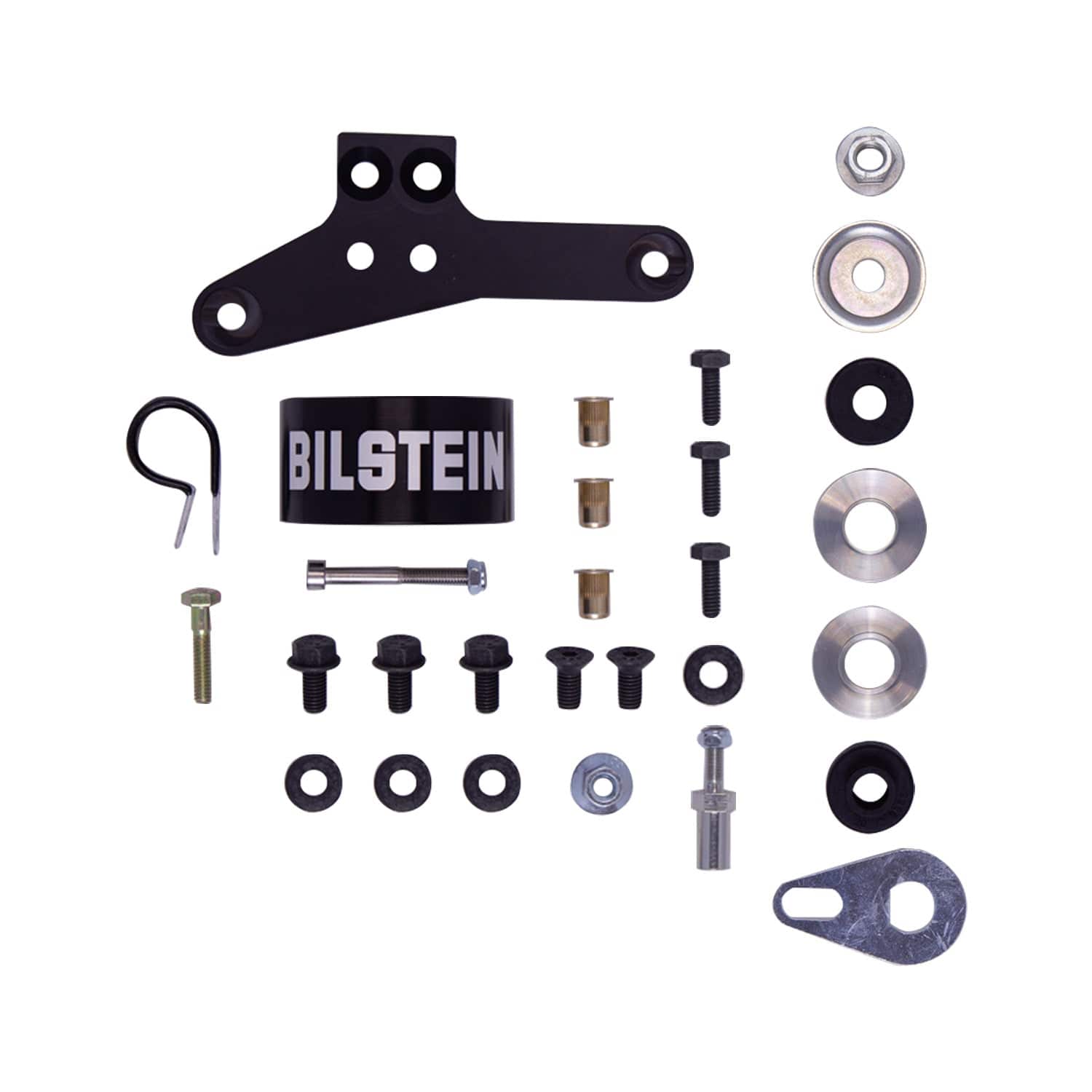

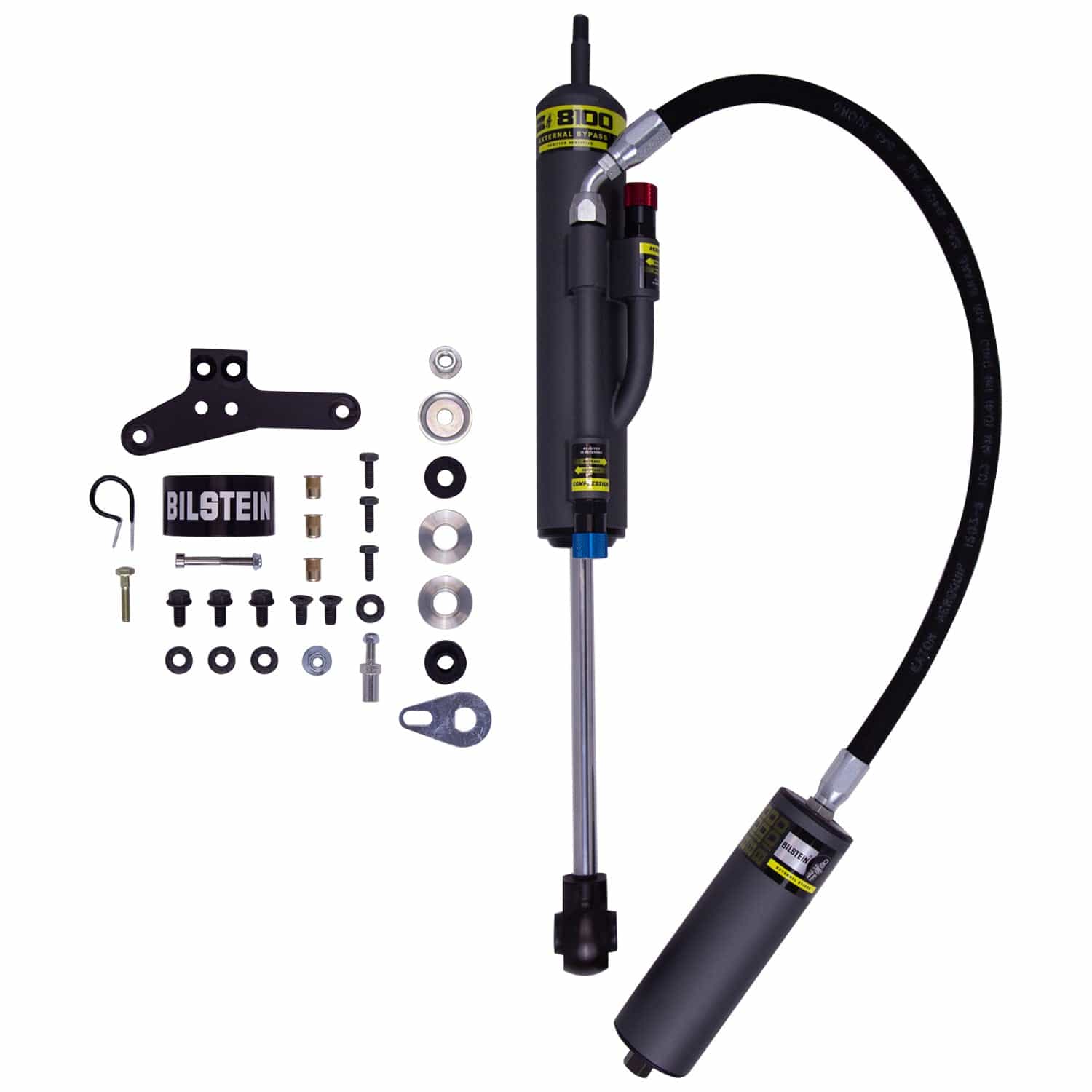

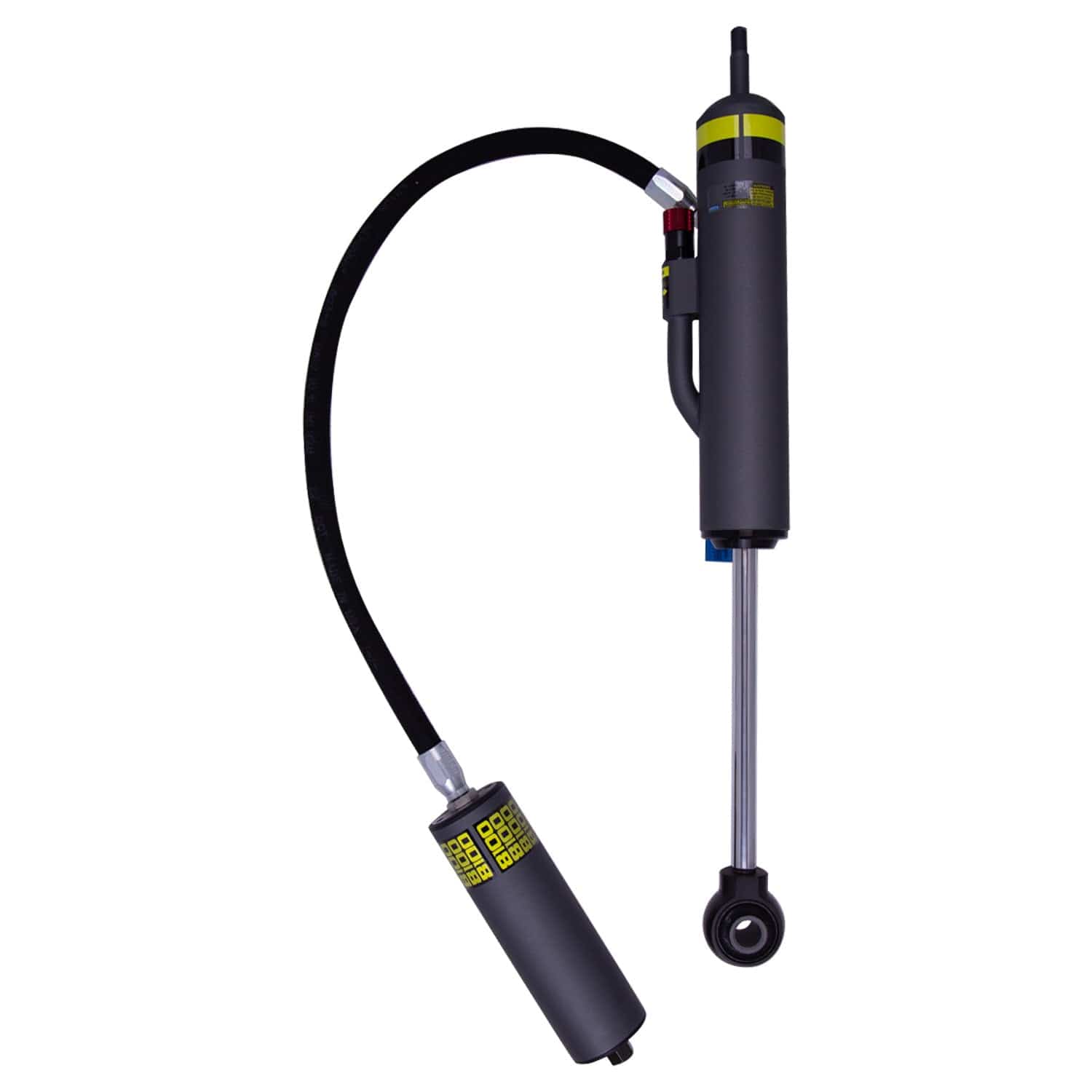

Bilstein B8 8100 (Bypass) for the 2003-2009 Lexus GX470 is a direct fit, position sensitive, damper for light trucks and SUV's. These motorsports inspired Shock Absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature "Incremental Flow" bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

Standard Features

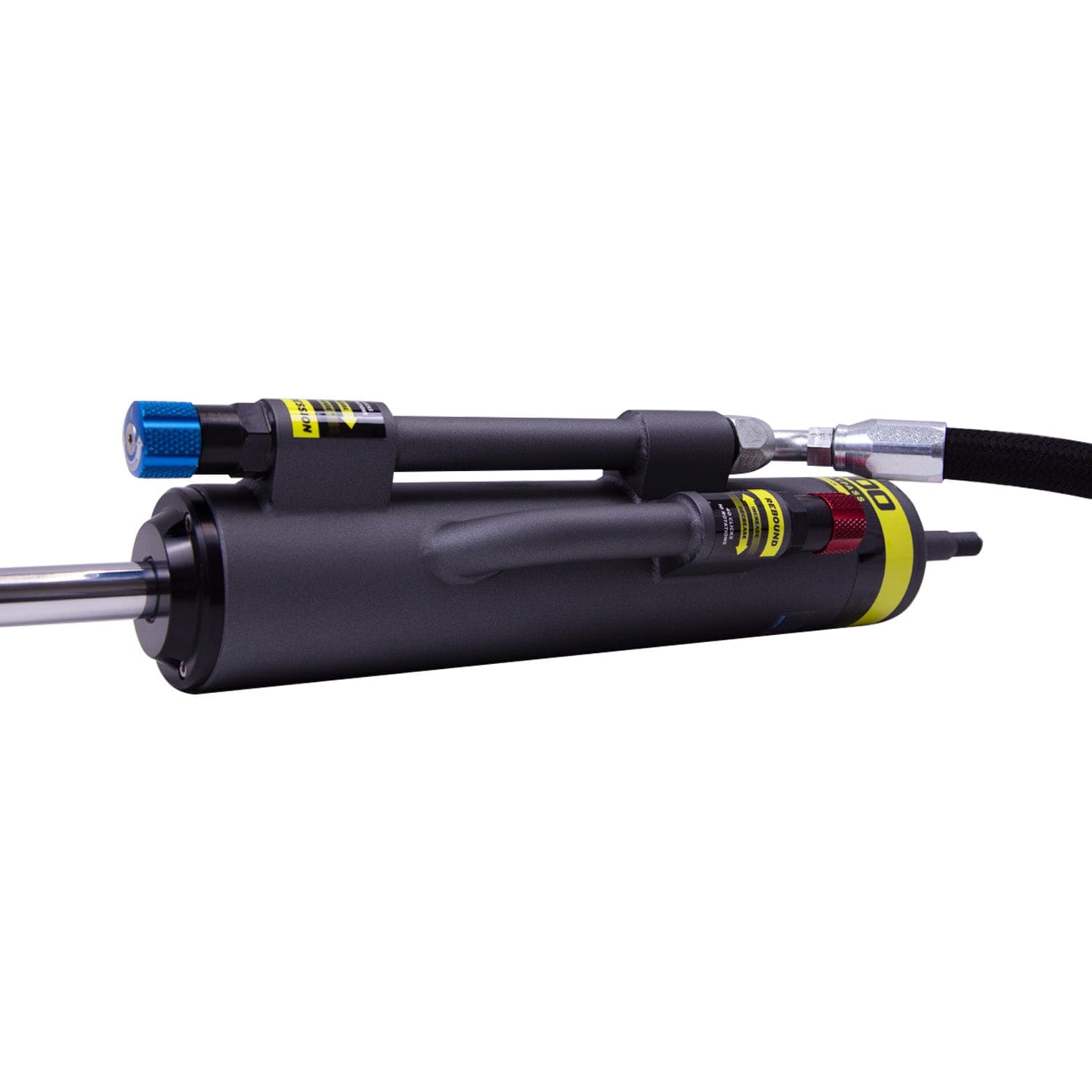

  • Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression

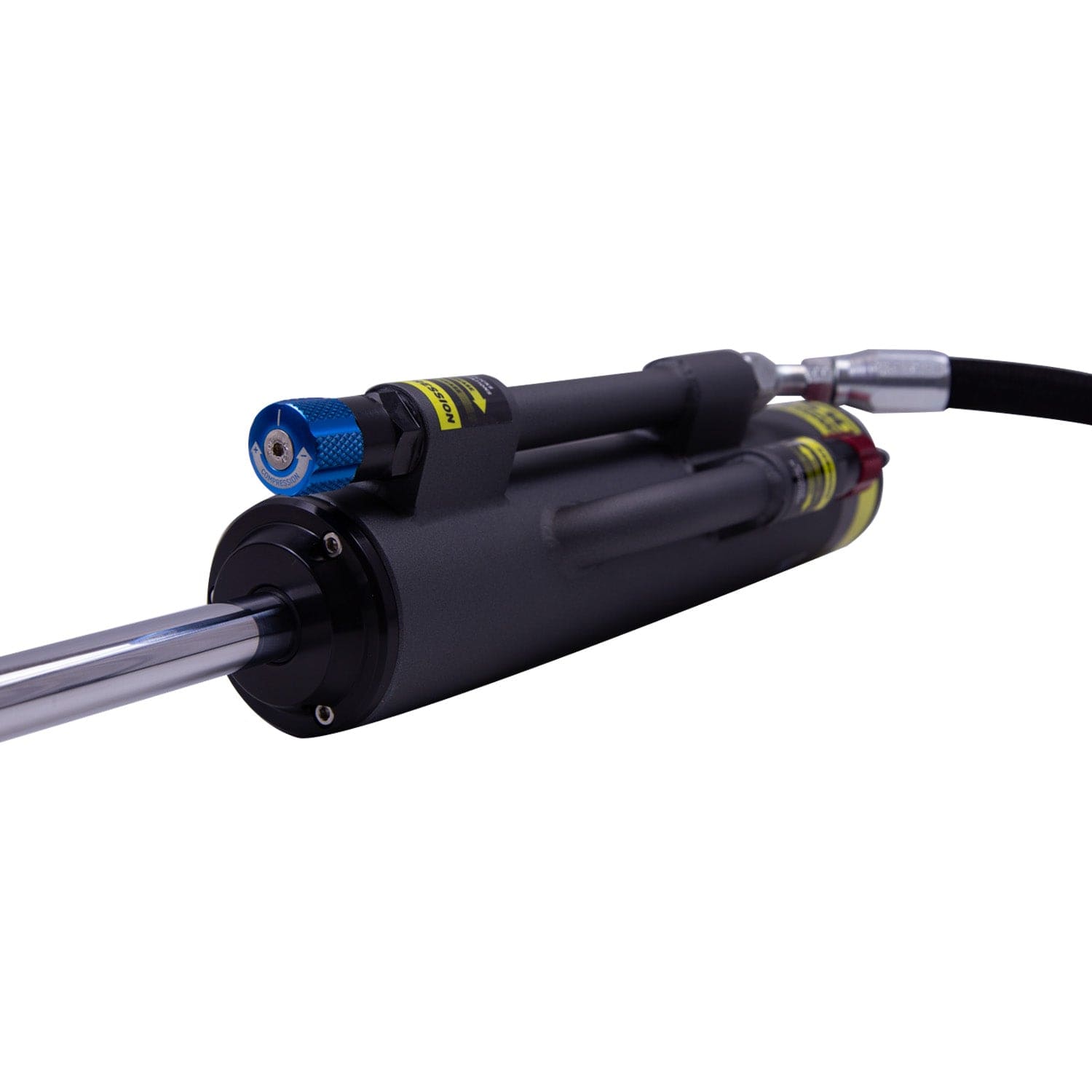

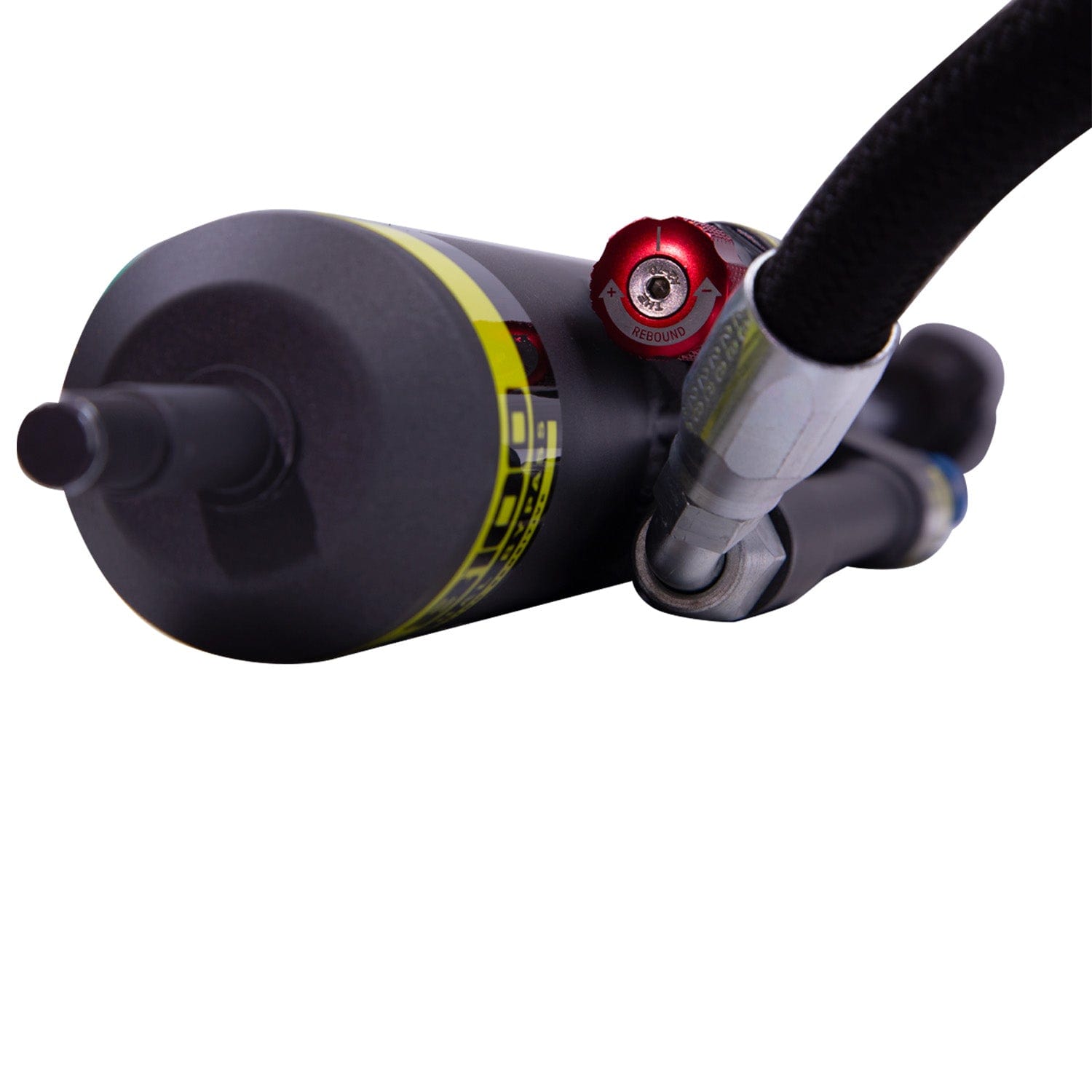

  • Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
  • 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
Specifications
Part Number 25-326369
Part Name Shock Absorber
Vehicle 2003-2009 Lexus GX470
UPC 651860918334
Rear Lift Height 0.5 - 1.5 in.
Body Design Bypass Body (Non-Coilover)
Body Diameter (ID) 60 mm
Boot Included No
Collapsed Length 24.09 in.
Collapsed Length 612.0 mm
Damping Adjustable Yes
Extended Length 14.72 in.
Extended Length 374.0 mm
Finish EVO Grey
Internal Design Monotube
Lower Mount Type Eye 19.2 mm
Reservoir Yes
Segment Light Truck
Series B8 8100 (Bypass)
Spring Seat Included No
Upper Mount Type Stem
Notes Requires Rear Coil Spring Conversion
Vehicle Fitment
  • 2003 Lexus GX470
  • 2004 Lexus GX470
  • 2005 Lexus GX470
  • 2006 Lexus GX470
  • 2007 Lexus GX470
  • 2008 Lexus GX470
  • 2009 Lexus GX470
