| Year | Make | Model |
|---|---|---|
| 2007 - 2014 | Toyota | FJ Cruiser Base |
| 2008 | Toyota | FJ Cruiser Trail Teams Special Edition |

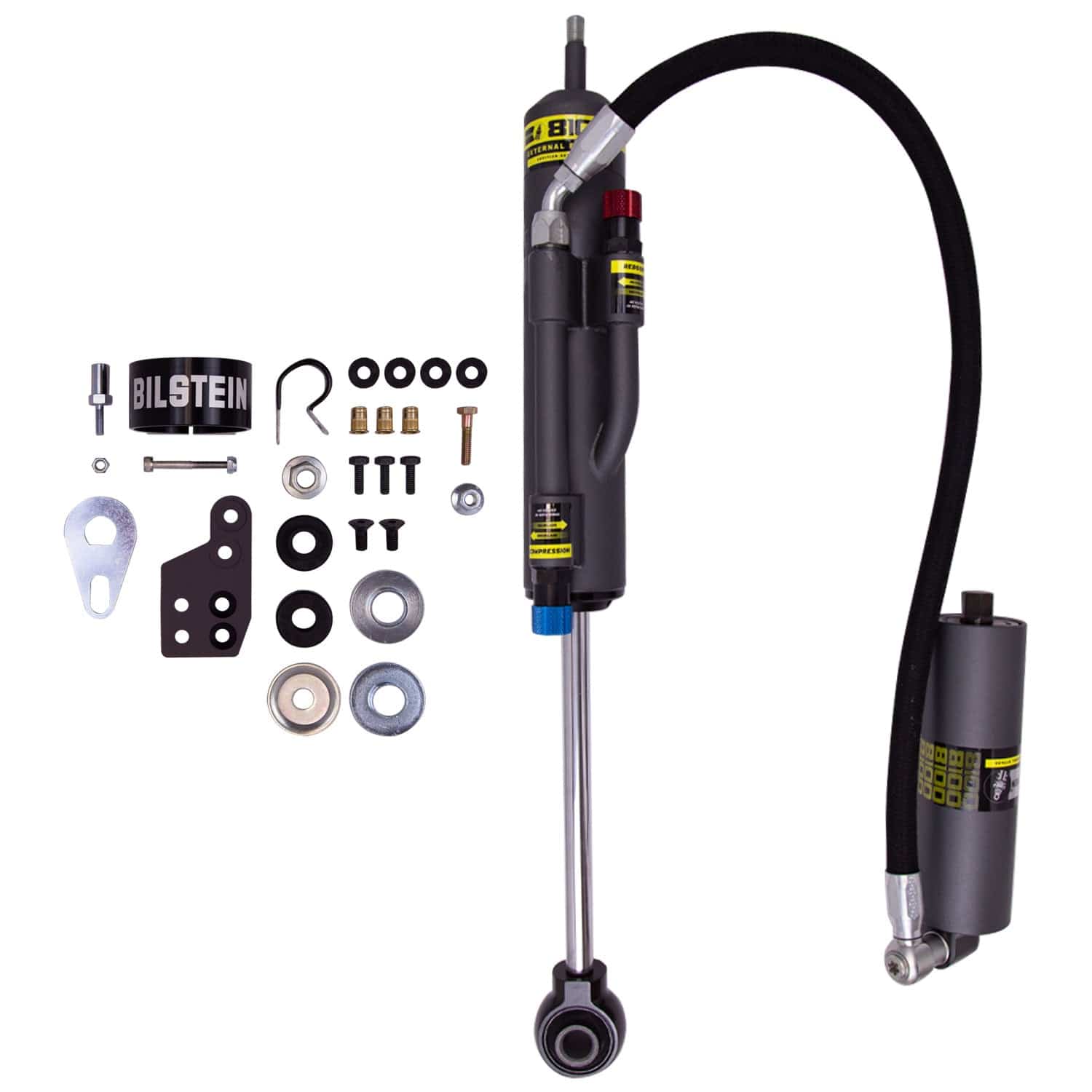

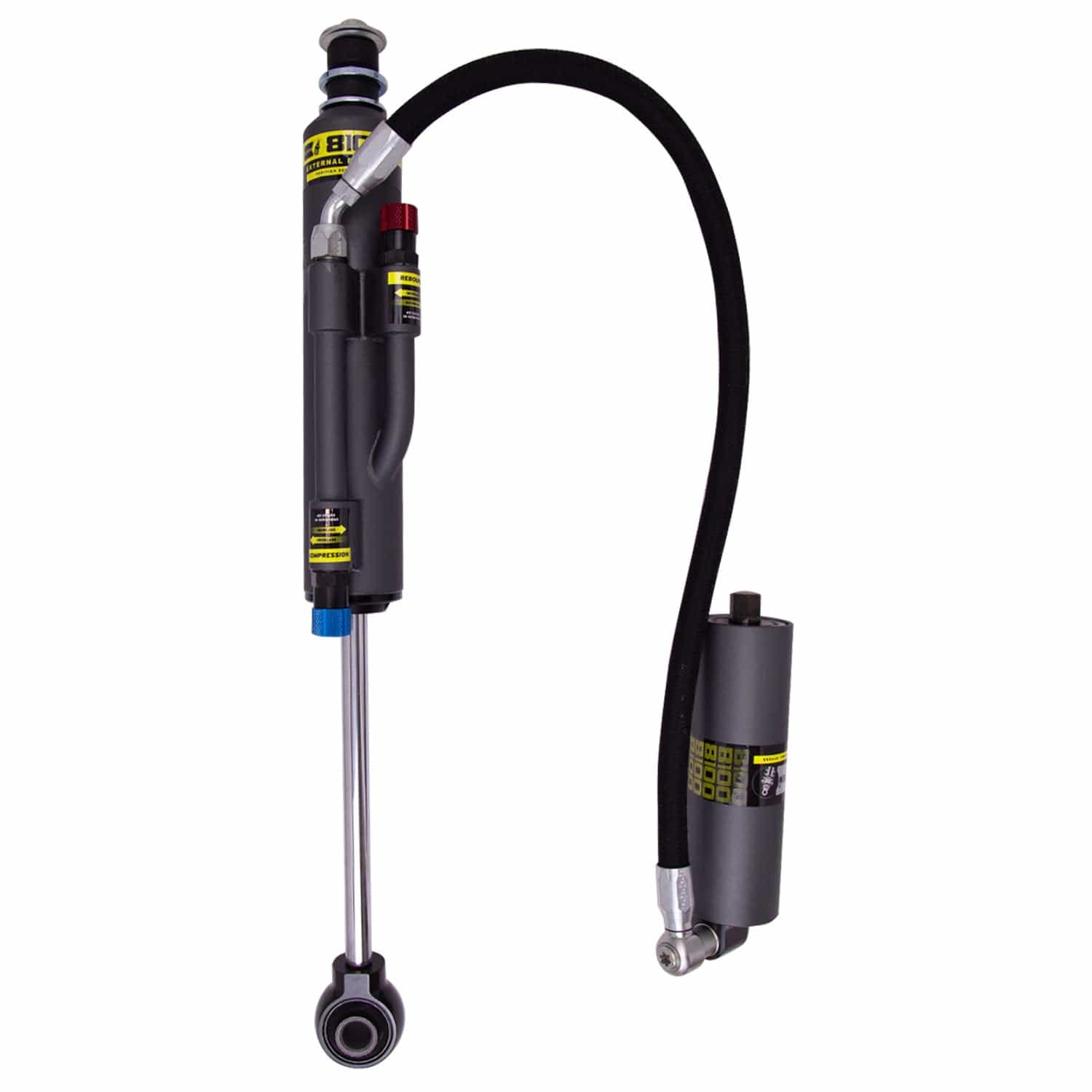

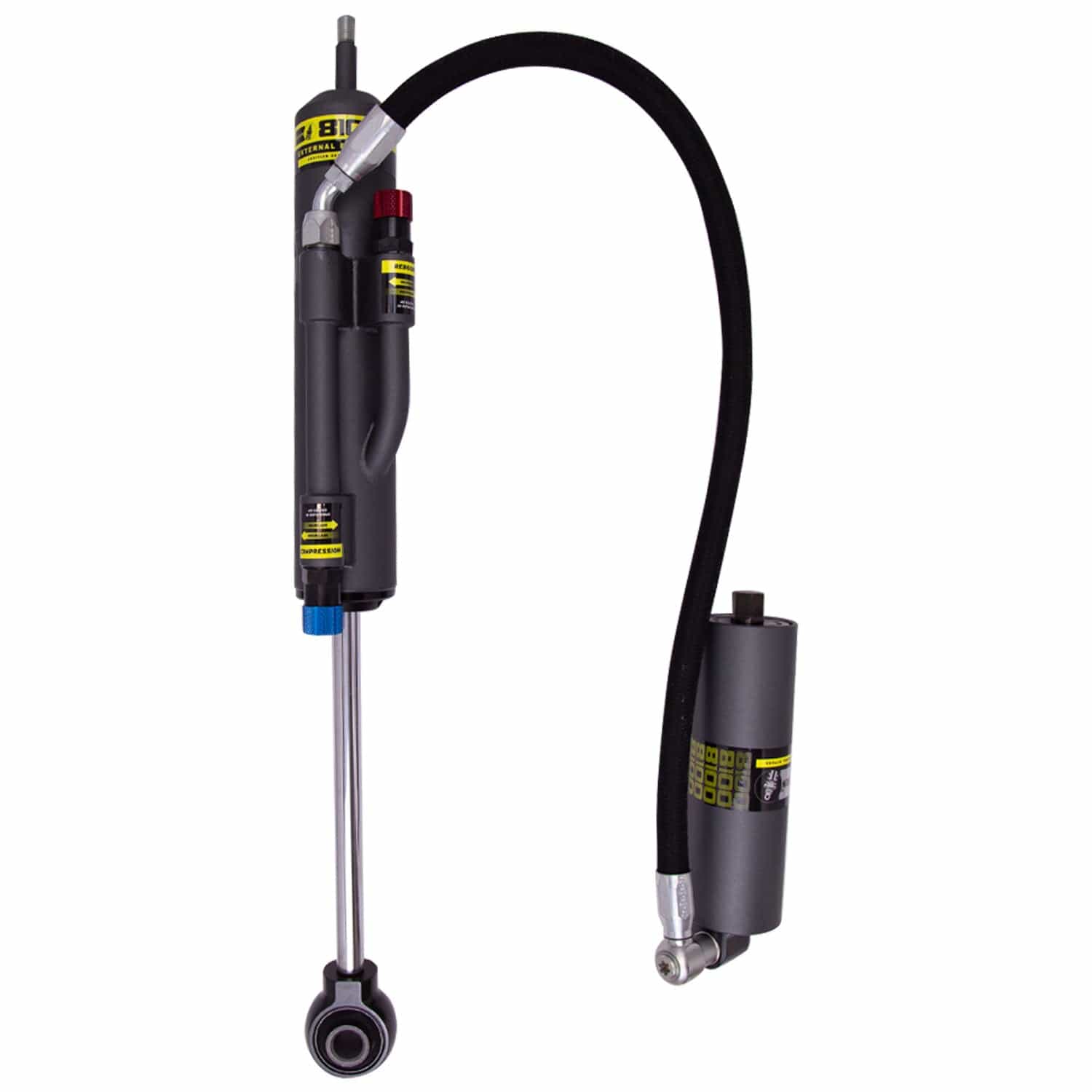

Bilstein B8 8100 Bypass Shock | FJ Cruiser (07-14) (25-288155)
Bilstein B8 8100 Bypass Shock | FJ Cruiser (07-14) (25-288155)
SKU:25-288155
In stock
Couldn't load pickup availability
▶ Vehicle Fitments
The Bilstein B8 8100 Bypass Shock for the Toyota FJ Cruiser (2007-2014) is a high-performance damper designed for light trucks and SUVs. Featuring a motorsports-inspired dual tube externally adjustable bypass design, these shocks allow precise tuning of rebound and compression forces. The incremental flow bypass adjusters enable fine adjustments, providing optimal damping characteristics for various driving conditions. The shocks incorporate a remote reservoir with a bottom hose exit port, which enhances compression control throughout the full cycle, improving ride quality and handling. Built with durable materials and engineered for performance, these shocks deliver increased stability, responsiveness, and durability for demanding off-road or spirited driving.
Designed specifically for 2007-2014 Toyota FJ Cruiser models, these shocks are a direct fit and serve as an upgrade for improved off-road capability and on-road comfort. They are ideal for enthusiasts seeking adjustable damping for trail, desert, or performance driving. Installation is straightforward as they are a bolt-on replacement for factory units, with no additional modifications required. The kit includes the shocks with remote reservoirs, ensuring consistent performance and enhanced control. Suitable for off-road, daily driving, or performance applications, these Bilstein B8 8100 bypass shocks provide customizable damping to meet diverse driving needs.
Share
Overview
Overview

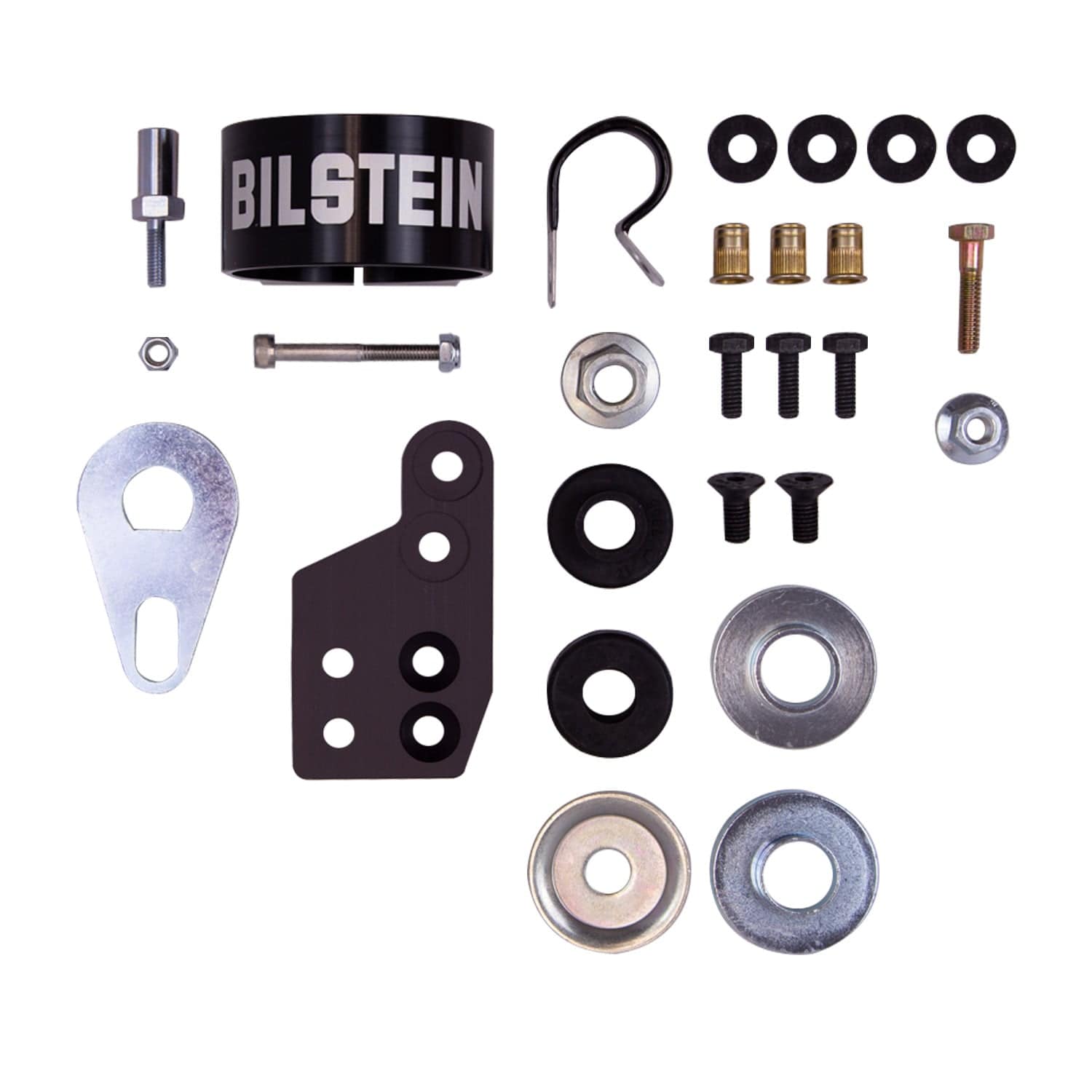

Bilstein B8 8100 (Bypass) for the 2007-2014 Toyota FJ Cruiser is a direct fit, position sensitive, damper for light trucks and SUV's. These motorsports inspired Shock Absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature "Incremental Flow" bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
Standard Features
- Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
- Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
- 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
Specifications
| Part Number | 25-288155 |
| Part Name | Shock Absorber |
| Vehicle | 2007-2014 Toyota FJ Cruiser |
| UPC | 651860878645 |
| Rear Lift Height | 0 - 2 in. |
| Body Design | Bypass Body (Non-Coilover) |
| Body Diameter (ID) | 60 mm |
| Boot Included | No |
| Collapsed Length | 14.72 in. |
| Collapsed Length | 374.0 mm |
| Damping Adjustable | Yes |
| Extended Length | 24.09 in. |
| Extended Length | 612.0 mm |
| Finish | EVO Grey |
| Internal Design | Monotube |
| Lower Mount Type | Eye 19.25 mm |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8100 (Bypass) |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
Vehicle Fitment
- 2007 Toyota FJ Cruiser
- 2008 Toyota FJ Cruiser
- 2009 Toyota FJ Cruiser
- 2010 Toyota FJ Cruiser
- 2011 Toyota FJ Cruiser
- 2012 Toyota FJ Cruiser
- 2013 Toyota FJ Cruiser
- 2014 Toyota FJ Cruiser
