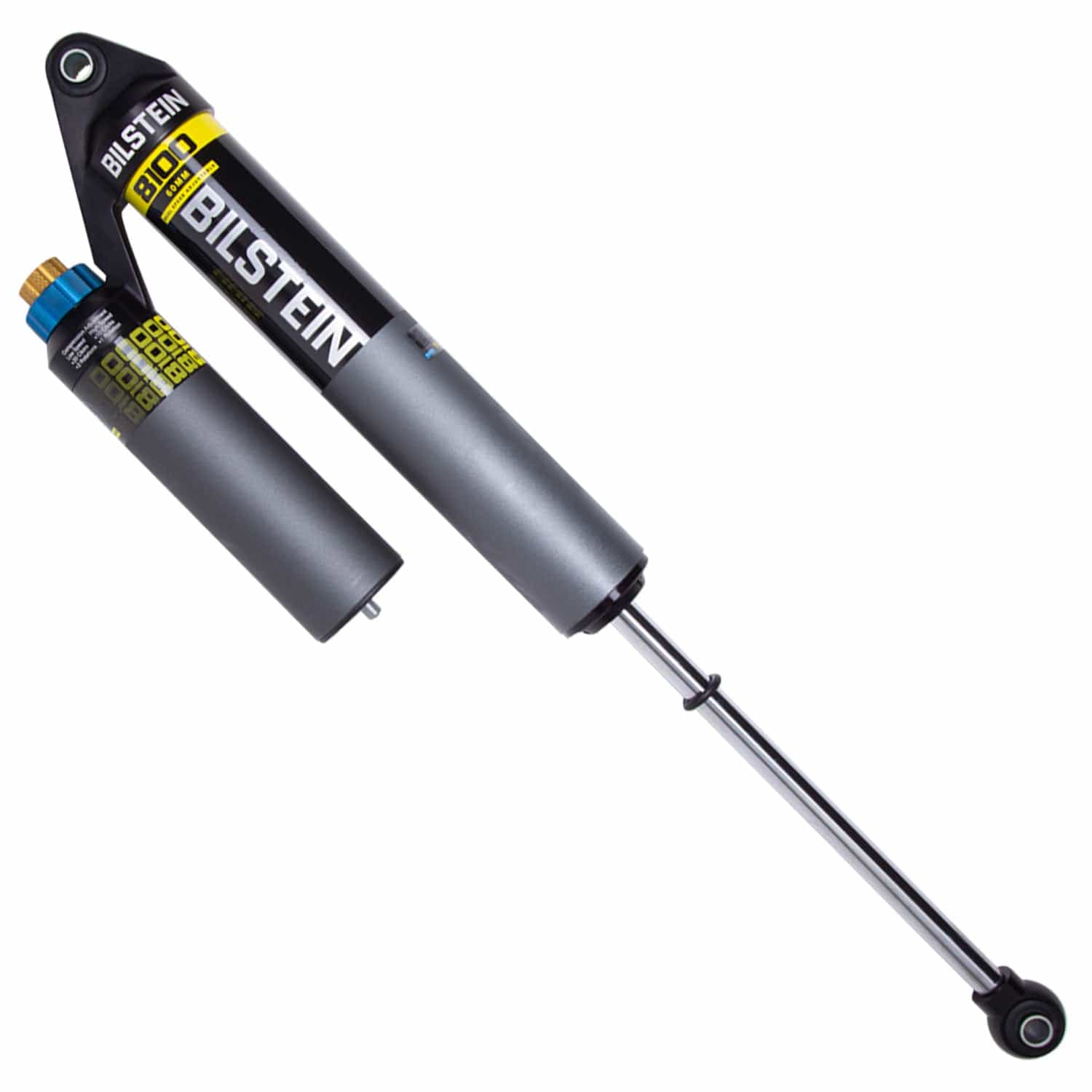

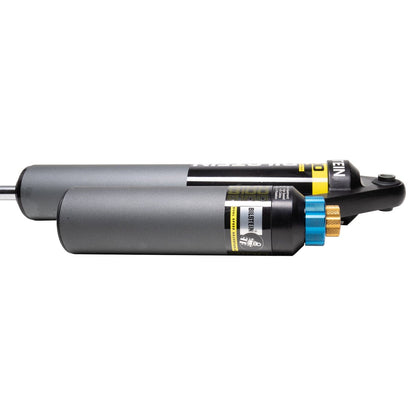

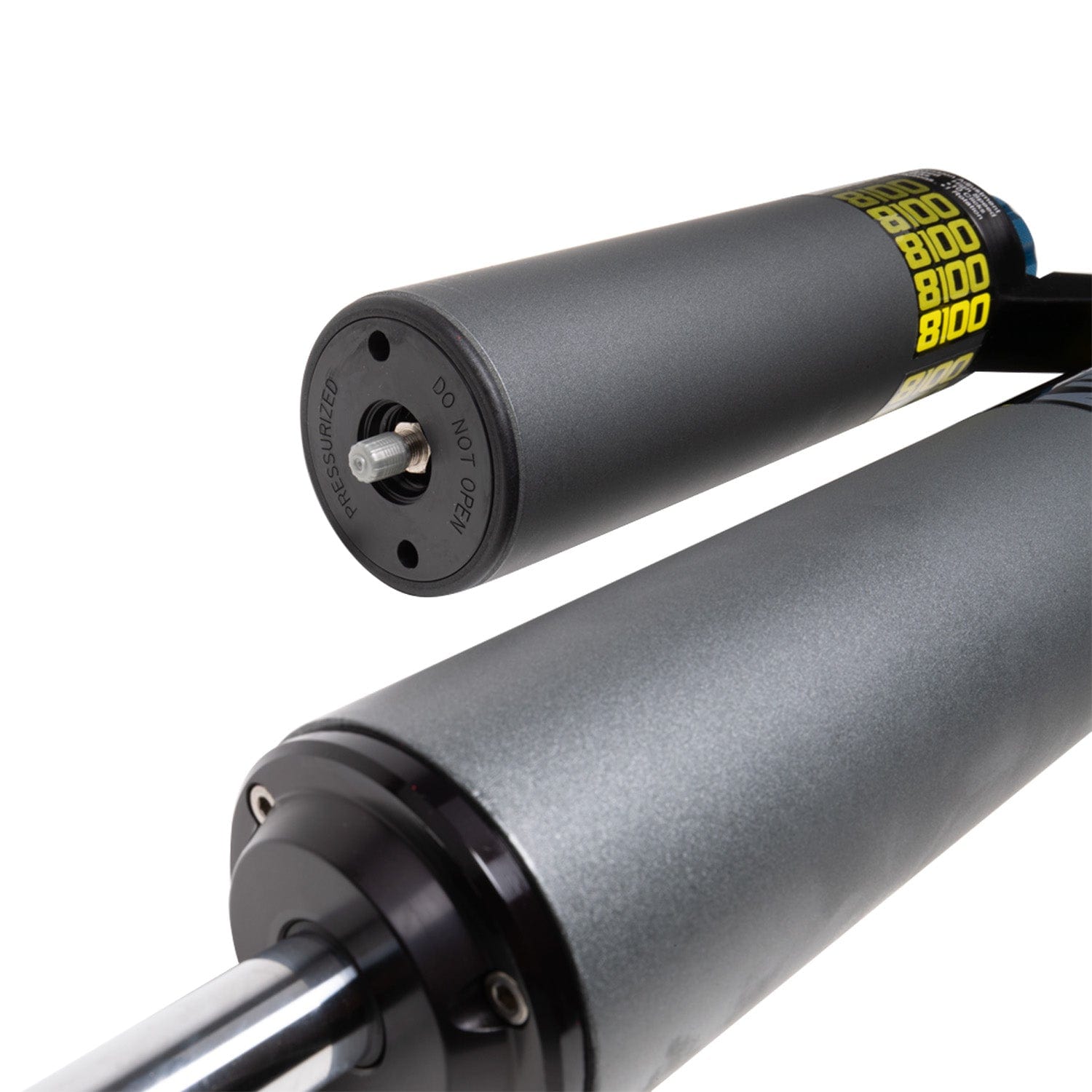

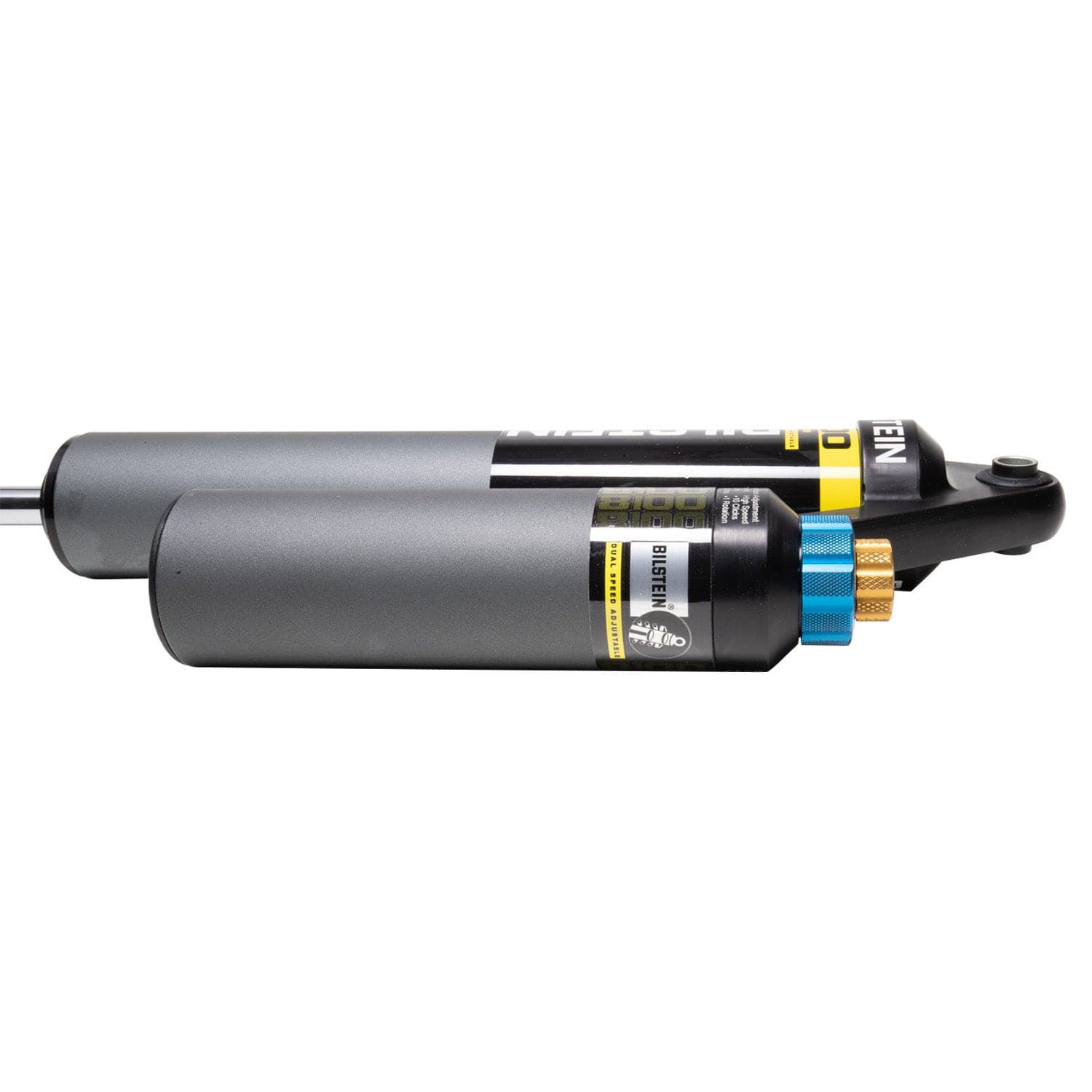

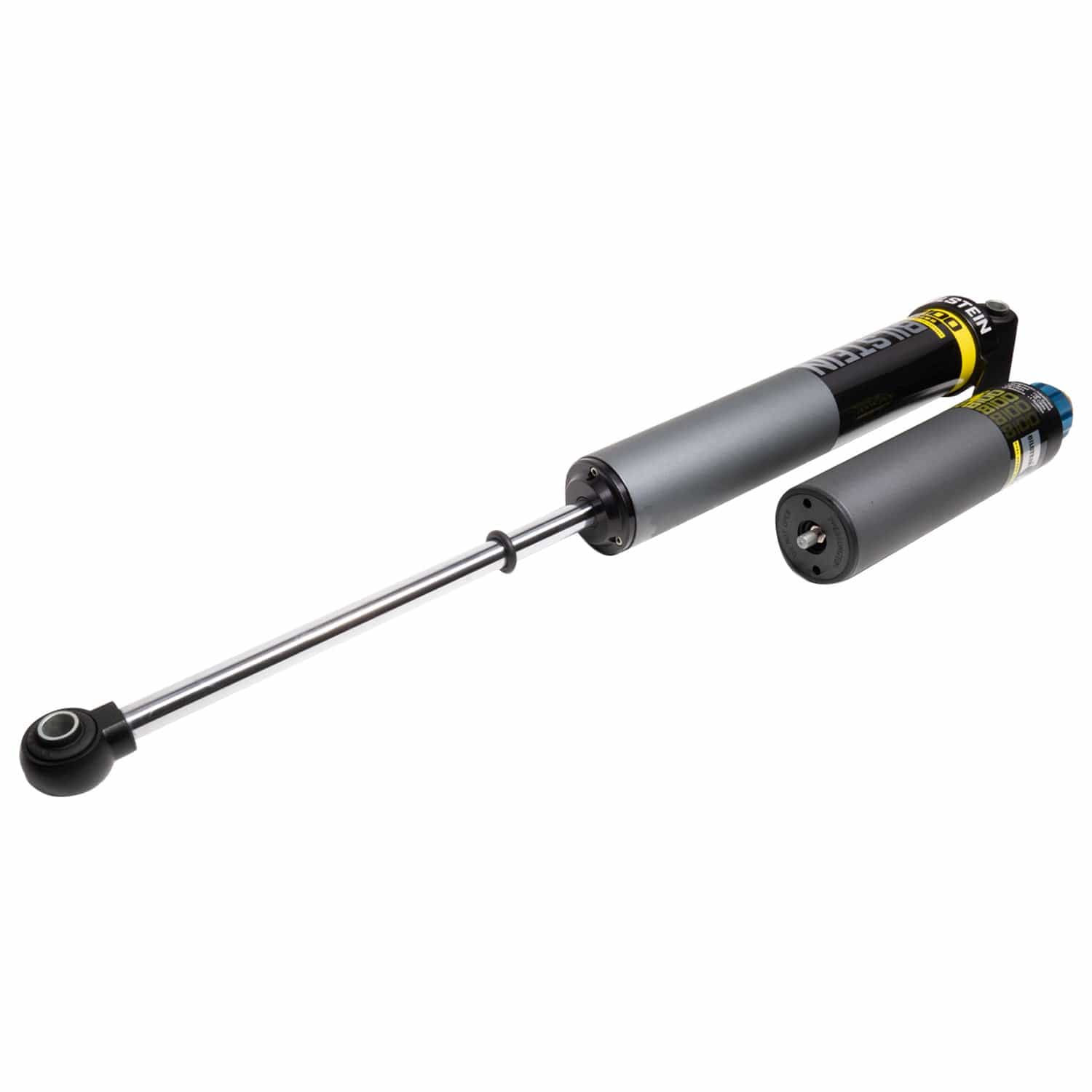

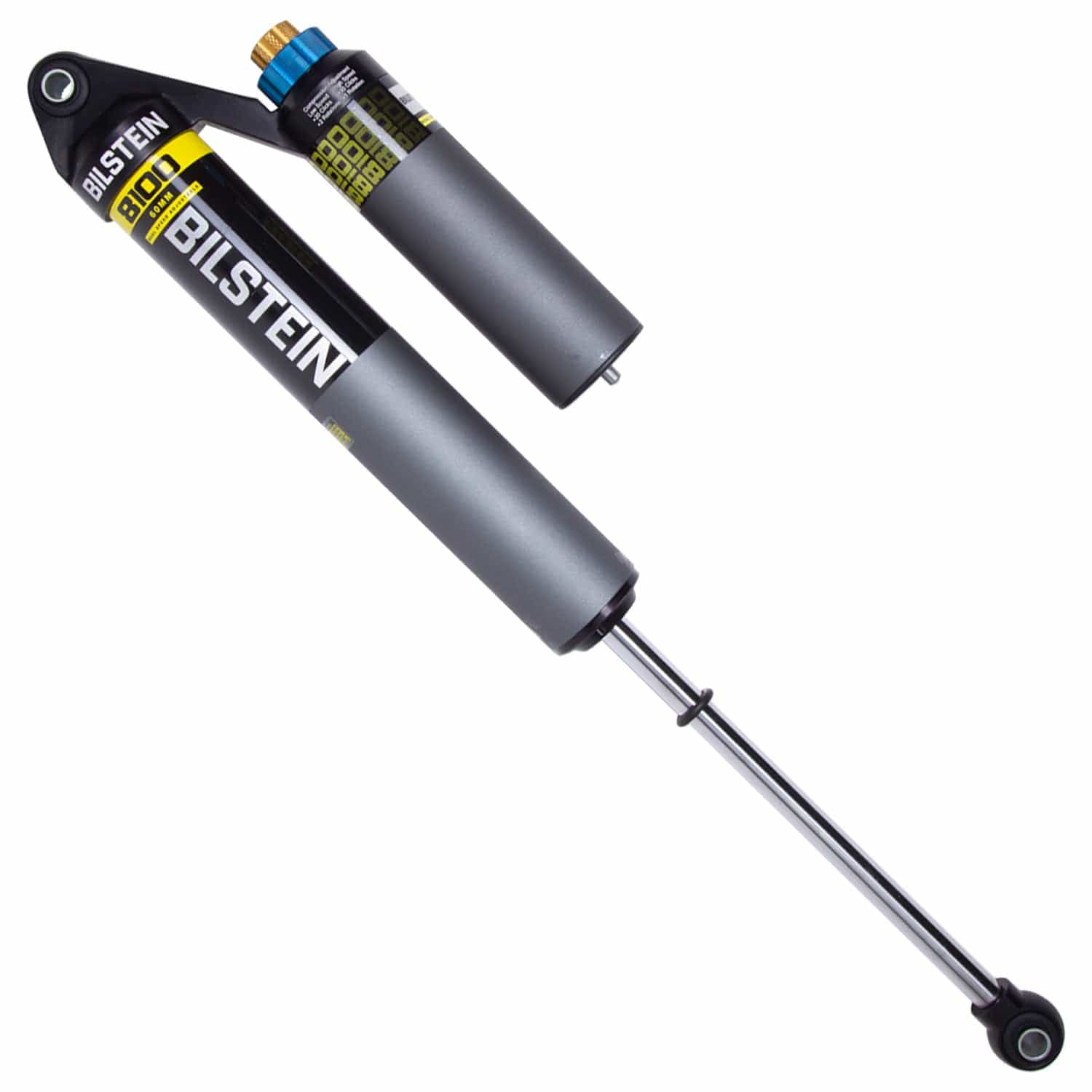

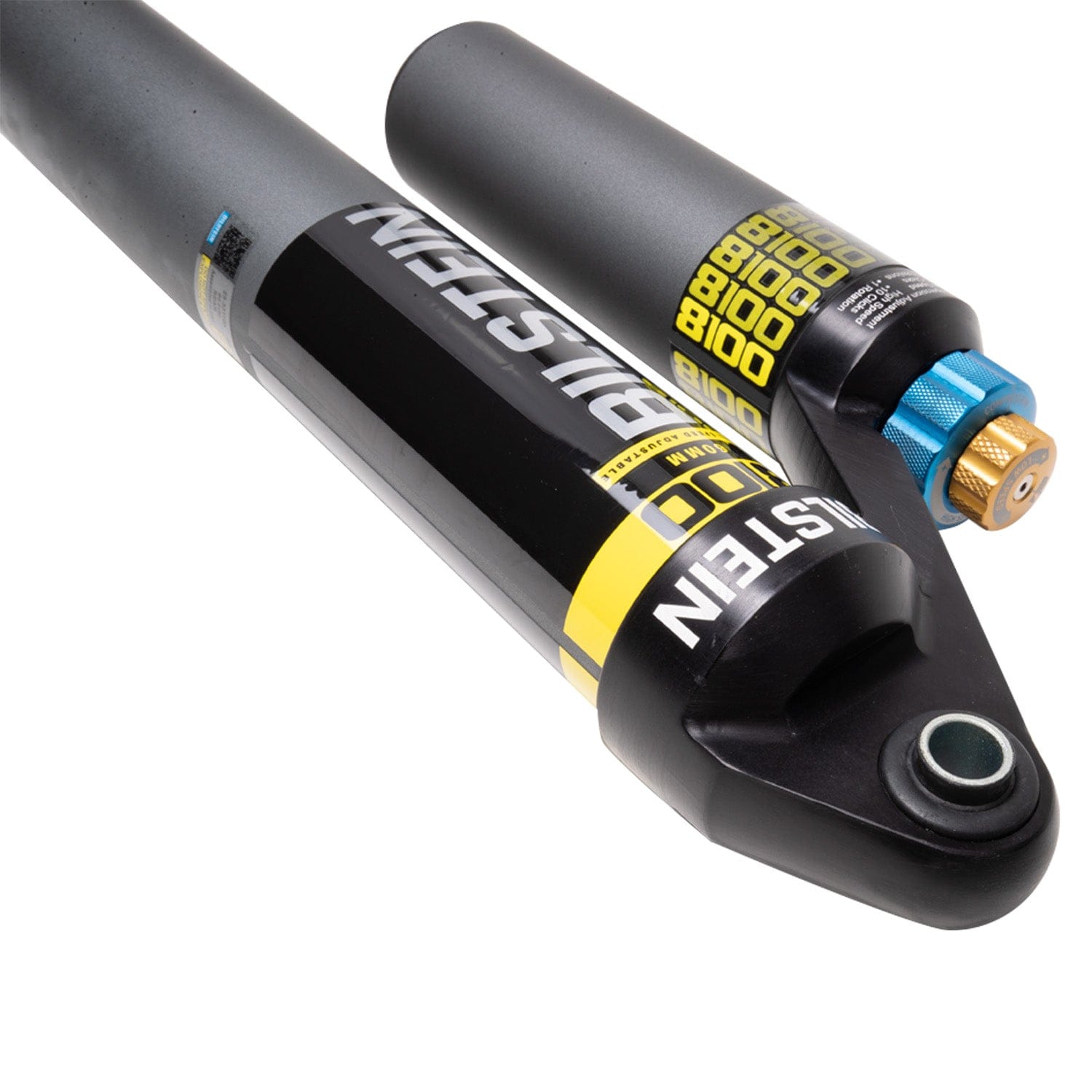

Bilstein B8 8100 (DSA) Suspension Shock Absorber for 2020-2024 Jeep Gladiator - 17.57 in. Collapsed
Bilstein B8 8100 (DSA) Suspension Shock Absorber for 2020-2024 Jeep Gladiator - 17.57 in. Collapsed
SKU:25-331103
In stock
Couldn't load pickup availability
▶ Vehicle Fitments
The Bilstein B8 8100 (DSA) Reservoir Shock Absorber for the 2020-2024 Jeep Gladiator is an adjustable large bore 60mm direct fit solution for lifted trucks and SUVs. Constructed from aerospace quality billet components, the large 60mm ID shock body offers a higher oil volume capacity to control heat while tackling rough road surfaces over long distances. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface. Each B8 8100 (DSA) offers a unique remote or piggyback reservoir solution for an easy, hassle free installation.
These Shock Absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 (DSA) will allow you to tame the terrain in comfort.
Standard Features
- 60mm large bore digressive piston offers a greater range of tunability and delivers exceptional comfort without sacrificing control
- Direct fit for an easy installation

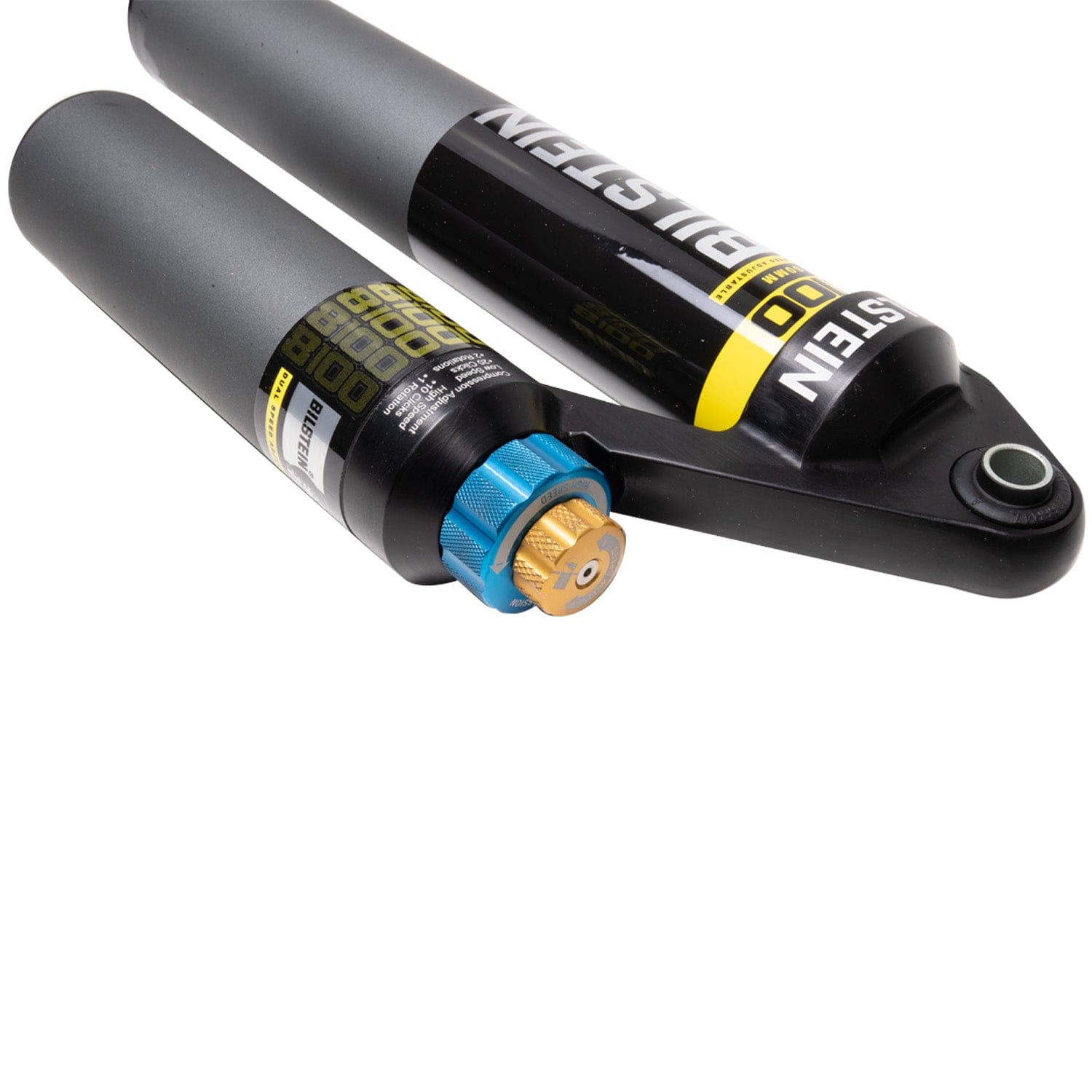

- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface
Specifications
Part Number | 25-331103 |
Part Name | Shock Absorber |
Vehicle | 2020-2024 Jeep Gladiator |
UPC | 651860937113 |
Rear Lift Height | 2 - 4.5 in. |
Body Design | Bypass Body (Non-Coilover) |
Body Diameter (ID) | 60 mm |
Boot Included | No |
Collapsed Length | 17.57 in. |
Collapsed Length | 446.3 mm |
Damping Adjustable | Yes |
Extended Length | 29.33 in. |
Extended Length | 745.0 mm |
Finish | EVO Grey |
Internal Design | Monotube |
Lower Mount Type | Eye 14.1 mm |
Reservoir | Yes |
Segment | Light Truck |
Series | B8 8100 (DSA) |
Spring Seat Included | No |
Upper Mount Type | Eye 14.1 mm |
Notes | Requires appropriate extensions to bump stops, sway bar links, and brake lines |
Vehicle Fitment
- 2020 Jeep Gladiator
- 2021 Jeep Gladiator
- 2022 Jeep Gladiator
- 2023 Jeep Gladiator
- 2024 Jeep Gladiator
