| Year | Make | Model |
|---|---|---|
| 2015 - 2026 | Ford | F-150 |
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 25-316773 | 0-0.5" Lift | Rear | Shock Absorber | 2 |

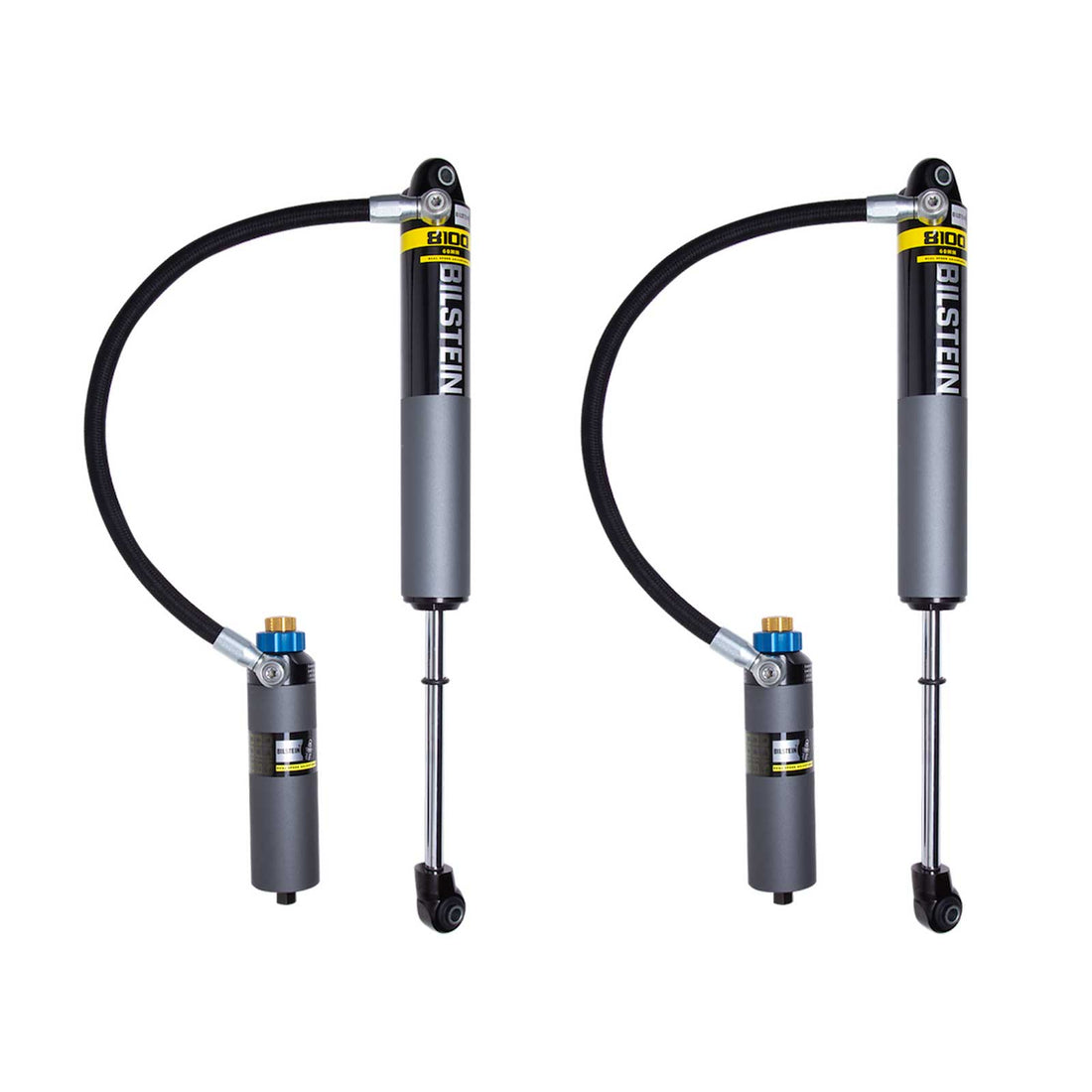

Bilstein B8 8100 Reservoir Shocks Rear Pair w/0-0.5" lift - 2015-2026 Ford F-150 4WD
Bilstein B8 8100 Reservoir Shocks Rear Pair w/0-0.5" lift - 2015-2026 Ford F-150 4WD
SKU:10552446714143_52706315895071
In stock
Couldn't load pickup availability
▶ Vehicle Fitments
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 25-316773 | 0-0.5" Lift | Rear | Shock Absorber | 2 |
The Bilstein B8 8100 Reservoir Shocks Rear Pair are high-performance, large-bore shock absorbers designed for 4WD Ford F-150 models from 2015 to 2026. Constructed from aerospace-quality billet components, these shocks feature a 60mm hard anodized aluminum piston for enhanced damping control and durability. They include piggyback reservoirs for increased oil capacity, helping to control heat during long off-road or rough surface traversing. The dual tube external bypass design offers position-sensitive damping with independent rebound and compression adjustments, providing a customizable ride. Reusing factory shock mounting bolts, the kit includes all necessary washers, bushings, and nuts, with an optional billet aluminum reservoir clamp for a cleaner look. Backed by a two-year warranty, these shocks are built for reliable performance and long-term durability.
Designed to fit vehicles at factory height or with up to 0.5" rear lift, these shocks are suitable for trucks with no suspension modifications or minor lift systems. They are specifically engineered for 4WD Ford F-150 models, excluding Raptor variants, and are intended for off-road, towing, or heavy-duty use. Installation is a direct bolt-on process, utilizing factory mounting points. The package contains two shock absorbers, making it a straightforward upgrade for enhancing ride quality, handling, and off-road capability on compatible trucks. These shocks are ideal for drivers seeking durable, adjustable suspension components for demanding driving conditions.
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 25-316773 | 0-0.5" Lift | Rear | Shock Absorber | 2 |
Share
Overview
Overview
-
Package Contains 2 Shocks
Rear pair of two shock absorbers. -
Bilstein 2 Year Warranty
Manufacturer Warranty protects against defects and premature failure. - Fits vehicles at factory height or with up to 0.5" rear lift
- For vehicles with no suspension modifications or up to 0.5" rear lift systems
-
Excludes Raptor Models
This will not fit a Raptor. -
Designed for 4WD vehicles
This product only works for 4WD vehicles. -
Without Continuously Controled Dampening
Excludes electronic suspensions. -
Reservoir Mounts Included
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look. -
Adjustable Rebound & Compression
Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression. -
Durable Design
60mm large bore hard anodized aluminum piston provides a greater ranger of damping control and long term durability. - Quality Materials
- Constructed from aerospace quality billet components
-
Piggyback Reservoirs
Each B8 8100 offers a unique remote or piggyback reservoir solution for an easy, hassle free installation.
Bilstein B8 8100 is a direct fit, large-bore solution for lifted trucks and SUVs. These shocks are constructed from aerospace quality billet components and utilize a 60MM internal diameter shock body for higher oil volume capacity that will control heat while traversing rough surfaces and long distances.
