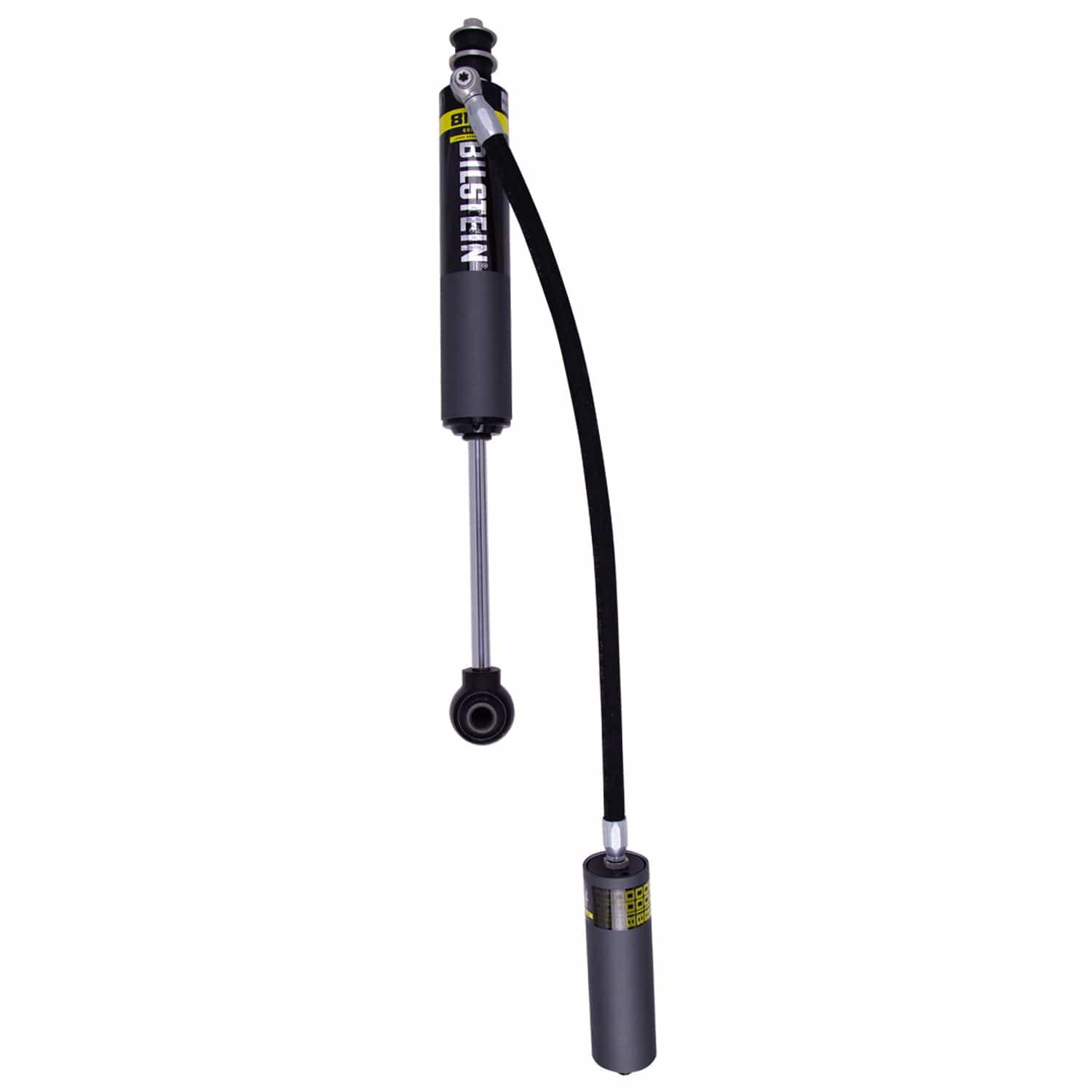

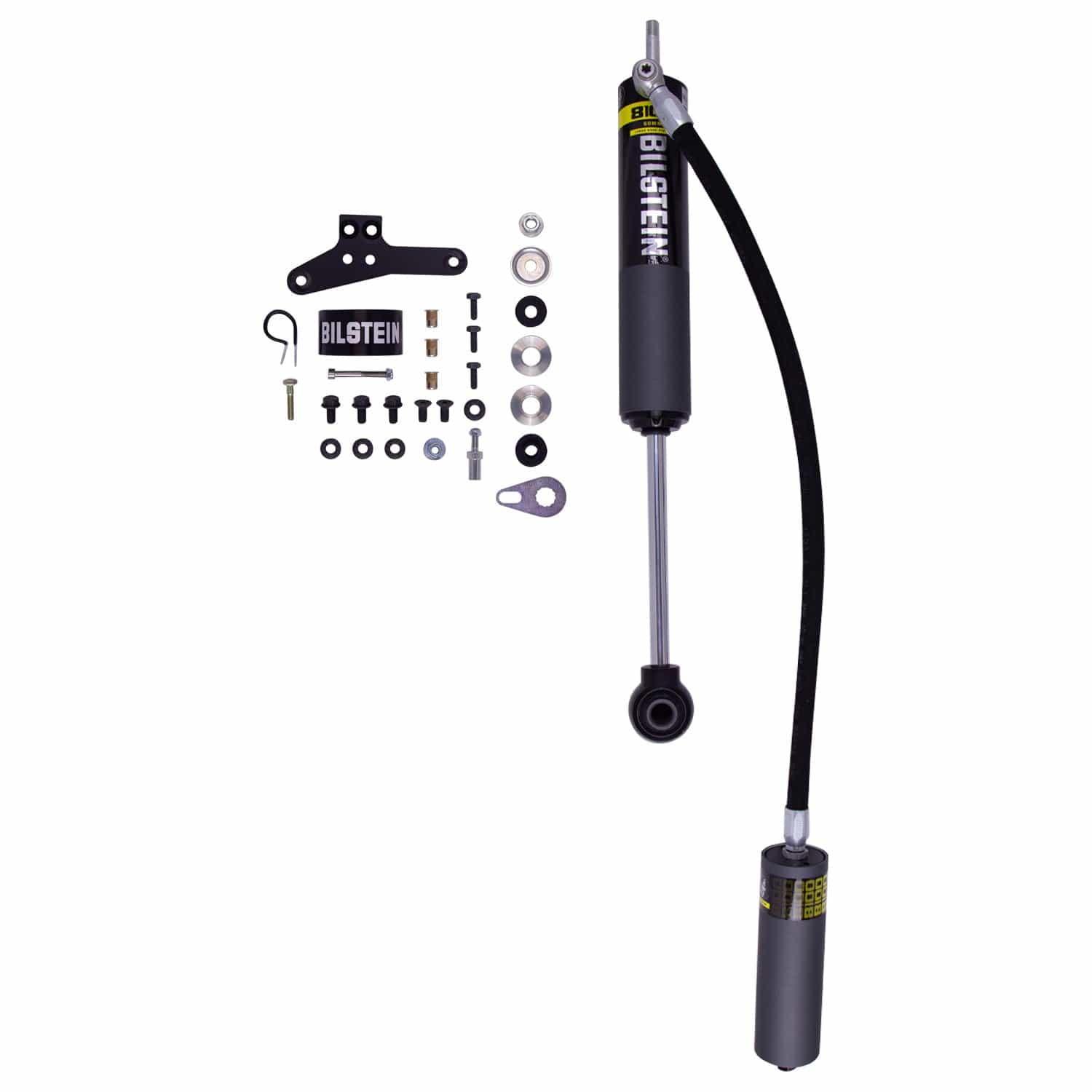

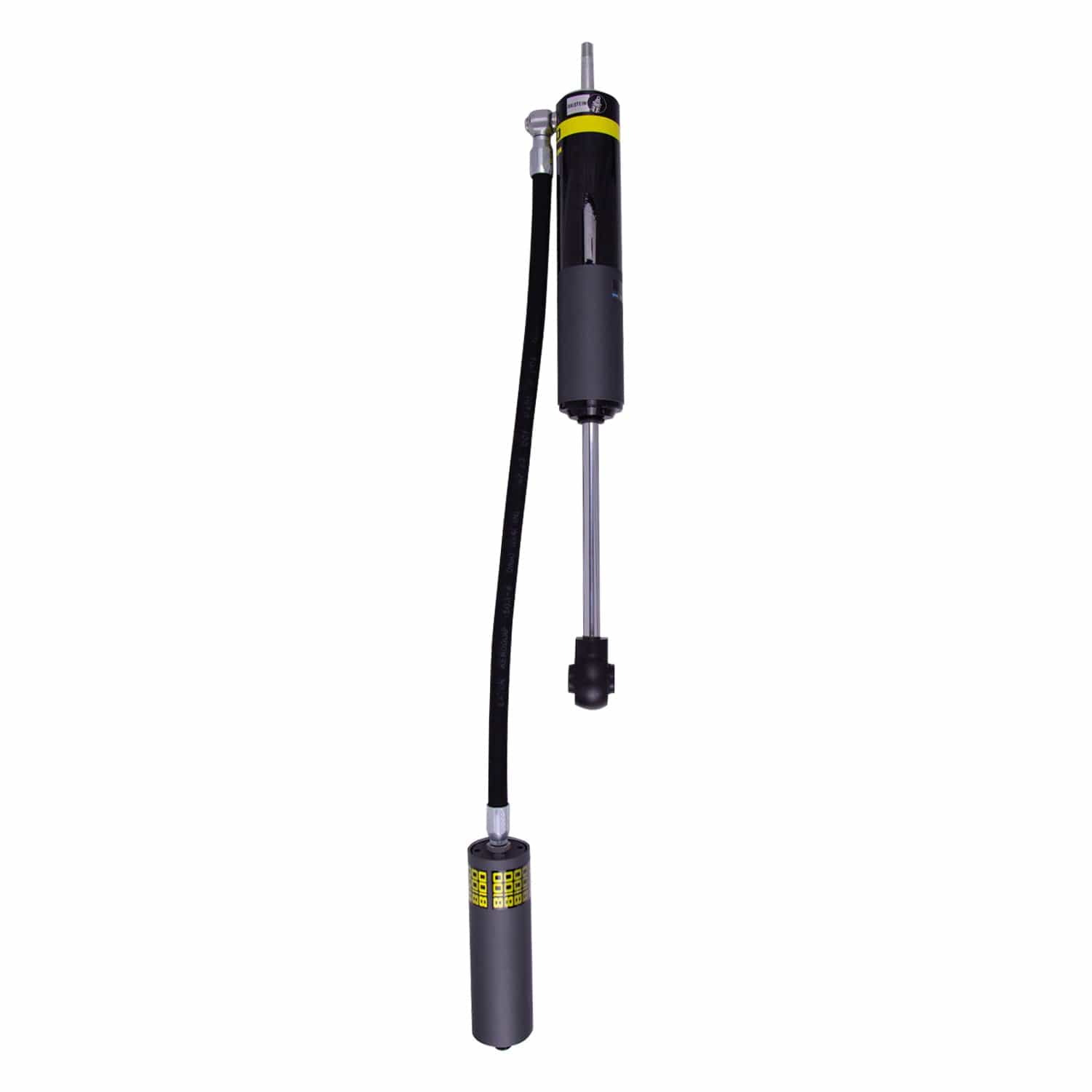

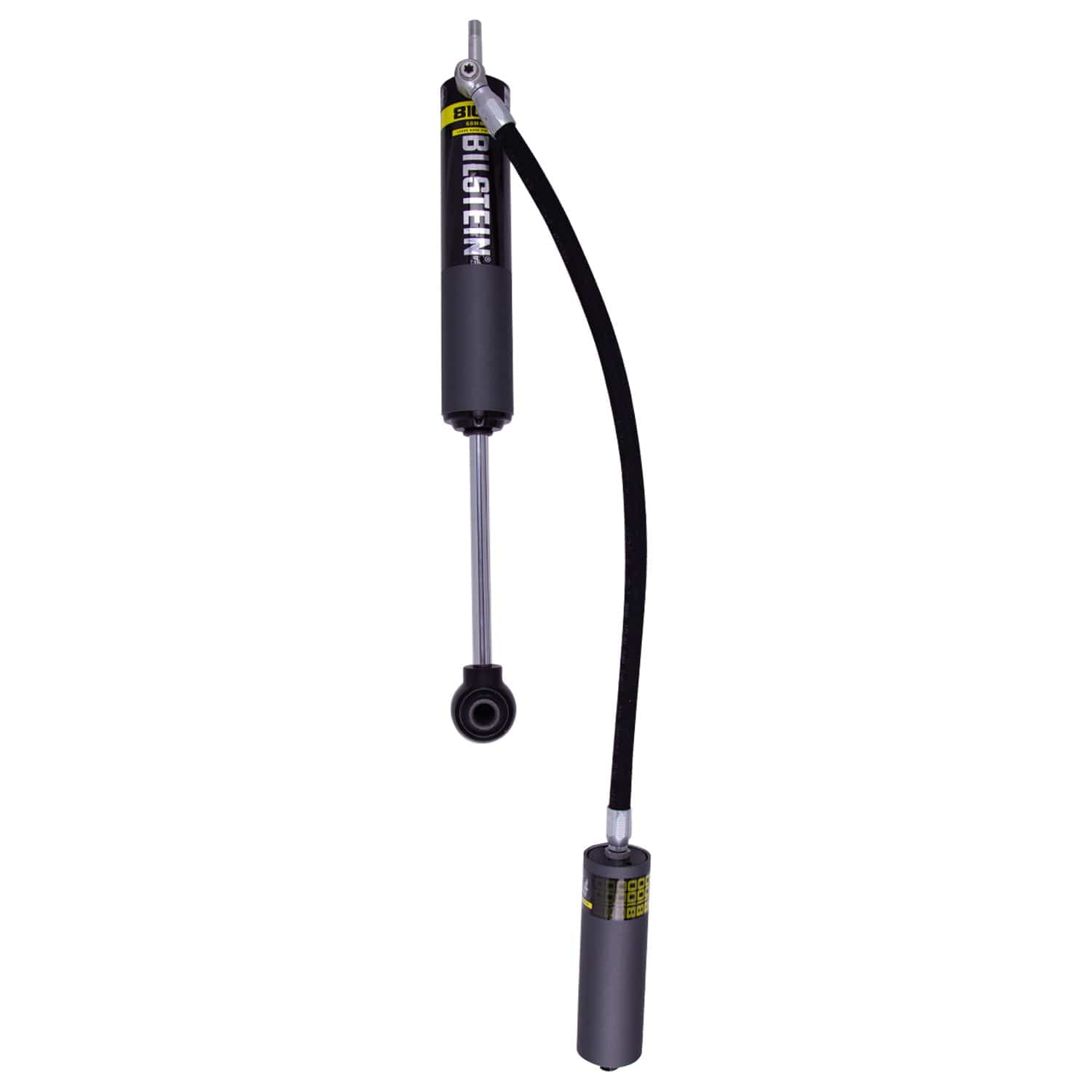

Bilstein B8 8100 Suspension Shock Absorber for 2003-2009 Lexus GX470

Bilstein B8 8100 Suspension Shock Absorber for 2003-2009 Lexus GX470

SKU:25-294095

Out of stock

Regular price $689.00 USD
Regular price $750.85 USD Sale price $689.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Bilstein B8 8100 Reservoir Shock Absorbers are high-performance suspension components designed for the 2003-2009 Lexus GX470. Featuring a large 60mm bore, these shocks provide increased oil capacity for superior heat dissipation and consistent damping over rough terrain and long-distance driving. Constructed from aerospace-quality billet materials, they deliver durability and precision handling. The monotube design ensures reliable performance, while the available remote or piggyback reservoir options facilitate easy installation and enhanced cooling. These shocks are ideal for lifted trucks and SUVs seeking improved off-road capability, ride comfort, and stability.

Designed as a direct fit for the 2003-2009 Lexus GX470, these Bilstein B8 8100 shocks are suitable for vehicles with lifted suspensions or those requiring upgraded damping performance. They are intended for off-road, trail, and demanding driving conditions, providing a robust upgrade over stock components. Installation is straightforward with bolt-on mounting, and the shocks are engineered to maintain optimal control and ride quality across various terrains. The kit includes the shock absorbers with reservoir options, ensuring compatibility and performance for off-road enthusiasts and daily drivers alike.

Overview

Bilstein B8 8100 Reservoir Shock Absorbers for the 2003-2009 Lexus GX470 are a large bore 60mm direct fit solution for lifted trucks and SUVs. Constructed from aerospace quality billet components, the large 60mm ID shock body offers a higher oil volume capacity to control heat while tackling rough road surfaces over long distances. Each B8 8100 offers a unique remote or piggyback reservoir solution for an easy, hassle free installation. These Shock Absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 will allow you to tame the terrain in comfort.

Standard Features

  • 60mm large bore digressive piston offers a greater range of tunability and delivers exceptional comfort without sacrificing control
  • Direct fit for an easy installation
  • 60mm remote reservoir offers increased oil capacity for consistent performance over rough terrain
Specifications
Part Number 25-294095
Part Name Shock Absorber
Vehicle 2003-2009 Lexus GX470
UPC 651860892337
Rear Lift Height 0.5 - 1.5 in.
Body Design 60mm ID Smooth Body (Non-Coilover)
Body Diameter (ID) 60 mm
Boot Included No
Collapsed Length 14.94 in.
Collapsed Length 379.5 mm
Damping Adjustable No
Extended Length 23.48 in.
Extended Length 596.5 mm
Finish EVO Grey
Internal Design Monotube
Lower Mount Type Eye 19.2 mm
Reservoir Yes
Segment Light Truck
Series B8 8100
Spring Seat Included No
Upper Mount Type Stem
Notes Requires Rear Coil Spring Conversion
Vehicle Fitment
  • 2003 Lexus GX470
  • 2004 Lexus GX470
  • 2005 Lexus GX470
  • 2006 Lexus GX470
  • 2007 Lexus GX470
  • 2008 Lexus GX470
  • 2009 Lexus GX470
