| Year | Make | Model |
|---|---|---|
| 2010 - 2023 | Lexus | GX460 Base |
| 2023 | Lexus | GX460 Black Line Edition |
| 2014 - 2023 | Lexus | GX460 Luxury |
| 2010 - 2023 | Lexus | GX460 Premium |
| 2003 - 2009 | Lexus | GX470 Base |
| 2023 | Toyota | 4Runner 40th Anniversary Edition |
| 2003 - 2009 | Toyota | 4Runner Limited |
| 2003 - 2024 | Toyota | 4Runner SR5 |
| 2018 - 2024 | Toyota | 4Runner SR5 Premium |
| 2010 - 2016 | Toyota | 4Runner Trail |
| 2021 - 2022 | Toyota | 4Runner Trail |
| 2017 - 2024 | Toyota | 4Runner TRD Off-Road |
| 2018 - 2024 | Toyota | 4Runner TRD Off-Road Premium |
| 2015 - 2024 | Toyota | 4Runner TRD Pro |
| 2020 - 2021 | Toyota | 4Runner Venture |
Bilstein B8 8100 Suspension Shock Absorber for 2010-2024 Toyota 4Runner
Bilstein B8 8100 Suspension Shock Absorber for 2010-2024 Toyota 4Runner
SKU:25-294095
In stock
Couldn't load pickup availability
â–¶ Vehicle Fitments

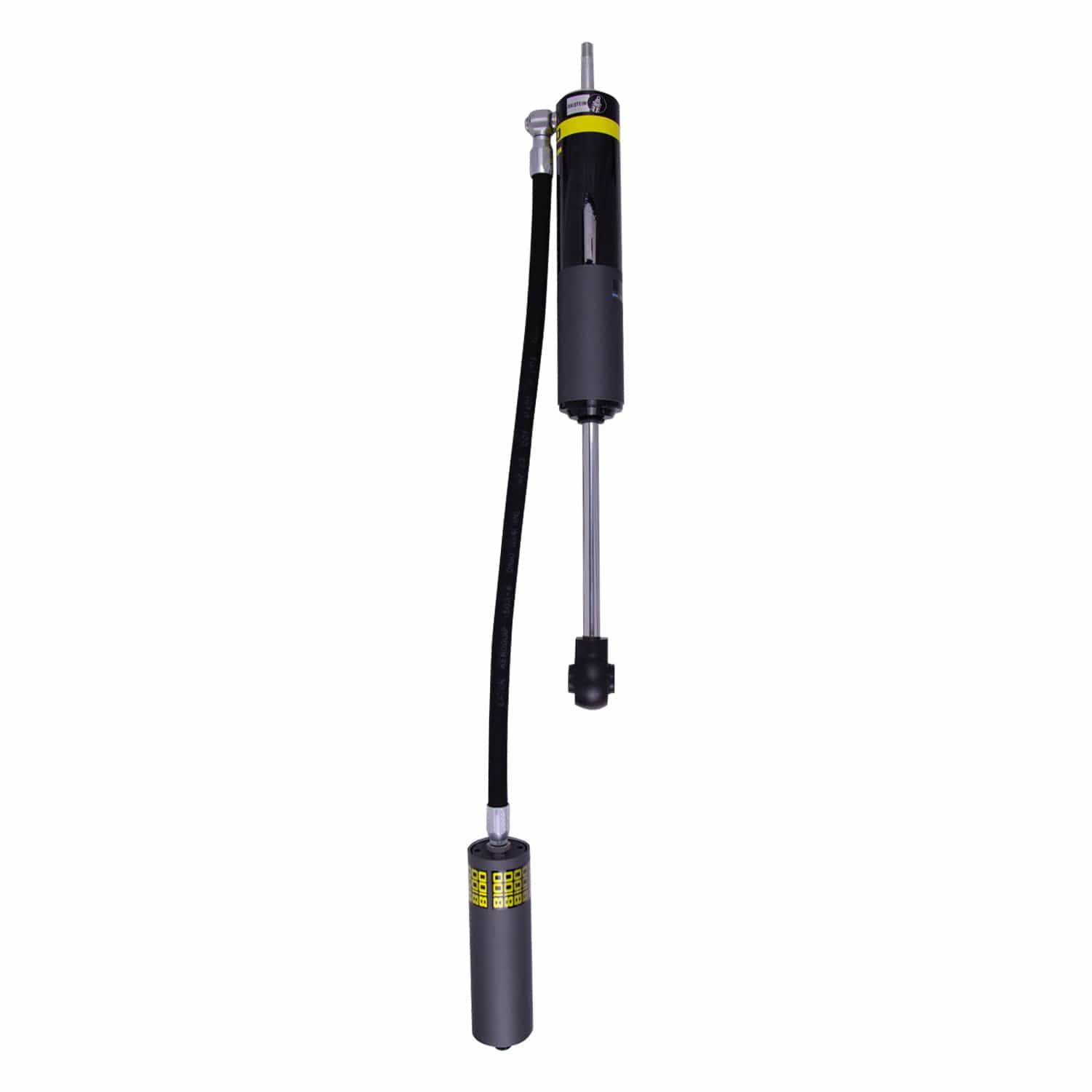

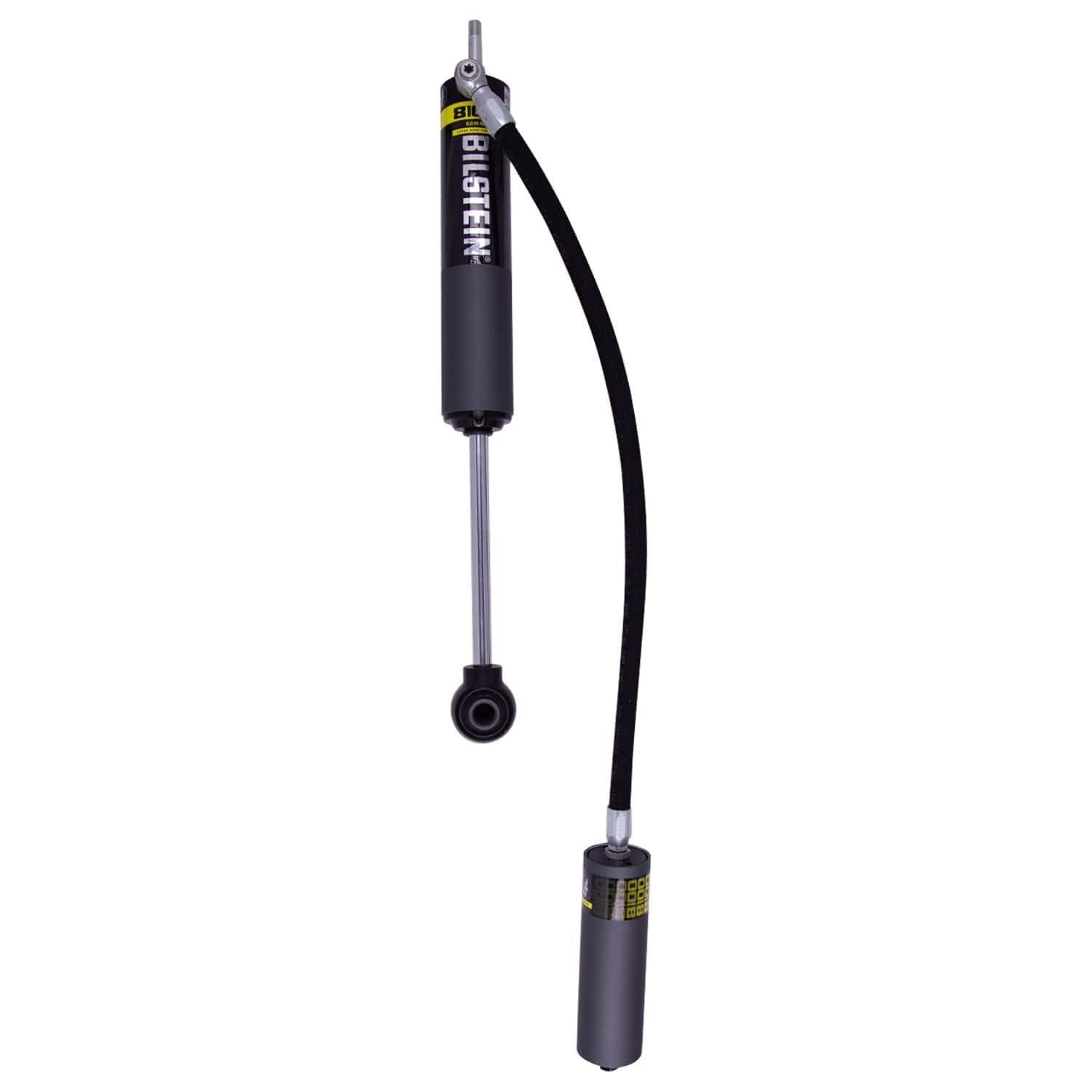

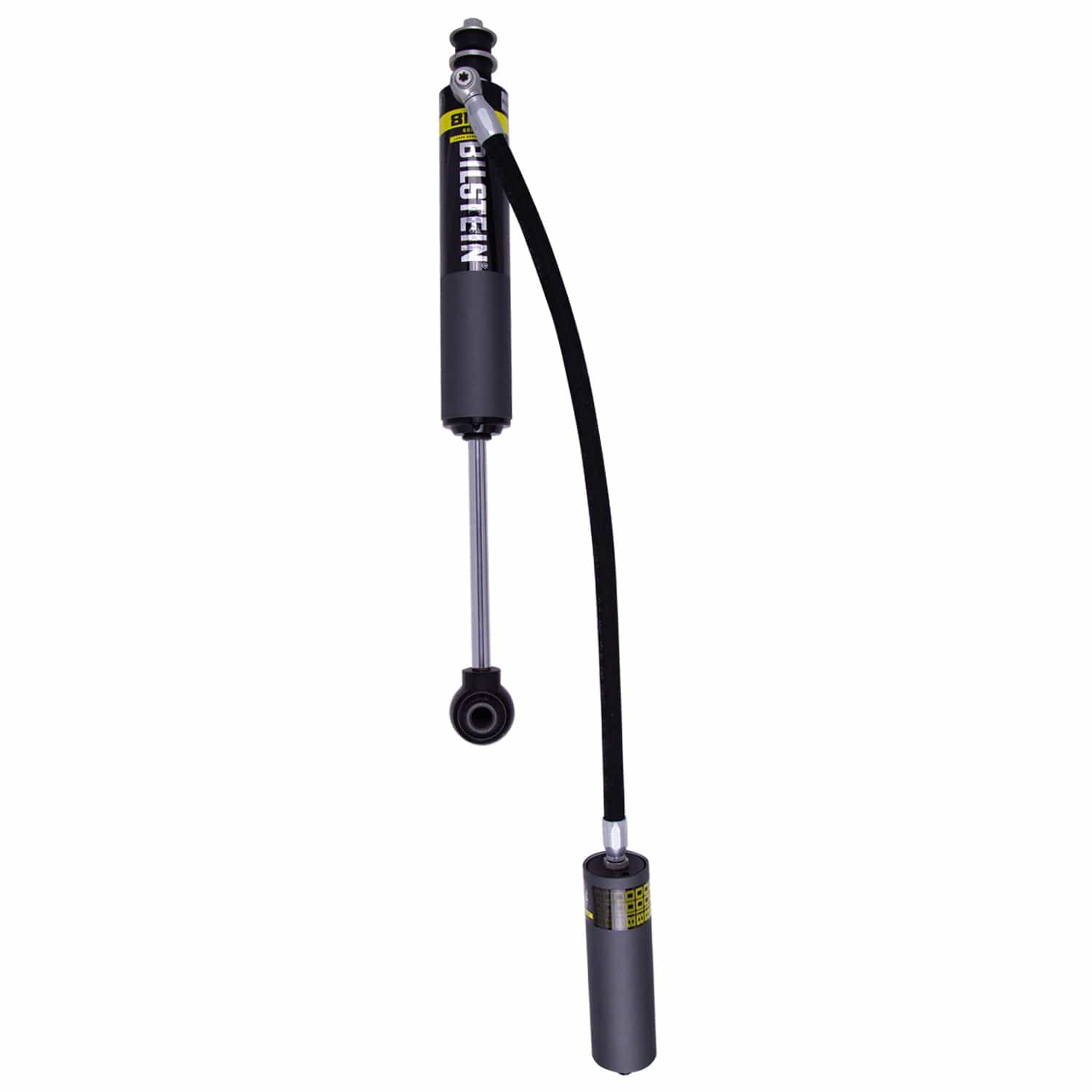

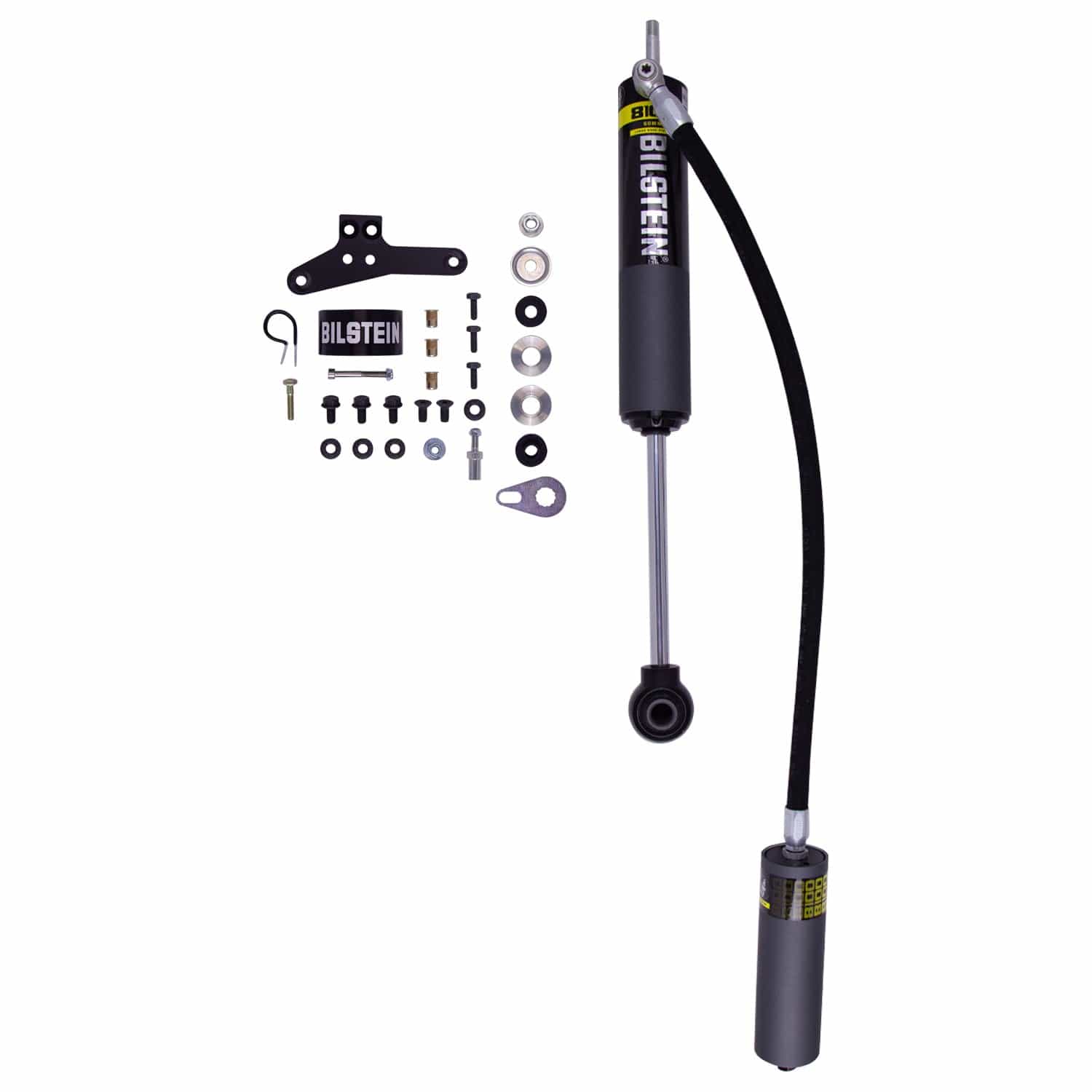

Bilstein B8 8100 Reservoir Shock Absorbers for the 2010-2024 Toyota 4Runner are a large bore 60mm direct fit solution for lifted trucks and SUVs. Constructed from aerospace quality billet components, the large 60mm ID shock body offers a higher oil volume capacity to control heat while tackling rough road surfaces over long distances. Each B8 8100 offers a unique remote or piggyback reservoir solution for an easy, hassle free installation. These Shock Absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 will allow you to tame the terrain in comfort.
Standard Features
- 60mm large bore digressive piston offers a greater range of tunability and delivers exceptional comfort without sacrificing control
- Direct fit for an easy installation
- 60mm remote reservoir offers increased oil capacity for consistent performance over rough terrain
Specifications
| Part Number | 25-294095 |
| Part Name | Shock Absorber |
| Vehicle | 2010-2024 Toyota 4Runner |
| UPC | 651860892337 |
| Rear Lift Height | 0.5 - 1.5 in. |
| Body Design | 60mm ID Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 60 mm |
| Boot Included | No |
| Collapsed Length | 14.94 in. |
| Collapsed Length | 379.5 mm |
| Damping Adjustable | No |
| Extended Length | 23.48 in. |
| Extended Length | 596.5 mm |
| Finish | EVO Grey |
| Internal Design | Monotube |
| Lower Mount Type | Eye 19.2 mm |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8100 |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
| Notes | Requires Rear Coil Spring Conversion |
Vehicle Fitment
- 2010 Toyota 4Runner
- 2011 Toyota 4Runner
- 2012 Toyota 4Runner
- 2013 Toyota 4Runner
- 2014 Toyota 4Runner
- 2015 Toyota 4Runner
- 2016 Toyota 4Runner
- 2017 Toyota 4Runner
- 2018 Toyota 4Runner
- 2019 Toyota 4Runner
- 2020 Toyota 4Runner
- 2021 Toyota 4Runner
- 2022 Toyota 4Runner
- 2023 Toyota 4Runner
- 2024 Toyota 4Runner
