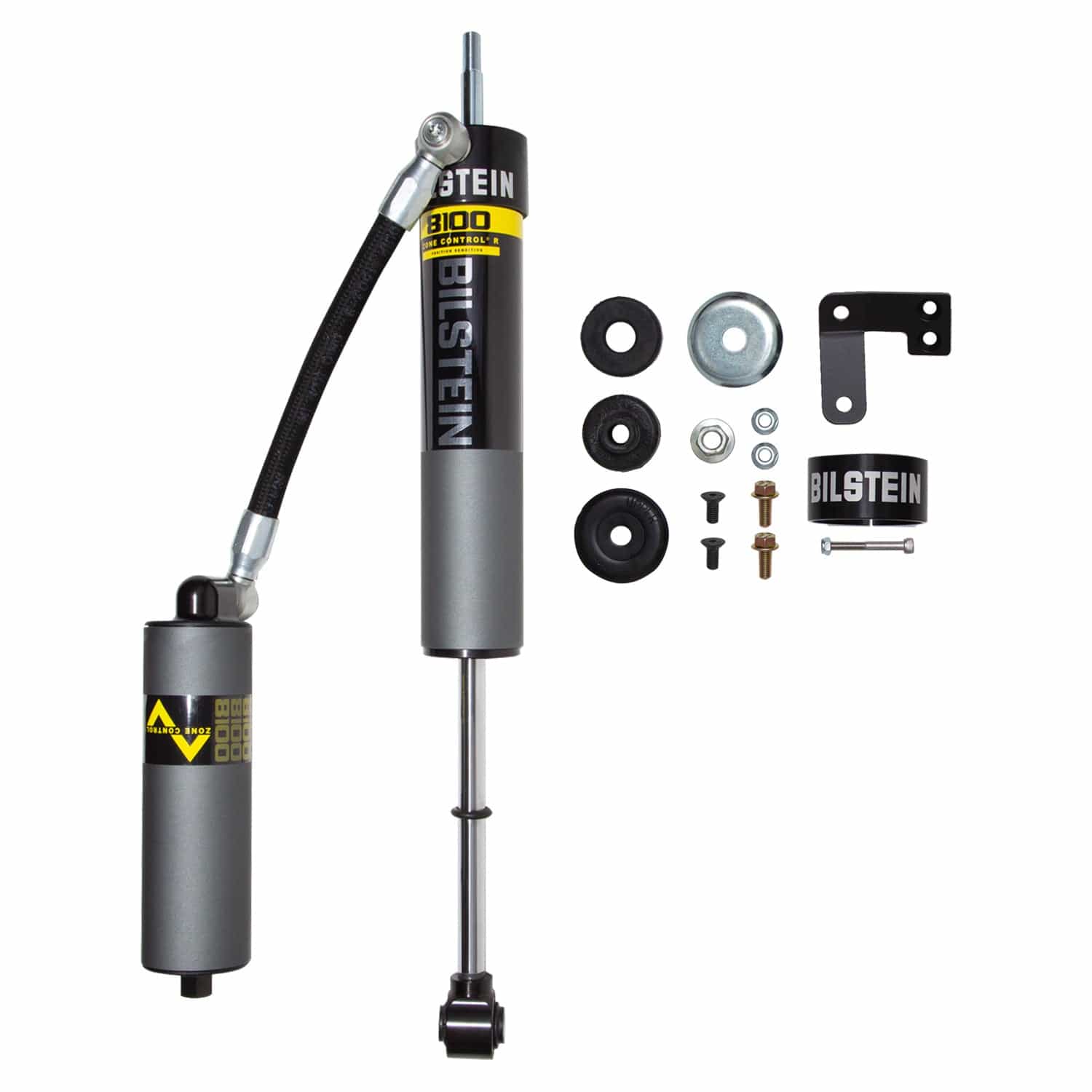

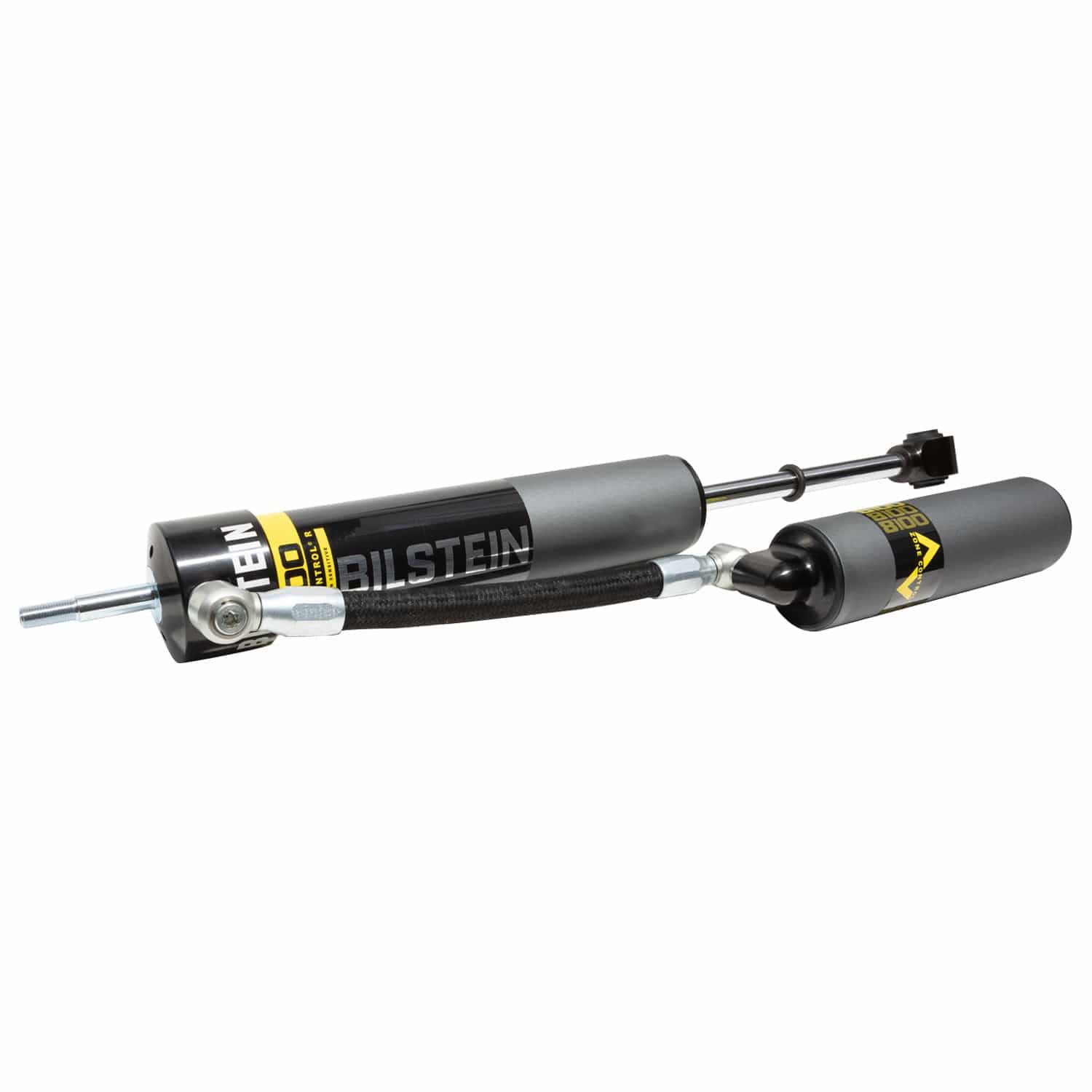

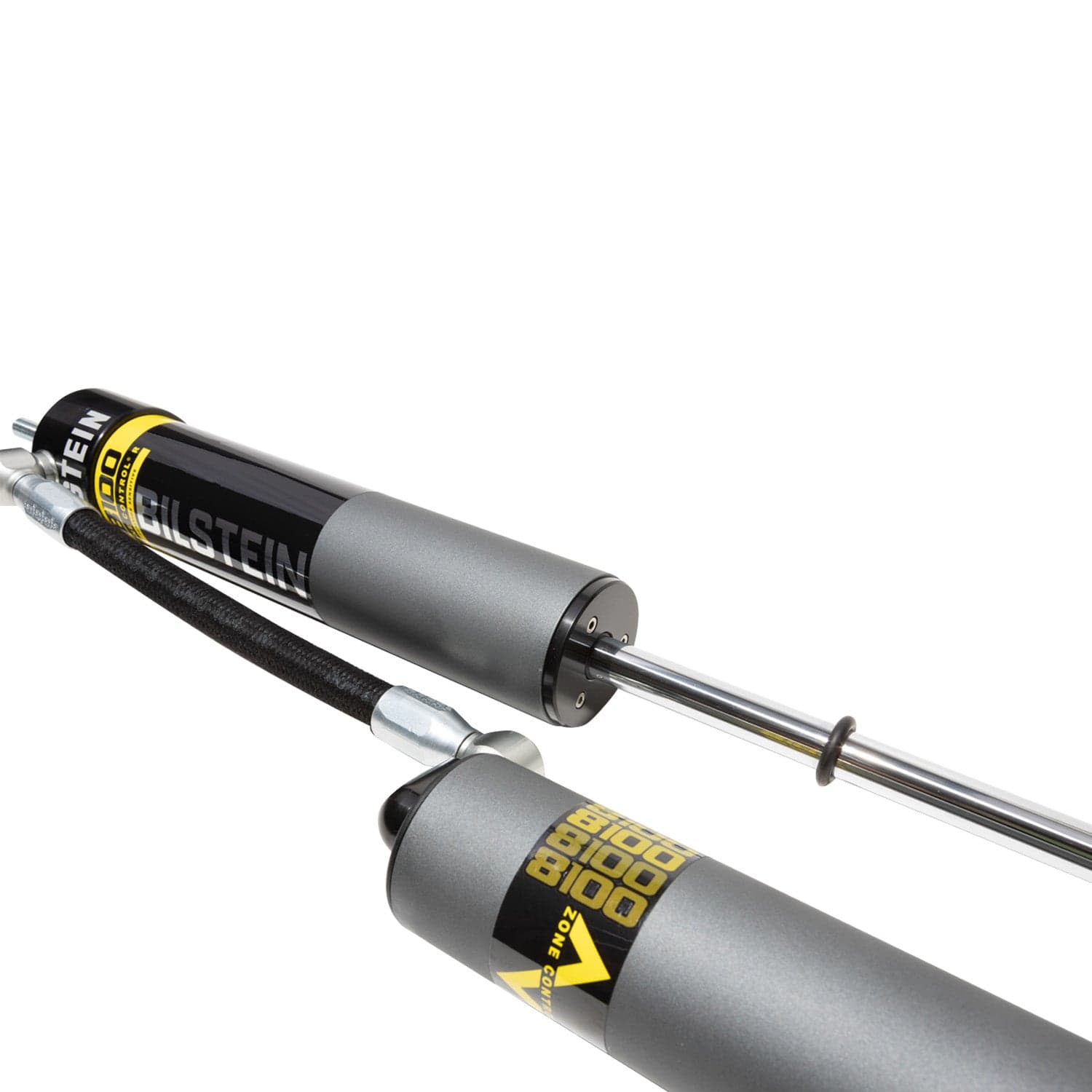

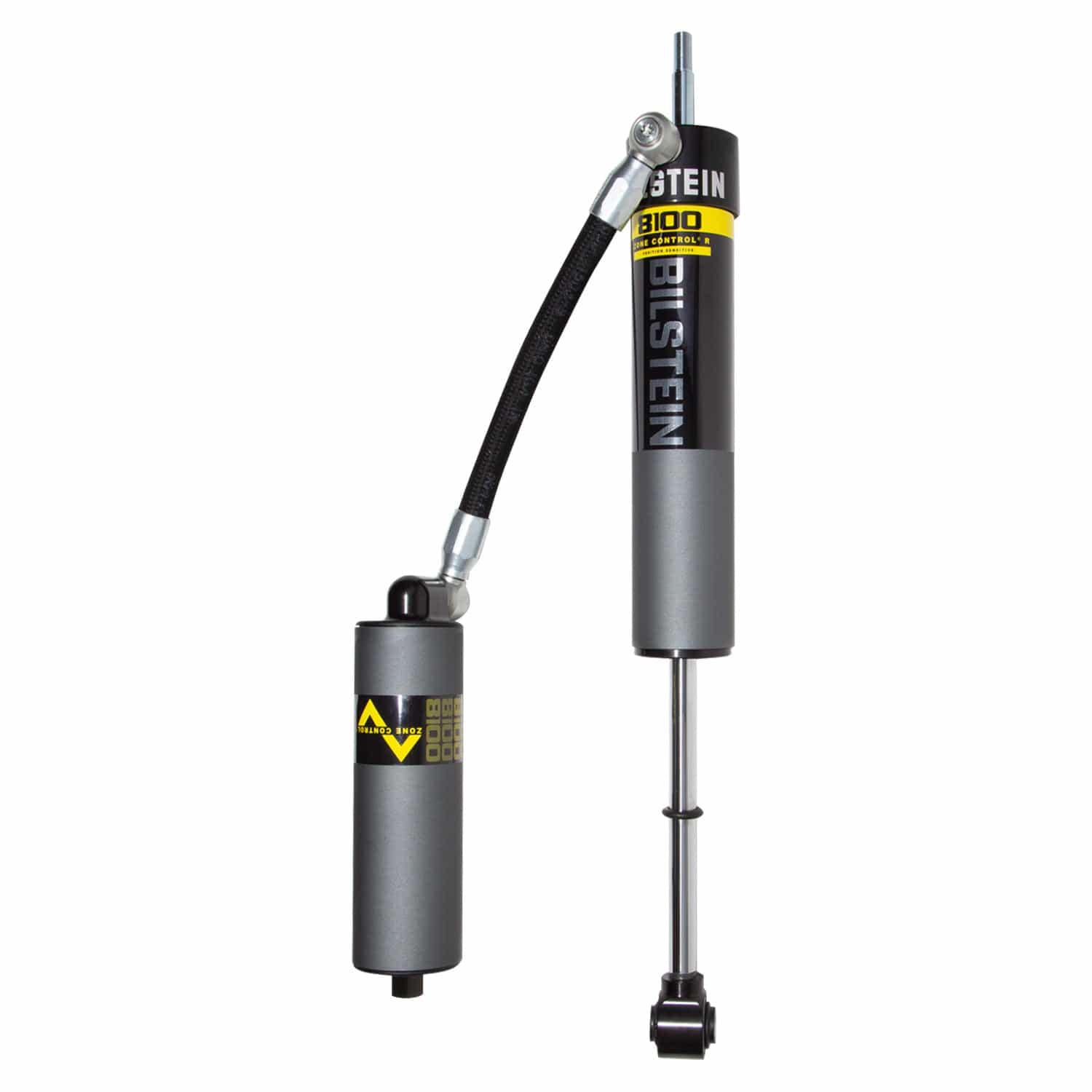

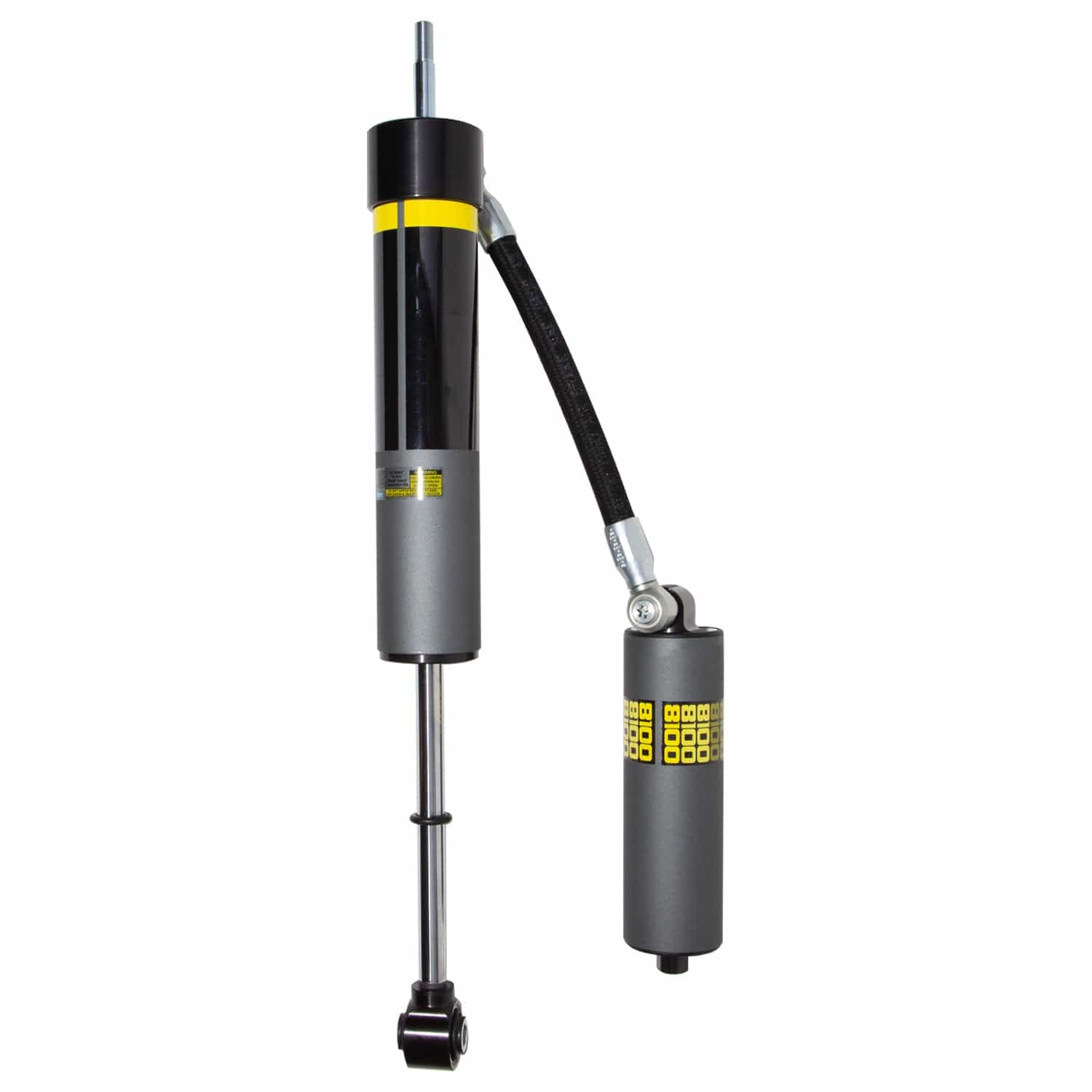

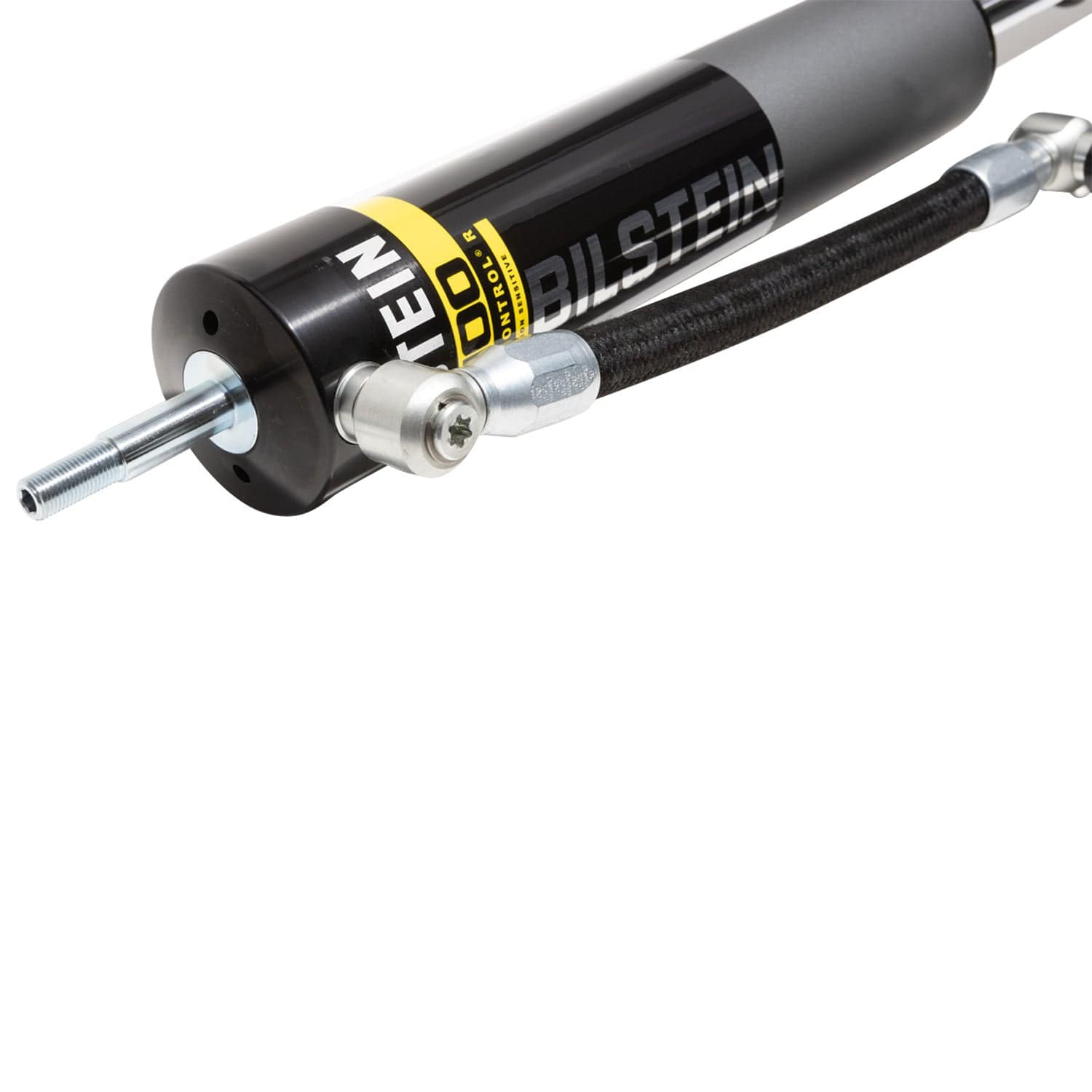

Bilstein B8 8100 ZoneControl R Front R Shock | Ram 2500 19-24 (25-335897)

Bilstein B8 8100 ZoneControl R Front R Shock | Ram 2500 19-24 (25-335897)

SKU:25-335897

Out of stock

Regular price $664.00 USD
Regular price $723.82 USD Sale price $664.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Bilstein B8 8100 ZoneControl R Front Shock for Ram 2500 trucks is a high-performance reservoir shock absorber engineered to enhance off-road and heavy-duty driving capabilities. Featuring Bilstein’s revolutionary ZoneControl technology, this shock provides position-sensitive rebound damping that adapts to changing suspension conditions, effectively eliminating harsh top-out events without the need for external limit straps. Its double piston design incorporates two stages of rebound valving, ensuring optimal damping response and improved ride quality. The remote reservoir allows for increased oil capacity, promoting better cooling and consistent performance under demanding conditions. Constructed with durable materials, this shock absorber is designed to withstand the rigors of heavy-duty use while maintaining precise control and stability.

Designed specifically for 2019-2024 Ram 2500 models, this direct-fit shock absorber is suitable for light trucks and SUVs used in off-road, towing, or heavy-duty applications. It integrates seamlessly into the existing suspension system, serving as an upgrade or replacement for factory units. The ZoneControl R shocks are ideal for drivers seeking improved ride comfort, handling, and durability in challenging terrains or demanding workloads. Installation is straightforward for those familiar with suspension components, and the kit includes the necessary hardware for a secure fit. This shock absorber is tailored for use in off-road, towing, and heavy-duty driving scenarios, providing enhanced control and cooling performance for extended durability.

Overview

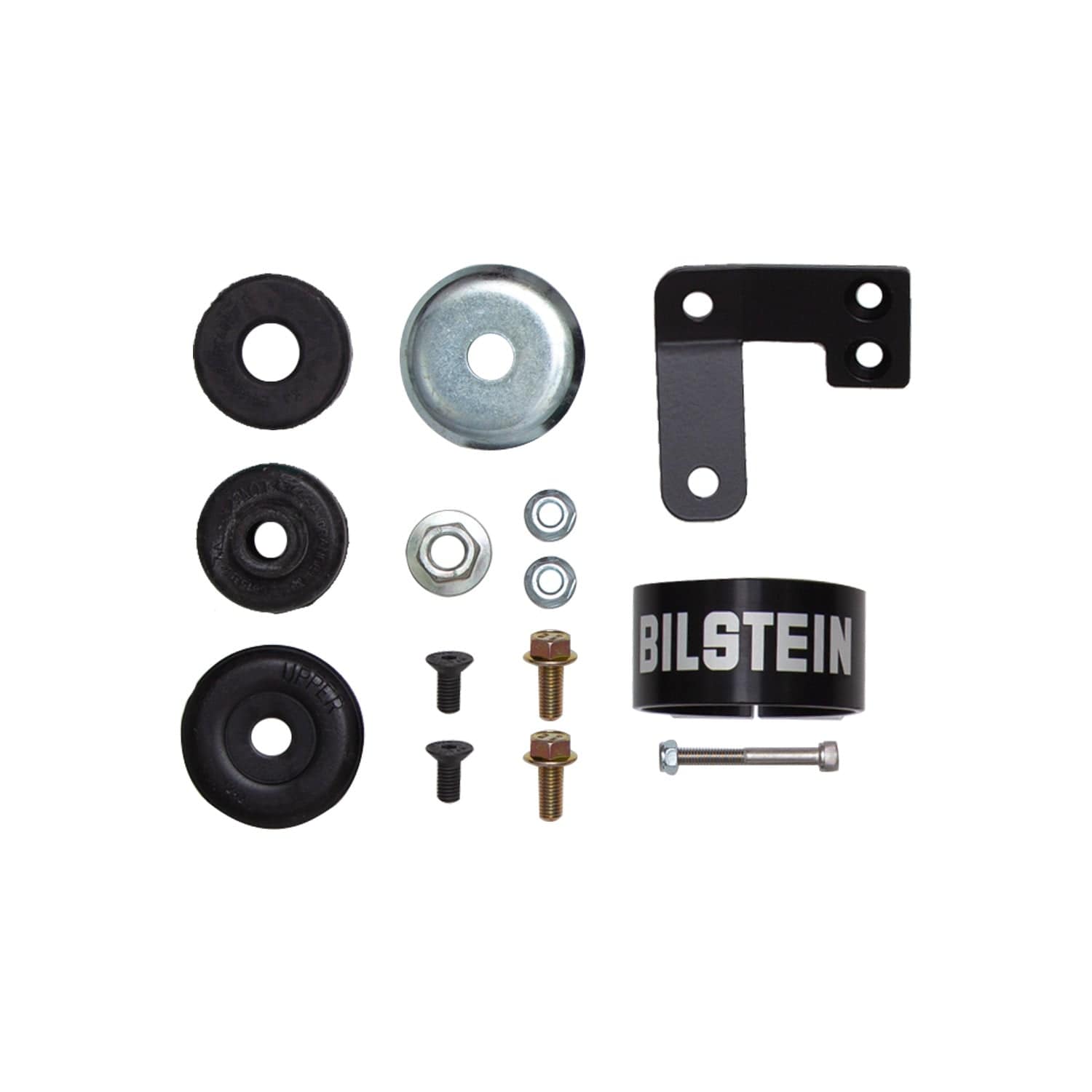

Bilstein B8 8100 (ZoneControl R) Reservoir Shock Absorbers for the 2019-2024 Ram 2500 are a direct fit, position sensitive solution designed for light trucks and SUVs. ZoneControl R is a revolutionary technology delivering position sensitive rebound damping which eliminates harsh suspension top-out events and the need for an external limit strap. The system incorporates a double piston design, offering 2 stages of rebound valving and is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount where applicable. Bilstein B8 8100 (ZoneControl R) position sensitive shocks will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

Standard Features

  • 60mm large bore digressive piston offers a greater range of tunability and delivers exceptional comfort without sacrificing control
  • Direct fit for an easy installation

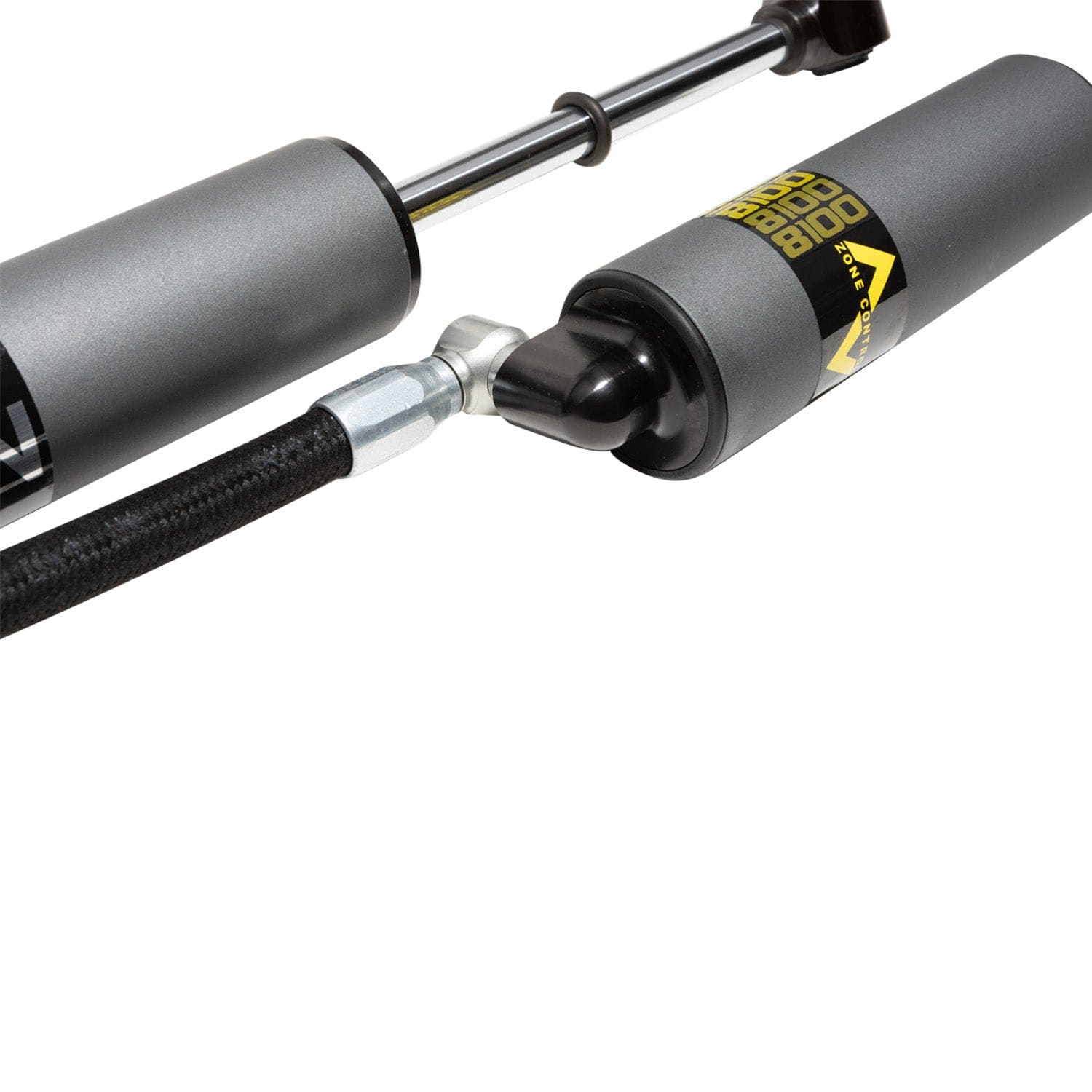

  • 60mm remote reservoir offers increased oil capacity for consistent performance over rough terrain
Specifications
Part Number 25-335897
Part Name Shock Absorber
Vehicle 2019-2024 Ram 2500
UPC 651860911045
Front Lift Height 2 - 2.5 in.
Body Design Smooth Body (Non-Coilover)
Body Diameter (ID) 60 mm
Boot Included No
Collapsed Length 14.65 in.
Collapsed Length 372.2 mm
Damping Adjustable No
Extended Length 22.99 in.
Extended Length 584.0 mm
Finish EVO Grey
Internal Design Monotube
Lower Mount Type Eye 14.1 mm
Reservoir Yes
Segment Light Truck
Series B8 8100 (ZoneControl R)
Spring Seat Included No
Upper Mount Type Stem
Notes Bilstein B12 Special spring kit recommended - 53-317315 for Diesel engine or 53-317322 for Gas engine
Vehicle Fitment
  • 2019 Ram 2500
  • 2020 Ram 2500
  • 2021 Ram 2500
  • 2022 Ram 2500
  • 2023 Ram 2500
  • 2024 Ram 2500
