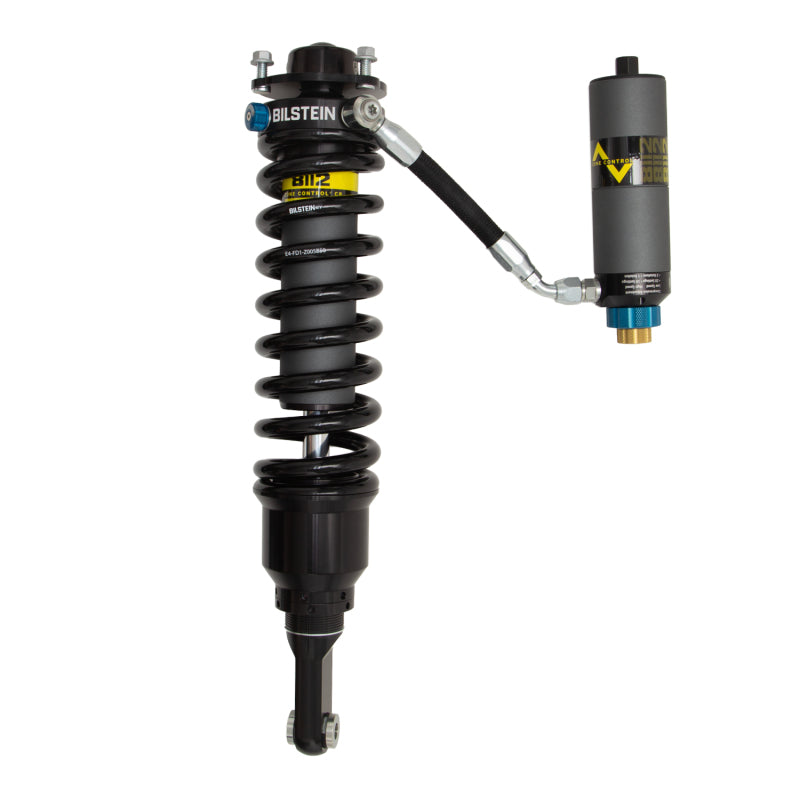

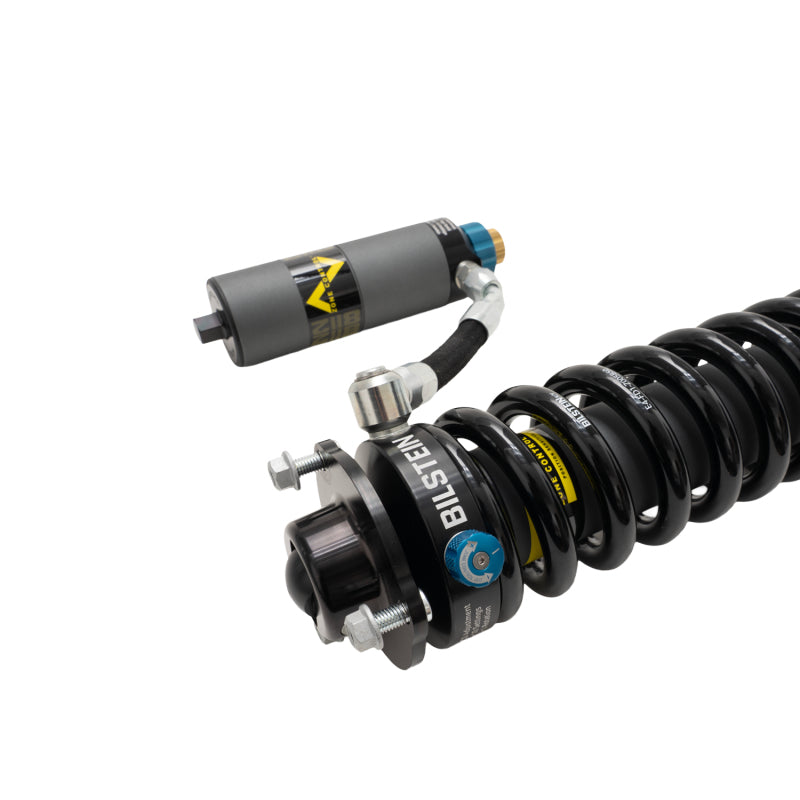

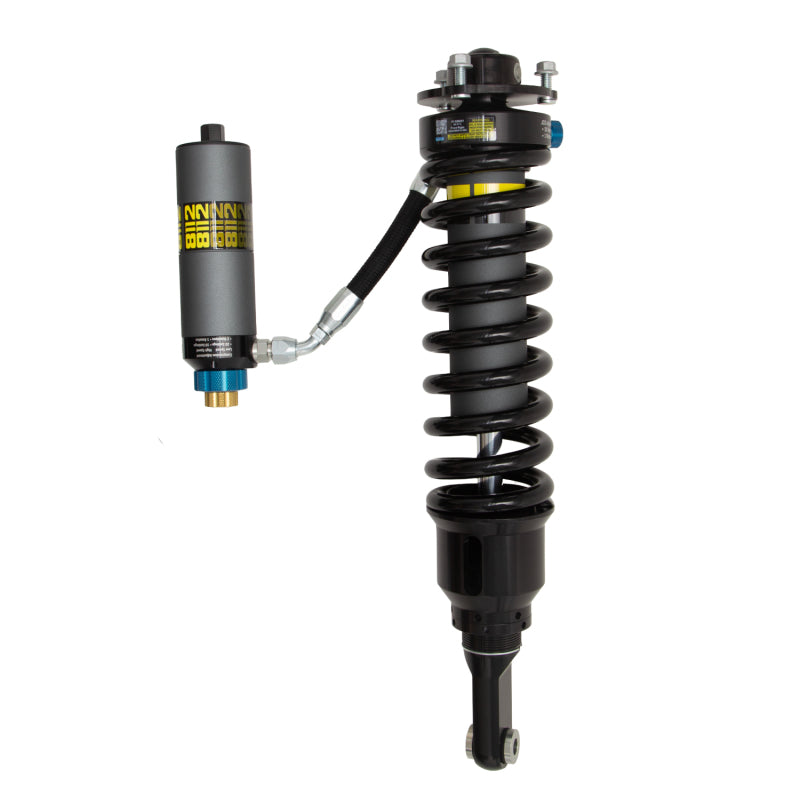

Bilstein B8 8112 Series 10-24 Toyota 4Runner Front Right Shock Absorber & Coil Spring Assembly

Bilstein B8 8112 Series 10-24 Toyota 4Runner Front Right Shock Absorber & Coil Spring Assembly

41-326251

Out of stock

$1,456.79 USD
$1,588.85 USD $1,456.79 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Bilstein B8 8112 Series 10-24 Toyota 4Runner Front Right Shock Absorber & Coil Spring Assembly is a high-performance coilover suspension component designed for light trucks and SUVs. Featuring ZoneControl CR DSA+ technology, it provides 3-way adjustable, position sensitive damping with a 2.65-inch body diameter. The system incorporates a triple piston design with three stages of compression valving and two stages of rebound valving, enabling precise control over suspension behavior. Click adjuster knobs facilitate easy and accurate dual speed adjustment for both low and high speed compression, while an internal hydraulic bump stop (JCO) offers additional damping control. The coilover includes a threaded spring seat for ride height adjustment from 0 to 3 inches, depending on the application. Supplied with a remote reservoir and anodized chassis mount, this assembly ensures enhanced cooling and durability, delivering superior ride comfort and handling across various terrains.

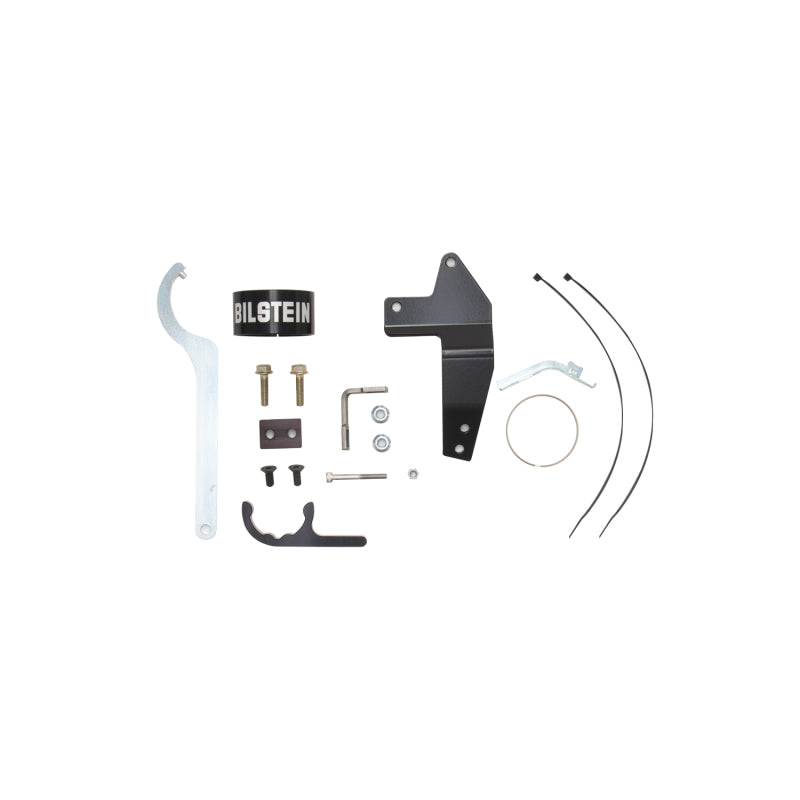

Designed specifically for 2010-2024 Toyota 4Runner models, this assembly is a direct fit for the front right position. It is suitable for vehicles equipped with light truck or SUV chassis, offering an upgrade for improved ride quality, control, and off-road capability. The assembly is intended for both daily driving and off-road use, providing adjustable damping to suit different driving conditions. Installation is straightforward as a bolt-on replacement, and the kit includes the shock absorber, coil spring, and necessary mounting hardware. Compatible with models that require a 2.65-inch body coilover, it is ideal for owners seeking enhanced suspension performance and versatility in various driving environments.

Overview

Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 2.65-in body, position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.
