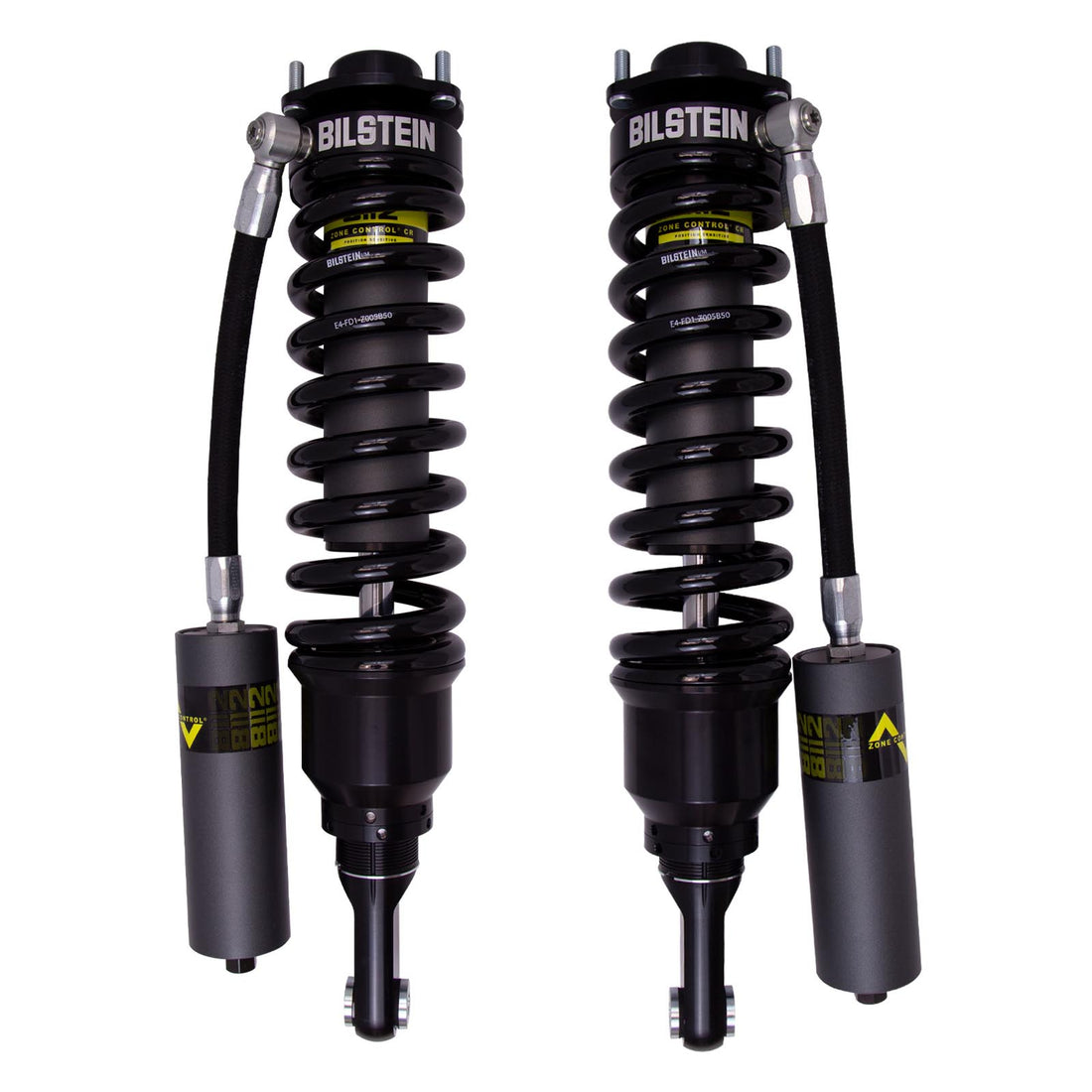

• Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair - 2010-2024 Toyota 4Runner 4WD Non-KDSS
1 1
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
41-324172FactoryFront LeftCoilover1
41-324363FactoryFront RightCoilover1

Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair - 2010-2024 Toyota 4Runner 4WD Non-KDSS

Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair - 2010-2024 Toyota 4Runner 4WD Non-KDSS

10552447107359_52706316714271

In stock

$1,160.00 USD
$1,264.85 USD $1,160.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
41-324172FactoryFront LeftCoilover1
41-324363FactoryFront RightCoilover1

The Bilstein B8 8112 ZoneControl CR Coilover with Reservoir Front Pair is a high-performance suspension upgrade designed for 4WD Toyota 4Runner models from 2010 to 2024. Featuring zone-sensitive damping with three compression zones and two rebound zones controlled by three independent pistons, these coilovers deliver precise handling and comfort across diverse driving conditions. The internal two-stage telescoping compression stop provides effective bottom-out control without the need for external hydraulic bump stops, while the secondary rebound stop stabilizes large suspension inputs and eliminates harsh top-out events. Constructed with aerospace-quality materials, the coilovers include a 60mm remote reservoir for increased oil capacity and cooling, along with reservoir mounts for a clean installation. The threaded retainer allows for an additional 2 inches of ride height adjustment, ensuring tailored performance and durability.

Designed specifically for 4WD Toyota 4Runner models, these coilovers require aftermarket upper control arms and are compatible only with vehicles that have the factory shock mounting bolts. They do not work with XREAS systems, which must be removed prior to installation. The package includes all necessary washers, bushings, nuts, and reservoir mounts, with factory bolts reused during installation. Ideal for off-road adventures, daily driving, or performance upgrades, these coilovers provide a seamless transition from street comfort to off-road capability. They are backed by a Bilstein 2-year warranty against defects and premature failure, ensuring long-lasting reliability and exceptional handling for your vehicle.

Part NumberLift/LoweredPositionItemQuantity
41-324172FactoryFront LeftCoilover1
41-324363FactoryFront RightCoilover1

Overview

  • Package Contains 2 coilovers
    Front pair of two Coilover assemblies.
  • Bilstein 2 Year Warranty
    Manufacturer Warranty protects against defects and premature failure.
  • Excludes XREAS
    Does not work with XREAS, system must be removed to work with these parts.
  • Designed for 4WD vehicles
    This product only works for 4WD vehicles.
  • Aftermarket UCA
  • Aftermarket UCA required
  • Reservoir Mounts Included
    All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look.
  • ZoneControl CR
    Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons.
  • Compression (C)
    Provides bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop.
  • Rebound (R)
    Secondary rebound stop will dissipate spring energy and stabilize the suspension large compression. An internal rebound stop eliminates harsh top-out events so that limit straps are not needed.
  • Triple Piston Design
  • Allows for livable comfort and every-day driving while handling massive suspension inputs with a high degree of control

Transitioning from comfortable cruising on the pavement to conquering offroad terrain happens seamlessly thanks to Bilstein's revolutionary damping technology, and strict attention to detail during extensive product development. The external coilovers spring rate is vehicle specific and preloaded to factory specifications, however, the threaded retainer still allows an additional 2 inches of ride height adjustment. The 60mm remote reservoir provides increased oil capacity and enhances cooling. Designed for each vehicle application, a frame mounted, anodized aluminum reservoir mount is included. Aerospace quality materials and precise manufacturing means your Bilstein B8 8112 ZoneControl shocks will provide years of reliable service, and unmatched performance.
