| Year | Make | Model |
|---|---|---|
| 2003 - 2009 | Lexus | GX470 Base |
| 2003 - 2009 | Toyota | 4Runner Limited |
| 2003 - 2009 | Toyota | 4Runner SR5 |
| 2007 - 2009 | Toyota | FJ Cruiser Base |
| 2008 | Toyota | FJ Cruiser Trail Teams Special Edition |
1
/
of
1
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 41-326336 | 0-3.8" Lift | Front | Coilover | 1 |
| 41-326329 | 0-3.8" Lift | Front | Coilover | 1 |

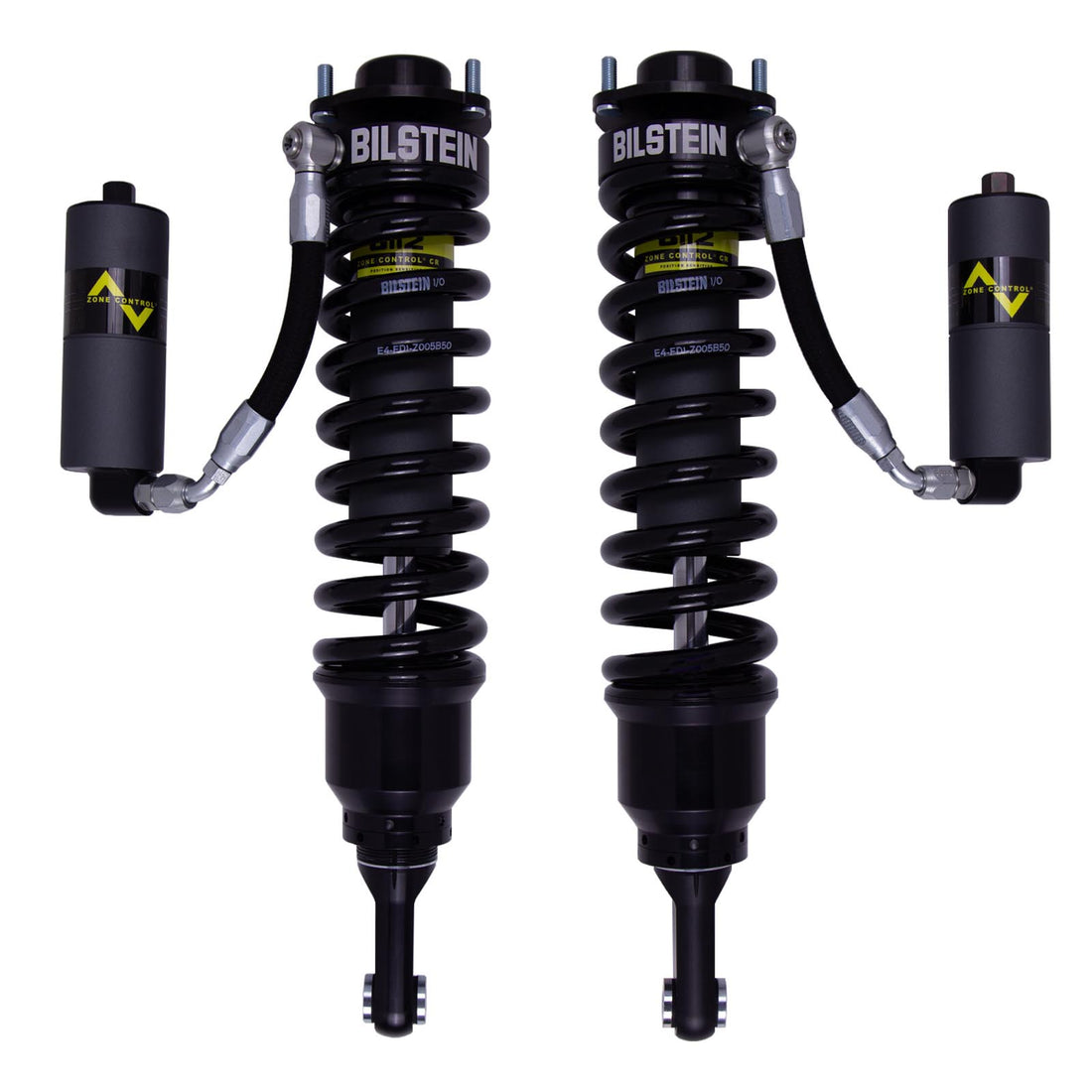

Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/0-3.8" lift - 2003-2009 Lexus GX470
Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/0-3.8" lift - 2003-2009 Lexus GX470
SKU:10552446877983_52706316517663
In stock
Regular price
$1,160.00 USD
Regular price
$1,264.85 USD
Sale price
$1,160.00 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 41-326336 | 0-3.8" Lift | Front | Coilover | 1 |
| 41-326329 | 0-3.8" Lift | Front | Coilover | 1 |
The Bilstein B8 8112 ZoneControl CR Coilover is a high-performance suspension component designed for enhanced ride quality and off-road capability. Featuring position-sensitive damping with three compression zones and two rebound zones controlled by three independent pistons, these coilovers provide precise handling and stability. The internal two-stage compression stop offers bottom-out control without external hydraulic bump stops, while the internal rebound stop minimizes harsh top-out events. Constructed with aerospace-quality materials and a triple piston design, these coilovers deliver a balance of comfort and control, seamlessly transitioning from street driving to off-road terrain. The 60mm remote reservoir increases oil capacity and cooling efficiency, and the threaded retainer allows for up to 2 inches of ride height adjustment. Reservoir mounts, washers, bushings, and nuts are included for a complete, reliable upgrade.
Designed for 2003-2009 Lexus GX470 models with no suspension modifications or up to 3.8 inches of lift, these coilovers are a direct bolt-on replacement for factory shocks. They are suitable for daily driving and off-road use, providing improved handling, ride height adjustment, and durability. The kit includes two coilover assemblies with factory shock mounting bolts reused during installation, and an optional billet aluminum reservoir clamp for a cleaner look. Compatible with the vehicle’s specific spring rates and preload settings, these coilovers are engineered for long-lasting performance and reliability, making them an ideal upgrade for off-road enthusiasts and street drivers alike.
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 41-326336 | 0-3.8" Lift | Front | Coilover | 1 |
| 41-326329 | 0-3.8" Lift | Front | Coilover | 1 |
Share
Overview
Overview
-
Package Contains 2 coilovers
Front pair of two Coilover assemblies. -
Bilstein 2 Year Warranty
Manufacturer Warranty protects against defects and premature failure. -
Lifts your vehicle up to 3.8" in the front
For vehicles with no suspension modifications or up to 3.8" in the front. -
Reservoir Mounts Included
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look. -
ZoneControl CR
Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons. -
Compression (C)
Provides bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop. -
Rebound (R)
Secondary rebound stop will dissipate spring energy and stabilize the suspension large compression. An internal rebound stop eliminates harsh top-out events so that limit straps are not needed. - Triple Piston Design
- Allows for livable comfort and every-day driving while handling massive suspension inputs with a high degree of control
Transitioning from comfortable cruising on the pavement to conquering offroad terrain happens seamlessly thanks to Bilstein's revolutionary damping technology, and strict attention to detail during extensive product development. The external coilovers spring rate is vehicle specific and preloaded to factory specifications, however, the threaded retainer still allows an additional 2 inches of ride height adjustment. The 60mm remote reservoir provides increased oil capacity and enhances cooling. Designed for each vehicle application, a frame mounted, anodized aluminum reservoir mount is included. Aerospace quality materials and precise manufacturing means your Bilstein B8 8112 ZoneControl shocks will provide years of reliable service, and unmatched performance.
