| Year | Make | Model |
|---|---|---|
| 2003 - 2009 | Lexus | GX470 Base |
| 2003 - 2009 | Toyota | 4Runner Limited |
| 2003 - 2009 | Toyota | 4Runner SR5 |
| 2007 - 2009 | Toyota | FJ Cruiser Base |
| 2008 | Toyota | FJ Cruiser Trail Teams Special Edition |
1
/
of
1
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 41-326329 | 0-3.8" Lift | Front | Coilover | 1 |
| 41-326336 | 0-3.8" Lift | Front | Coilover | 1 |

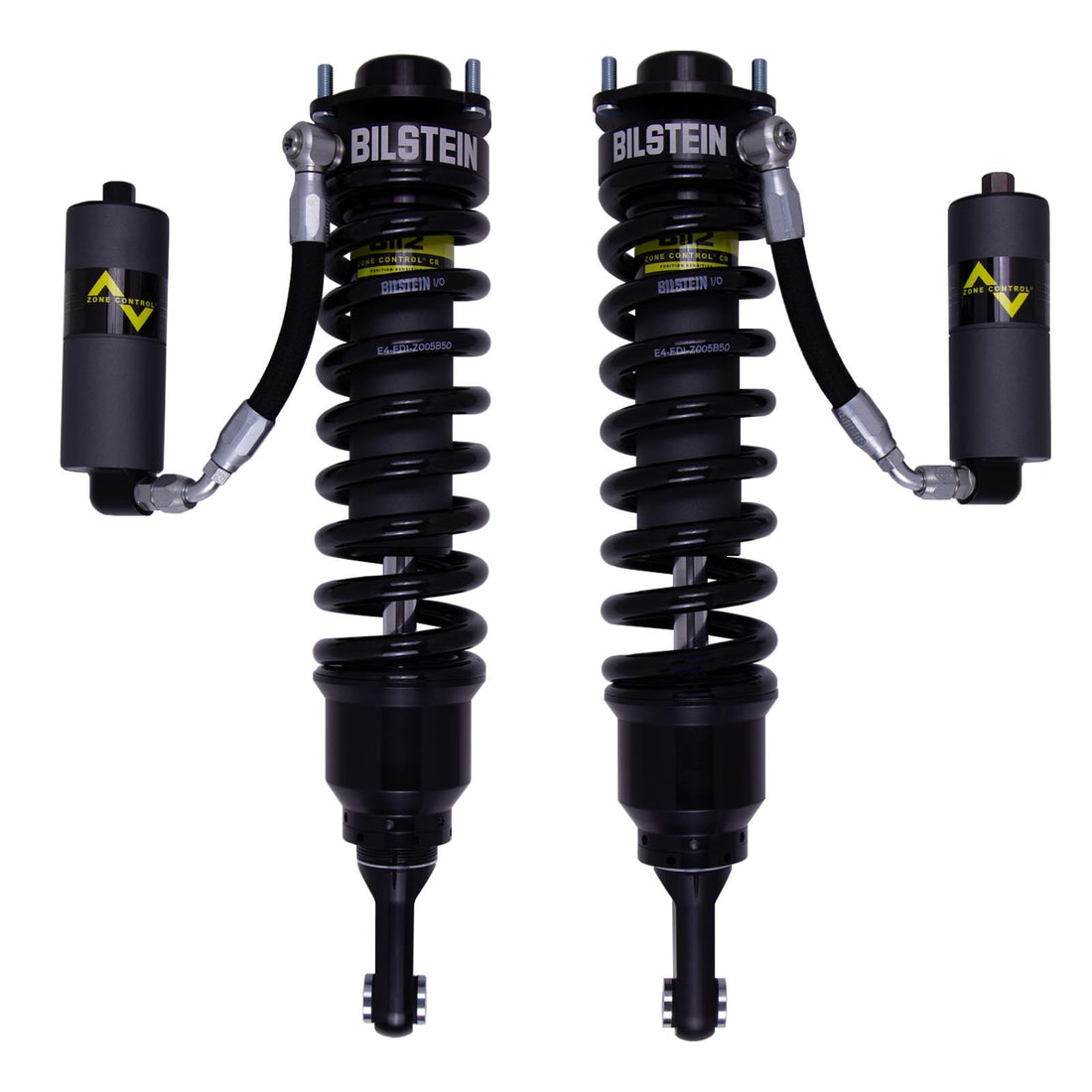

Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/0-3.8" lift - 2003-2009 Toyota 4Runner
Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/0-3.8" lift - 2003-2009 Toyota 4Runner
SKU:10552446910751_52706316550431
In stock
Regular price
$1,160.00 USD
Regular price
$1,264.85 USD
Sale price
$1,160.00 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 41-326329 | 0-3.8" Lift | Front | Coilover | 1 |
| 41-326336 | 0-3.8" Lift | Front | Coilover | 1 |
The Bilstein B8 8112 ZoneControl CR Coilover is a high-performance suspension component designed for off-road and street applications. It features position-sensitive damping with three compression zones and two rebound zones controlled by three independent pistons, providing precise handling and ride comfort. The coilovers include a 2-stage internal compression stop for bottom-out control and internal rebound stops to prevent harsh top-out events, ensuring a smooth ride under demanding conditions. Constructed with aerospace-quality materials, these coilovers incorporate a 60mm remote reservoir for increased oil capacity and cooling, along with an anodized aluminum reservoir mount for durability. The threaded retainer allows for up to 2 inches of ride height adjustment, making it a versatile upgrade for enhanced vehicle performance and stability.
Designed for 2003-2009 Toyota 4Runner models with no suspension modifications or up to 3.8 inches of lift, these coilovers are a direct bolt-on replacement for factory shocks. The package includes two coilover assemblies, washers, bushings, nuts, and reservoir mounts, with factory shock mounting bolts reused during installation. Optional billet aluminum reservoir clamps are available for a cleaner appearance. Suitable for both daily driving and off-road adventures, these coilovers deliver reliable, adjustable performance, allowing seamless transition from pavement cruising to rugged terrain handling. They are backed by a Bilstein 2-year warranty against defects and premature failure.
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 41-326329 | 0-3.8" Lift | Front | Coilover | 1 |
| 41-326336 | 0-3.8" Lift | Front | Coilover | 1 |
Share
Overview
Overview
-
Package Contains 2 coilovers
Front pair of two Coilover assemblies. -
Bilstein 2 Year Warranty
Manufacturer Warranty protects against defects and premature failure. -
Lifts your vehicle up to 3.8" in the front
For vehicles with no suspension modifications or up to 3.8" in the front. -
Reservoir Mounts Included
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look. -
ZoneControl CR
Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons. -
Compression (C)
Provides bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop. -
Rebound (R)
Secondary rebound stop will dissipate spring energy and stabilize the suspension large compression. An internal rebound stop eliminates harsh top-out events so that limit straps are not needed. - Triple Piston Design
- Allows for livable comfort and every-day driving while handling massive suspension inputs with a high degree of control
Transitioning from comfortable cruising on the pavement to conquering offroad terrain happens seamlessly thanks to Bilstein's revolutionary damping technology, and strict attention to detail during extensive product development. The external coilovers spring rate is vehicle specific and preloaded to factory specifications, however, the threaded retainer still allows an additional 2 inches of ride height adjustment. The 60mm remote reservoir provides increased oil capacity and enhances cooling. Designed for each vehicle application, a frame mounted, anodized aluminum reservoir mount is included. Aerospace quality materials and precise manufacturing means your Bilstein B8 8112 ZoneControl shocks will provide years of reliable service, and unmatched performance.
