| Year | Make | Model |
|---|---|---|
| 2003 - 2009 | Lexus | GX470 Base |
| 2003 - 2009 | Toyota | 4Runner Limited |
| 2003 - 2009 | Toyota | 4Runner SR5 |
| 2007 - 2009 | Toyota | FJ Cruiser Base |
| 2008 | Toyota | FJ Cruiser Trail Teams Special Edition |
1
/
of
1
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 41-326336 | 0-3.8" Lift | Front | Coilover | 1 |
| 41-326329 | 0-3.8" Lift | Front | Coilover | 1 |

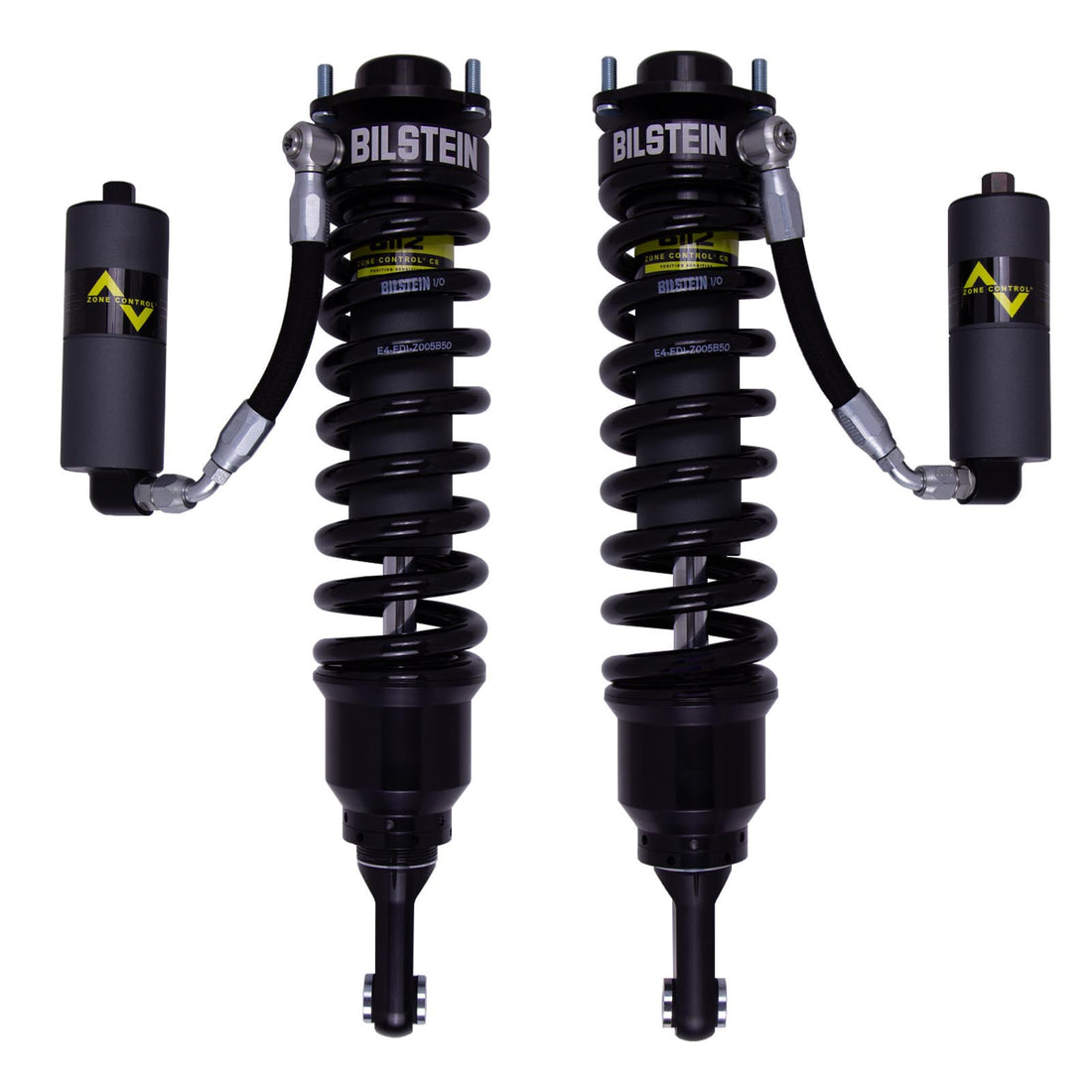

Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/0-3.8" lift - 2007-2009 Toyota FJ Cruiser
Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/0-3.8" lift - 2007-2009 Toyota FJ Cruiser
SKU:10552446943519_52706316583199
In stock
Regular price
$1,160.00 USD
Regular price
$1,264.85 USD
Sale price
$1,160.00 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 41-326336 | 0-3.8" Lift | Front | Coilover | 1 |
| 41-326329 | 0-3.8" Lift | Front | Coilover | 1 |
The Bilstein B8 8112 ZoneControl CR Coilover is a high-performance suspension component designed for off-road and on-road use. Built with aerospace-quality materials, these coilovers feature a triple piston design and position-sensitive damping with three compression zones and two rebound zones, controlled by three independent pistons. The external coil springs are vehicle-specific and preloaded to factory specifications, with an additional 2 inches of ride height adjustment available via threaded retainers. The 60mm remote reservoir enhances oil capacity and cooling, while reservoir mounts and all necessary hardware are included for installation. This coilover system provides precise control, comfort, and durability, making it suitable for demanding driving conditions and extensive off-road adventures.
Designed for 2007-2009 Toyota FJ Cruiser models with no suspension modifications or up to 3.8 inches of lift, this front coilover pair is a direct bolt-on upgrade. It reuses factory shock mounting bolts and includes reservoir mounts, washers, bushings, and nuts. The kit offers a 2-year warranty against defects and premature failure, ensuring long-lasting performance. Ideal for off-road, trail, and daily driving, these coilovers seamlessly transition from pavement comfort to off-road capability, thanks to Bilstein’s revolutionary damping technology and attention to detail during manufacturing. An optional billet aluminum reservoir clamp is available for a cleaner look.
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 41-326336 | 0-3.8" Lift | Front | Coilover | 1 |
| 41-326329 | 0-3.8" Lift | Front | Coilover | 1 |
Share
Overview
Overview
-
Package Contains 2 coilovers
Front pair of two Coilover assemblies. -
Bilstein 2 Year Warranty
Manufacturer Warranty protects against defects and premature failure. -
Lifts your vehicle up to 3.8" in the front
For vehicles with no suspension modifications or up to 3.8" in the front. -
Reservoir Mounts Included
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look. -
ZoneControl CR
Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons. -
Compression (C)
Provides bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop. -
Rebound (R)
Secondary rebound stop will dissipate spring energy and stabilize the suspension large compression. An internal rebound stop eliminates harsh top-out events so that limit straps are not needed. - Triple Piston Design
- Allows for livable comfort and every-day driving while handling massive suspension inputs with a high degree of control
Transitioning from comfortable cruising on the pavement to conquering offroad terrain happens seamlessly thanks to Bilstein's revolutionary damping technology, and strict attention to detail during extensive product development. The external coilovers spring rate is vehicle specific and preloaded to factory specifications, however, the threaded retainer still allows an additional 2 inches of ride height adjustment. The 60mm remote reservoir provides increased oil capacity and enhances cooling. Designed for each vehicle application, a frame mounted, anodized aluminum reservoir mount is included. Aerospace quality materials and precise manufacturing means your Bilstein B8 8112 ZoneControl shocks will provide years of reliable service, and unmatched performance.
