• Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/0.4-2.2" lift - 2005-2023 Toyota Tacoma 4WD RWD
1 1
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
41-3226730.4-2.2" LiftFront LeftCoilover1
41-3226970.4-2.2" LiftFront RightCoilover1

Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/0.4-2.2" lift - 2005-2023 Toyota Tacoma 4WD RWD

Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/0.4-2.2" lift - 2005-2023 Toyota Tacoma 4WD RWD

10552447271199_52706316910879

In stock

$1,160.00 USD
$1,264.85 USD $1,160.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
41-3226730.4-2.2" LiftFront LeftCoilover1
41-3226970.4-2.2" LiftFront RightCoilover1

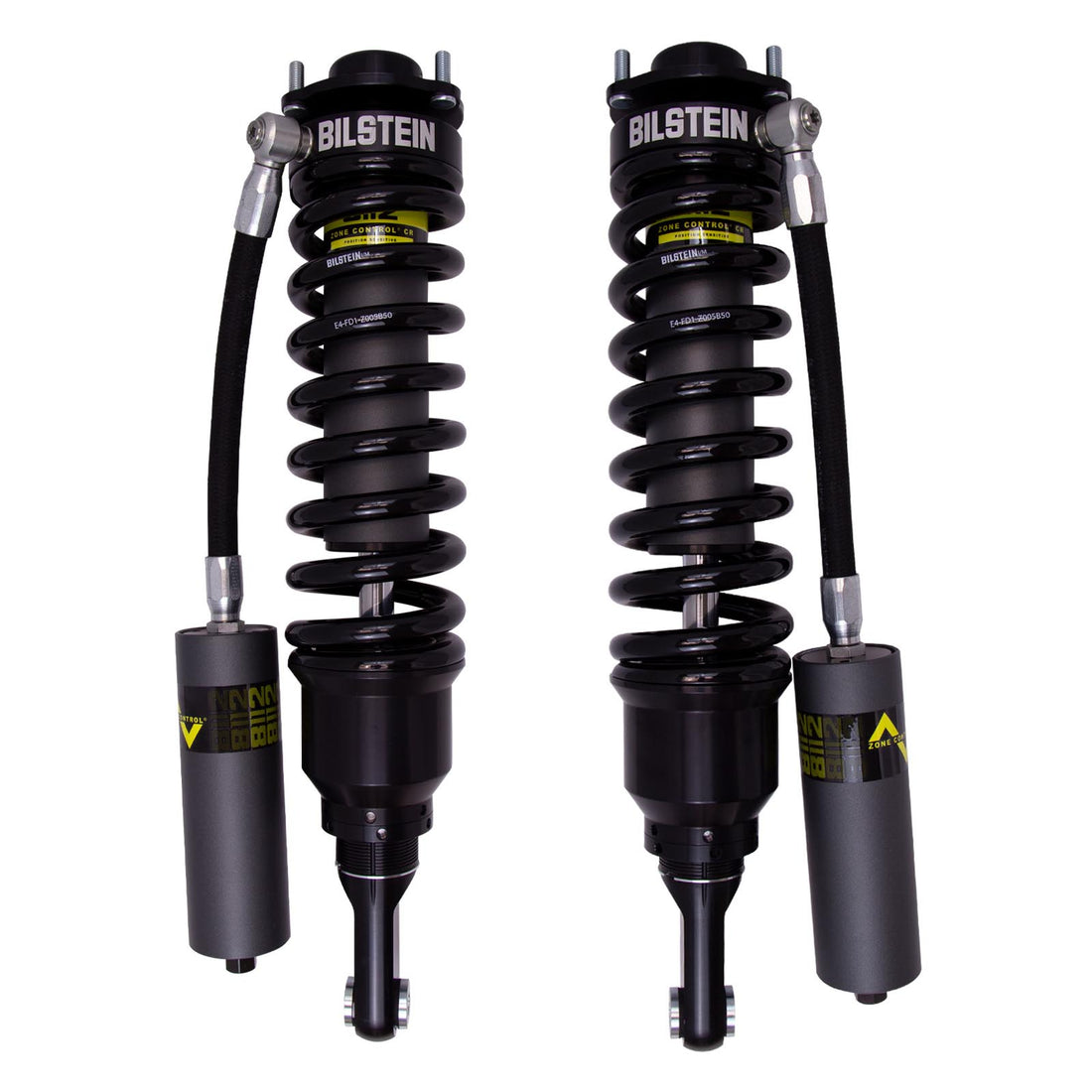

The Bilstein B8 8112 ZoneControl CR Coilover is a high-performance suspension component designed to enhance ride quality and off-road capability for Toyota Tacoma models from 2005 to 2023. This front pair of coilovers features position-sensitive damping with three compression zones and two rebound zones, controlled by three independent pistons, providing precise handling and comfort. The coilovers include a 2-stage internal compression stop for bottom-out control and internal rebound stops to prevent harsh top-out events, ensuring smooth operation under demanding conditions. Constructed with aerospace-quality materials, these coilovers are preloaded to factory specifications, with an adjustable ride height of 0.4-2.2 inches. The 60mm remote reservoir increases oil capacity and cooling efficiency, while reservoir mounts and all necessary hardware are included for easy installation.

Designed for 6-lug 4WD and RWD Toyota Tacoma vehicles, these coilovers are suitable for street and off-road use, offering a versatile upgrade for daily driving and trail adventures. They are a direct bolt-on replacement that reuses factory shock mounting bolts, with optional billet aluminum reservoir clamps for a cleaner look. The kit includes two coilovers, washers, bushings, and nuts, ensuring compatibility and ease of installation. These coilovers are ideal for drivers seeking improved ride height adjustment, enhanced damping control, and reliable performance across varied terrains.

Part NumberLift/LoweredPositionItemQuantity
41-3226730.4-2.2" LiftFront LeftCoilover1
41-3226970.4-2.2" LiftFront RightCoilover1

Overview

  • Package Contains 2 coilovers
    Front pair of two Coilover assemblies.
  • Bilstein 2 Year Warranty
    Manufacturer Warranty protects against defects and premature failure.
  • Lifts your vehicle 0.4-2.2" in the front
    Springs will lift the vehicle 0.4-2.2" in the front.
  • Fits 4WD & RWD vehicles
    This product works for 4WD and RWD vehicles.
  • Important Fitment Note
  • Fits 6 Lug vehicles only
  • Reservoir Mounts Included
    All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look.
  • ZoneControl CR
    Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons.
  • Compression (C)
    Provides bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop.
  • Rebound (R)
    Secondary rebound stop will dissipate spring energy and stabilize the suspension large compression. An internal rebound stop eliminates harsh top-out events so that limit straps are not needed.
  • Triple Piston Design
  • Allows for livable comfort and every-day driving while handling massive suspension inputs with a high degree of control

Transitioning from comfortable cruising on the pavement to conquering offroad terrain happens seamlessly thanks to Bilstein's revolutionary damping technology, and strict attention to detail during extensive product development. The external coilovers spring rate is vehicle specific and preloaded to factory specifications, however, the threaded retainer still allows an additional 2 inches of ride height adjustment. The 60mm remote reservoir provides increased oil capacity and enhances cooling. Designed for each vehicle application, a frame mounted, anodized aluminum reservoir mount is included. Aerospace quality materials and precise manufacturing means your Bilstein B8 8112 ZoneControl shocks will provide years of reliable service, and unmatched performance.
