| Year | Make | Model |
|---|---|---|
| 2019 - 2026 | Dodge | 1500 Classic |
| 2019 - 2026 | Dodge | Ram 1500 V (DT) |
1
/
of
1
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 41-325247 | 0.6-2.5" Lift | Front | Coilover | 1 |
| 41-325230 | 0.6-2.5" Lift | Front | Coilover | 1 |

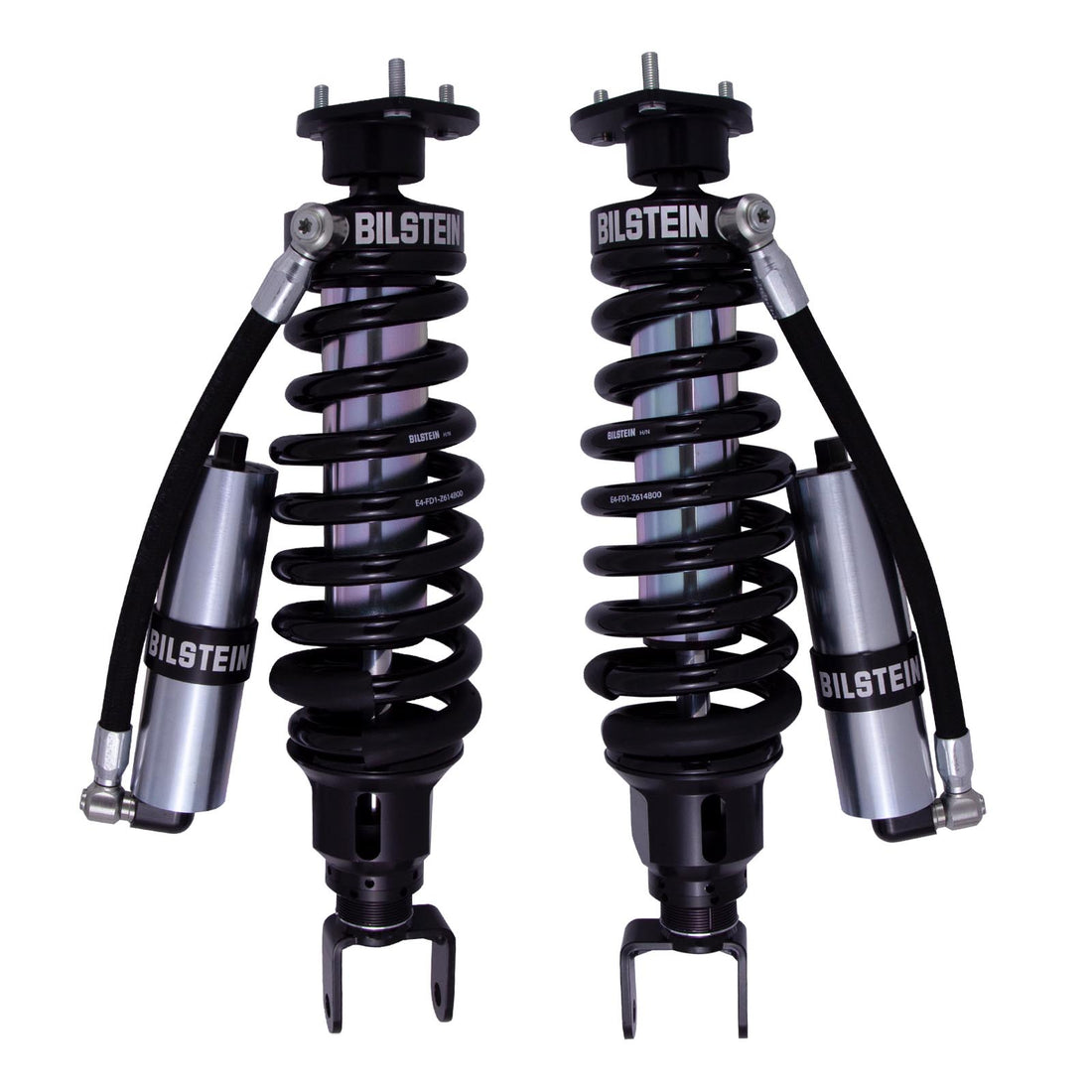

Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/0.6-2.5" lift - 2019-2026 Ram 1500 4WD
Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/0.6-2.5" lift - 2019-2026 Ram 1500 4WD
SKU:10552447303967_52706316943647
Out of stock
Regular price
$1,328.00 USD
Regular price
$1,447.60 USD
Sale price
$1,328.00 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 41-325247 | 0.6-2.5" Lift | Front | Coilover | 1 |
| 41-325230 | 0.6-2.5" Lift | Front | Coilover | 1 |
The Bilstein B8 8112 ZoneControl CR Coilover is a high-performance suspension component designed for 4WD vehicles, specifically the 2019-2026 Ram 1500. This coilover kit features position-sensitive damping with three compression zones and two rebound zones, controlled by three independent pistons, providing precise handling and ride quality. The external coil springs are vehicle-specific and preloaded to factory specifications, with an additional 2 inches of ride height adjustment available via threaded retainers. The 60mm remote reservoir enhances oil capacity and cooling, while internal compression stops and rebound stops ensure smooth compression and rebound, eliminating harsh top-out events. Constructed from aerospace-quality materials, these coilovers include reservoir mounts, washers, bushings, nuts, and an optional billet aluminum reservoir clamp for a cleaner look, backed by a two-year warranty.
Designed exclusively for 4WD Ram 1500 models from 2019 to 2026, this coilover kit is intended for both street and off-road use, offering a lift of 0.6 to 2.5 inches in the front to improve ground clearance and load handling. The kit reuses factory shock mounting bolts for straightforward installation and includes all necessary hardware. It is ideal for those seeking a versatile suspension upgrade that balances comfort and control, whether for daily driving or off-road adventures. This bolt-on kit provides a reliable, durable solution for enhancing vehicle performance and ride quality on rugged terrains or paved roads.
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 41-325247 | 0.6-2.5" Lift | Front | Coilover | 1 |
| 41-325230 | 0.6-2.5" Lift | Front | Coilover | 1 |
Share
Overview
Overview
-
Package Contains 2 coilovers
Front pair of two Coilover assemblies. -
Bilstein 2 Year Warranty
Manufacturer Warranty protects against defects and premature failure. -
Lifts your vehicle 0.6-2.5" in the front
Springs will lift the vehicle 0.6-2.5" in the front. -
Designed for 4WD vehicles
This product only works for 4WD vehicles. -
Reservoir Mounts Included
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look. -
ZoneControl CR
Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons. -
Compression (C)
Provides bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop. -
Rebound (R)
Secondary rebound stop will dissipate spring energy and stabilize the suspension large compression. An internal rebound stop eliminates harsh top-out events so that limit straps are not needed. - Triple Piston Design
- Allows for livable comfort and every-day driving while handling massive suspension inputs with a high degree of control
Transitioning from comfortable cruising on the pavement to conquering offroad terrain happens seamlessly thanks to Bilstein's revolutionary damping technology, and strict attention to detail during extensive product development. The external coilovers spring rate is vehicle specific and preloaded to factory specifications, however, the threaded retainer still allows an additional 2 inches of ride height adjustment. The 60mm remote reservoir provides increased oil capacity and enhances cooling. Designed for each vehicle application, a frame mounted, anodized aluminum reservoir mount is included. Aerospace quality materials and precise manufacturing means your Bilstein B8 8112 ZoneControl shocks will provide years of reliable service, and unmatched performance.
