• Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/1-3.2" lift - 2010-2023 Lexus GX460 4WD KDSS
1 1
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
41-3241581-3.2" LiftFront LeftCoilover1
41-3241651-3.2" LiftFront RightCoilover1

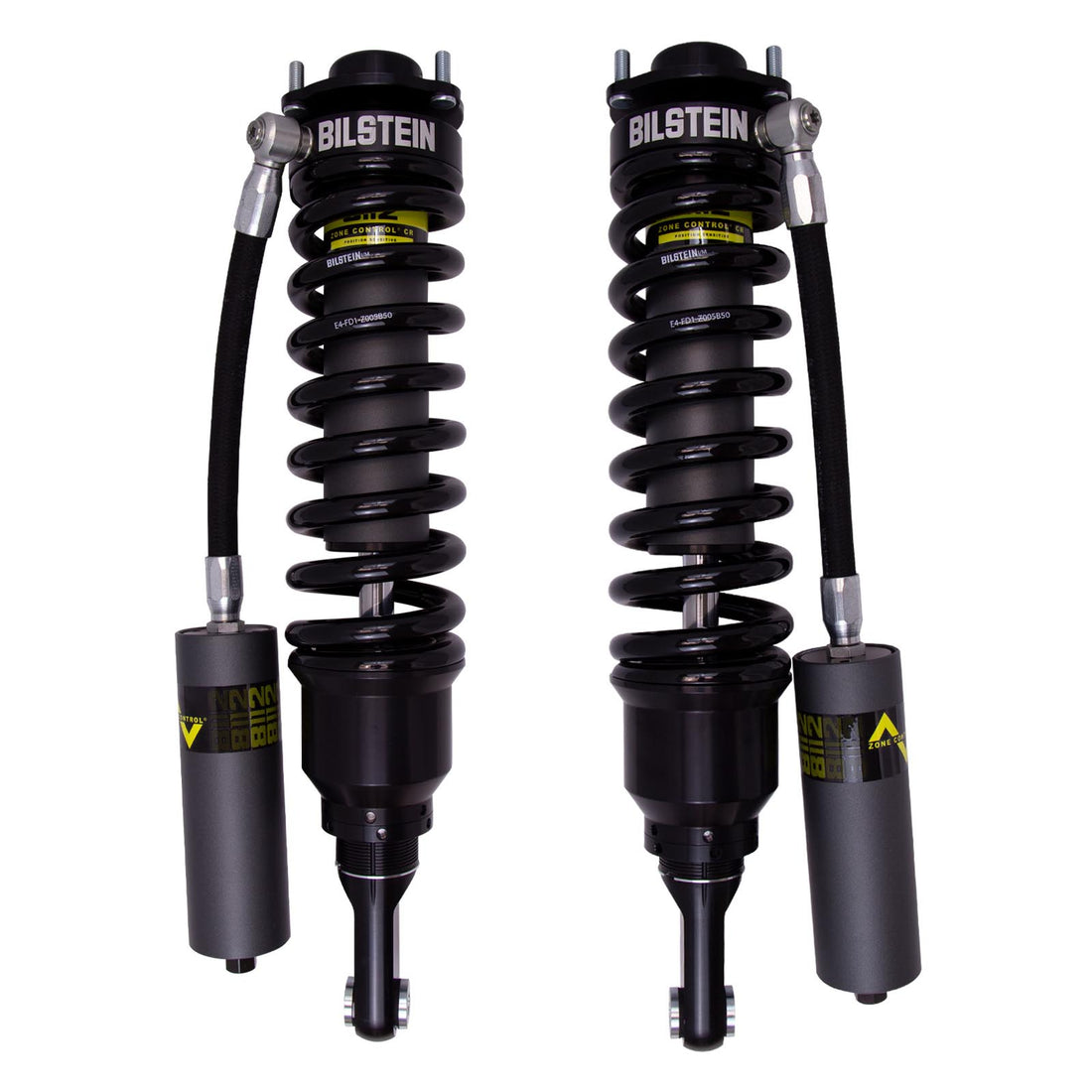

Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/1-3.2" lift - 2010-2023 Lexus GX460 4WD KDSS

Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/1-3.2" lift - 2010-2023 Lexus GX460 4WD KDSS

10552447041823_52706316681503

In stock

$1,160.00 USD
$1,264.85 USD $1,160.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
41-3241581-3.2" LiftFront LeftCoilover1
41-3241651-3.2" LiftFront RightCoilover1

The Bilstein B8 8112 ZoneControl CR Coilover is a high-performance suspension component designed for 4WD vehicles, specifically the 2010-2023 Lexus GX460. This coilover system features zone-sensitive damping with three compression zones and two rebound zones controlled by three independent pistons, providing precise handling and comfort. The external coilover springs are vehicle-specific and preloaded to factory specifications, with an additional 2 inches of ride height adjustment available via threaded retainers. The 60mm remote reservoir enhances oil capacity and cooling, while aerospace-grade materials ensure durability. The package includes all necessary washers, bushings, nuts, and reservoir mounts, with an optional billet aluminum reservoir clamp for a cleaner look. This coilover system lifts the vehicle from 1 to 3.2 inches in the front, offering improved off-road capability and ride quality, backed by a two-year warranty against defects and premature failure.

Designed exclusively for 4WD Lexus GX460 models from 2010 to 2023, this coilover kit requires removal of the factory XREAS system and aftermarket UCA for proper installation. It is intended for off-road and daily driving applications, providing a seamless transition from street comfort to rugged terrain handling. The kit reuses factory shock mounting bolts and includes all necessary hardware for bolt-on installation. Suitable for vehicles with KDSS, this system enhances suspension performance, stability, and ride height, making it an ideal upgrade for enthusiasts seeking improved off-road capability and adjustable ride height. The coilovers are engineered for durability and consistent performance, ensuring years of reliable service.

Part NumberLift/LoweredPositionItemQuantity
41-3241581-3.2" LiftFront LeftCoilover1
41-3241651-3.2" LiftFront RightCoilover1

Overview

  • Package Contains 2 coilovers
    Front pair of two Coilover assemblies.
  • Bilstein 2 Year Warranty
    Manufacturer Warranty protects against defects and premature failure.
  • Lifts your vehicle 1-3.2" in the front
    Springs will lift the vehicle 1-3.2" in the front.
  • Excludes XREAS
    Does not work with XREAS, system must be removed to work with these parts.
  • Designed for 4WD vehicles
    This product only works for 4WD vehicles.
  • Aftermarket UCA
  • Aftermarket UCA required
  • Reservoir Mounts Included
    All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look.
  • ZoneControl CR
    Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons.
  • Compression (C)
    Provides bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop.
  • Rebound (R)
    Secondary rebound stop will dissipate spring energy and stabilize the suspension large compression. An internal rebound stop eliminates harsh top-out events so that limit straps are not needed.
  • Triple Piston Design
  • Allows for livable comfort and every-day driving while handling massive suspension inputs with a high degree of control

Transitioning from comfortable cruising on the pavement to conquering offroad terrain happens seamlessly thanks to Bilstein's revolutionary damping technology, and strict attention to detail during extensive product development. The external coilovers spring rate is vehicle specific and preloaded to factory specifications, however, the threaded retainer still allows an additional 2 inches of ride height adjustment. The 60mm remote reservoir provides increased oil capacity and enhances cooling. Designed for each vehicle application, a frame mounted, anodized aluminum reservoir mount is included. Aerospace quality materials and precise manufacturing means your Bilstein B8 8112 ZoneControl shocks will provide years of reliable service, and unmatched performance.
