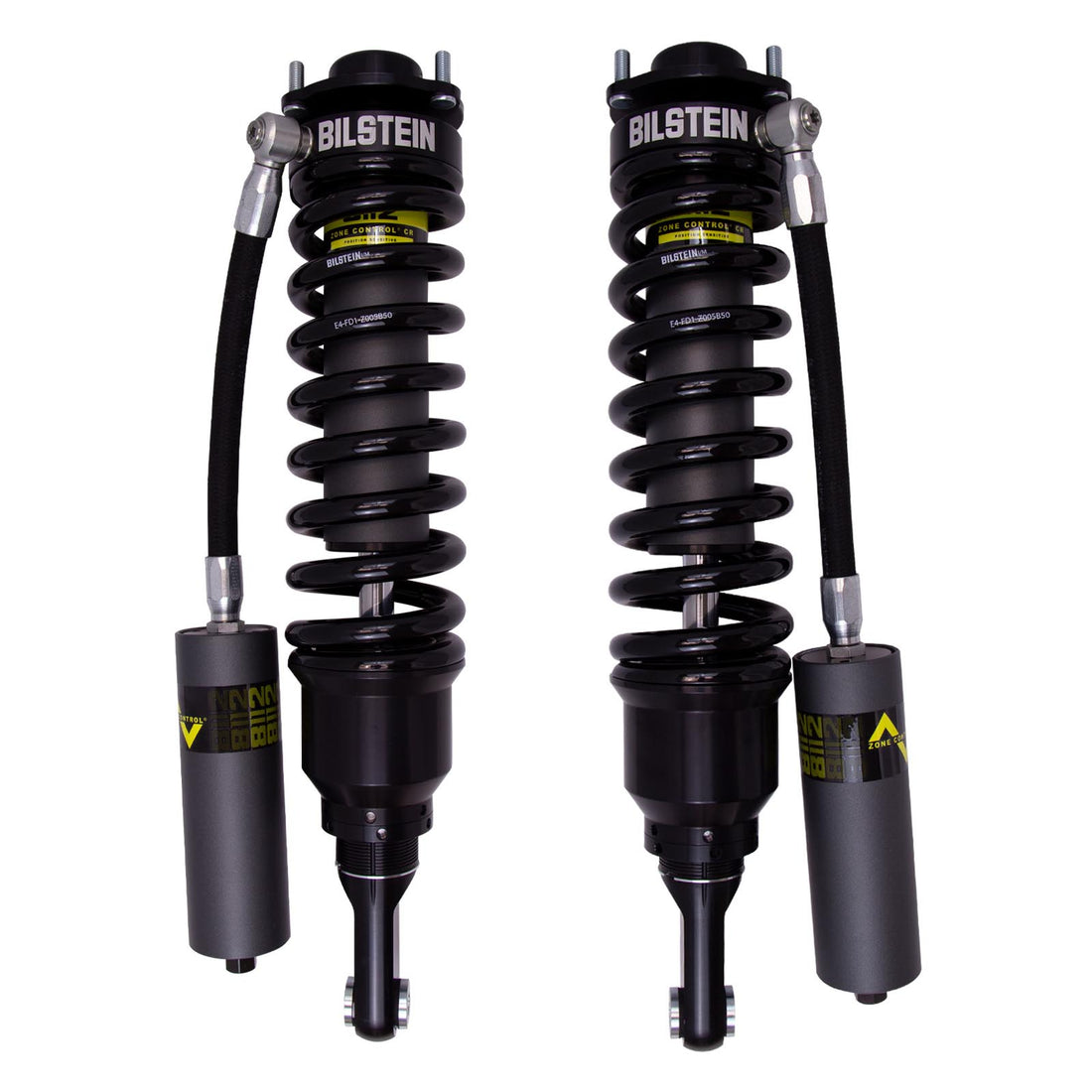

• Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/1.5-3" lift - 2010-2024 Toyota 4Runner 4WD KDSS
1 1
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
41-3241581.5-3" LiftFront LeftCoilover1
41-3241651.5-3" LiftFront RightCoilover1

Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/1.5-3" lift - 2010-2024 Toyota 4Runner 4WD KDSS

Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/1.5-3" lift - 2010-2024 Toyota 4Runner 4WD KDSS

10552447172895_52706316812575

In stock

$1,160.00 USD
$1,264.85 USD $1,160.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
41-3241581.5-3" LiftFront LeftCoilover1
41-3241651.5-3" LiftFront RightCoilover1

The Bilstein B8 8112 ZoneControl CR Coilover is a high-performance suspension component designed for 4WD vehicles, specifically the Toyota 4Runner from 2010 to 2024. It features position-sensitive damping with three compression zones and two rebound zones, controlled by three independent pistons, providing precise handling and comfort. The coilover includes a 2-stage internal compression stop for bottom-out control and an internal rebound stop to dissipate spring energy, reducing harsh top-out events. Its triple piston design ensures a smooth transition from daily driving to off-road terrain, while the external coil spring is vehicle-specific and preloaded to factory specs. The 60mm remote reservoir enhances oil capacity and cooling, with an anodized aluminum reservoir mount for durability. Constructed from aerospace-quality materials, this coilover offers reliable performance and longevity, backed by a two-year warranty.

Designed for 2010-2024 Toyota 4Runner 4WD models with KDSS, this coilover kit lifts the vehicle 1.5-3 inches in the front, excluding XREAS systems which must be removed. It is compatible only with 4WD configurations and requires an aftermarket upper control arm (UCA). The package includes two coilovers, washers, bushings, nuts, and reservoir mounts, with factory shock mounting bolts reused during installation. Optional billet aluminum reservoir clamps are available for a cleaner look. Suitable for off-road and street use, this bolt-on suspension upgrade enhances ride height, handling, and stability across various terrains.

Part NumberLift/LoweredPositionItemQuantity
41-3241581.5-3" LiftFront LeftCoilover1
41-3241651.5-3" LiftFront RightCoilover1

Overview

  • Package Contains 2 coilovers
    Front pair of two Coilover assemblies.
  • Bilstein 2 Year Warranty
    Manufacturer Warranty protects against defects and premature failure.
  • Lifts your vehicle 1.5-3" in the front
    Springs will lift the vehicle 1.5-3" in the front.
  • Excludes XREAS
    Does not work with XREAS, system must be removed to work with these parts.
  • Designed for 4WD vehicles
    This product only works for 4WD vehicles.
  • Aftermarket UCA
  • Aftermarket UCA required
  • Reservoir Mounts Included
    All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look.
  • ZoneControl CR
    Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons.
  • Compression (C)
    Provides bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop.
  • Rebound (R)
    Secondary rebound stop will dissipate spring energy and stabilize the suspension large compression. An internal rebound stop eliminates harsh top-out events so that limit straps are not needed.
  • Triple Piston Design
  • Allows for livable comfort and every-day driving while handling massive suspension inputs with a high degree of control

Transitioning from comfortable cruising on the pavement to conquering offroad terrain happens seamlessly thanks to Bilstein's revolutionary damping technology, and strict attention to detail during extensive product development. The external coilovers spring rate is vehicle specific and preloaded to factory specifications, however, the threaded retainer still allows an additional 2 inches of ride height adjustment. The 60mm remote reservoir provides increased oil capacity and enhances cooling. Designed for each vehicle application, a frame mounted, anodized aluminum reservoir mount is included. Aerospace quality materials and precise manufacturing means your Bilstein B8 8112 ZoneControl shocks will provide years of reliable service, and unmatched performance.

View full details
