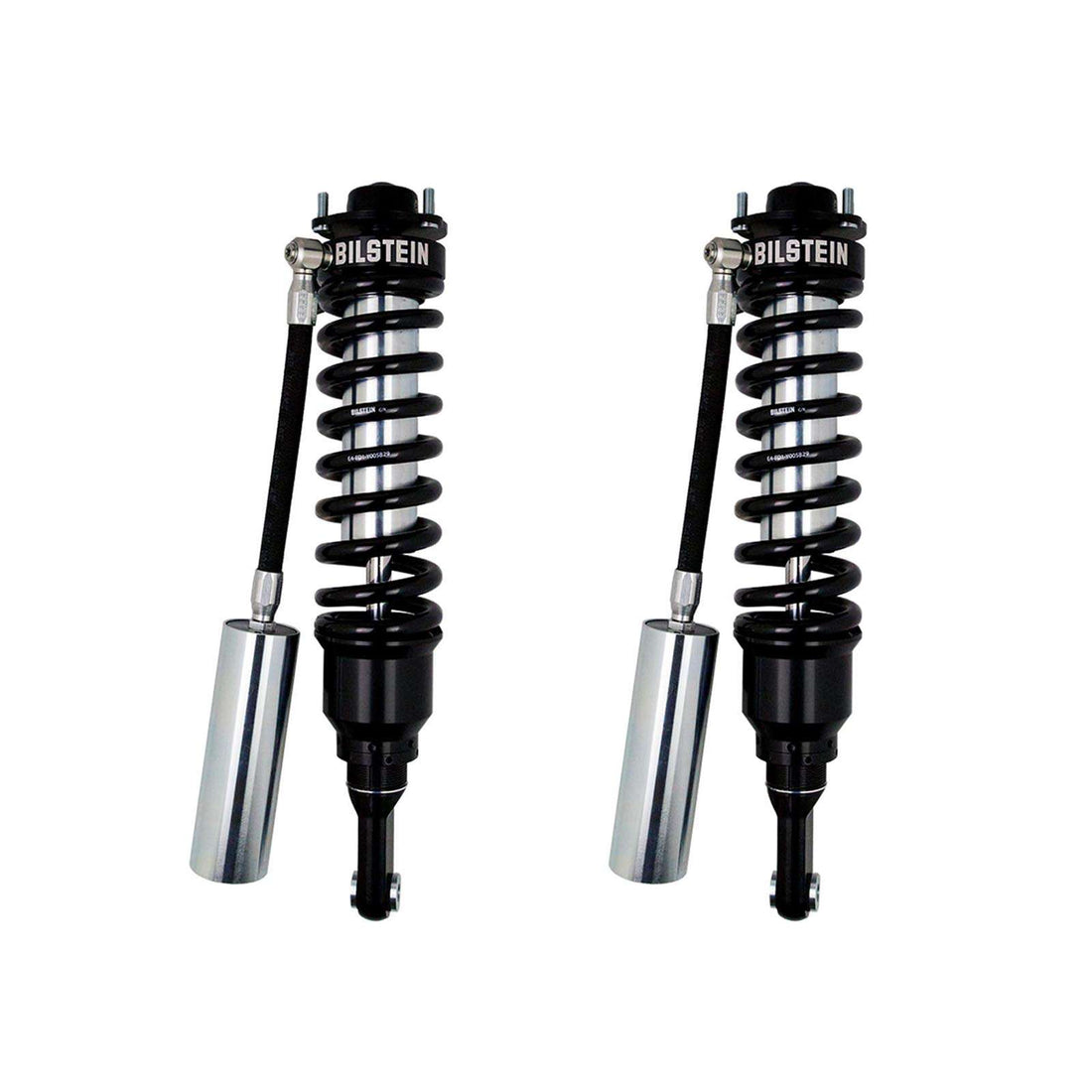

• Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/2.25-3.25" lift - 2007-2021 Toyota Tundra 4WD RWD
1 1
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
41-3260222.25-3.25" LiftFront LeftCoilover1
41-3260392.25-3.25" LiftFront RightCoilover1

Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/2.25-3.25" lift - 2007-2021 Toyota Tundra 4WD RWD

Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/2.25-3.25" lift - 2007-2021 Toyota Tundra 4WD RWD

10552446976287_52706316615967

In stock

$1,160.00 USD
$1,264.85 USD $1,160.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
41-3260222.25-3.25" LiftFront LeftCoilover1
41-3260392.25-3.25" LiftFront RightCoilover1

The Bilstein B8 8112 ZoneControl CR Coilover is a high-performance suspension component designed for the front of 2007-2021 Toyota Tundra models. This coilover assembly features a triple piston design with position-sensitive damping, including three compression zones and two rebound zones controlled by independent pistons. It offers adjustable ride height from 2.25 to 3.25 inches, allowing for customized stance and off-road capability. Constructed with aerospace-quality materials, it includes a 60mm remote reservoir for increased oil capacity and cooling, along with reservoir mounts, washers, bushings, and nuts for installation. The internal compression stop and rebound stops provide superior control, comfort, and stability, making it suitable for both daily driving and off-road adventures.

Designed specifically for 2007-2021 Toyota Tundra 4WD and RWD models, this coilover kit reuses factory shock mounting bolts and includes all necessary hardware for bolt-on installation. It is ideal for vehicles used in off-road, towing, or performance applications, offering a seamless transition from street to trail. The kit includes two coilovers, with the option to add a billet aluminum reservoir clamp for a cleaner look. Engineered for durability and precise damping control, the Bilstein B8 8112 ZoneControl CR coilovers deliver reliable performance and enhanced ride quality across various terrains.

Part NumberLift/LoweredPositionItemQuantity
41-3260222.25-3.25" LiftFront LeftCoilover1
41-3260392.25-3.25" LiftFront RightCoilover1

Overview

  • Package Contains 2 coilovers
    Front pair of two Coilover assemblies.
  • Bilstein 2 Year Warranty
    Manufacturer Warranty protects against defects and premature failure.
  • Lifts your vehicle 2.25-3.25" in the front
    Springs will lift the vehicle 2.25-3.25" in the front.
  • Fits 4WD & RWD vehicles
    This product works for 4WD and RWD vehicles.
  • Reservoir Mounts Included
    All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look.
  • ZoneControl CR
    Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons.
  • Compression (C)
    Provides bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop.
  • Rebound (R)
    Secondary rebound stop will dissipate spring energy and stabilize the suspension large compression. An internal rebound stop eliminates harsh top-out events so that limit straps are not needed.
  • Triple Piston Design
  • Allows for livable comfort and every-day driving while handling massive suspension inputs with a high degree of control

Transitioning from comfortable cruising on the pavement to conquering offroad terrain happens seamlessly thanks to Bilstein's revolutionary damping technology, and strict attention to detail during extensive product development. The external coilovers spring rate is vehicle specific and preloaded to factory specifications, however, the threaded retainer still allows an additional 2 inches of ride height adjustment. The 60mm remote reservoir provides increased oil capacity and enhances cooling. Designed for each vehicle application, a frame mounted, anodized aluminum reservoir mount is included. Aerospace quality materials and precise manufacturing means your Bilstein B8 8112 ZoneControl shocks will provide years of reliable service, and unmatched performance.
