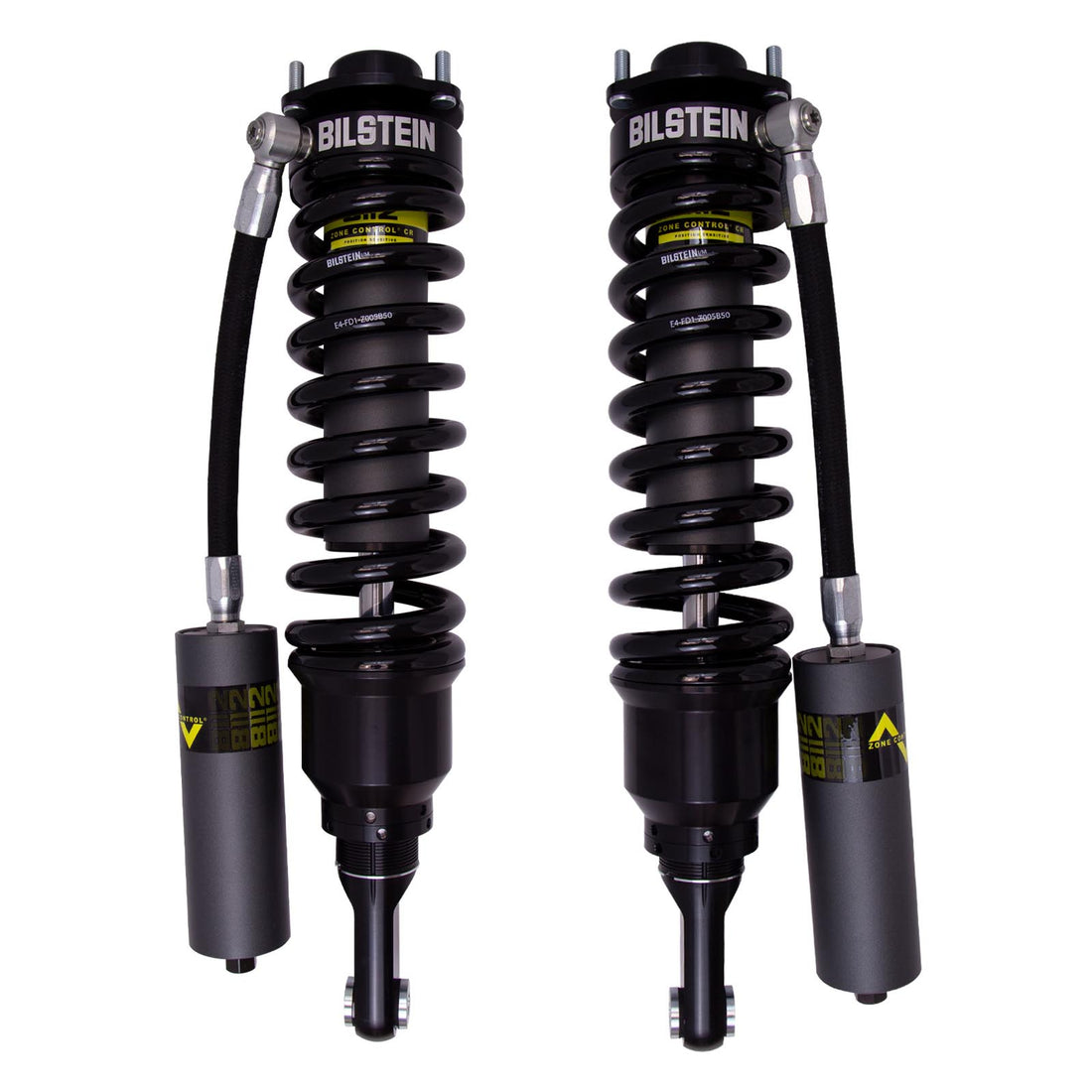

• Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/2-3.1" lift - 2010-2014 Toyota FJ Cruiser 4WD Non-KDSS
1 1
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
41-3241722-3.1" LiftFront LeftCoilover1
41-3243632-3.1" LiftFront RightCoilover1

Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/2-3.1" lift - 2010-2014 Toyota FJ Cruiser 4WD Non-KDSS

Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/2-3.1" lift - 2010-2014 Toyota FJ Cruiser 4WD Non-KDSS

10552447009055_52706316648735

In stock

$1,160.00 USD
$1,264.85 USD $1,160.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
41-3241722-3.1" LiftFront LeftCoilover1
41-3243632-3.1" LiftFront RightCoilover1

The Bilstein B8 8112 ZoneControl CR Coilover is a high-performance suspension component designed for 4WD vehicles, specifically the 2010-2014 Toyota FJ Cruiser. This coilover kit features zone-sensitive damping with three compression zones and two rebound zones, controlled by three independent pistons, providing precise handling and ride quality. The system includes a 2-stage internal compression stop to prevent bottoming out and an internal rebound stop to eliminate harsh top-out events, ensuring comfort and stability during off-road and on-road driving. Constructed with aerospace-quality materials, the coilovers include a 60mm remote reservoir for increased oil capacity and cooling, along with reservoir mounts, washers, bushings, and nuts for installation. The threaded retainer allows for an additional 2 inches of ride height adjustment, making it a versatile upgrade for demanding driving conditions.

Designed for the 2010-2014 Toyota FJ Cruiser 4WD models, this coilover kit is a direct replacement for factory shocks, requiring aftermarket upper control arms (UCA) for proper fitment. It reuses factory shock mounting bolts and is intended for off-road, daily driving, and performance applications. The package includes two coilovers, reservoir mounts, and all necessary hardware, with an optional billet aluminum reservoir clamp available for a cleaner look. This product is engineered to lift the vehicle 2-3.1 inches in the front, enhancing ground clearance and off-road capability while maintaining ride comfort and control. Suitable for enthusiasts seeking reliable, adjustable suspension performance, it offers seamless transition from pavement to rugged terrain.

Part NumberLift/LoweredPositionItemQuantity
41-3241722-3.1" LiftFront LeftCoilover1
41-3243632-3.1" LiftFront RightCoilover1

Overview

  • Package Contains 2 coilovers
    Front pair of two Coilover assemblies.
  • Bilstein 2 Year Warranty
    Manufacturer Warranty protects against defects and premature failure.
  • Lifts your vehicle 2-3.1" in the front
    Springs will lift the vehicle 2-3.1" in the front.
  • Aftermarket UCA
    Aftermarket UCA required.
  • Designed for 4WD vehicles
    This product only works for 4WD vehicles.
  • Reservoir Mounts Included
    All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look.
  • ZoneControl CR
    Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons.
  • Compression (C)
    Provides bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop.
  • Rebound (R)
    Secondary rebound stop will dissipate spring energy and stabilize the suspension large compression. An internal rebound stop eliminates harsh top-out events so that limit straps are not needed.
  • Triple Piston Design
  • Allows for livable comfort and every-day driving while handling massive suspension inputs with a high degree of control

Transitioning from comfortable cruising on the pavement to conquering offroad terrain happens seamlessly thanks to Bilstein's revolutionary damping technology, and strict attention to detail during extensive product development. The external coilovers spring rate is vehicle specific and preloaded to factory specifications, however, the threaded retainer still allows an additional 2 inches of ride height adjustment. The 60mm remote reservoir provides increased oil capacity and enhances cooling. Designed for each vehicle application, a frame mounted, anodized aluminum reservoir mount is included. Aerospace quality materials and precise manufacturing means your Bilstein B8 8112 ZoneControl shocks will provide years of reliable service, and unmatched performance.
