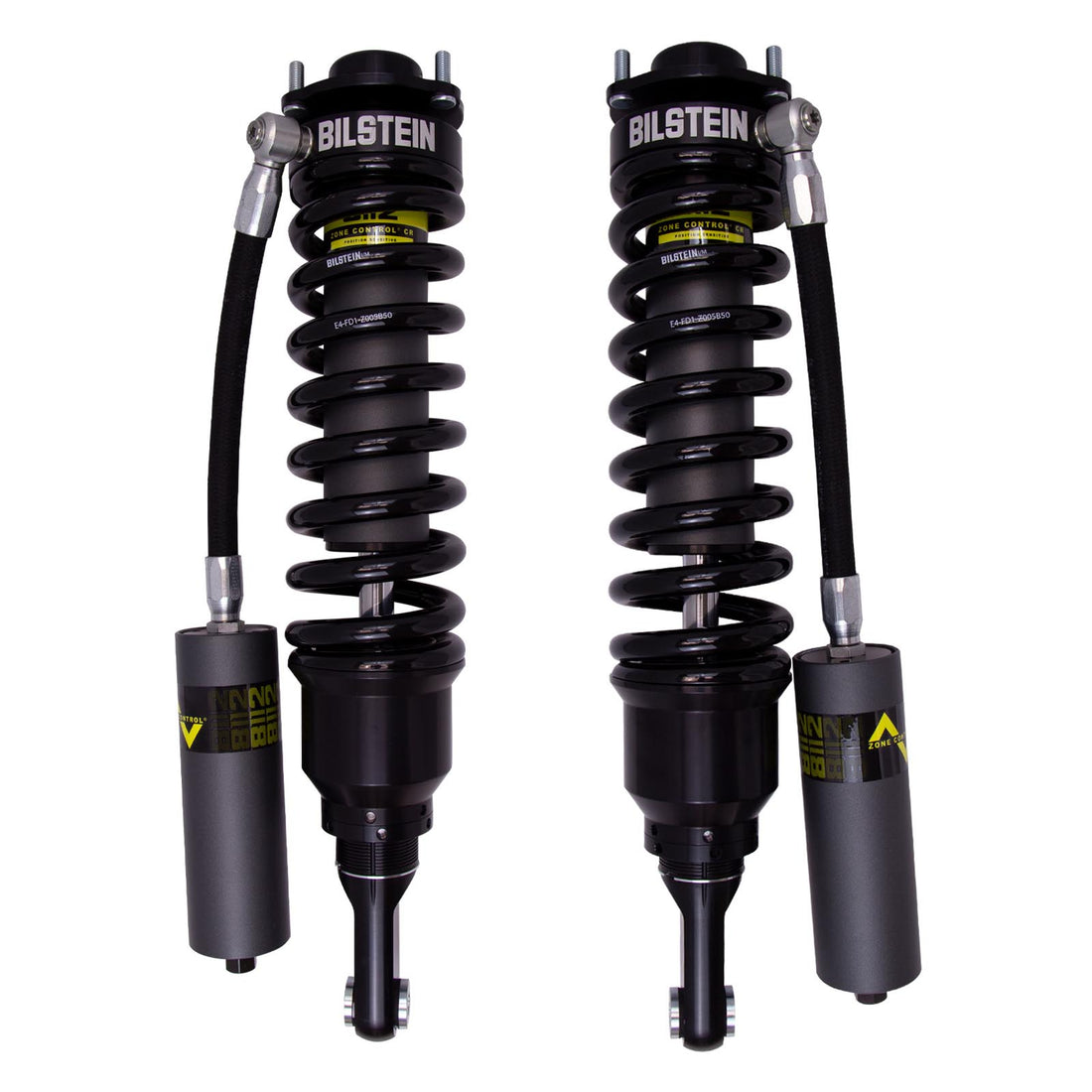

• Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/3-3.8" lift - 2010-2024 Toyota 4Runner RWD KDSS
1 1
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
41-3241583-3.8" LiftFront LeftCoilover1
41-3241653-3.8" LiftFront RightCoilover1

Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/3-3.8" lift - 2010-2024 Toyota 4Runner RWD KDSS

Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/3-3.8" lift - 2010-2024 Toyota 4Runner RWD KDSS

10552447205663_52706316845343

In stock

$1,160.00 USD
$1,264.85 USD $1,160.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
41-3241583-3.8" LiftFront LeftCoilover1
41-3241653-3.8" LiftFront RightCoilover1

The Bilstein B8 8112 ZoneControl CR Coilover is a high-performance suspension component designed to enhance off-road and on-road handling for RWD vehicles. Featuring position-sensitive damping with three compression zones and two rebound zones controlled by three independent pistons, this coilover provides precise ride control and stability. The internal two-stage compression stop offers bottom-out protection, eliminating the need for external hydraulic bump stops, while the internal rebound stop reduces harsh top-out events. Constructed with aerospace-quality materials, the coilover includes a 60mm remote reservoir for increased oil capacity and cooling, along with an anodized aluminum reservoir mount for durability. The coilover is preloaded to factory specifications with additional ride height adjustment of up to 2 inches, ensuring a tailored fit and performance.

Designed specifically for 2010-2024 Toyota 4Runner RWD models with KDSS, these coilovers lift the vehicle 3-3.8 inches in the front, making them ideal for off-road adventures and aggressive driving. They are compatible only with RWD vehicles and require removal of the XREAS system, which is not supported. The package includes all necessary washers, bushings, nuts, and factory shock mounting bolts for a bolt-on installation. An aftermarket UCA is required for proper fitment. These coilovers are suitable for daily driving, off-road use, and performance applications, providing reliable, adjustable suspension performance for demanding drivers.

Part NumberLift/LoweredPositionItemQuantity
41-3241583-3.8" LiftFront LeftCoilover1
41-3241653-3.8" LiftFront RightCoilover1

Overview

  • Package Contains 2 coilovers
    Front pair of two Coilover assemblies.
  • Bilstein 2 Year Warranty
    Manufacturer Warranty protects against defects and premature failure.
  • Lifts your vehicle 3-3.8" in the front
    Springs will lift the vehicle 3-3.8" in the front.
  • Excludes XREAS
    Does not work with XREAS, system must be removed to work with these parts.
  • Designed for RWD vehicles
    This product only works for RWD vehicles.
  • Aftermarket UCA
  • Aftermarket UCA required
  • Reservoir Mounts Included
    All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look.
  • ZoneControl CR
    Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons.
  • Compression (C)
    Provides bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop.
  • Rebound (R)
    Secondary rebound stop will dissipate spring energy and stabilize the suspension large compression. An internal rebound stop eliminates harsh top-out events so that limit straps are not needed.
  • Triple Piston Design
  • Allows for livable comfort and every-day driving while handling massive suspension inputs with a high degree of control

Transitioning from comfortable cruising on the pavement to conquering offroad terrain happens seamlessly thanks to Bilstein's revolutionary damping technology, and strict attention to detail during extensive product development. The external coilovers spring rate is vehicle specific and preloaded to factory specifications, however, the threaded retainer still allows an additional 2 inches of ride height adjustment. The 60mm remote reservoir provides increased oil capacity and enhances cooling. Designed for each vehicle application, a frame mounted, anodized aluminum reservoir mount is included. Aerospace quality materials and precise manufacturing means your Bilstein B8 8112 ZoneControl shocks will provide years of reliable service, and unmatched performance.

View full details
