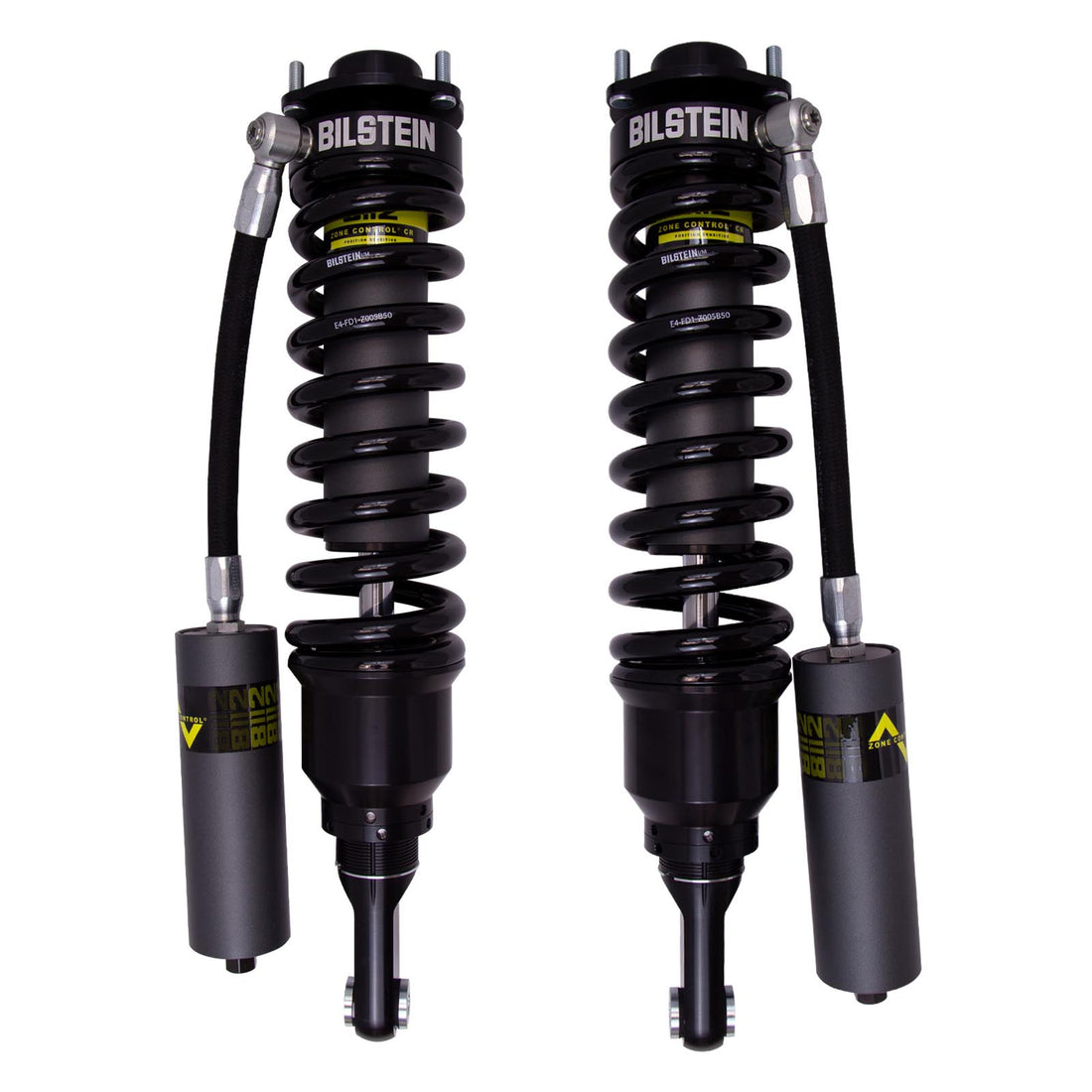

• Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/3-3.8" lift - 2010-2024 Toyota 4Runner RWD Non-KDSS
1 1
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
41-3241723-3.8" LiftFront LeftCoilover1
41-3243633-3.8" LiftFront RightCoilover1

Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/3-3.8" lift - 2010-2024 Toyota 4Runner RWD Non-KDSS

Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir Front Pair w/3-3.8" lift - 2010-2024 Toyota 4Runner RWD Non-KDSS

10552447238431_52706316878111

In stock

$1,160.00 USD
$1,264.85 USD $1,160.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out
▶ Suspension Drop / Lift Rates
Part NumberLift/LoweredPositionItemQuantity
41-3241723-3.8" LiftFront LeftCoilover1
41-3243633-3.8" LiftFront RightCoilover1

The Bilstein B8 8112 ZoneControl CR Coilover set is a high-performance suspension upgrade designed for 2010-2024 Toyota 4Runner RWD models. These coilovers feature zone-sensitive damping with three compression zones and two rebound zones, controlled by three independent pistons, providing precise handling and comfort. The system includes a 2-stage internal compression stop for bottom-out control and an internal rebound stop to prevent harsh top-out events, ensuring smooth ride quality. Constructed with aerospace-grade materials, the coilovers are preloaded to factory specifications, with an additional 2 inches of ride height adjustment available via threaded retainers. The 60mm remote reservoir enhances oil capacity and cooling, while reservoir mounts and optional billet aluminum clamps offer a clean installation. This product is backed by a two-year warranty against defects and premature failure, ensuring durability and reliable performance for demanding driving conditions.

Designed specifically for RWD Toyota 4Runner models from 2010 to 2024, these coilovers lift the vehicle by 3 to 3.8 inches in the front, requiring removal of the XREAS system for proper fitment. They are intended for off-road and street use, providing a significant lift and improved handling. Installation involves reusing factory shock mounting bolts, with all necessary washers, bushings, and nuts included. An aftermarket upper control arm (UCA) is required for proper installation. These coilovers are ideal for off-road enthusiasts and daily drivers seeking enhanced ride height and performance, offering seamless transition from pavement cruising to rugged terrain handling.

Part NumberLift/LoweredPositionItemQuantity
41-3241723-3.8" LiftFront LeftCoilover1
41-3243633-3.8" LiftFront RightCoilover1

Overview

  • Package Contains 2 coilovers
    Front pair of two Coilover assemblies.
  • Bilstein 2 Year Warranty
    Manufacturer Warranty protects against defects and premature failure.
  • Lifts your vehicle 3-3.8" in the front
    Springs will lift the vehicle 3-3.8" in the front.
  • Excludes XREAS
    Does not work with XREAS, system must be removed to work with these parts.
  • Designed for RWD vehicles
    This product only works for RWD vehicles.
  • Aftermarket UCA
  • Aftermarket UCA required
  • Reservoir Mounts Included
    All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look.
  • ZoneControl CR
    Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons.
  • Compression (C)
    Provides bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop.
  • Rebound (R)
    Secondary rebound stop will dissipate spring energy and stabilize the suspension large compression. An internal rebound stop eliminates harsh top-out events so that limit straps are not needed.
  • Triple Piston Design
  • Allows for livable comfort and every-day driving while handling massive suspension inputs with a high degree of control

Transitioning from comfortable cruising on the pavement to conquering offroad terrain happens seamlessly thanks to Bilstein's revolutionary damping technology, and strict attention to detail during extensive product development. The external coilovers spring rate is vehicle specific and preloaded to factory specifications, however, the threaded retainer still allows an additional 2 inches of ride height adjustment. The 60mm remote reservoir provides increased oil capacity and enhances cooling. Designed for each vehicle application, a frame mounted, anodized aluminum reservoir mount is included. Aerospace quality materials and precise manufacturing means your Bilstein B8 8112 ZoneControl shocks will provide years of reliable service, and unmatched performance.
