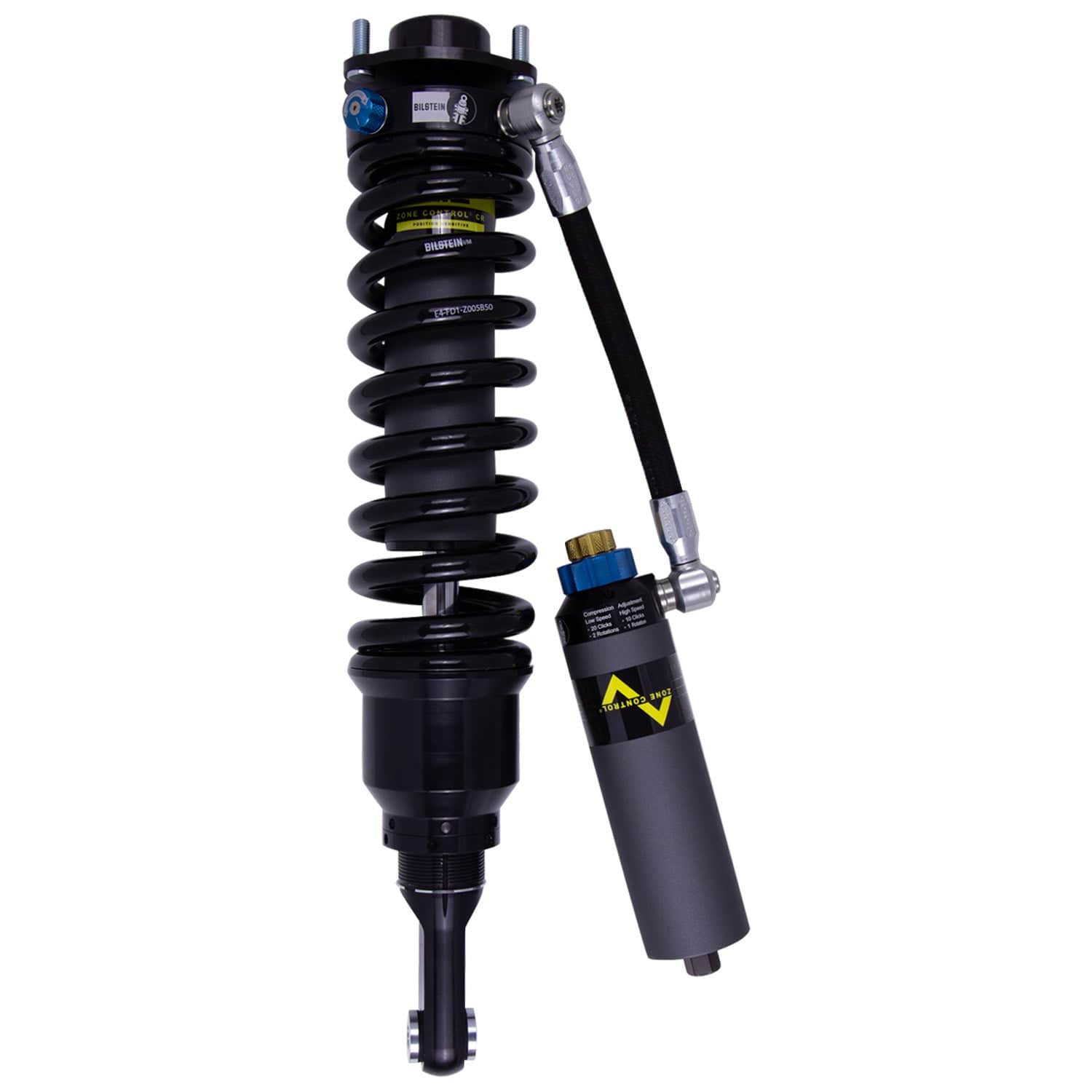

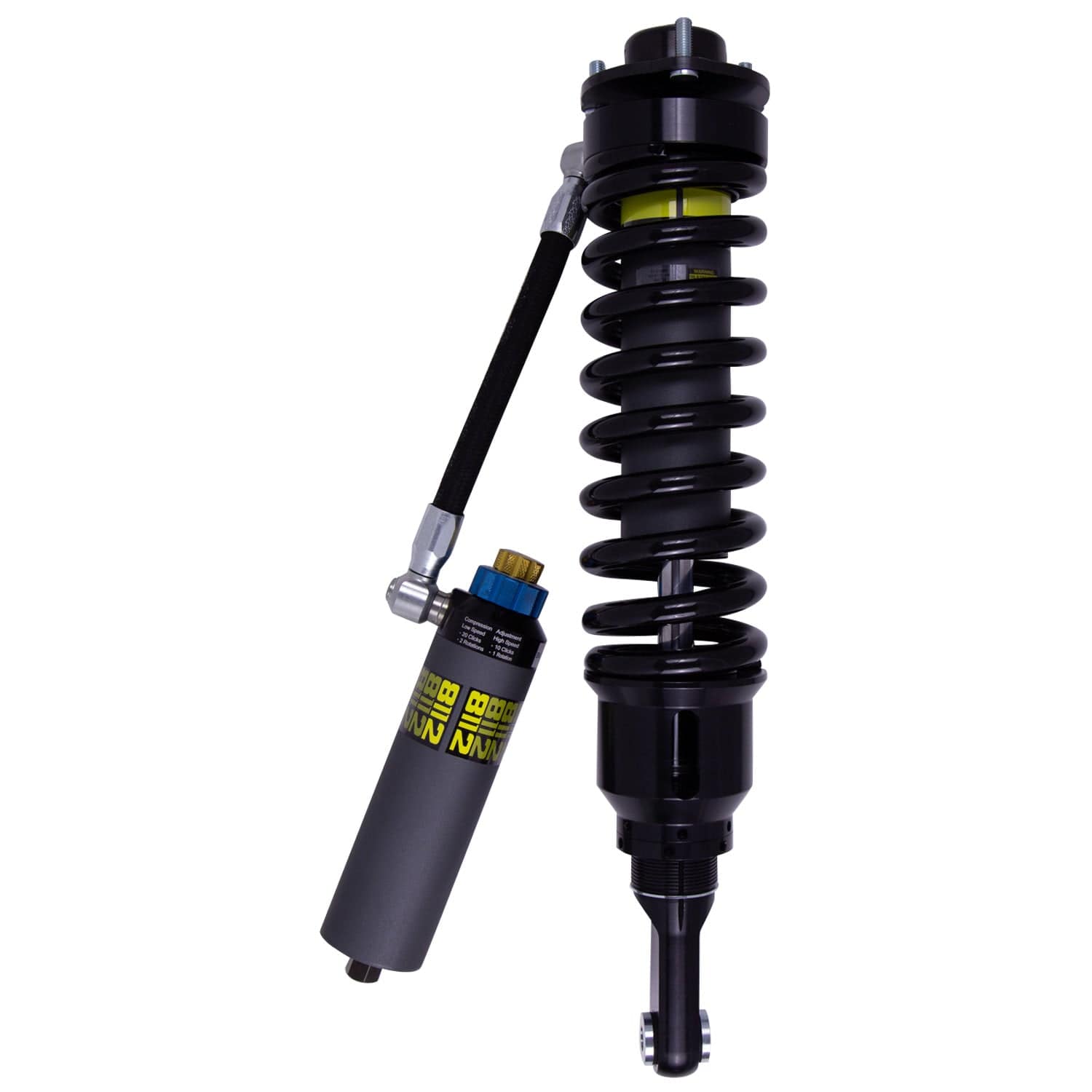

Bilstein B8 8112 ZoneControl CR DSA+ Coilover Tacoma (05-15) (41-319581)
Bilstein B8 8112 ZoneControl CR DSA+ Coilover Tacoma (05-15) (41-319581)
SKU:41-319581
In stock
Regular price
$1,460.00 USD
Regular price
$1,591.85 USD
Sale price
$1,460.00 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
The Bilstein B8 8112 ZoneControl CR DSA+ Coilover for the 2005-2015 Toyota Tacoma is a high-performance suspension component designed to enhance ride quality and handling. This coilover features a 60mm diameter and a direct fit for light trucks and SUVs, incorporating advanced ZoneControl CR DSA+ technology that provides position-sensitive damping. Its triple piston design offers three stages of compression valving and two stages of rebound valving, allowing for precise tuning of suspension response. The click-adjuster knobs enable easy and accurate dual-speed adjustment, giving drivers the ability to customize damping characteristics for various driving conditions. Built with durable materials, this coilover ensures long-lasting performance and improved stability, whether on-road or off-road.

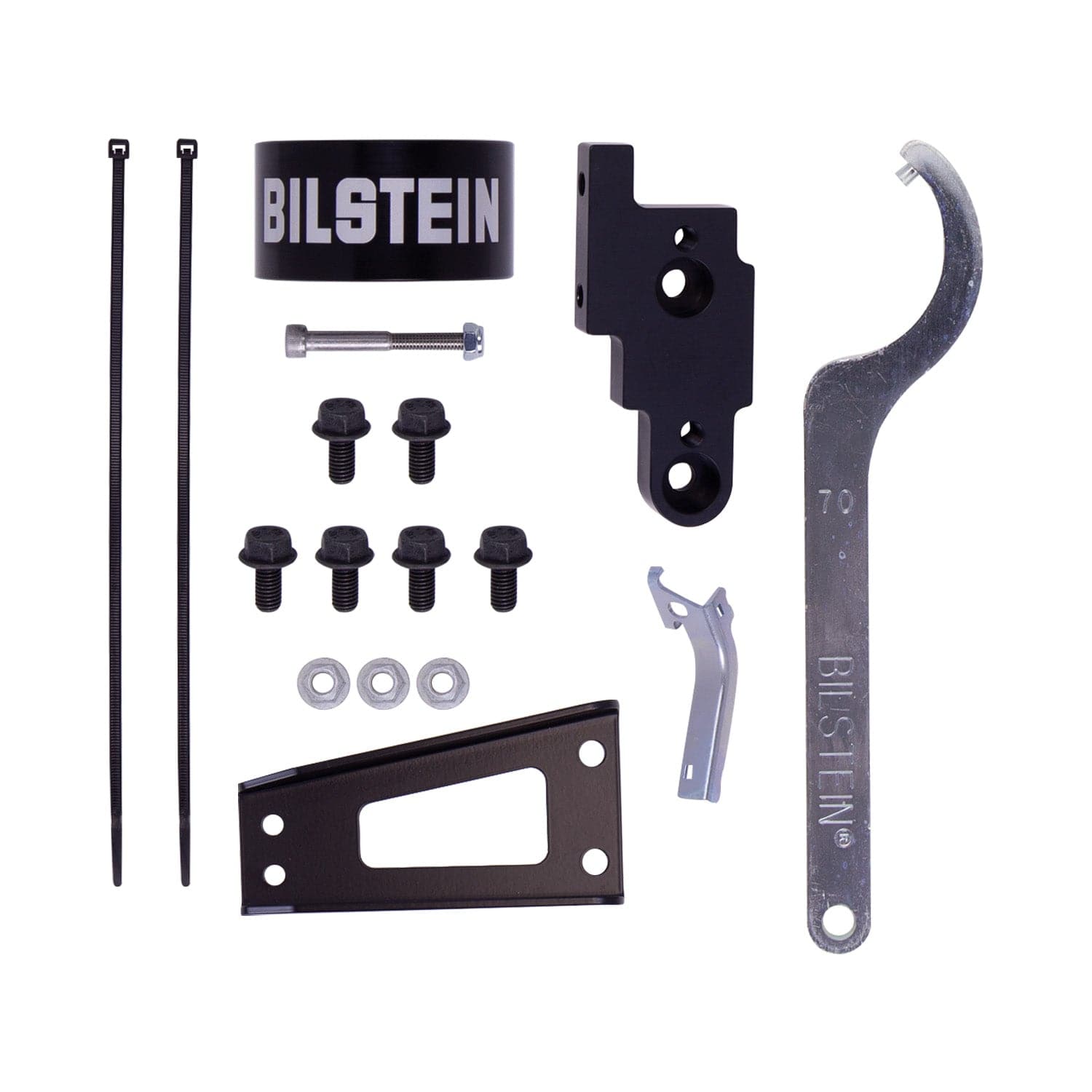

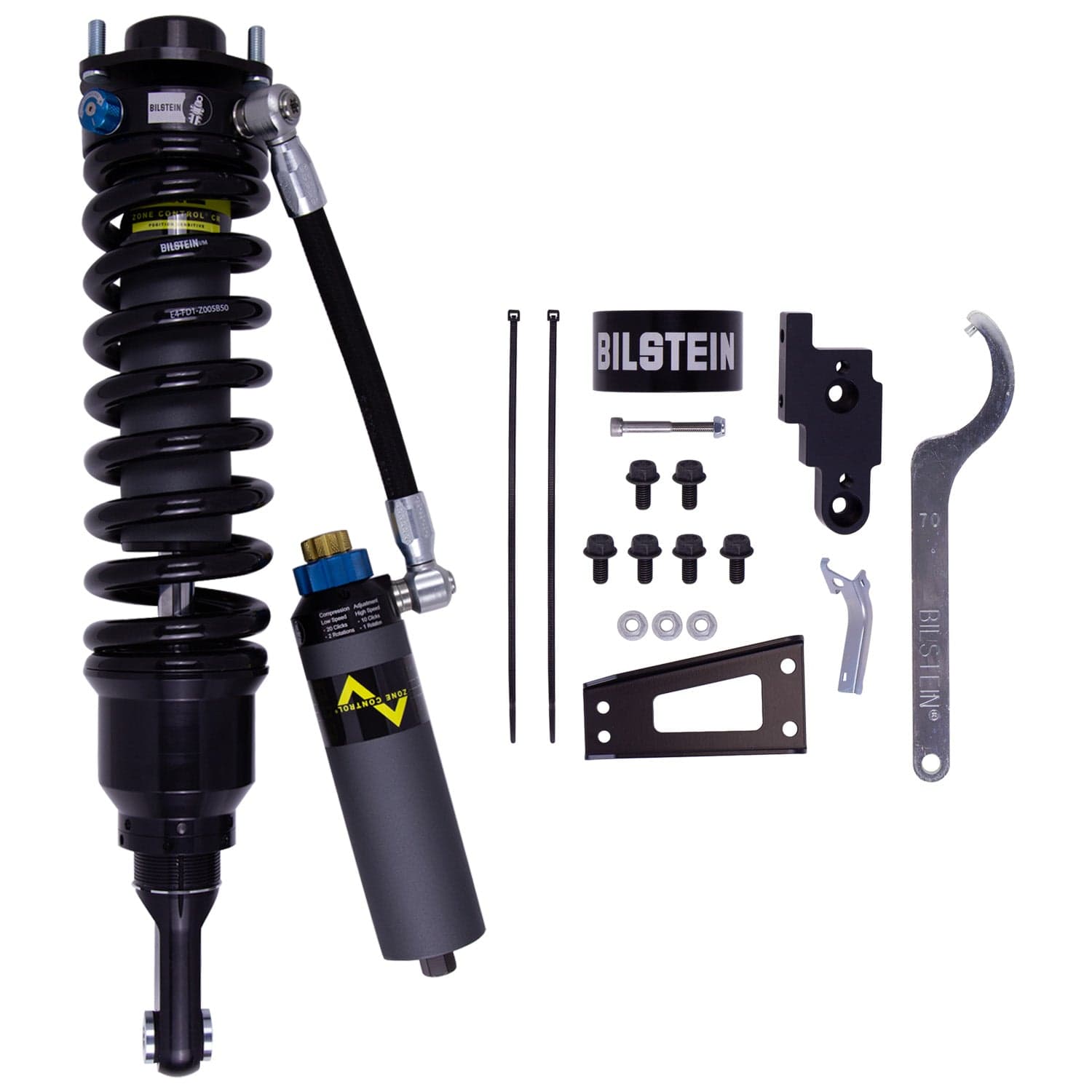

Designed specifically for 2005-2015 Toyota Tacoma models, this coilover is suitable for vehicles equipped with light truck or SUV configurations. It serves as a direct replacement or upgrade for factory suspension components, offering enhanced control and comfort. The adjustable nature of the coilover makes it ideal for street driving, off-road adventures, or performance tuning. Installation involves bolt-on mounting, and the kit includes the coilover assembly with all necessary components for a straightforward upgrade. Compatibility is optimized for Tacoma models within the specified years, providing a versatile solution for drivers seeking improved suspension performance.
Share
Overview
Overview

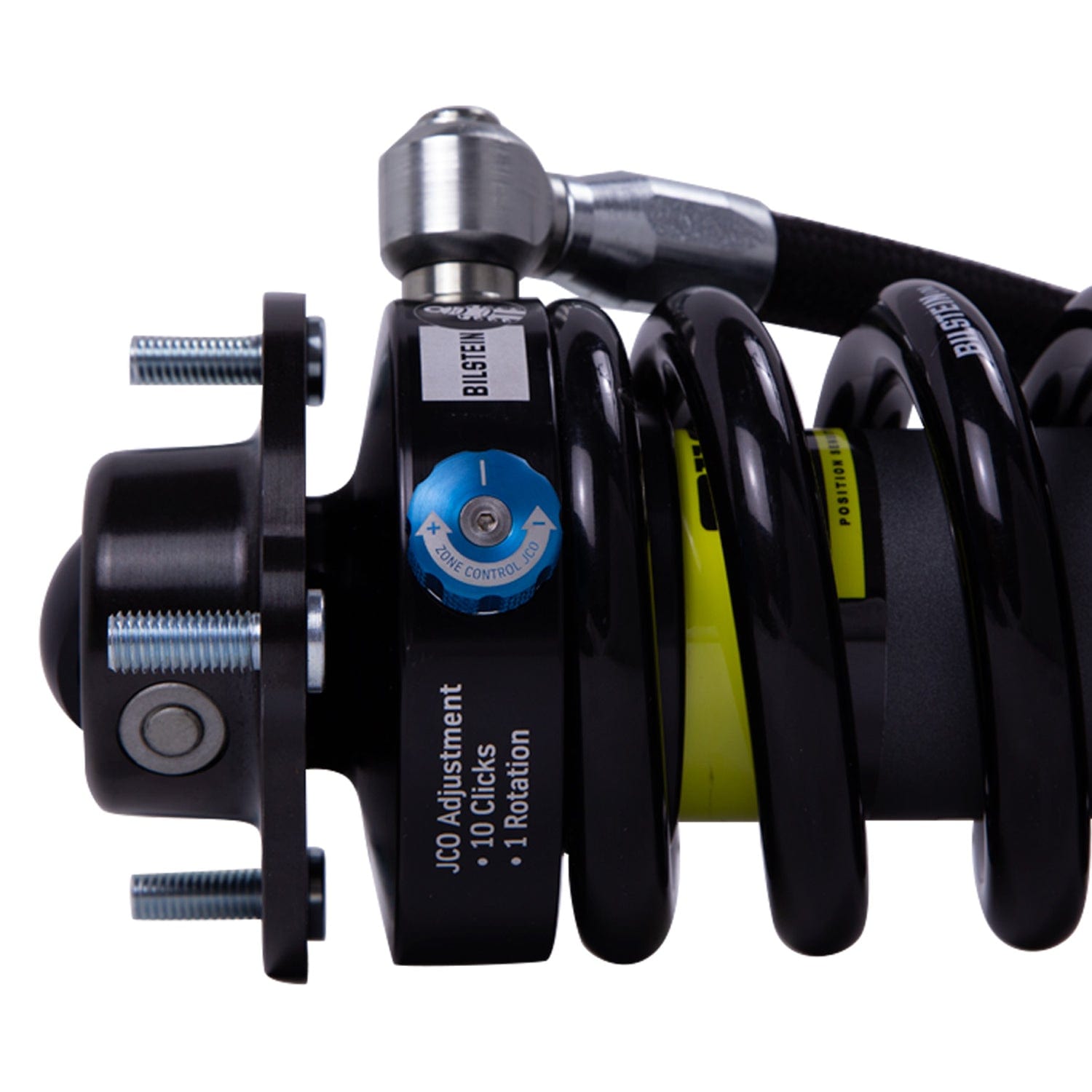

Bilstein B8 8112 (ZoneControl CR DSA+) for the 2005-2015 Toyota Tacoma is a direct fit, 3-way adjustable, 60mm, position sensitive coilover shock designed for light trucks and SUV's. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop).
The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-2.6 (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.
Standard Features
- ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons

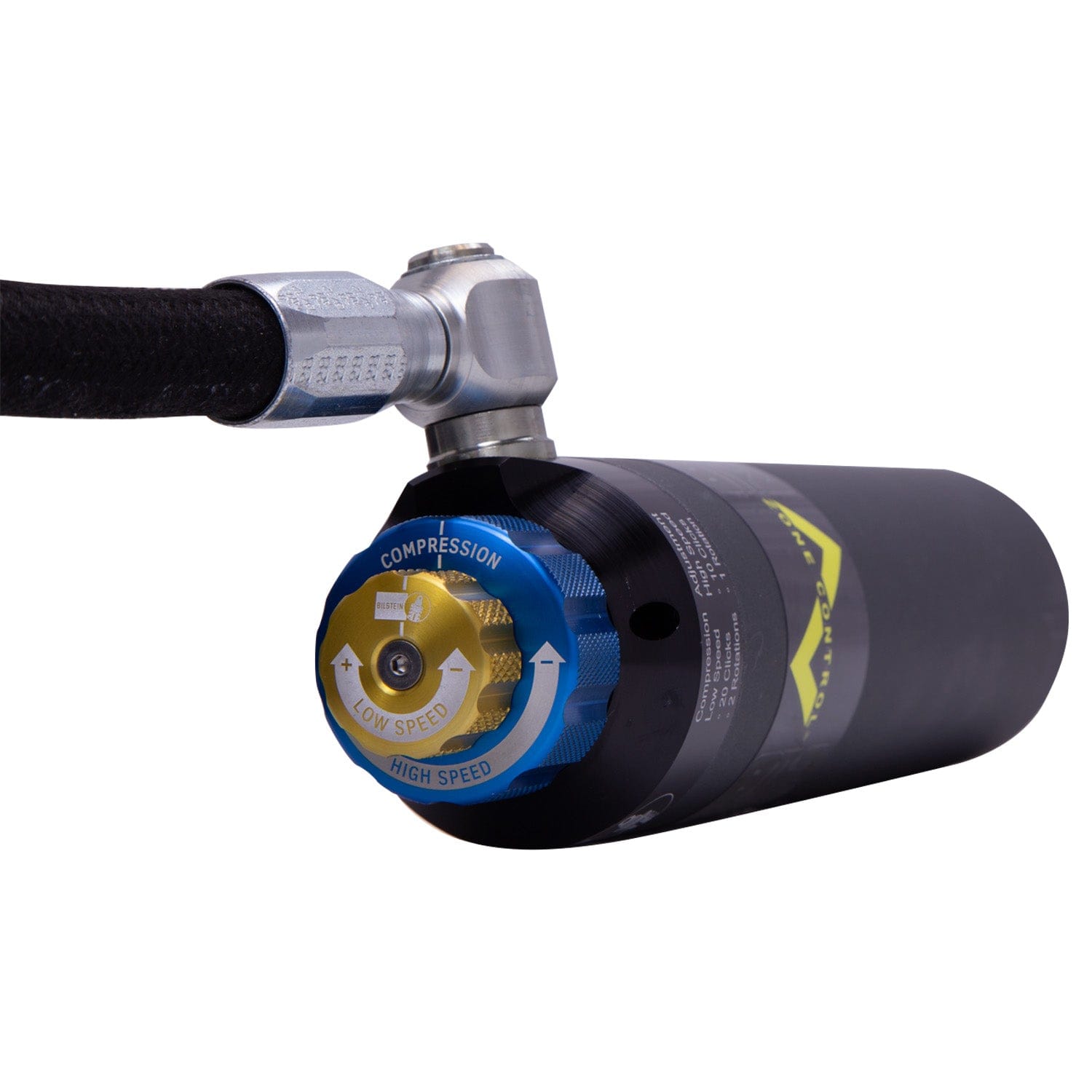

- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Part Number | 41-319581 |
| Part Name | Shock Absorber and Coil Spring Assembly |
| Vehicle | 2005-2015 Toyota Tacoma |
| UPC | 651860885810 |
| Front Lift Height | 0.4 - 2 in. |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 17.42 in. |
| Collapsed Length | 442.6 mm |
| Damping Adjustable | Yes |
| Extended Length | 22.39 in. |
| Extended Length | 568.8 mm |
| Finish | Dampers: EVO Grey / Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Eye 15.88 mm |
| Optional Heavy Load Springs | 53-291387, 53-332837 |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8112 (ZoneControl CR DSA+) |
| Spring Seat Included | Yes |
| Upper Mount Type | Special |
Vehicle Fitment
- 2005 Toyota Tacoma
- 2006 Toyota Tacoma
- 2007 Toyota Tacoma
- 2008 Toyota Tacoma
- 2009 Toyota Tacoma
- 2010 Toyota Tacoma
- 2011 Toyota Tacoma
- 2012 Toyota Tacoma
- 2013 Toyota Tacoma
- 2014 Toyota Tacoma
- 2015 Toyota Tacoma
