Bilstein B8 8112 ZoneControl CR DSA+ Coilover Tacoma (05-23) (41-319581)
Bilstein B8 8112 ZoneControl CR DSA+ Coilover Tacoma (05-23) (41-319581)
SKU:41-319581
In stock
Regular price
$1,460.00 USD
Regular price
$1,591.85 USD
Sale price
$1,460.00 USD
Unit price
/
per
Couldn't load pickup availability
â–¶ Vehicle Fitments
The Bilstein B8 8112 ZoneControl CR DSA+ Coilover for the Toyota Tacoma is a high-performance suspension component designed to enhance ride quality and handling. This 3-way adjustable coilover features a 60mm diameter and incorporates Bilstein’s innovative ZoneControl CR DSA+ technology, which provides position-sensitive damping for optimal control across various driving conditions. The triple piston design offers three stages of compression valving and two stages of rebound valving, allowing precise tuning for comfort, performance, and stability. Click adjuster knobs enable easy, quick adjustments of damping characteristics, making it suitable for a range of applications from daily driving to off-road adventures. Constructed with durable materials, these coilovers deliver consistent performance and long-lasting reliability.

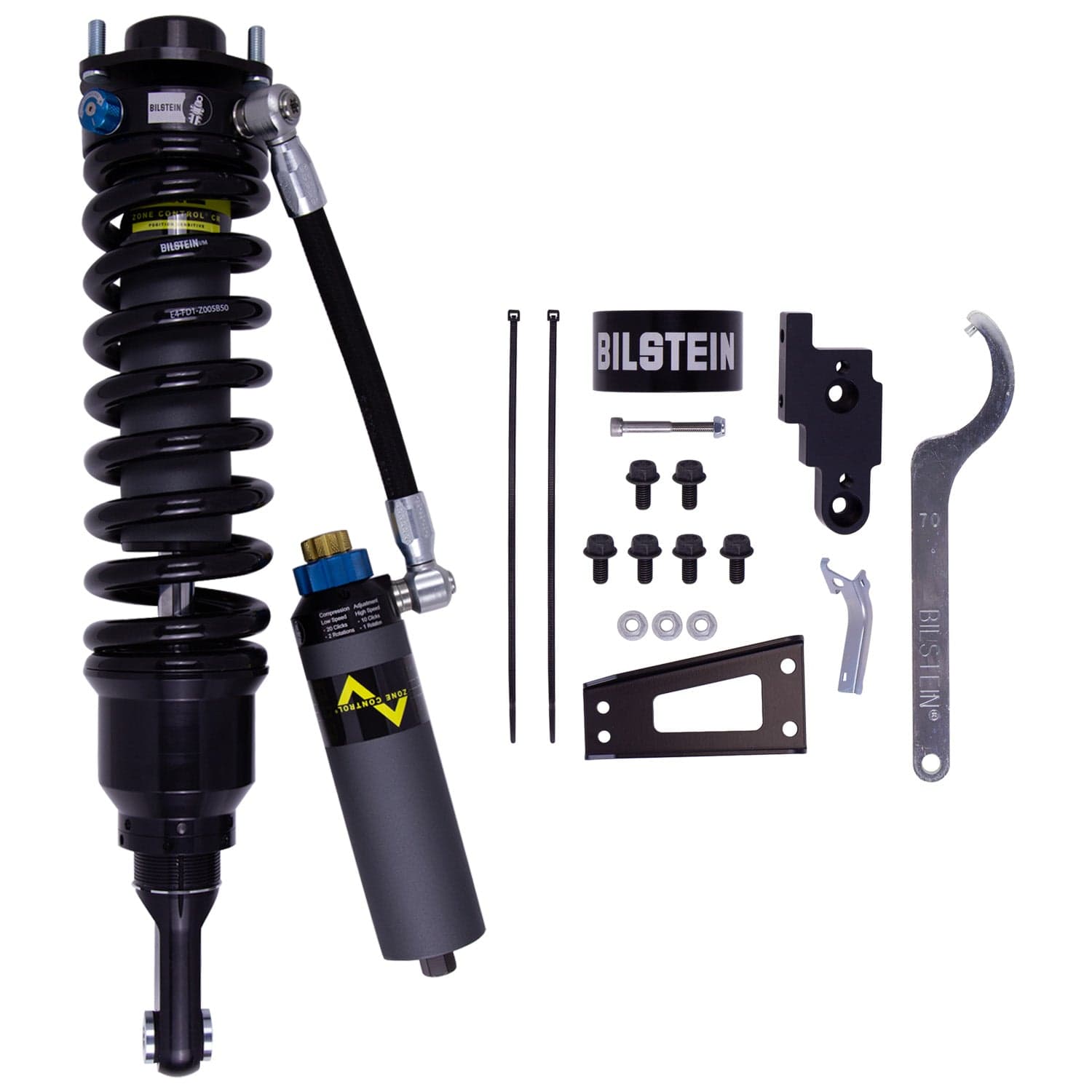

Designed as a direct fit for 2005-2023 Toyota Tacoma models, these coilovers are compatible with trucks and SUVs equipped with light-duty suspensions. They serve as an upgrade or replacement for factory shocks, providing improved handling, ride comfort, and off-road capability. The system is ideal for enthusiasts seeking customizable suspension tuning for street, trail, or mixed-use driving. Installation is straightforward, with bolt-on fitment that integrates seamlessly with existing suspension components. The kit includes the coilover units and adjustment knobs, ensuring comprehensive upgrade potential for a variety of driving styles and conditions.
Share
Overview
Overview

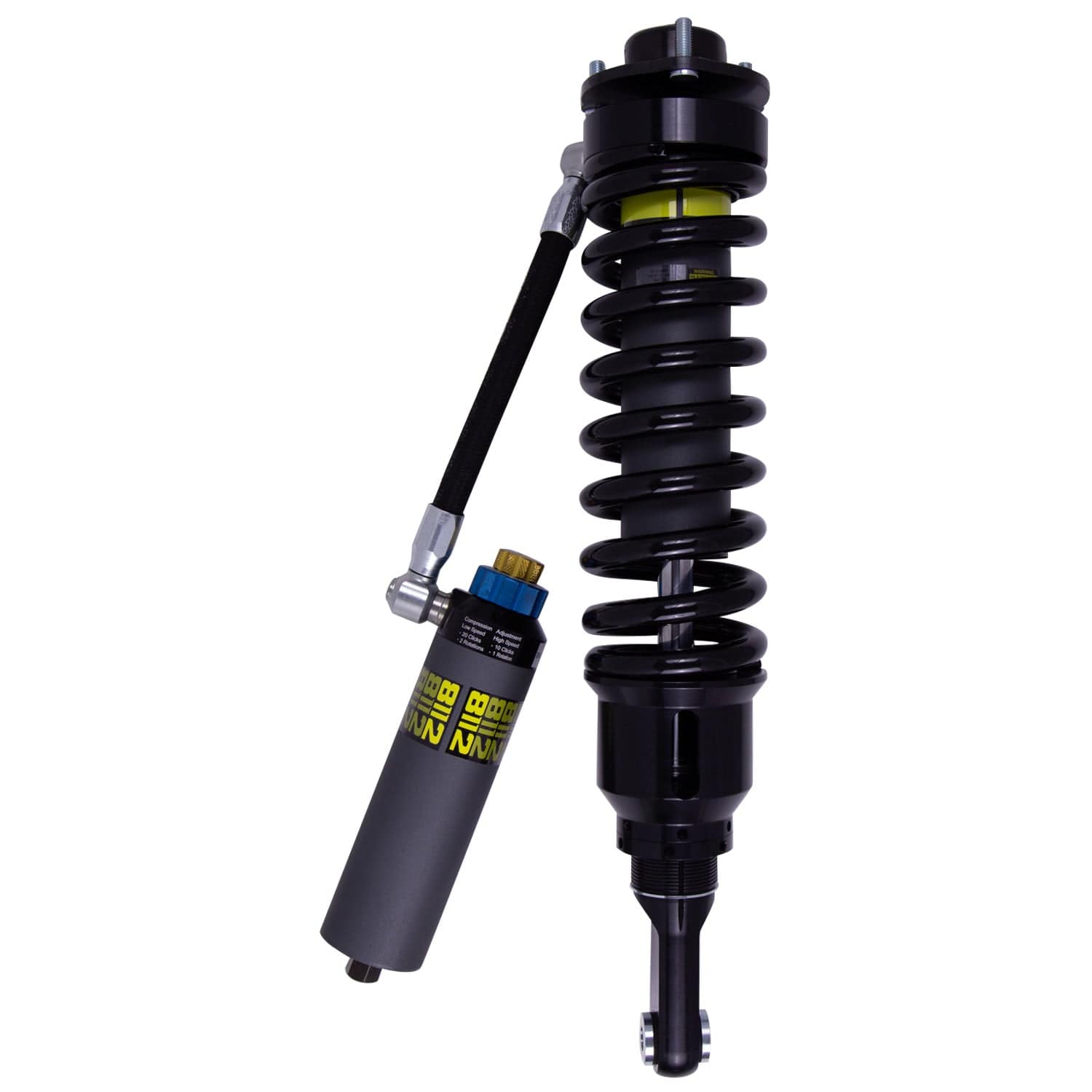

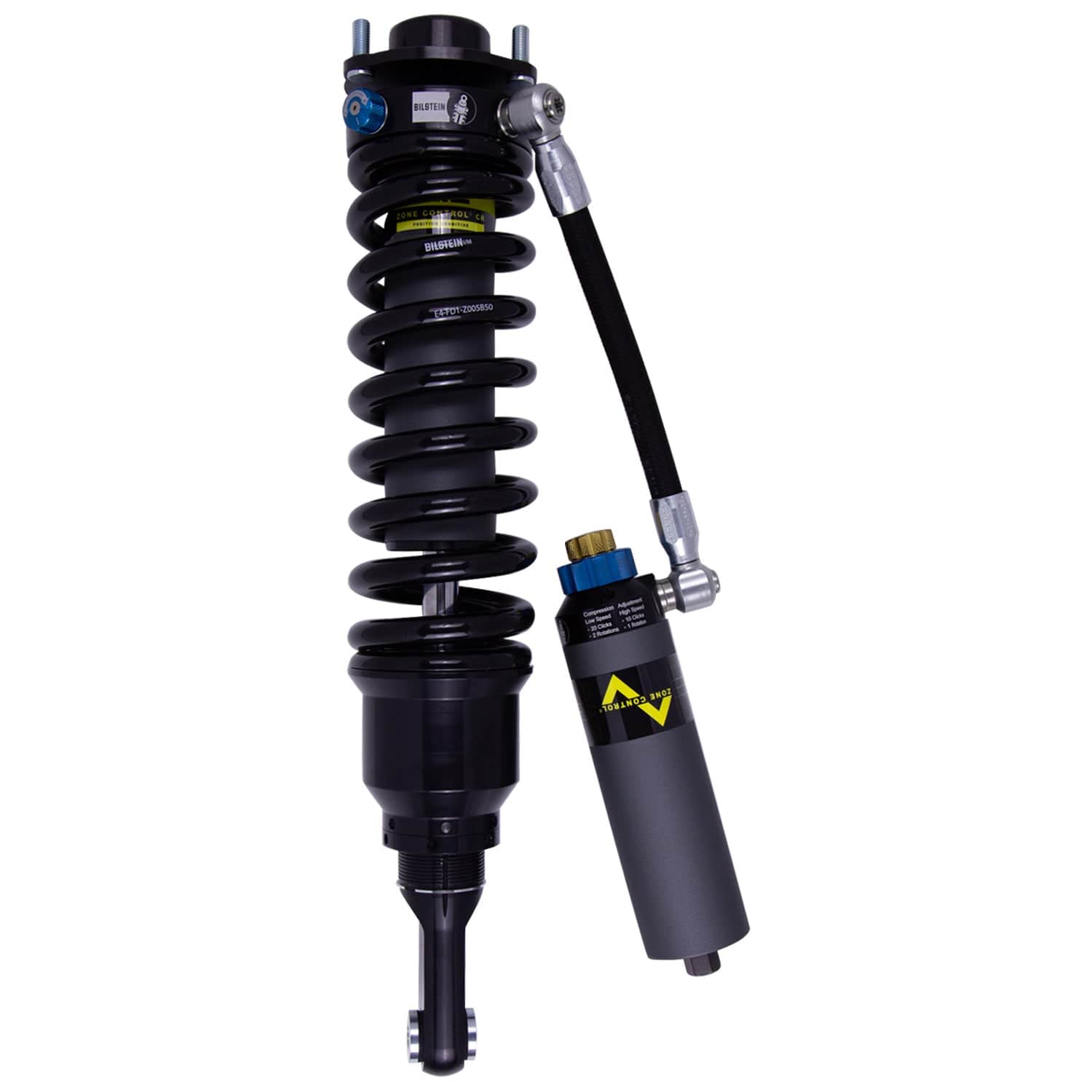

Bilstein B8 8112 (ZoneControl CR DSA+) for the 2005-2023 Toyota Tacoma is a direct fit, 3-way adjustable, 60mm, position sensitive coilover shock designed for light trucks and SUV's. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop).

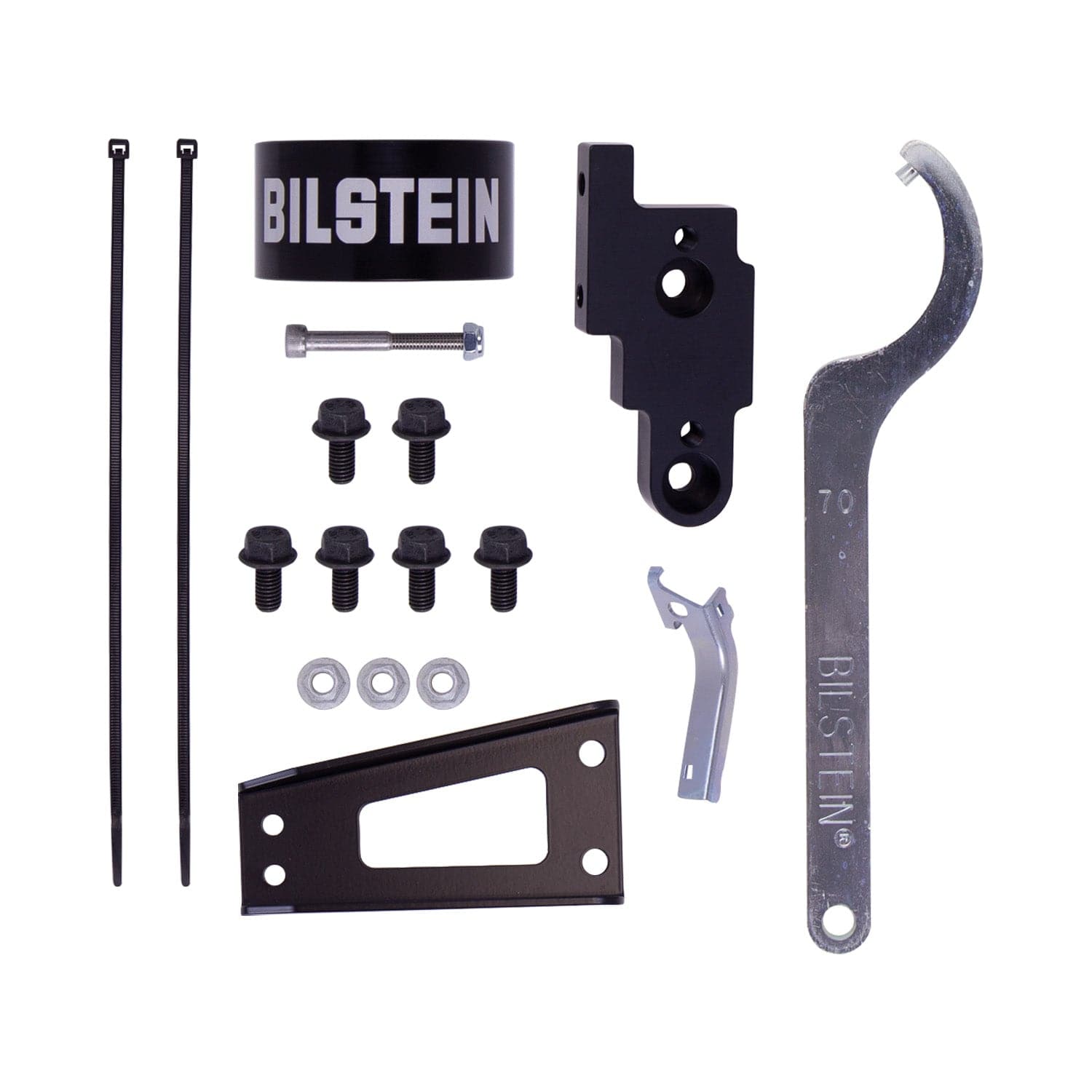

The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-2.6 (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.
Standard Features
- ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons

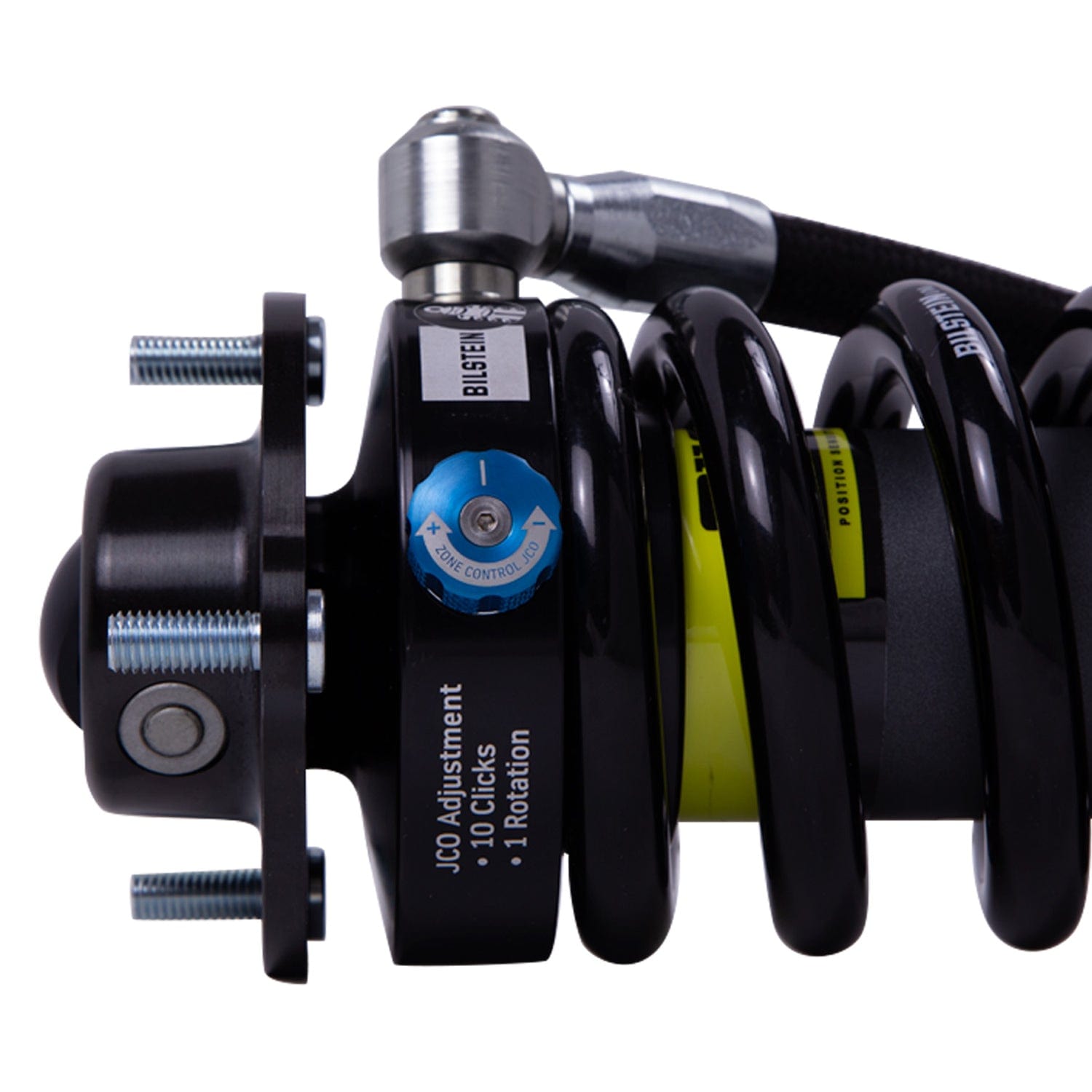

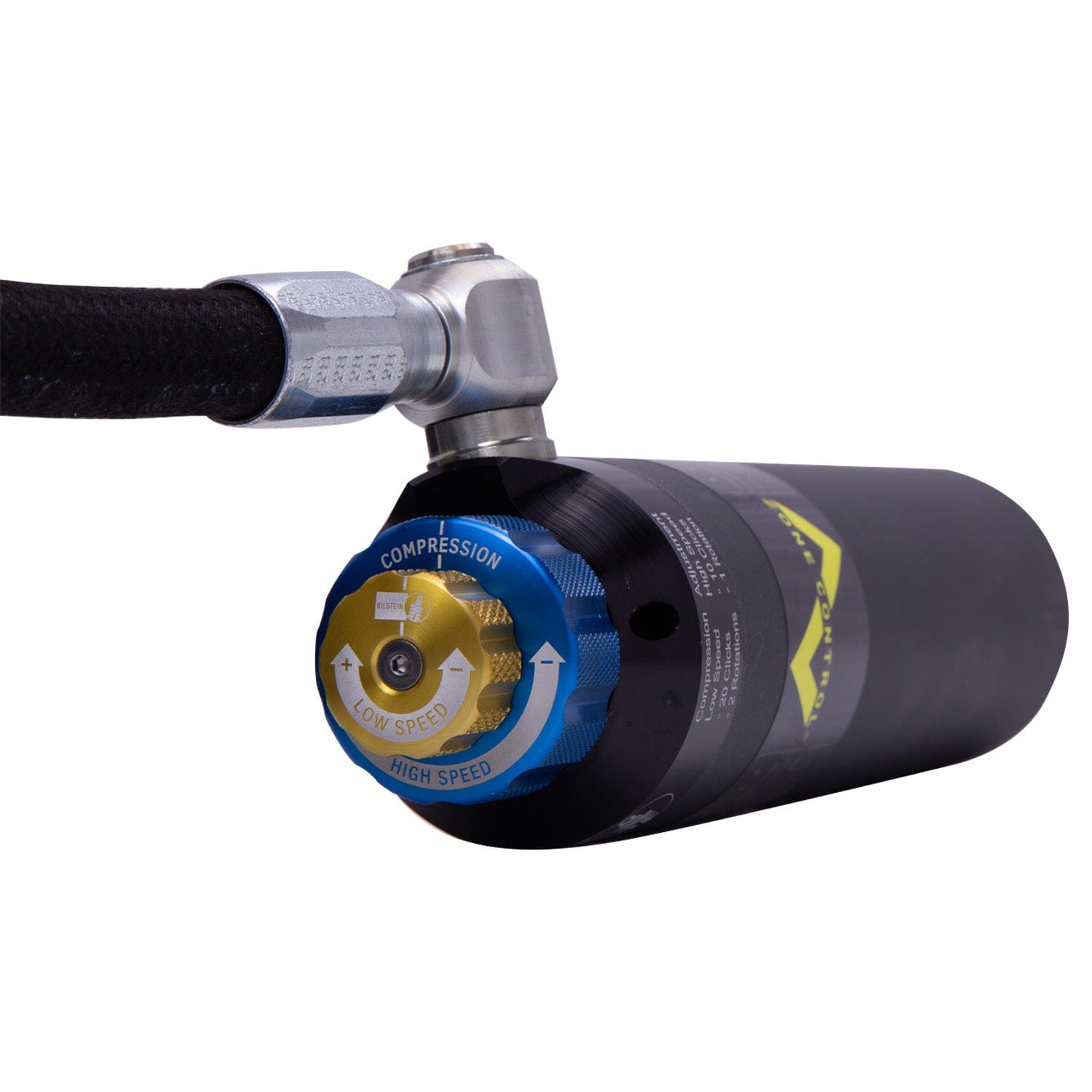

- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Part Number | 41-319581 |
| Part Name | Shock Absorber and Coil Spring Assembly |
| Vehicle | 2005-2023 Toyota Tacoma |
| UPC | 651860885810 |
| Front Lift Height | 0.4 - 2 in. |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 17.42 in. |
| Collapsed Length | 442.6 mm |
| Damping Adjustable | Yes |
| Extended Length | 22.39 in. |
| Extended Length | 568.8 mm |
| Finish | Dampers: EVO Grey / Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Eye 15.88 mm |
| Optional Heavy Load Springs | 53-291387, 53-332837 |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8112 (ZoneControl CR DSA+) |
| Spring Seat Included | Yes |
| Upper Mount Type | Special |
Vehicle Fitment
- 2005 Toyota Tacoma
- 2006 Toyota Tacoma
- 2007 Toyota Tacoma
- 2008 Toyota Tacoma
- 2009 Toyota Tacoma
- 2010 Toyota Tacoma
- 2011 Toyota Tacoma
- 2012 Toyota Tacoma
- 2013 Toyota Tacoma
- 2014 Toyota Tacoma
- 2015 Toyota Tacoma
- 2016 Toyota Tacoma
- 2017 Toyota Tacoma
- 2018 Toyota Tacoma
- 2019 Toyota Tacoma
- 2020 Toyota Tacoma
- 2021 Toyota Tacoma
- 2022 Toyota Tacoma
- 2023 Toyota Tacoma
