| Year | Make | Model |
|---|---|---|
| 2014 - 2021 | Toyota | Tundra 1794 Edition |
| 2007 - 2013 | Toyota | Tundra Base |
| 2007 - 2021 | Toyota | Tundra Limited |
| 2021 | Toyota | Tundra Nightshade |
| 2013 - 2021 | Toyota | Tundra Platinum |
| 2014 - 2021 | Toyota | Tundra SR |
| 2007 - 2011 | Toyota | Tundra SR5 |
| 2014 - 2021 | Toyota | Tundra SR5 |
| 2021 | Toyota | Tundra Trail |
| 2015 - 2017 | Toyota | Tundra TRD Pro |
| 2019 - 2021 | Toyota | Tundra TRD Pro |
1
/
of
10

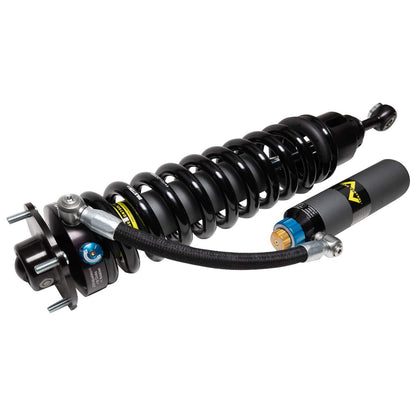

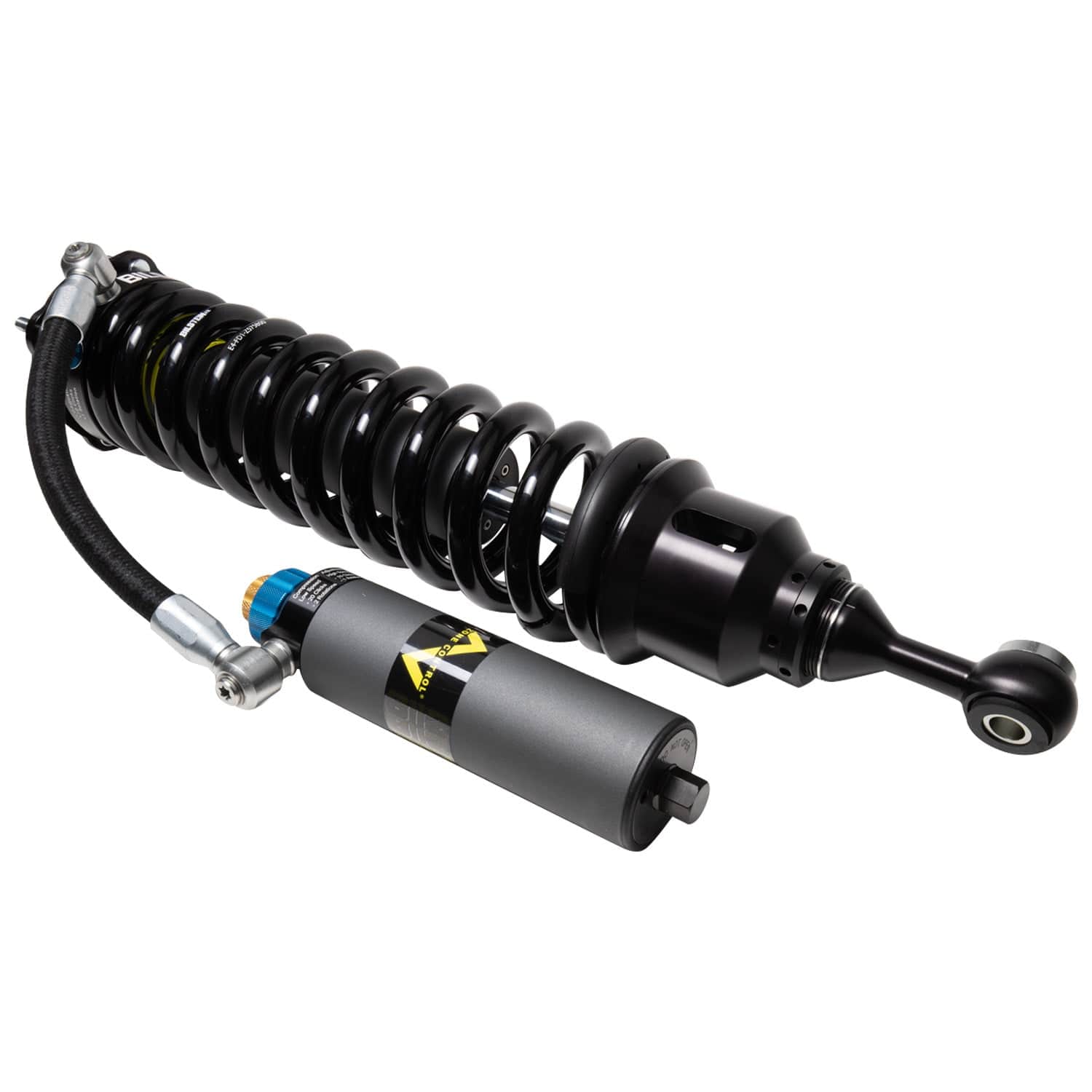

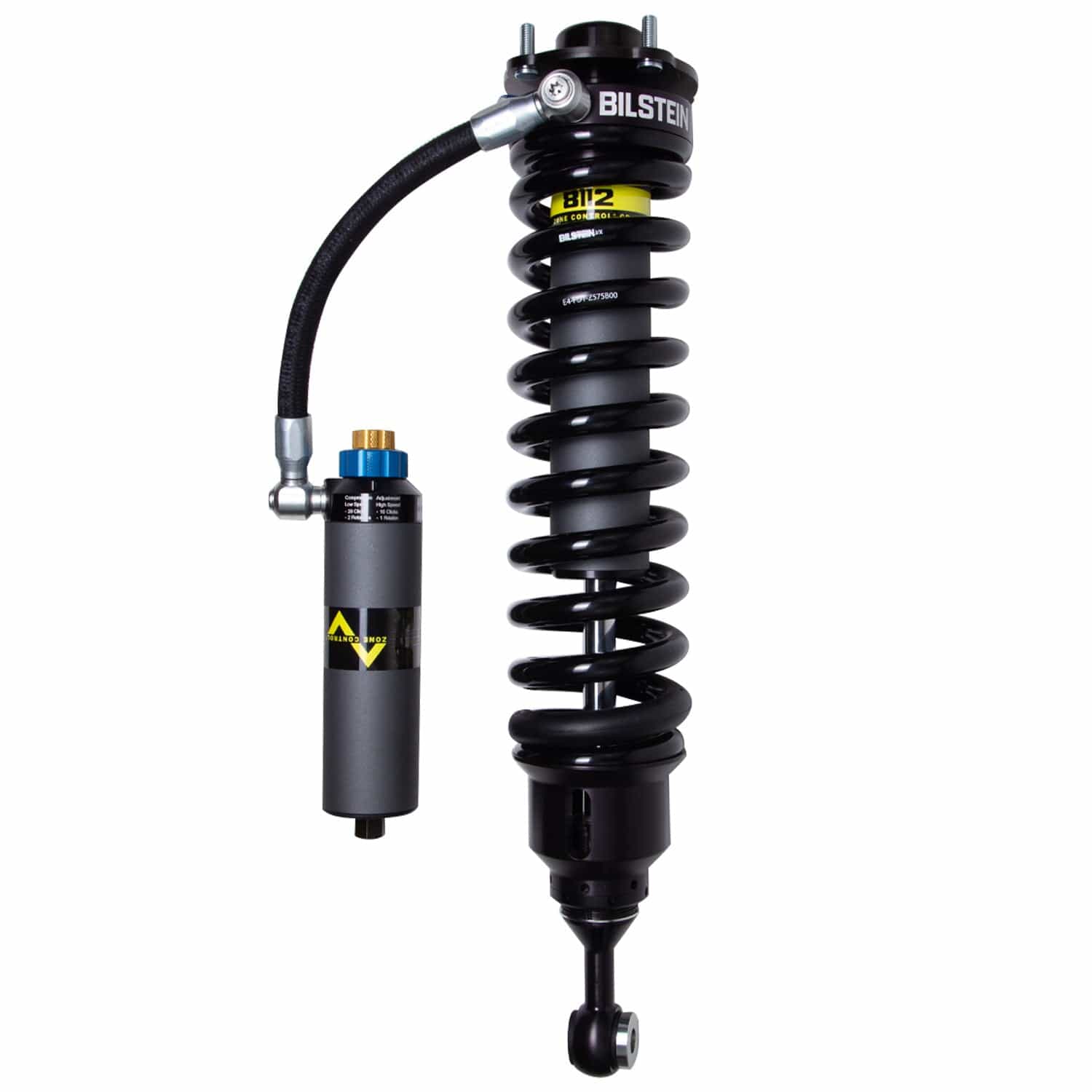

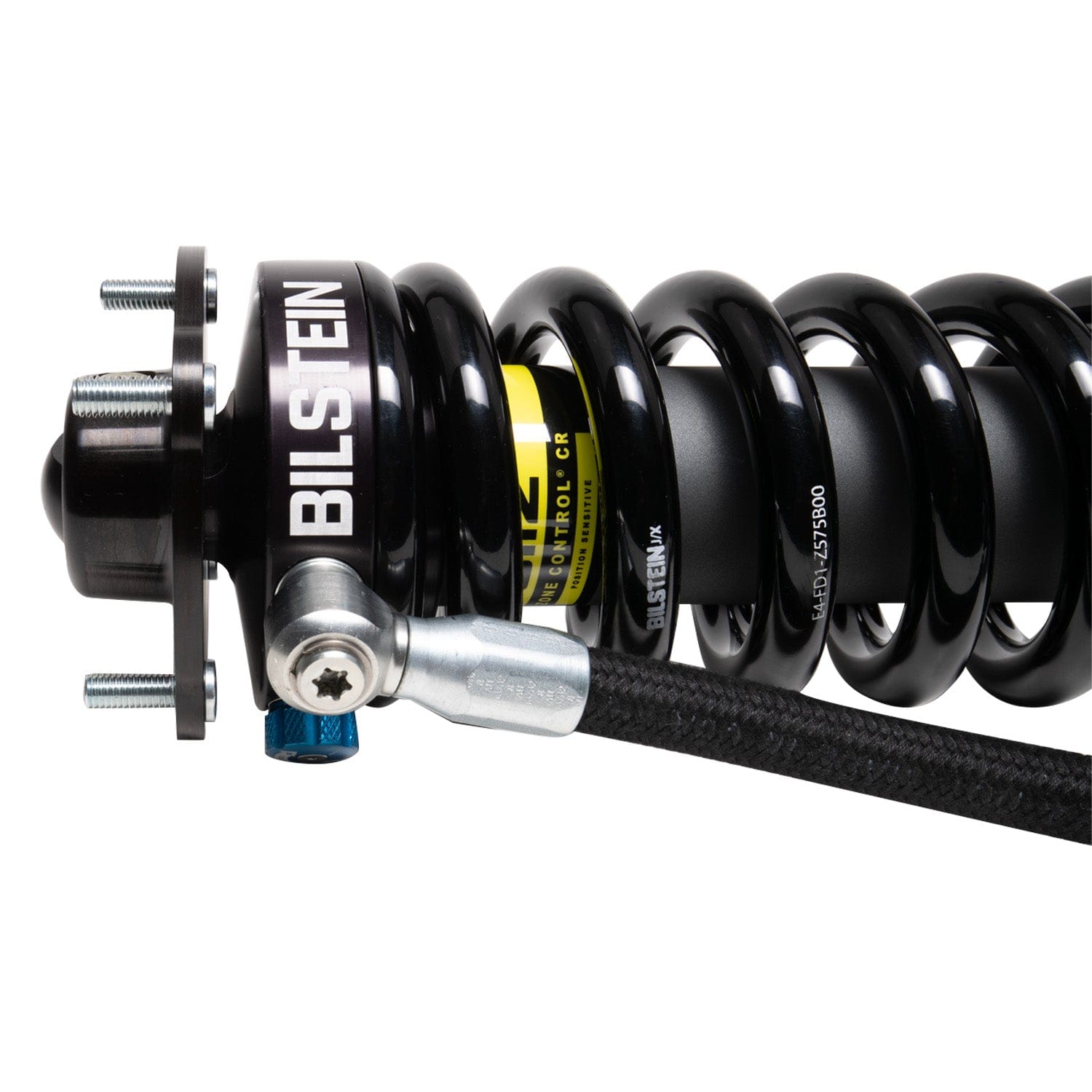

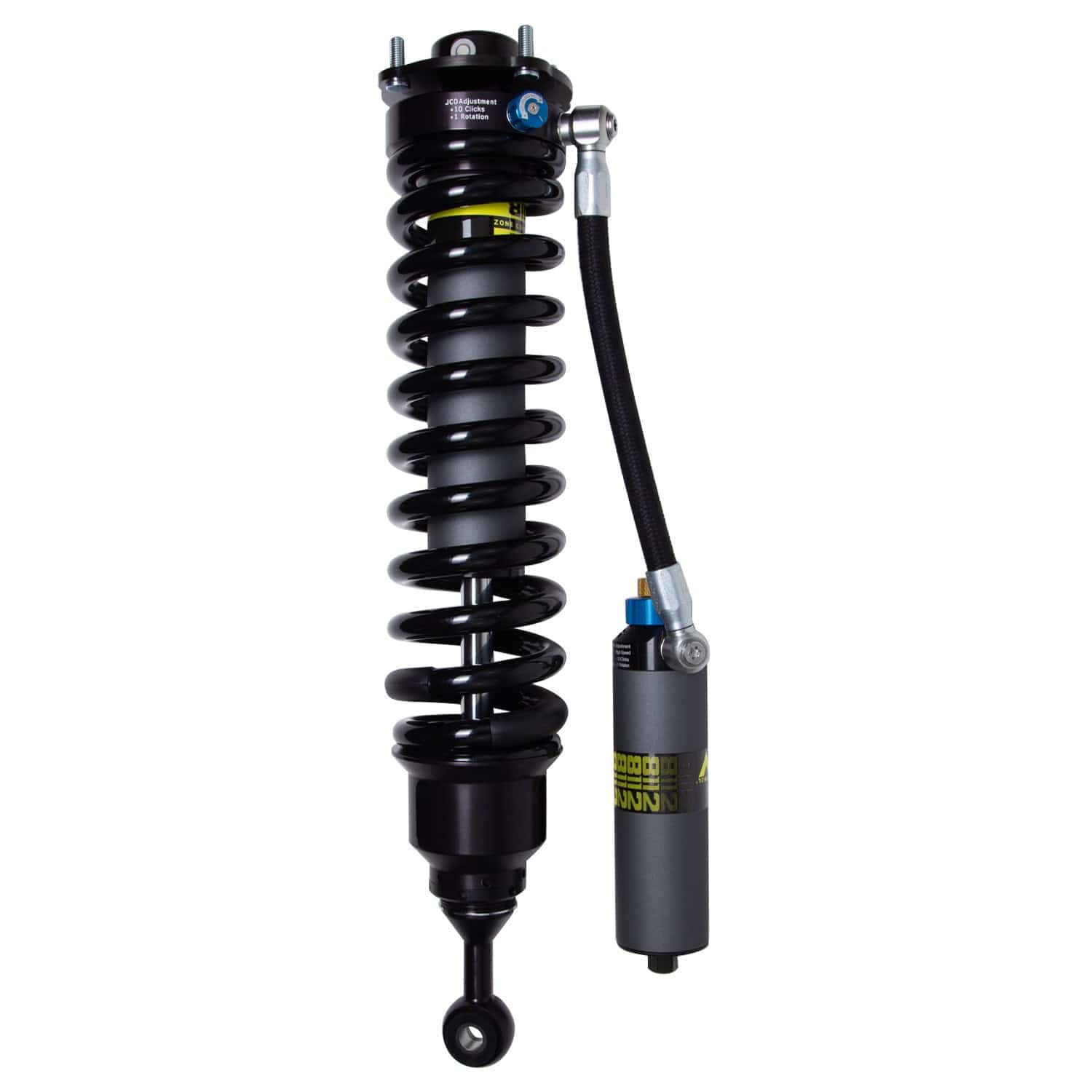

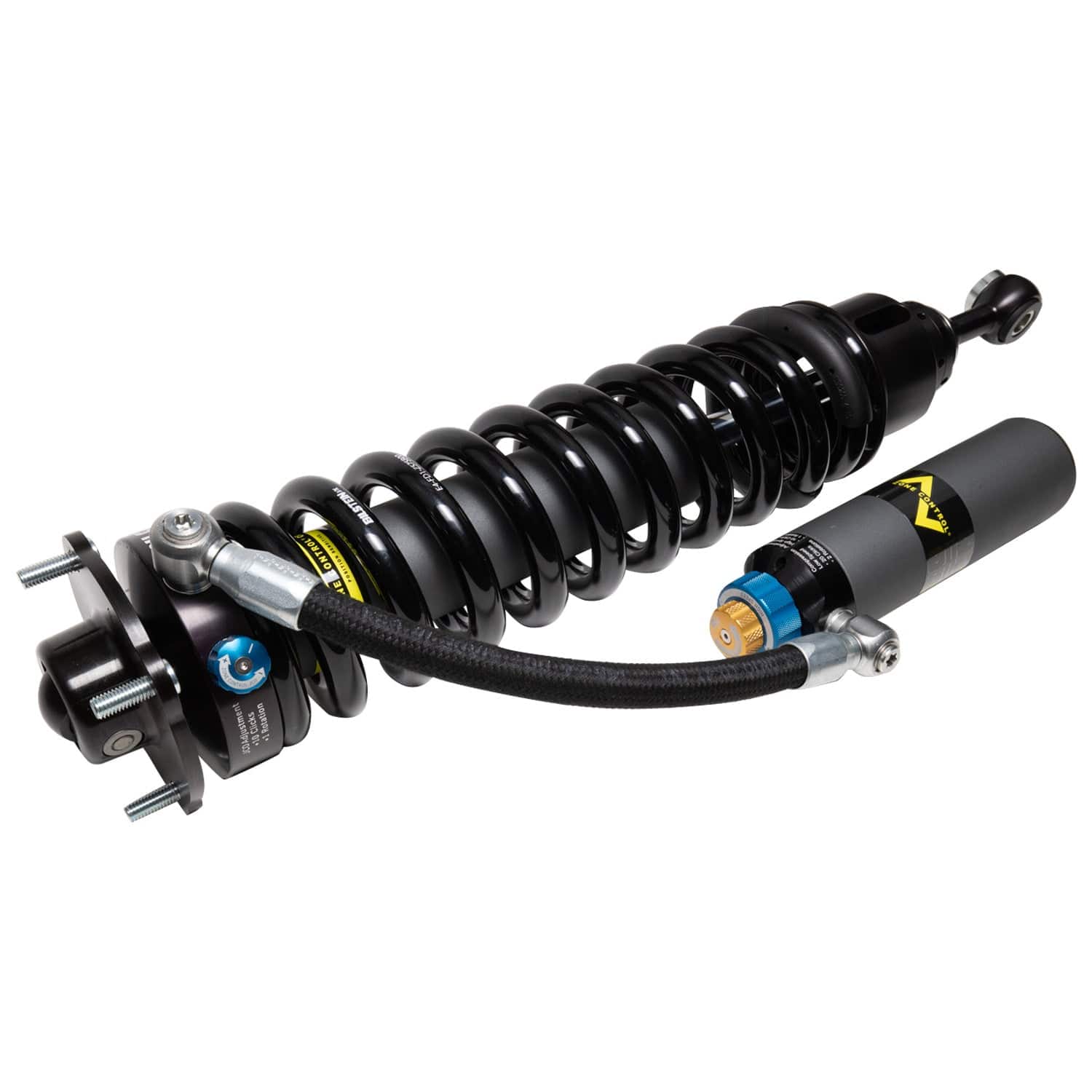

Bilstein B8 8112 ZoneControl CR DSA+ Coilover | Toyota Tundra 4WD (07-21) (41-326091)
Bilstein B8 8112 ZoneControl CR DSA+ Coilover | Toyota Tundra 4WD (07-21) (41-326091)
SKU:41-326091
In stock
Regular price
$1,366.00 USD
Regular price
$1,488.95 USD
Sale price
$1,366.00 USD
Unit price
/
per
Couldn't load pickup availability
â–¶ Vehicle Fitments
The Bilstein B8 8112 ZoneControl CR DSA+ Coilover for the Toyota Tundra 4WD (2007-2021) is a high-performance, direct-fit coilover shock designed to enhance off-road and on-road handling. Featuring a 60mm diameter and a triple piston design, this coilover provides advanced damping control with three stages of compression valving and two stages of rebound valving. The ZoneControl CR DSA+ system incorporates revolutionary position-sensitive damping technology, allowing for precise adjustment of ride characteristics. User-friendly click adjuster knobs enable easy and accurate dual-speed adjustments, giving drivers the ability to tailor suspension performance to varying conditions. Constructed for durability and performance, these coilovers deliver improved stability, ride quality, and handling responsiveness.

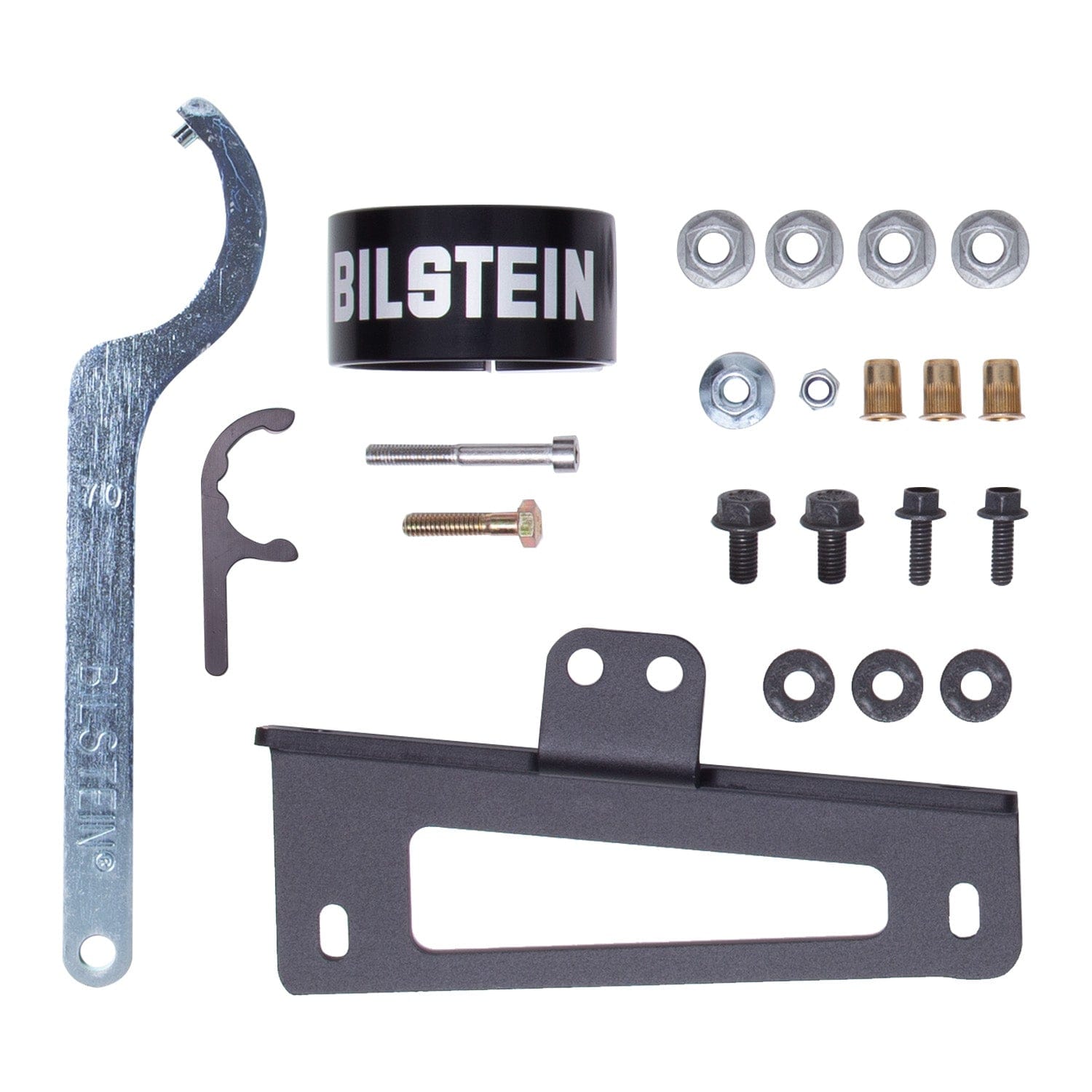

Designed for 2007-2021 Toyota Tundra 4WD models, these coilovers are suitable for light trucks and SUVs used in a variety of applications, including daily driving, off-road adventures, and performance tuning. They serve as direct replacements or upgrades for factory suspension components, offering adjustable ride height and damping settings. Installation involves bolt-on mounting, with the kit including the coilover units and necessary hardware. Compatibility is optimized for vehicles equipped with the specified chassis and suspension setup, making them ideal for enthusiasts seeking versatile, high-quality suspension performance.
Share
Overview
Overview
Bilstein B8 8112 (ZoneControl CR DSA+) for the 2007-2021 Toyota Tundra is a direct fit, 3-way adjustable, 60mm, position sensitive coilover shock designed for light trucks and SUV's. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop).

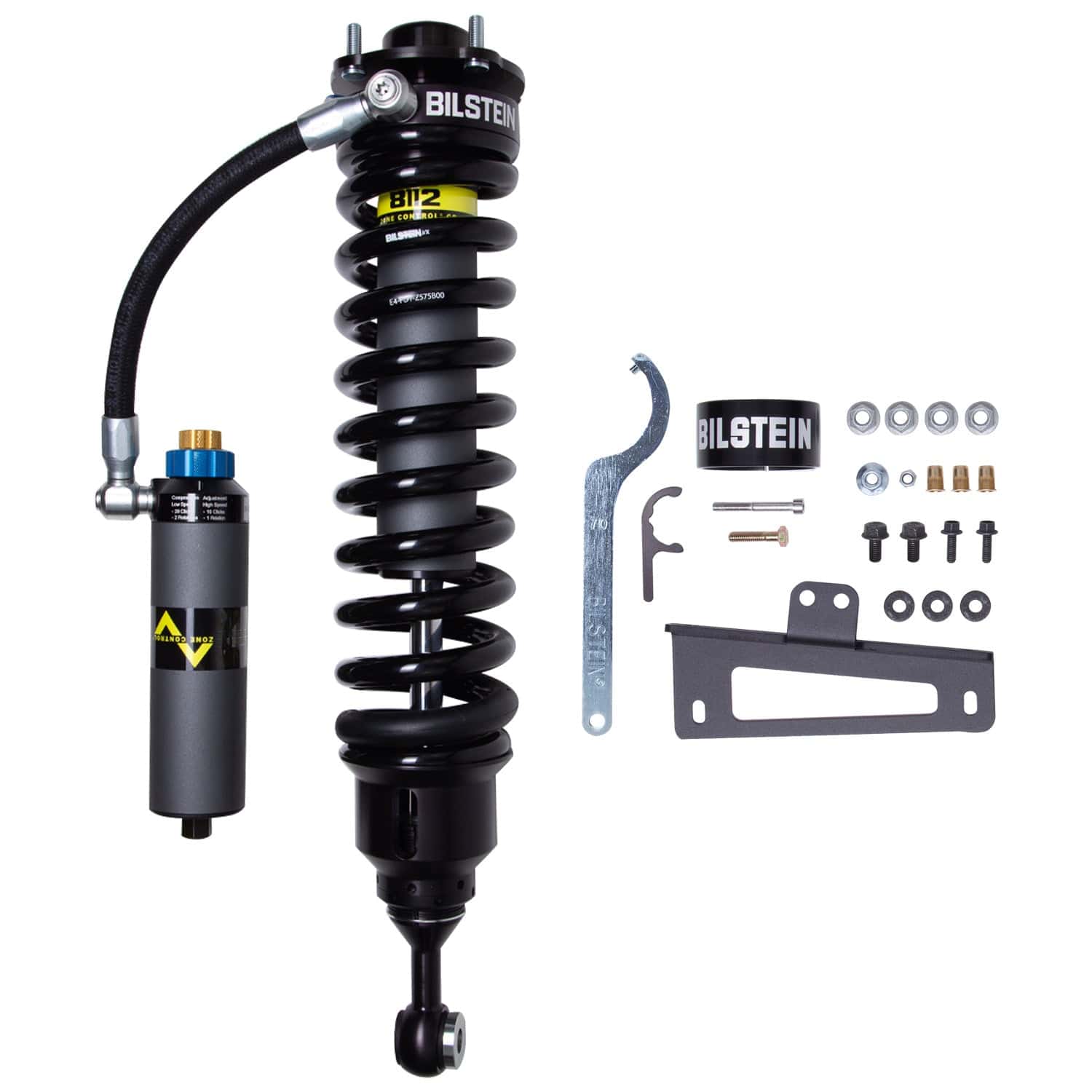

The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3 (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.
Standard Features
- ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons

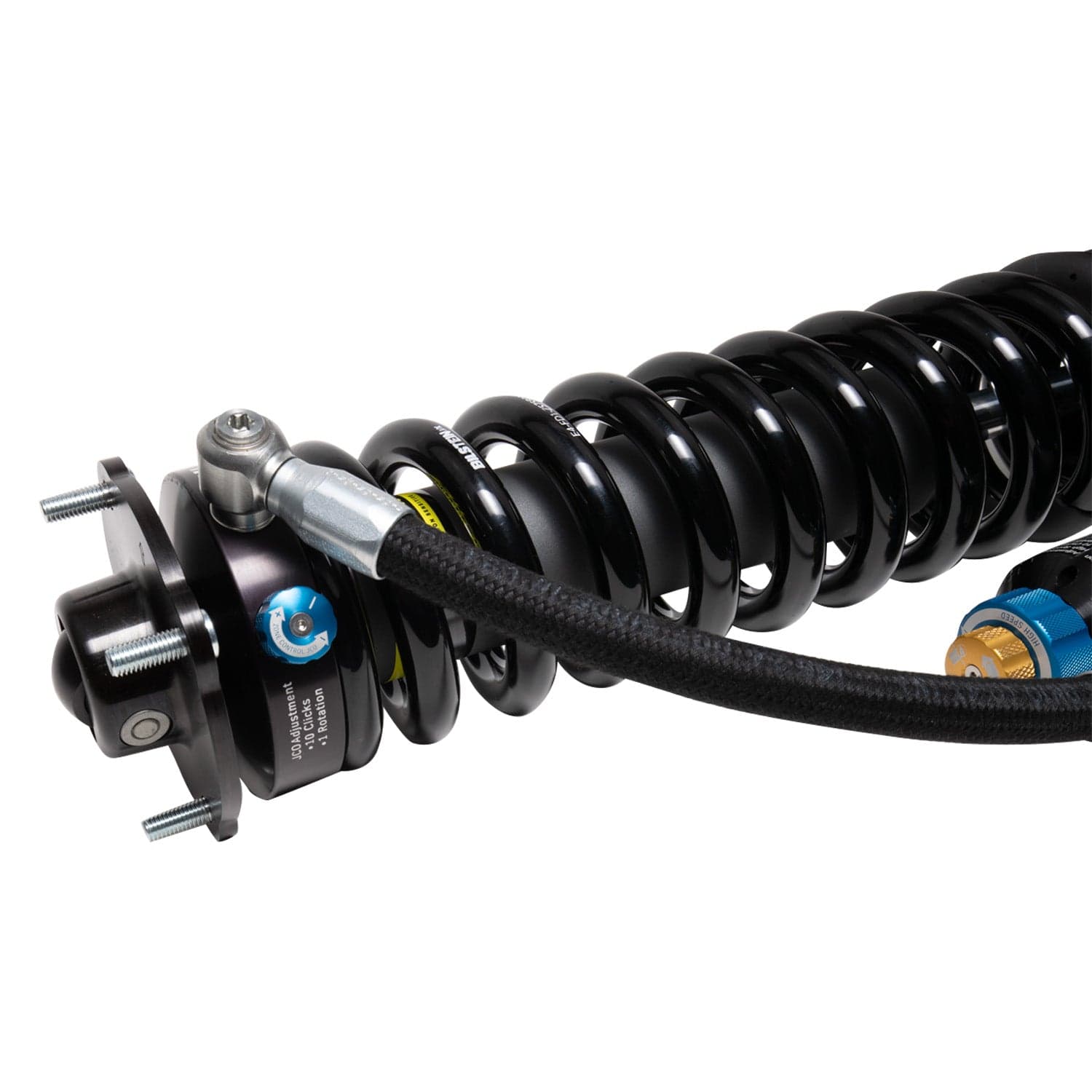

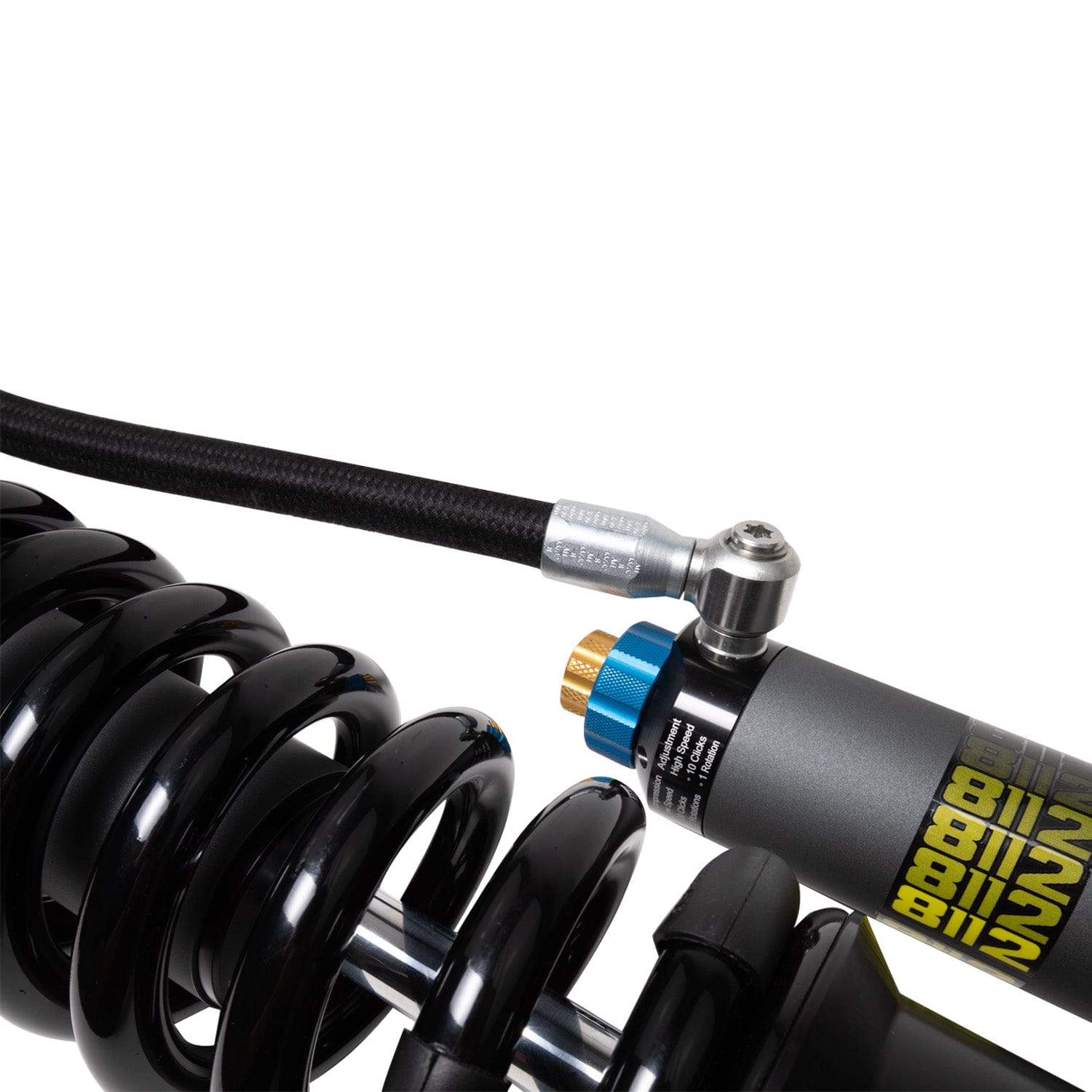

- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Part Number | 41-326091 |
| Part Name | Shock Absorber and Coil Spring Assembly |
| Vehicle | 2007-2021 Toyota Tundra |
| UPC | 651860942155 |
| Front Lift Height | 2.25 - 3.25 in. |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 18.90 in. |
| Collapsed Length | 479.3 mm |
| Damping Adjustable | Yes |
| Extended Length | 25.20 in. |
| Extended Length | 640.8 mm |
| Finish | Dampers: EVO Grey / Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Eye 19.05 mm |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8112 (ZoneControl CR DSA+) |
| Spring Seat Included | Yes |
| Upper Mount Type | Special |
| Notes | Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended |
Vehicle Fitment
- 2007 Toyota Tundra
- 2008 Toyota Tundra
- 2009 Toyota Tundra
- 2010 Toyota Tundra
- 2011 Toyota Tundra
- 2012 Toyota Tundra
- 2013 Toyota Tundra
- 2014 Toyota Tundra
- 2015 Toyota Tundra
- 2016 Toyota Tundra
- 2017 Toyota Tundra
- 2018 Toyota Tundra
- 2019 Toyota Tundra
- 2020 Toyota Tundra
- 2021 Toyota Tundra
