| Year | Make | Model |
|---|---|---|
| 2014 - 2021 | Toyota | Tundra 1794 Edition |
| 2007 - 2013 | Toyota | Tundra Base |
| 2007 - 2021 | Toyota | Tundra Limited |
| 2021 | Toyota | Tundra Nightshade |
| 2013 - 2021 | Toyota | Tundra Platinum |
| 2014 - 2021 | Toyota | Tundra SR |
| 2007 - 2011 | Toyota | Tundra SR5 |
| 2014 - 2021 | Toyota | Tundra SR5 |
| 2021 | Toyota | Tundra Trail |
| 2015 - 2017 | Toyota | Tundra TRD Pro |
| 2019 - 2021 | Toyota | Tundra TRD Pro |
1
/
of
10

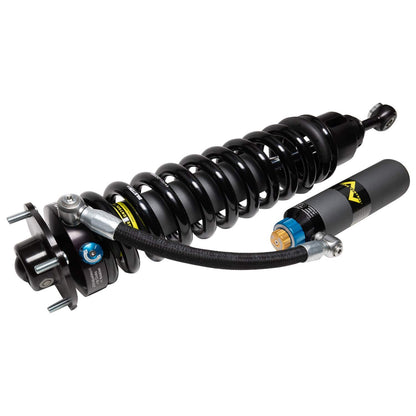

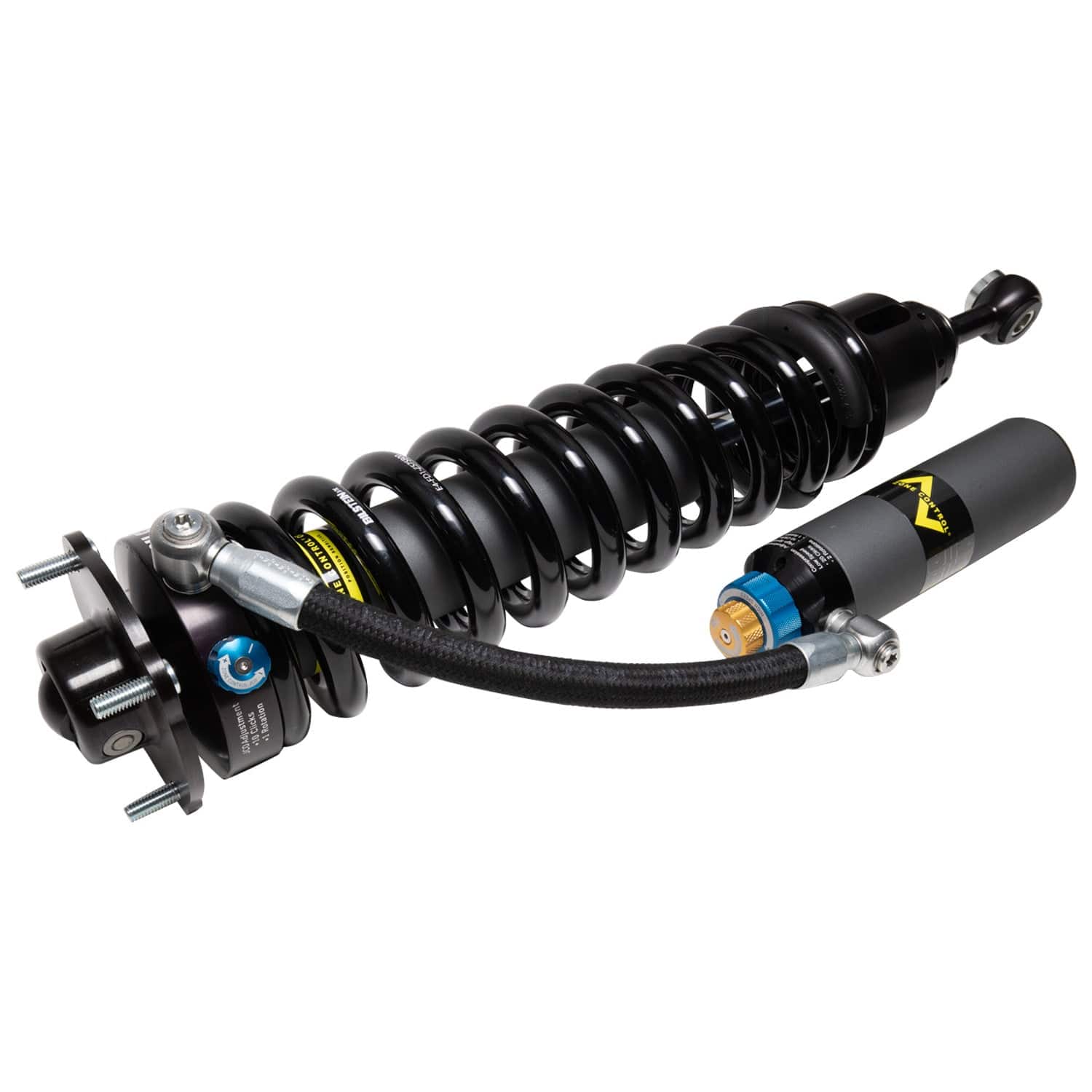

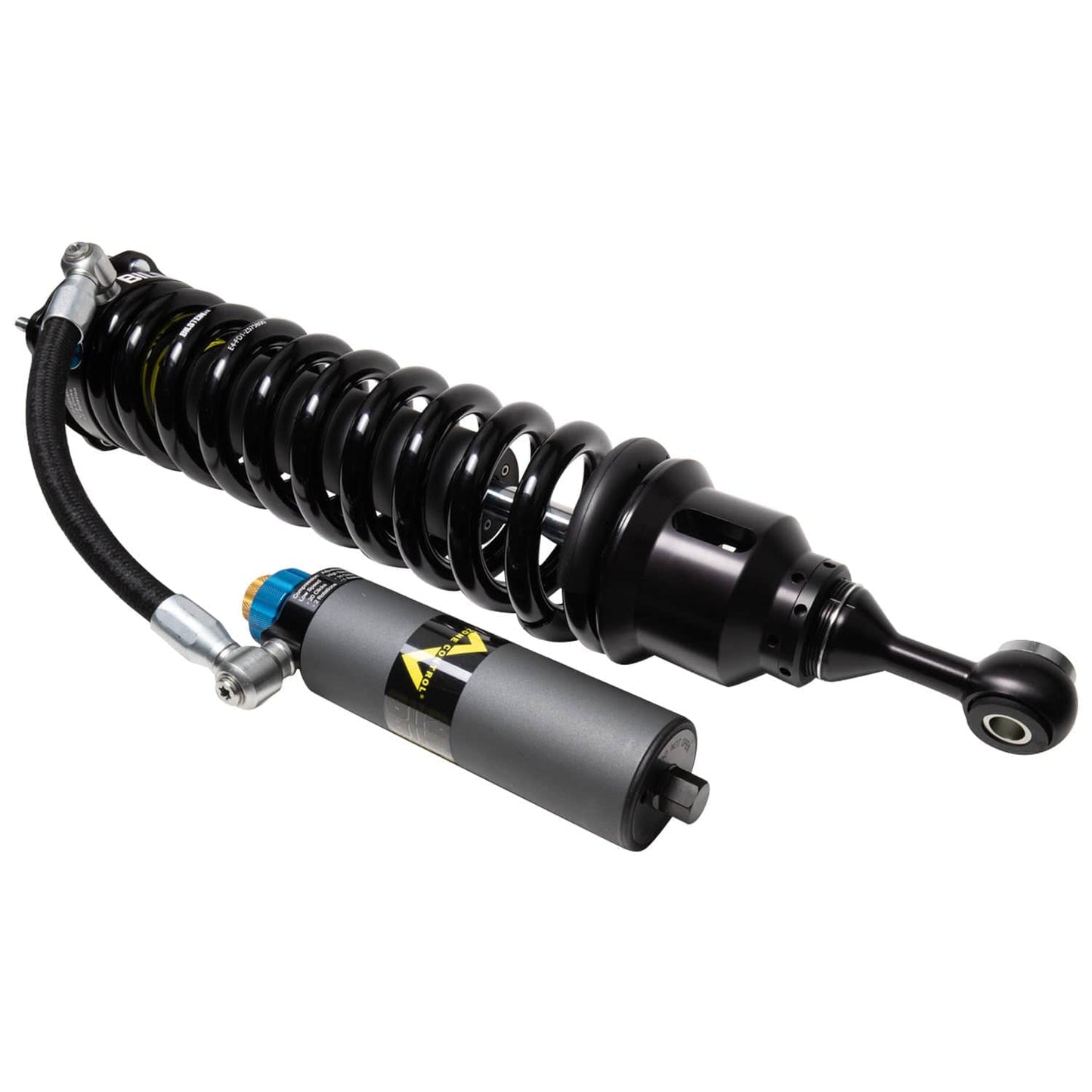

Bilstein B8 8112 ZoneControl CR DSA+ Coilover | Toyota Tundra RWD (07-21) (41-326091)
Bilstein B8 8112 ZoneControl CR DSA+ Coilover | Toyota Tundra RWD (07-21) (41-326091)
SKU:41-326091
In stock
Regular price
$1,366.00 USD
Regular price
$1,488.95 USD
Sale price
$1,366.00 USD
Unit price
/
per
Couldn't load pickup availability
â–¶ Vehicle Fitments
The Bilstein B8 8112 ZoneControl CR DSA+ Coilover for the Toyota Tundra RWD (2007-2021) is a high-performance, direct-fit coilover shock designed to enhance off-road and on-road handling. Featuring a 60mm diameter and a three-way adjustable system, this coilover provides precise control over damping characteristics. The ZoneControl CR DSA+ technology offers position-sensitive damping with user-adjustable dual speed settings, allowing for tailored ride quality and stability across various terrains. Its triple piston design incorporates three stages of compression valving and two stages of rebound valving, delivering a versatile and responsive suspension upgrade. Constructed with durable materials, this coilover ensures long-lasting performance and improved vehicle dynamics.

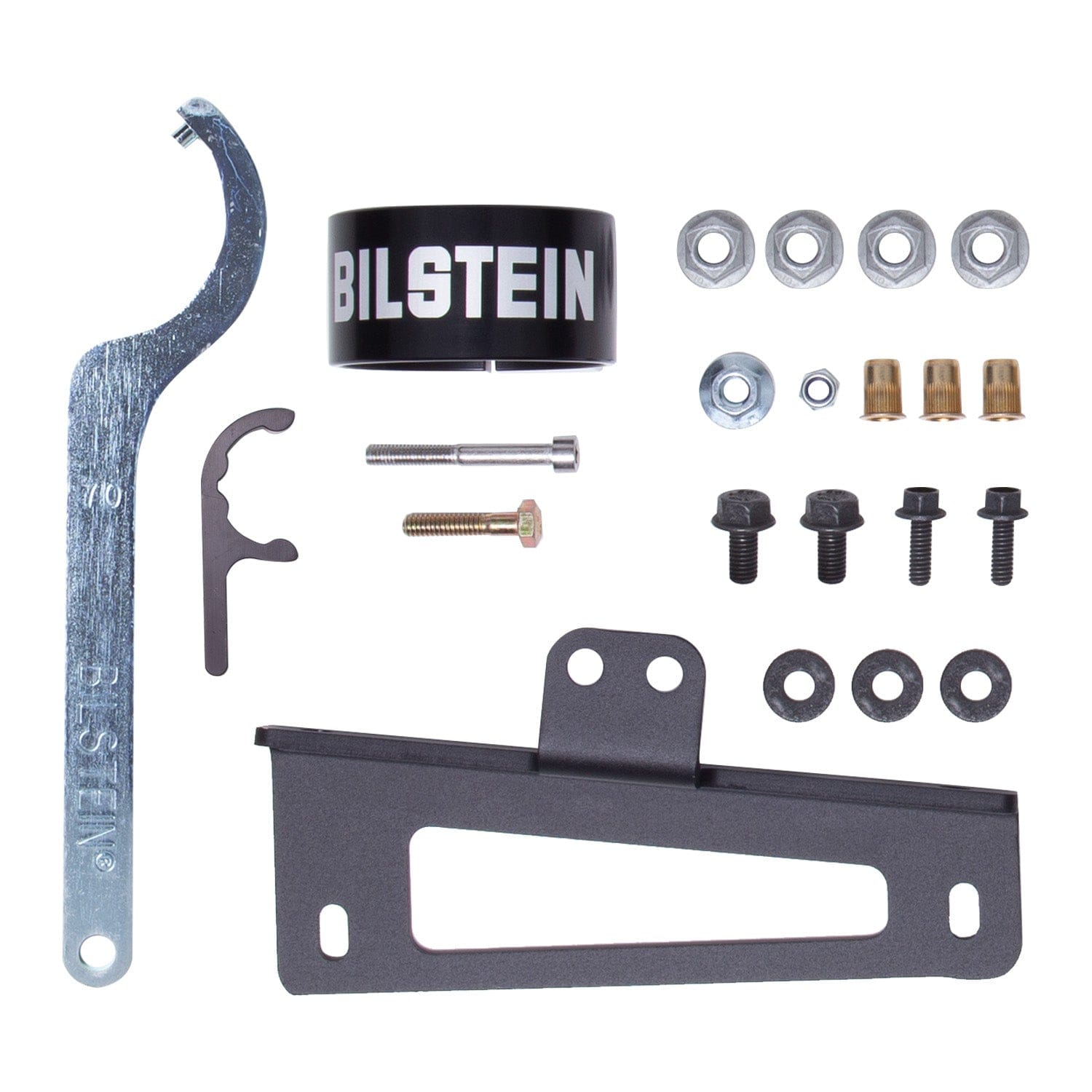

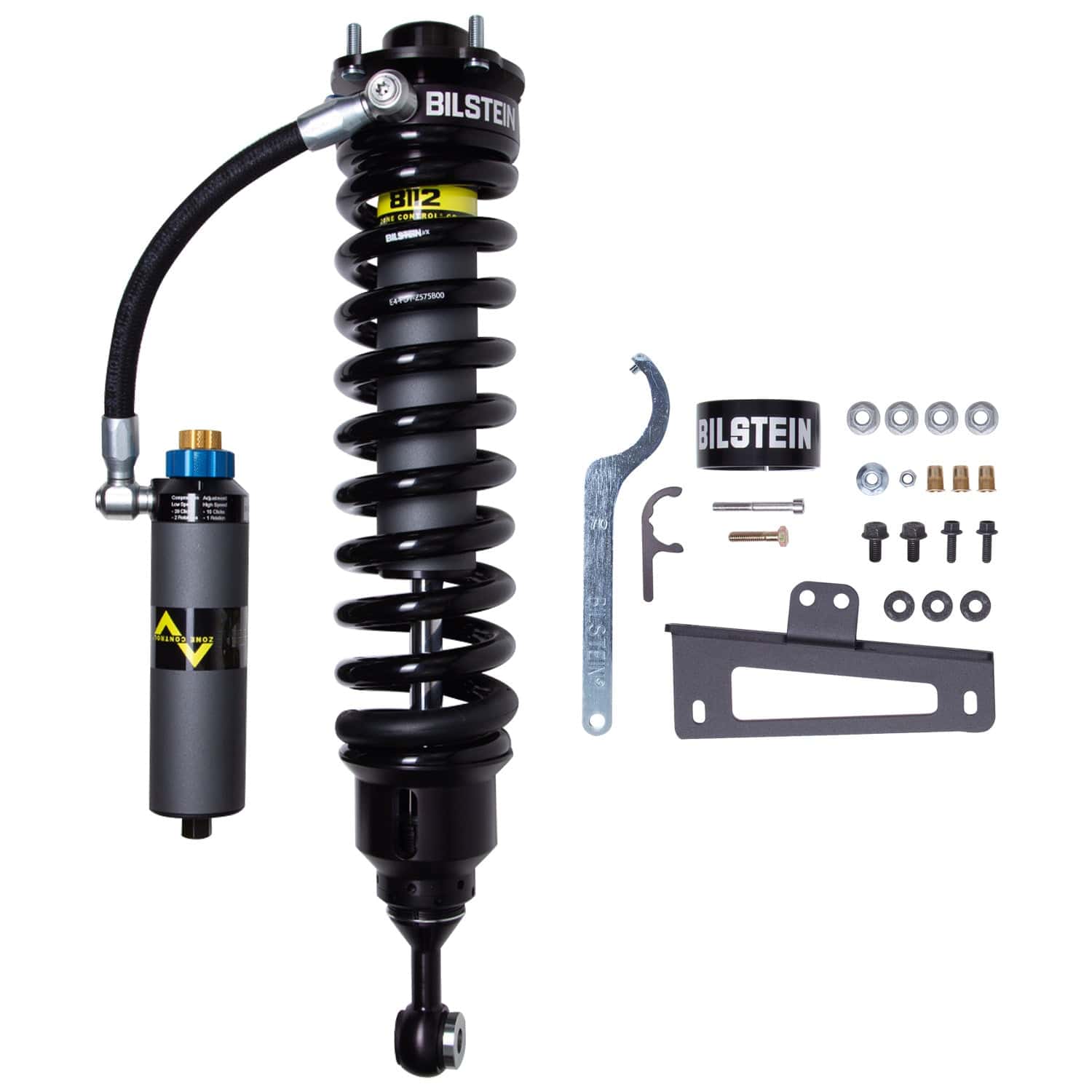

Designed specifically for 2007-2021 Toyota Tundra models, this coilover is compatible with light trucks and SUVs equipped with RWD configurations. It serves as a direct replacement or upgrade for factory suspension components, suitable for both street and off-road applications. The system includes adjustable clicker knobs for easy and precise dual speed damping adjustments, enabling drivers to optimize ride comfort and handling. Installation is straightforward for those familiar with coilover setups, and the kit typically includes the shock assembly and necessary mounting hardware. Ideal for enthusiasts seeking enhanced control, stability, and customization in various driving conditions.
Share
Overview
Overview

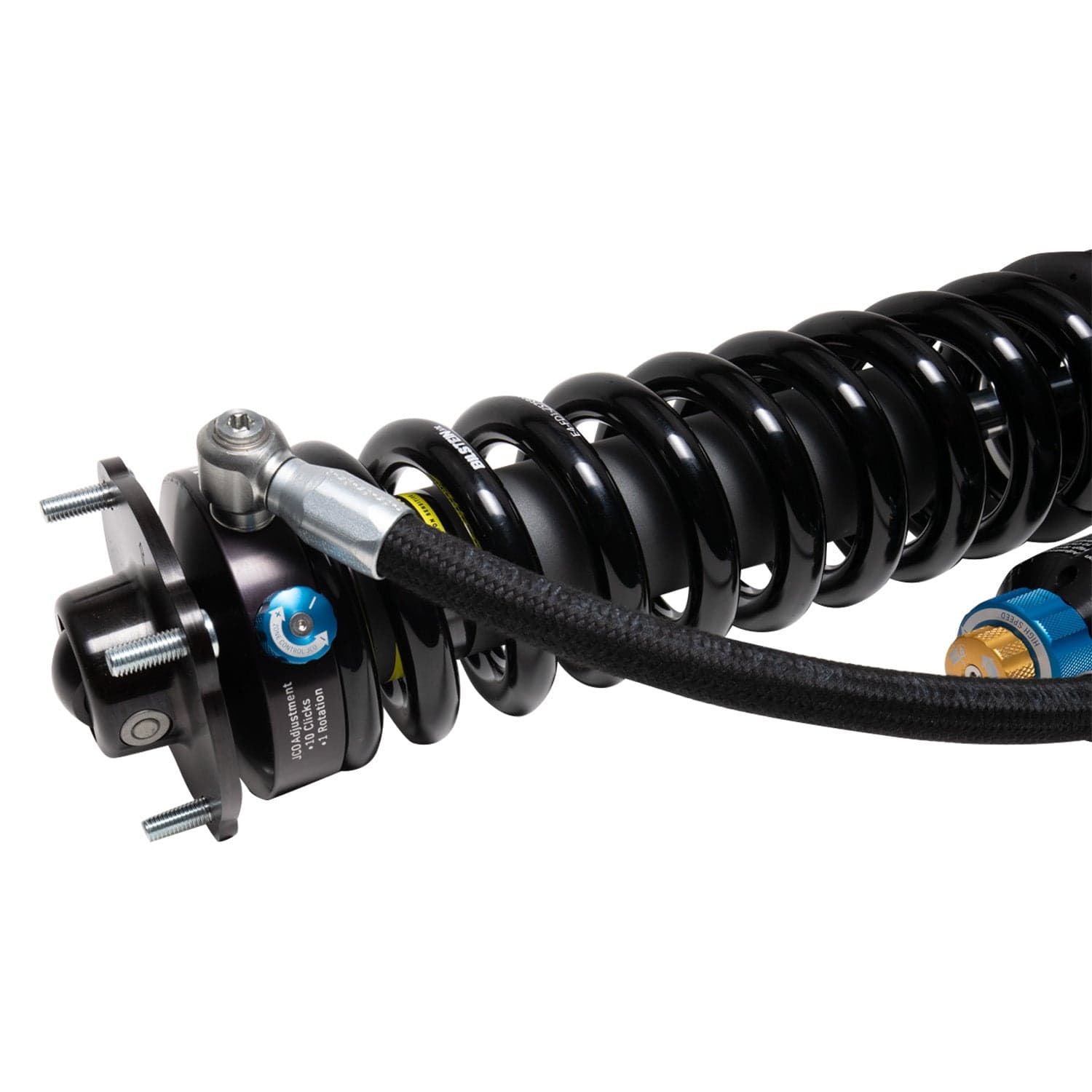

Bilstein B8 8112 (ZoneControl CR DSA+) for the 2007-2021 Toyota Tundra is a direct fit, 3-way adjustable, 60mm, position sensitive coilover shock designed for light trucks and SUV's. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop).

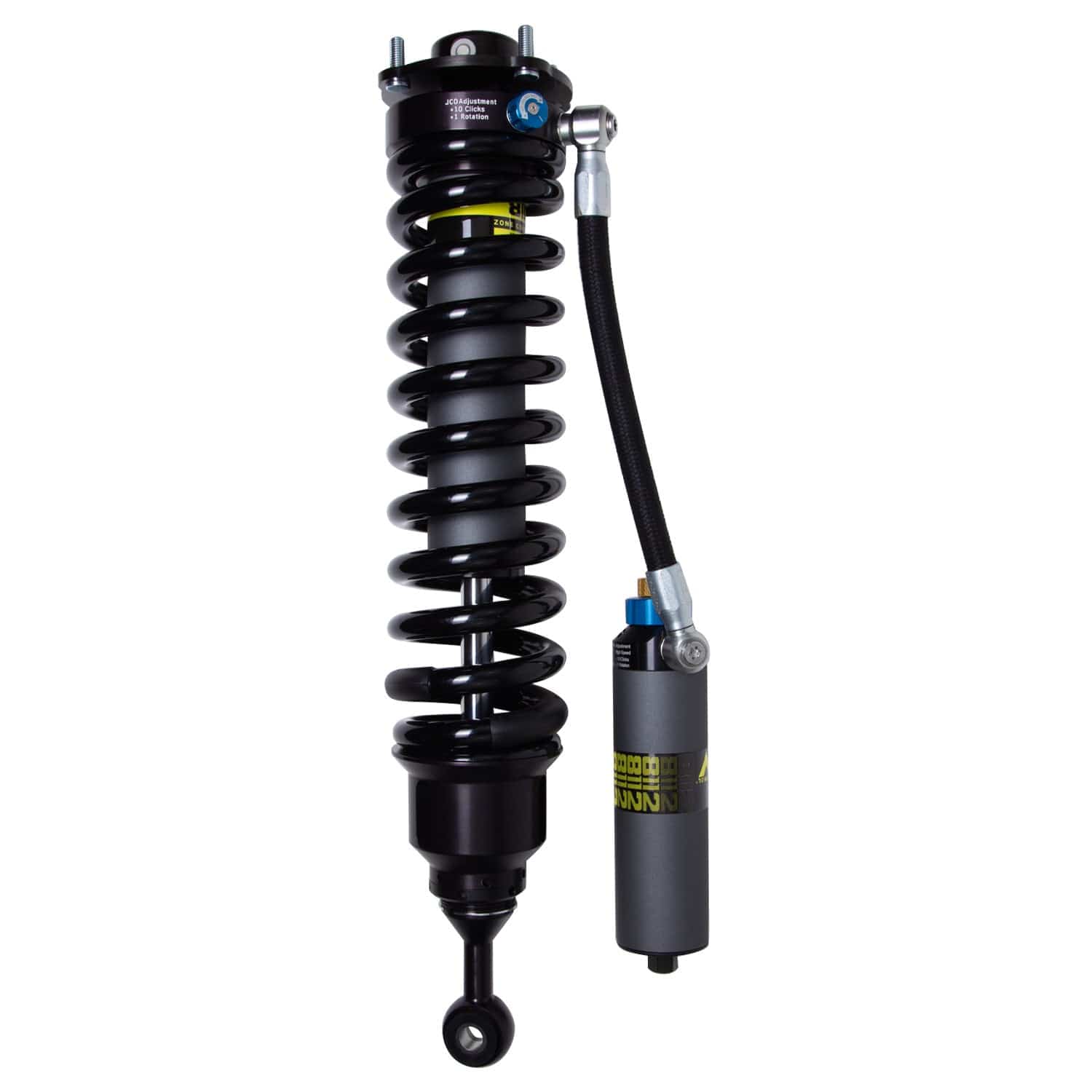

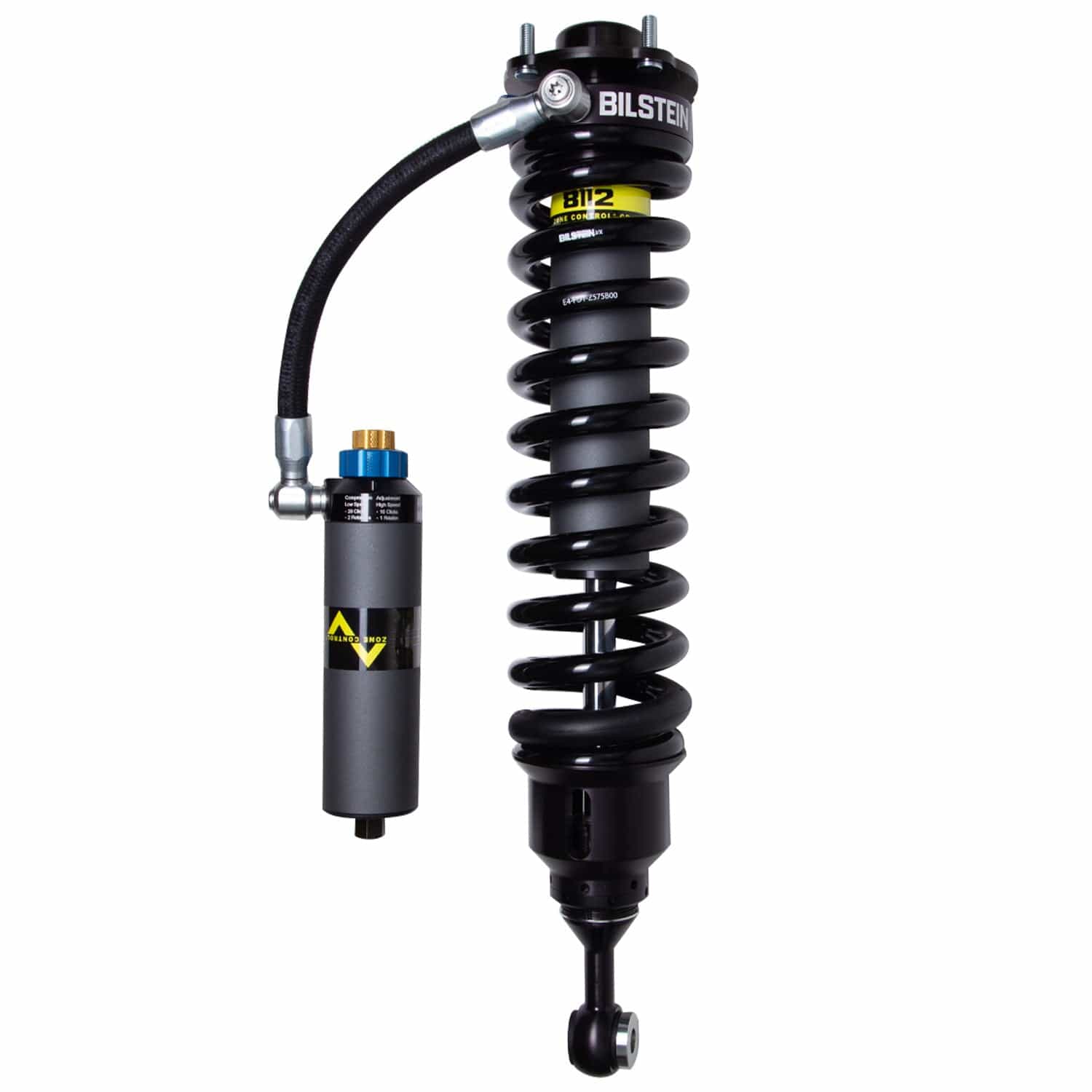

The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3 (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.
Standard Features
- ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons

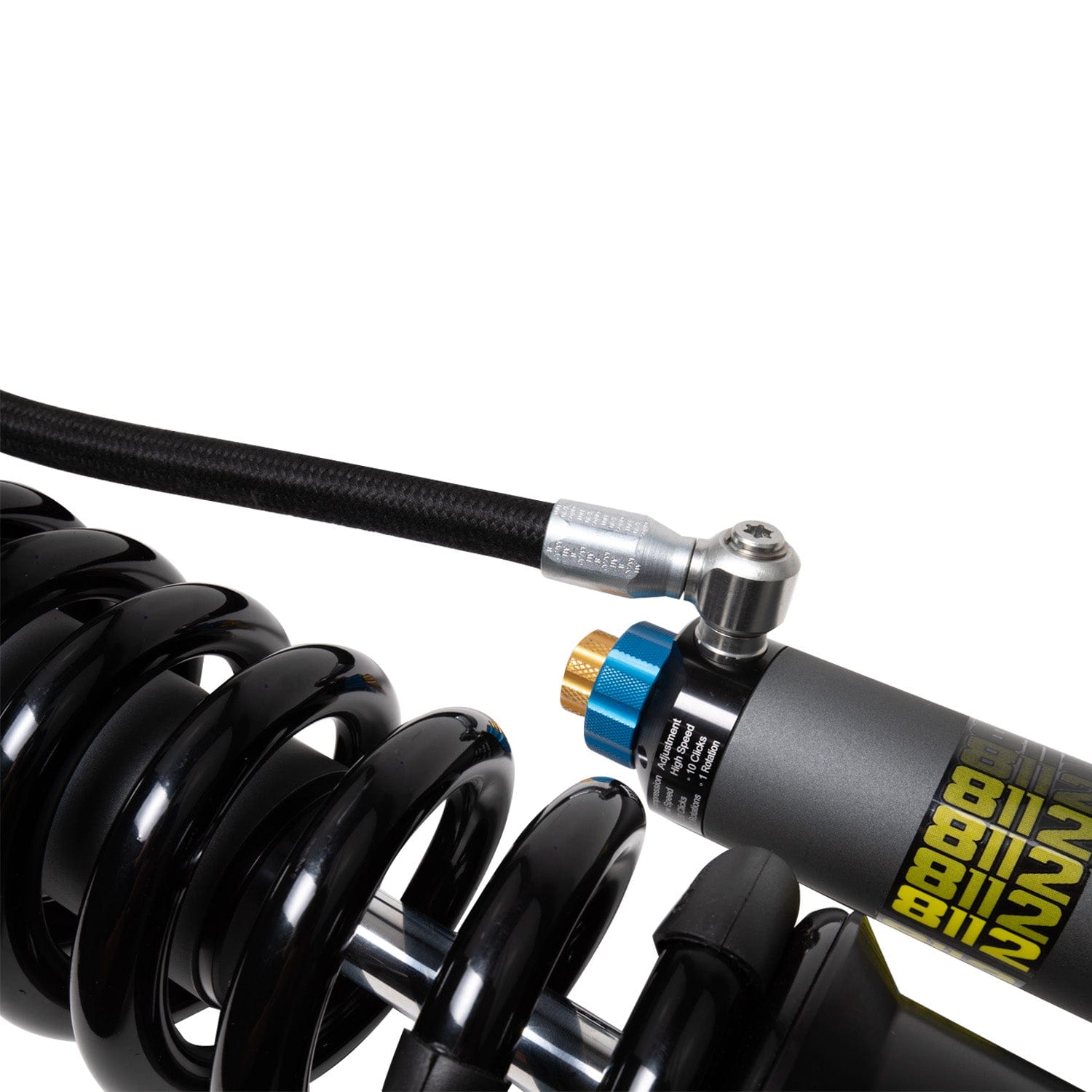

- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Part Number | 41-326091 |
| Part Name | Shock Absorber and Coil Spring Assembly |
| Vehicle | 2007-2021 Toyota Tundra |
| UPC | 651860942155 |
| Front Lift Height | 2.25 - 3.25 in. |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 18.90 in. |
| Collapsed Length | 479.3 mm |
| Damping Adjustable | Yes |
| Extended Length | 25.20 in. |
| Extended Length | 640.8 mm |
| Finish | Dampers: EVO Grey / Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Eye 19.05 mm |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8112 (ZoneControl CR DSA+) |
| Spring Seat Included | Yes |
| Upper Mount Type | Special |
| Notes | Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended |
Vehicle Fitment
- 2007 Toyota Tundra
- 2008 Toyota Tundra
- 2009 Toyota Tundra
- 2010 Toyota Tundra
- 2011 Toyota Tundra
- 2012 Toyota Tundra
- 2013 Toyota Tundra
- 2014 Toyota Tundra
- 2015 Toyota Tundra
- 2016 Toyota Tundra
- 2017 Toyota Tundra
- 2018 Toyota Tundra
- 2019 Toyota Tundra
- 2020 Toyota Tundra
- 2021 Toyota Tundra
