| Year | Make | Model |
|---|---|---|
| 2003 - 2009 | Lexus | GX470 Base |
| 2003 - 2009 | Toyota | 4Runner Limited |
| 2003 - 2009 | Toyota | 4Runner SR5 |
| 2007 - 2009 | Toyota | FJ Cruiser Base |
| 2008 | Toyota | FJ Cruiser Trail Teams Special Edition |

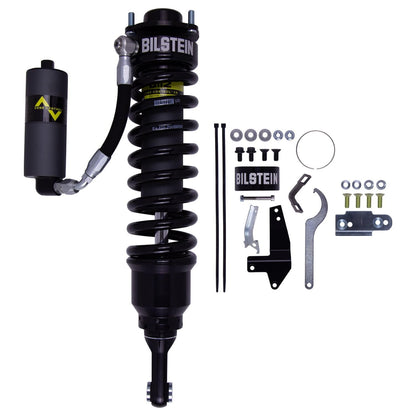

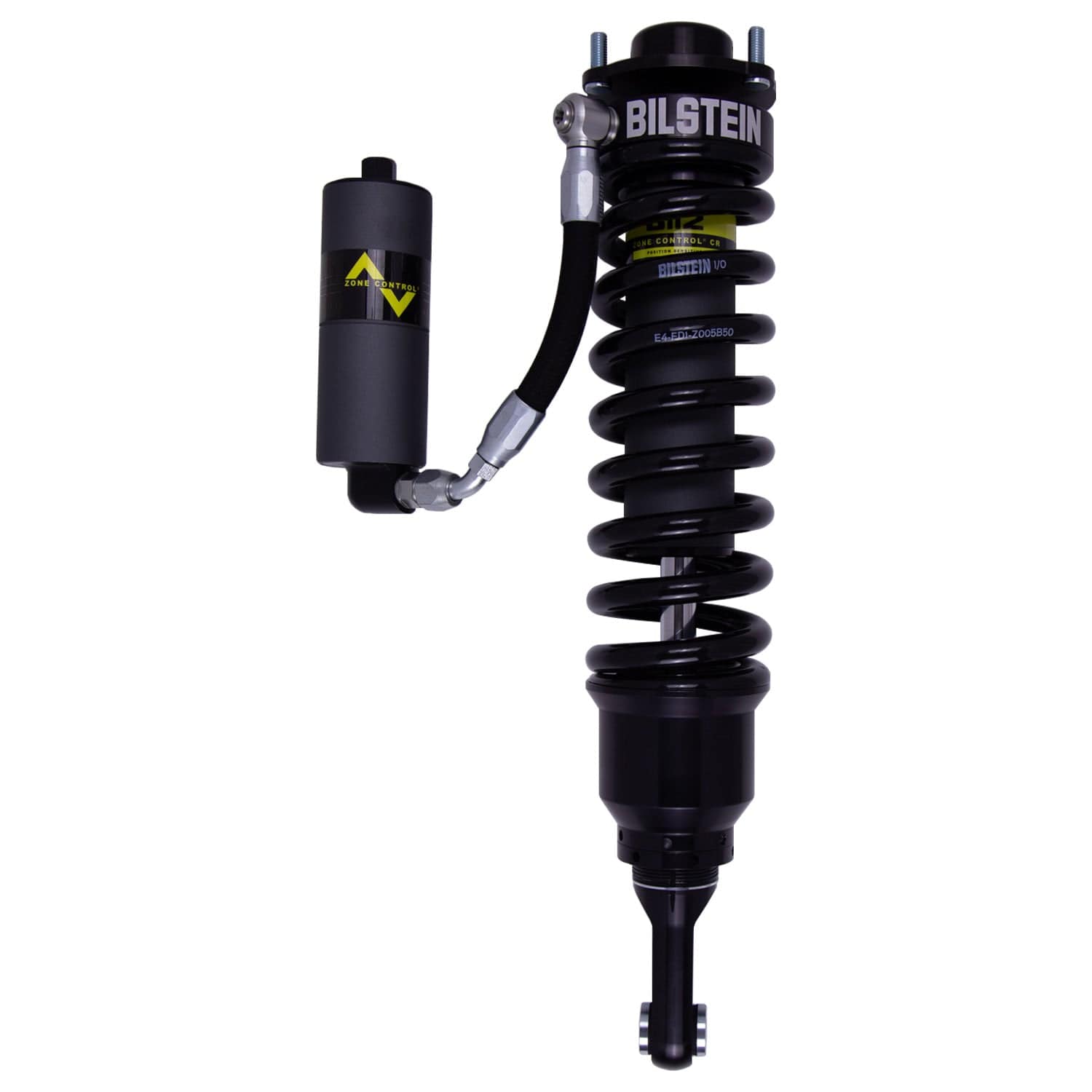

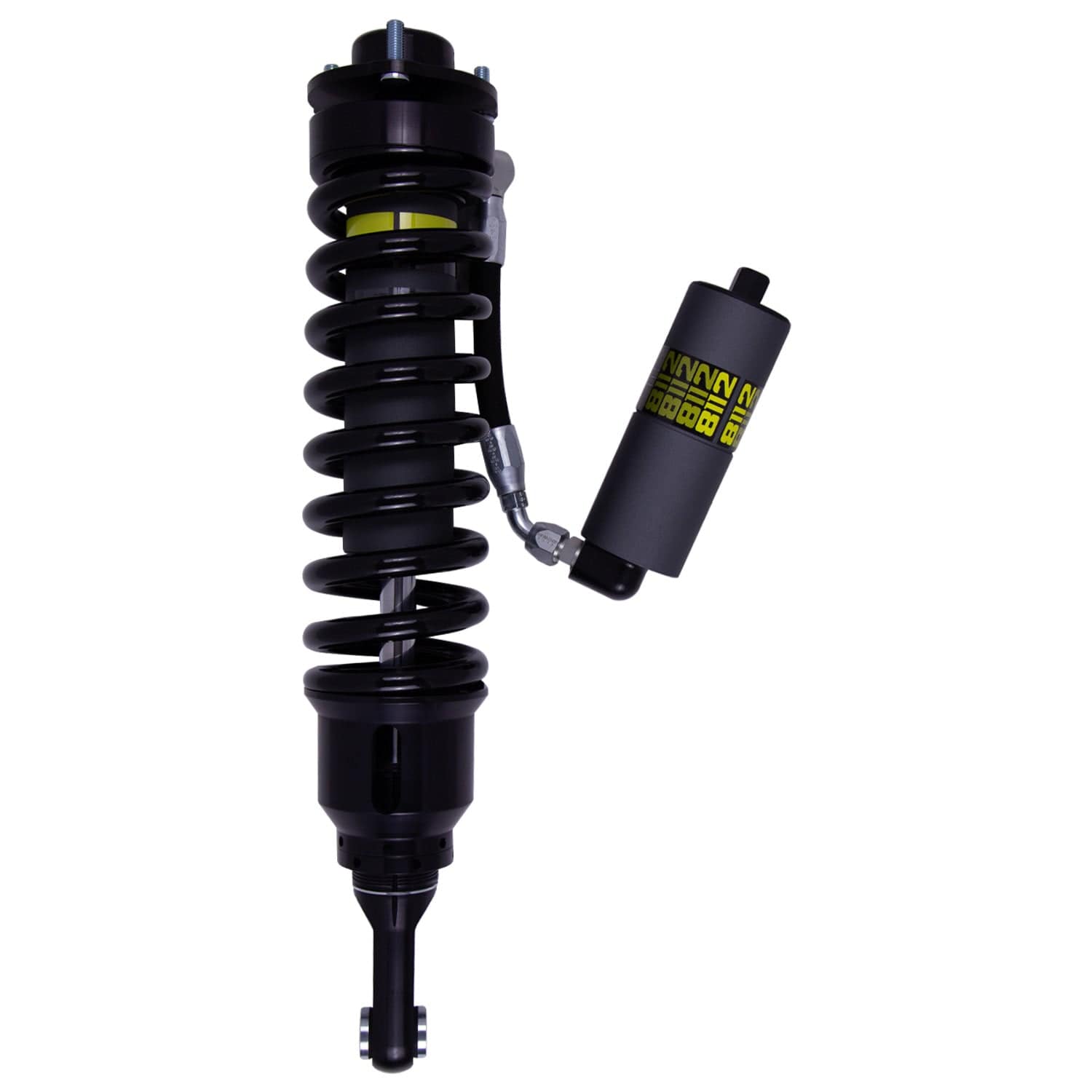

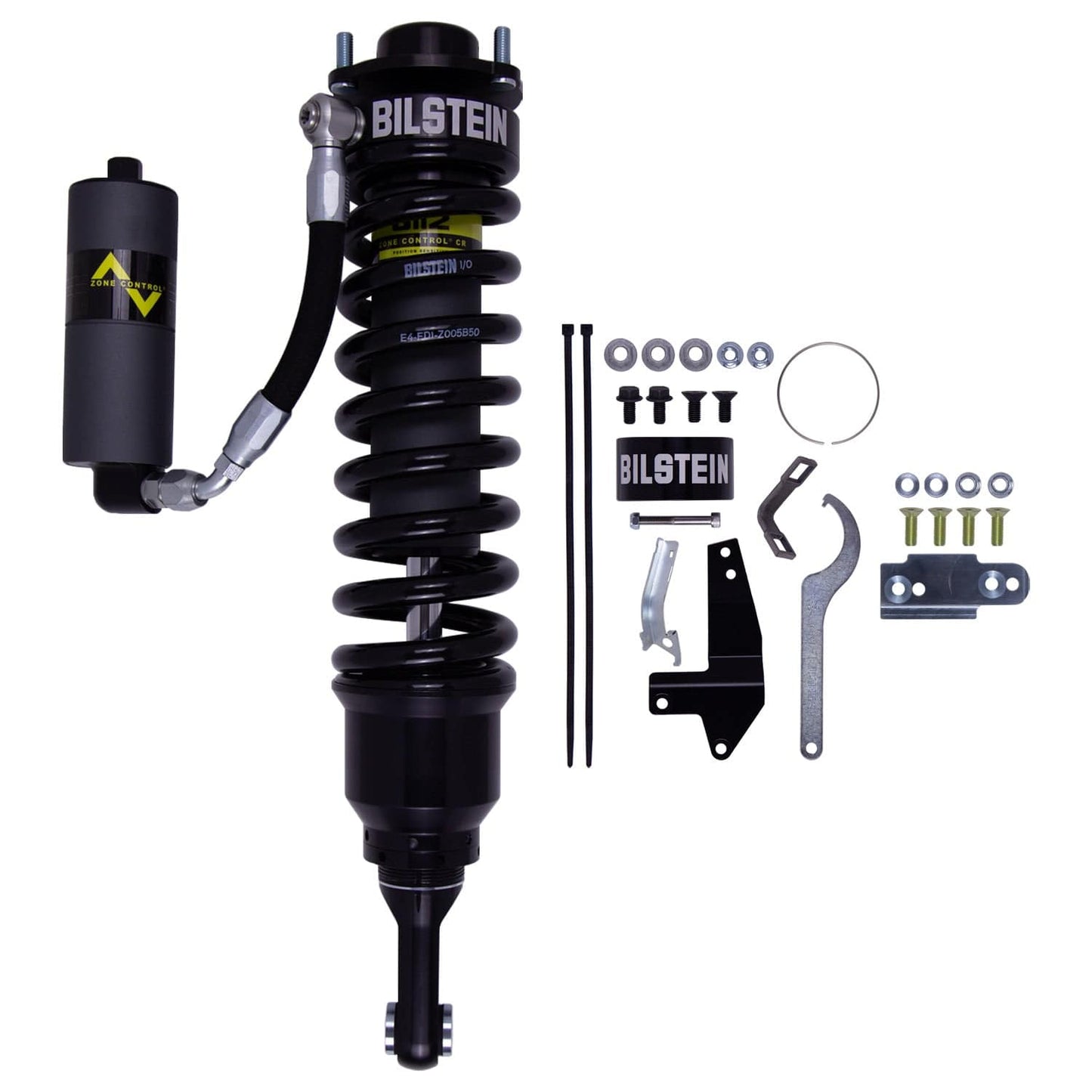

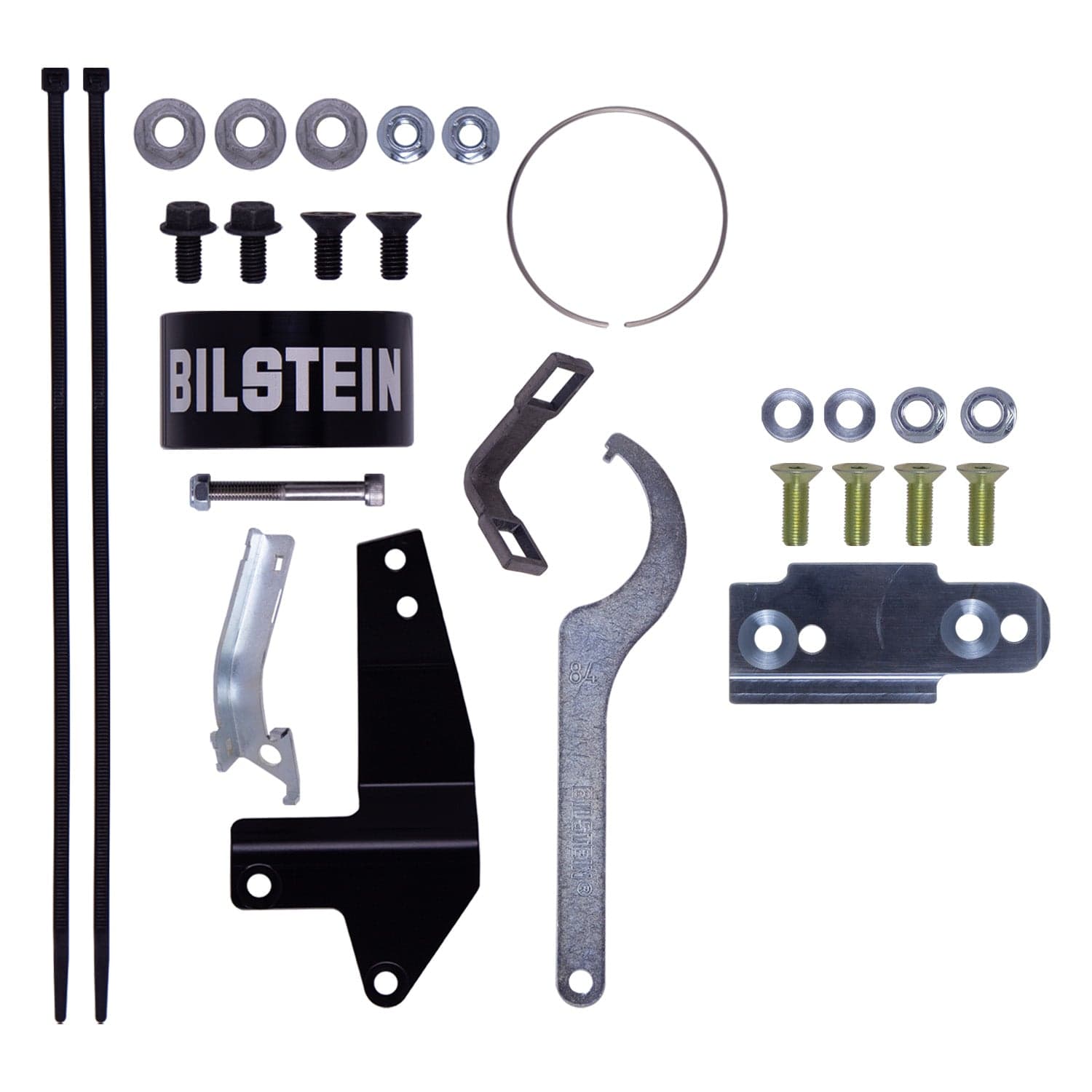

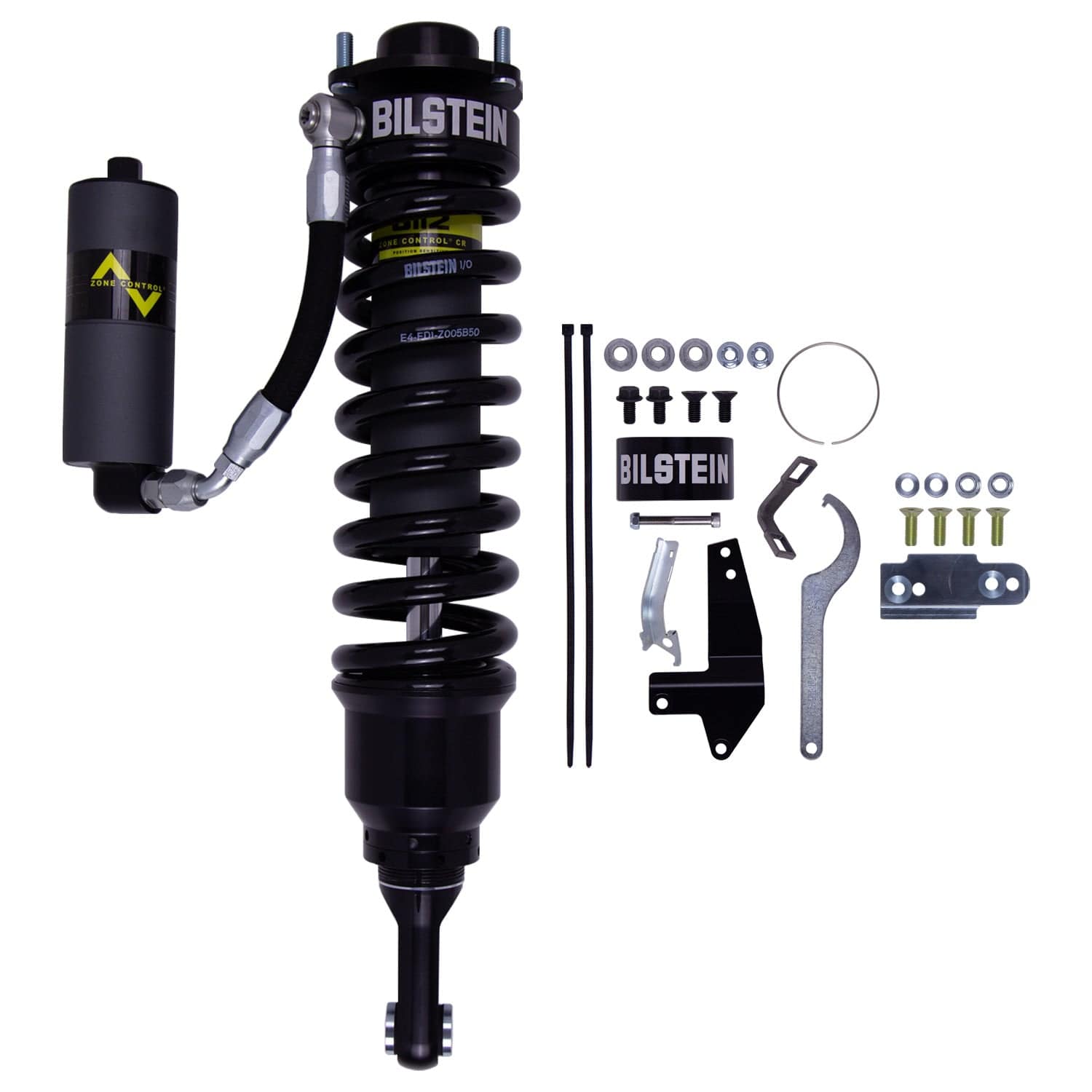

Bilstein B8 8112 ZoneControl CR Shock & Coil Assembly | Toyota 4Runner 4WD (03-09) (41-326329)
Bilstein B8 8112 ZoneControl CR Shock & Coil Assembly | Toyota 4Runner 4WD (03-09) (41-326329)
SKU:41-326329
In stock
Couldn't load pickup availability
â–¶ Vehicle Fitments
The Bilstein B8 8112 ZoneControl CR Shock & Coil Assembly is a high-performance suspension component designed for the 2003-2009 Toyota 4Runner 4WD models. This direct-fit coilover system features ZoneControl technology, which provides position-sensitive damping for improved ride quality and handling across various driving conditions. The triple piston design offers three stages of compression valving and two stages of rebound valving, allowing for precise control and enhanced stability. The coilover module includes a threaded spring seat, enabling ride height adjustments from 0 to 3.8 inches depending on the application. Constructed with durable materials, this suspension kit ensures long-lasting performance and reliability, making it suitable for both on-road and light off-road use.
Designed specifically for 2003-2009 Toyota 4Runner 4WD models, this coilover assembly is an ideal upgrade for drivers seeking improved ride comfort, handling, and load management. It is compatible with vehicles equipped with light trucks and SUVs, serving as a direct replacement for factory components. The adjustable ride height feature allows customization to suit various driving styles and conditions, whether for daily driving, off-road adventures, or performance tuning. Installation involves bolt-on mounting, and the kit includes the coilover assemblies necessary for a complete upgrade. This suspension system is suitable for enthusiasts looking to enhance their vehicle’s capability and driving experience.
Share
Overview
Overview
Bilstein B8 8112 (ZoneControl) CR Suspension Kit for the 2003-2009 Toyota 4Runner are a direct fit, position sensitive coilover designed for light trucks and SUV's. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8 (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Standard Features
- ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Part Number | 41-326329 |
| Part Name | Shock Absorber and Coil Spring Assembly |
| Vehicle | 2003-2009 Toyota 4Runner |
| UPC | 651860916750 |
| Front Lift Height | 1.3 - 3.4 in. |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 17.99 in. |
| Collapsed Length | 456.9 mm |
| Damping Adjustable | No |
| Extended Length | 22.80 in. |
| Extended Length | 579.1 mm |
| Finish | Dampers: EVO Grey / Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Optional Heavy Load Springs | 53-291387, 53-332837 |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8112 (ZoneControl CR) |
| Spring Seat Included | Yes |
| Upper Mount Type | Special |
| Notes | Without X-REAS Suspension |
Vehicle Fitment
- 2003 Toyota 4Runner
- 2004 Toyota 4Runner
- 2005 Toyota 4Runner
- 2006 Toyota 4Runner
- 2007 Toyota 4Runner
- 2008 Toyota 4Runner
- 2009 Toyota 4Runner
