| Year | Make | Model |
|---|---|---|
| 2005 - 2015 | Toyota | Tacoma Base |
| 2016 - 2023 | Toyota | Tacoma Limited |
| 2005 - 2015 | Toyota | Tacoma Pre Runner |
| 2016 - 2023 | Toyota | Tacoma SR |
| 2016 - 2023 | Toyota | Tacoma SR5 |
| 2021 | Toyota | Tacoma Trail |
| 2023 | Toyota | Tacoma Trail Special Edition |
| 2016 - 2023 | Toyota | Tacoma TRD Off-Road |
| 2015 | Toyota | Tacoma TRD Pro |
| 2017 - 2023 | Toyota | Tacoma TRD Pro |
| 2016 - 2023 | Toyota | Tacoma TRD Sport |
1
/
of
3
Bilstein B8 8112 ZoneControl CR Coilover | Toyota Tacoma 05-23 (41-322673) (CR)
Bilstein B8 8112 ZoneControl CR Coilover | Toyota Tacoma 05-23 (41-322673) (CR)
SKU:41-322673
In stock
Regular price
$1,160.00 USD
Regular price
$1,264.85 USD
Sale price
$1,160.00 USD
Unit price
/
per
Couldn't load pickup availability
â–¶ Vehicle Fitments
The Bilstein B8 8112 ZoneControl CR Coilover is a high-performance suspension component designed specifically for the 2005-2023 Toyota Tacoma. This coilover system features Bilstein's innovative ZoneControl CR technology, which provides position-sensitive damping for optimal handling and ride quality across various driving conditions. Equipped with a triple piston design, it offers three stages of compression valving and two stages of rebound valving, allowing for precise control and customization. The threaded spring seat enables ride height adjustment from 0 to 3.8 inches, making it suitable for a range of setups. Constructed with durable materials, this coilover delivers improved stability, responsiveness, and durability for light trucks and SUVs, enhancing both daily driving comfort and off-road performance.
Designed as a direct fit for Tacoma models from 2005 to 2023, this coilover kit is ideal for enthusiasts seeking a versatile suspension upgrade. It is suitable for street, off-road, and performance applications, providing a balance of comfort and handling. The installation is a bolt-on process, with the kit including all necessary components for straightforward setup. Compatibility is optimized for Tacoma trucks with various configurations, and the adjustable ride height allows for tailored suspension tuning. Whether for improved off-road capability or enhanced on-road stability, this Bilstein coilover system offers a reliable, high-quality upgrade for your vehicle.
Share
Overview
Overview

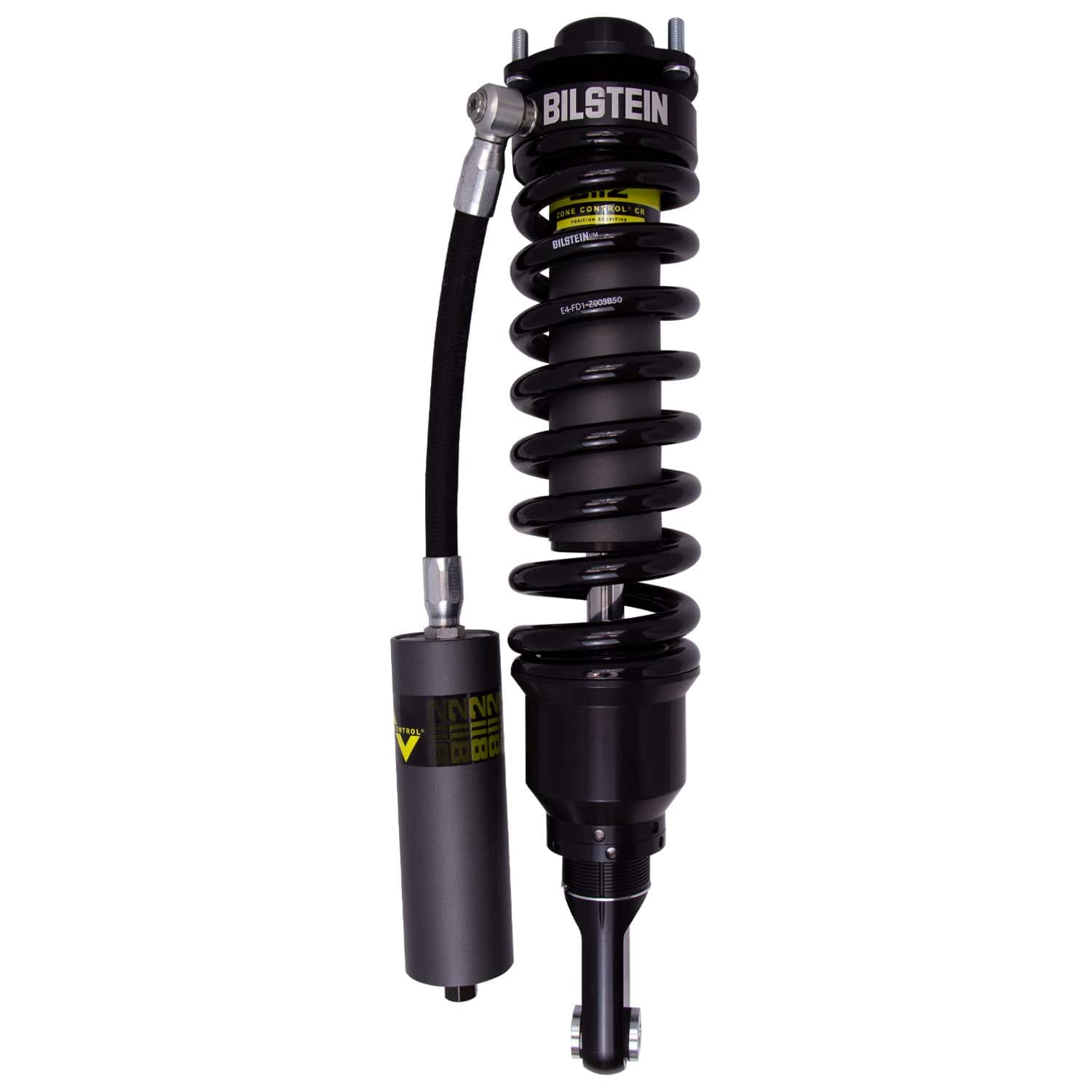

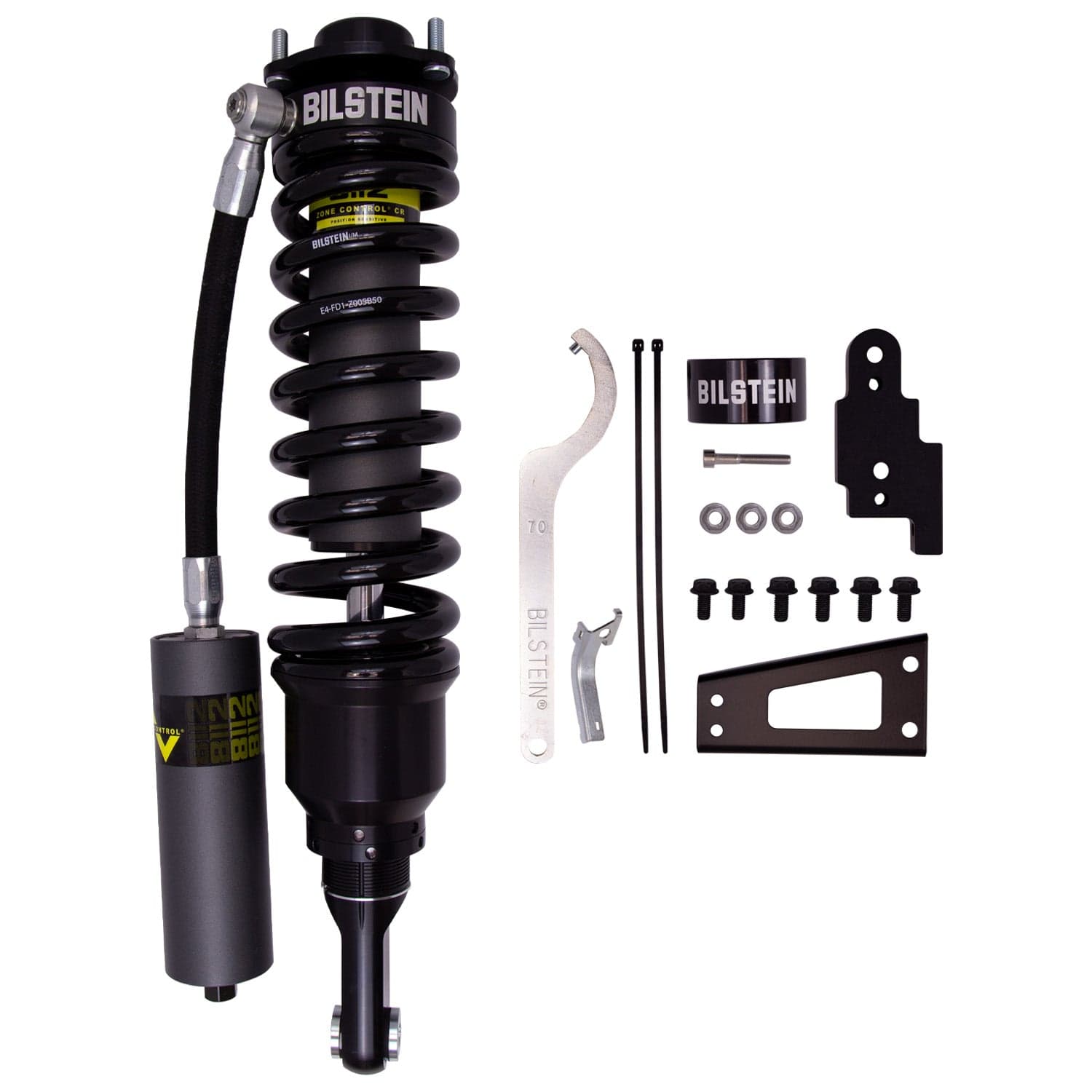

Bilstein B8 8112 (ZoneControl) CR Suspension Kit for the 2005-2023 Toyota Tacoma are a direct fit, position sensitive coilover designed for light trucks and SUV's. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8 (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Standard Features
- ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Part Number | 41-322673 |
| Part Name | Shock Absorber and Coil Spring Assembly |
| Vehicle | 2005-2023 Toyota Tacoma |
| UPC | 651860882666 |
| Front Lift Height | 0.4 - 2 in. |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 17.43 in. |
| Collapsed Length | 442.6 mm |
| Damping Adjustable | No |
| Extended Length | 22.39 in. |
| Extended Length | 568.8 mm |
| Finish | Dampers: EVO Grey / Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Optional Heavy Load Springs | 53-291387, 53-332837 |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8112 (ZoneControl CR) |
| Spring Seat Included | Yes |
| Upper Mount Type | Special |
Vehicle Fitment
- 2005 Toyota Tacoma
- 2006 Toyota Tacoma
- 2007 Toyota Tacoma
- 2008 Toyota Tacoma
- 2009 Toyota Tacoma
- 2010 Toyota Tacoma
- 2011 Toyota Tacoma
- 2012 Toyota Tacoma
- 2013 Toyota Tacoma
- 2014 Toyota Tacoma
- 2015 Toyota Tacoma
- 2016 Toyota Tacoma
- 2017 Toyota Tacoma
- 2018 Toyota Tacoma
- 2019 Toyota Tacoma
- 2020 Toyota Tacoma
- 2021 Toyota Tacoma
- 2022 Toyota Tacoma
- 2023 Toyota Tacoma
