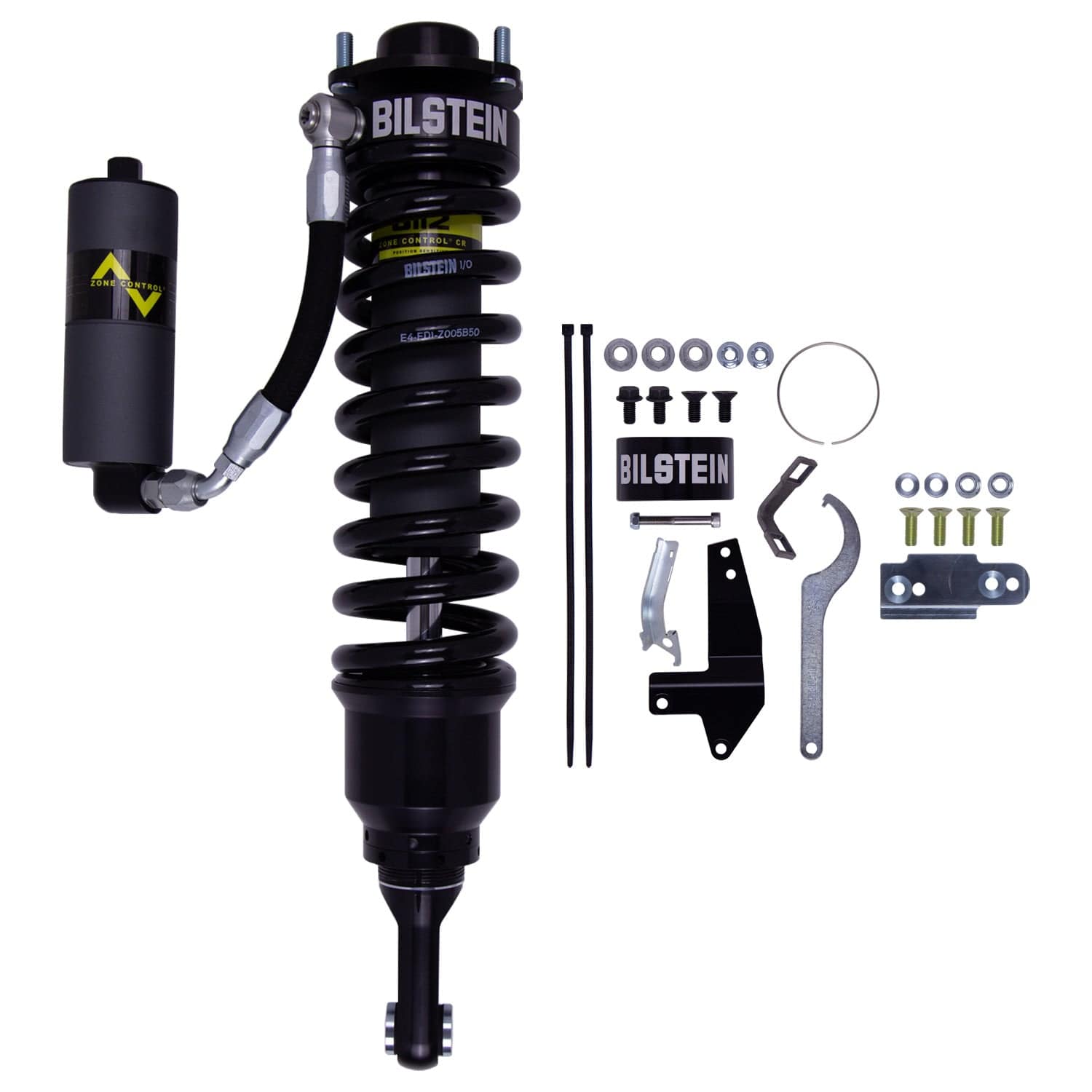

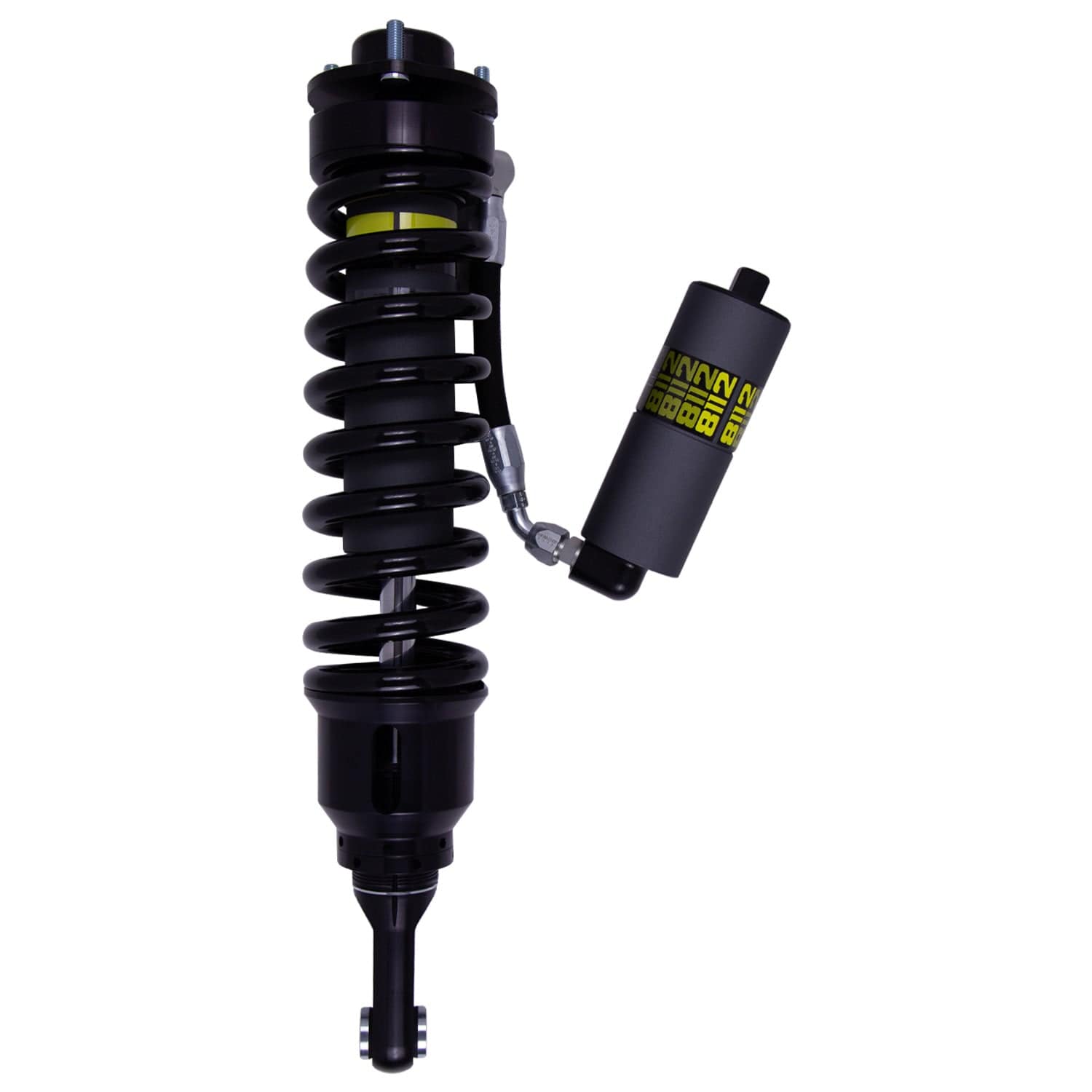

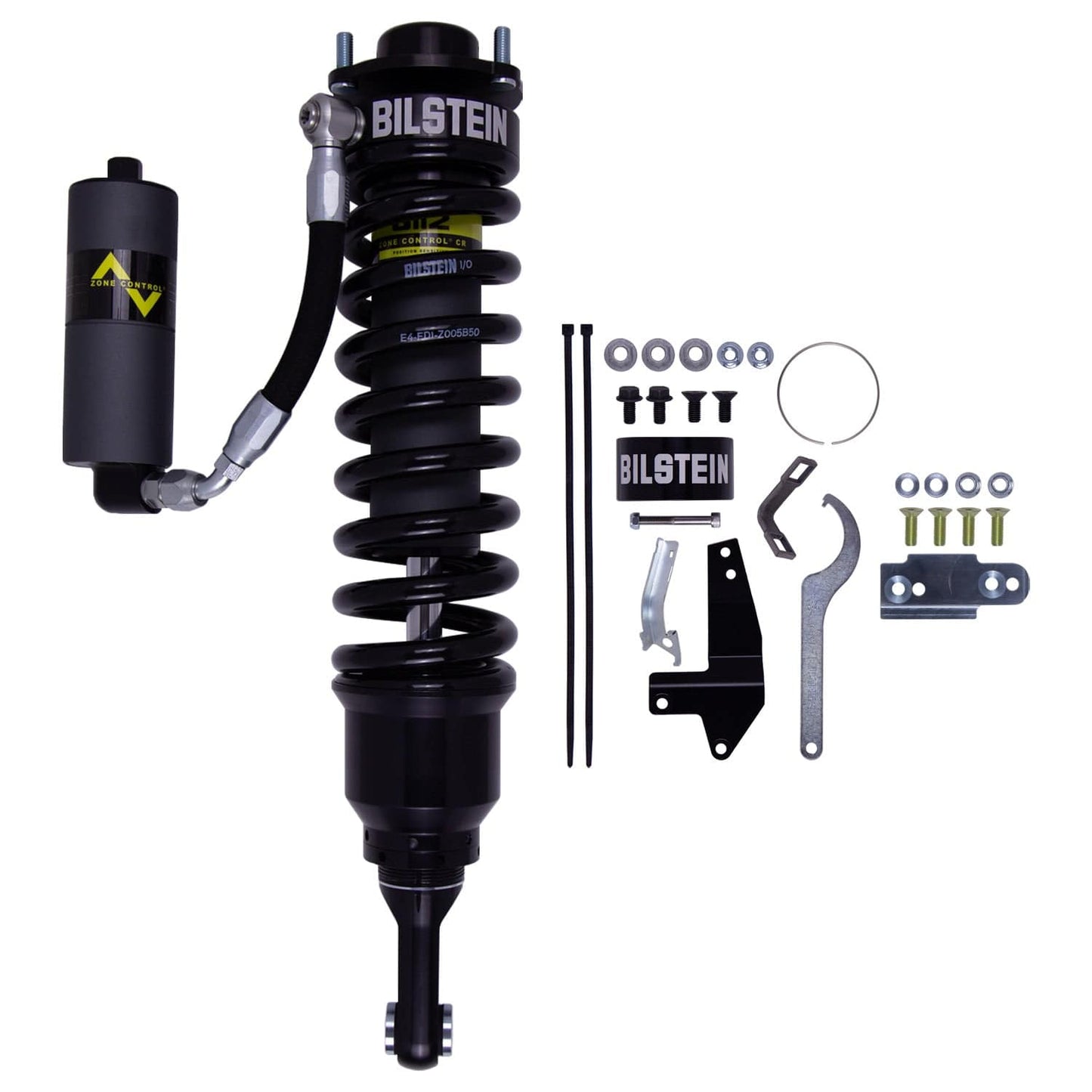

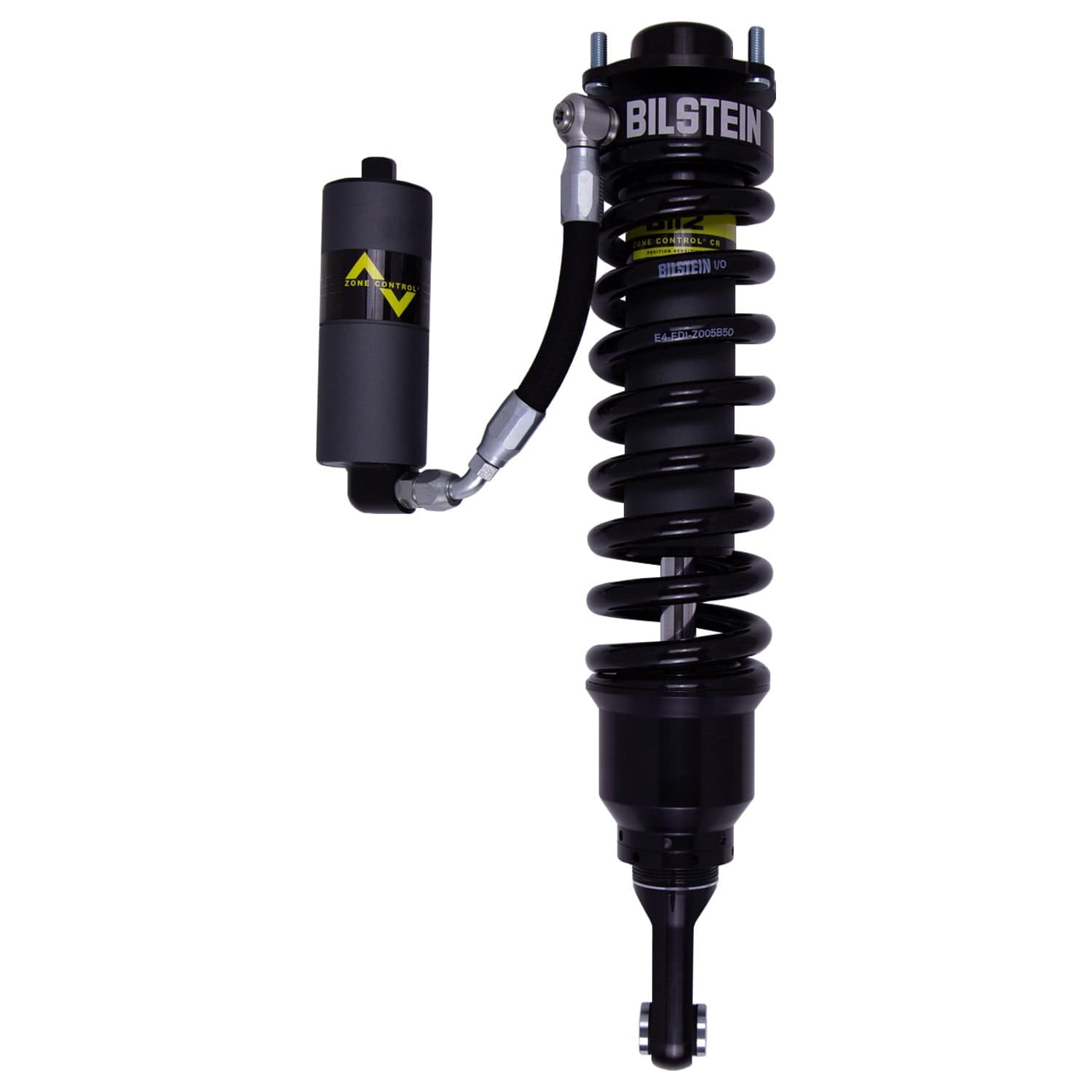

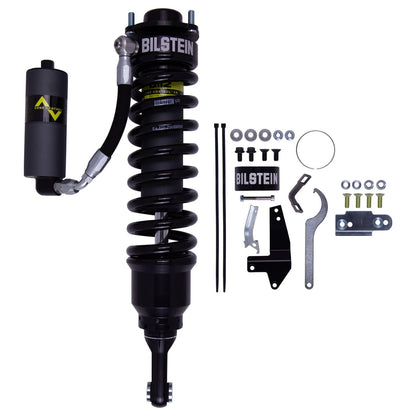

Bilstein B8 8112 ZoneControl CR Shock & Coil Assembly | Toyota FJ Cruiser (07-09) (41-326329)

Bilstein B8 8112 ZoneControl CR Shock & Coil Assembly | Toyota FJ Cruiser (07-09) (41-326329)

SKU:41-326329

In stock

Regular price $1,142.21 USD
Regular price $1,213.60 USD Sale price $1,142.21 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Bilstein B8 8112 ZoneControl CR Shock & Coil Assembly is a high-performance suspension component designed specifically for the 2007-2009 Toyota FJ Cruiser. This coilover system features Bilstein's innovative ZoneControl technology, which provides position-sensitive damping for improved ride quality and handling across various driving conditions. The triple piston design offers three stages of compression valving and two stages of rebound valving, allowing for precise control and stability. Constructed with durable materials, the coilover module includes a threaded spring seat for easy ride height adjustment from 0 to 3.8 inches, enabling customization to suit different terrains and load conditions. This assembly enhances off-road capability while maintaining comfort on paved roads, making it an ideal upgrade for enthusiasts seeking versatile performance.

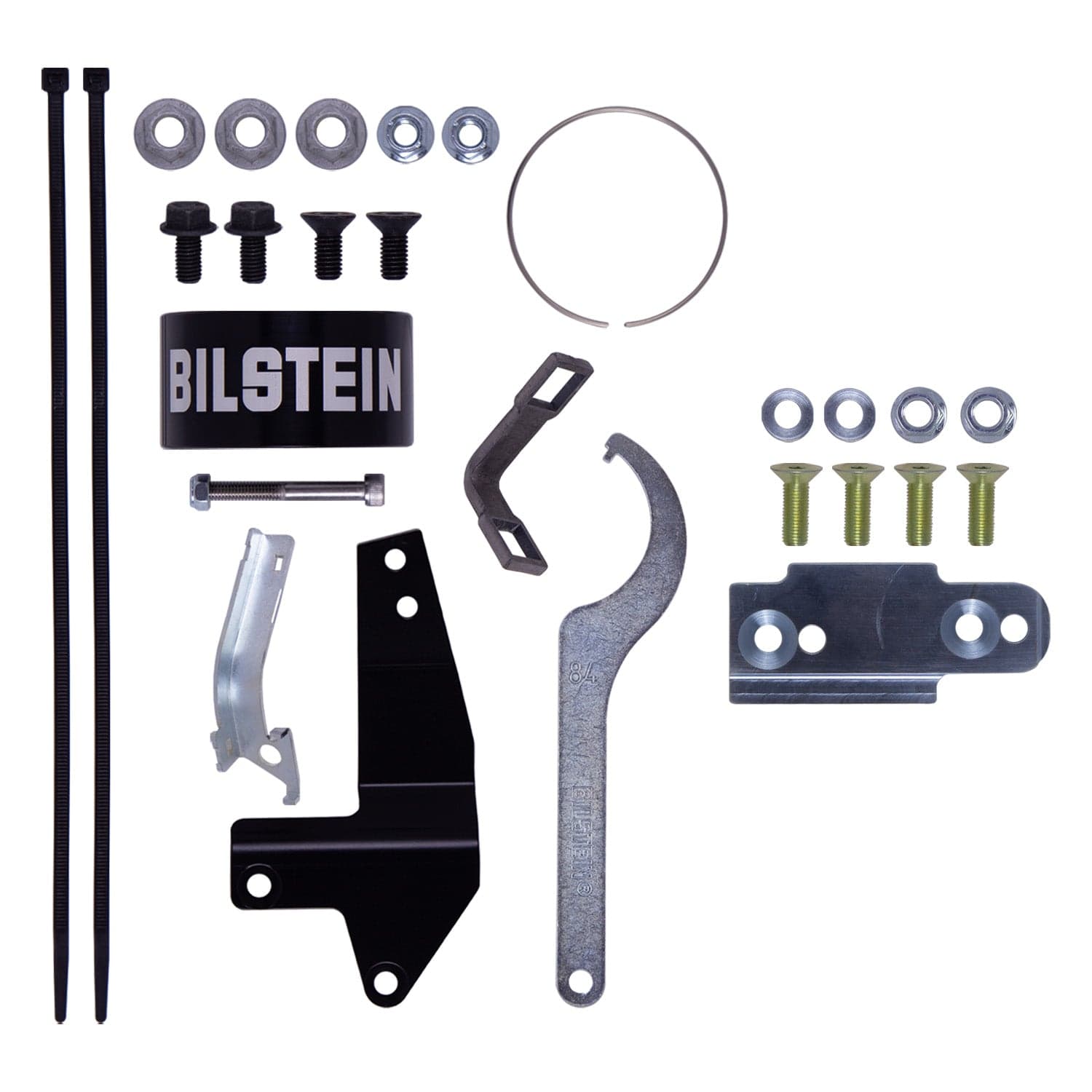

Designed as a direct fit for the 2007-2009 Toyota FJ Cruiser, this suspension kit is suitable for light trucks and SUVs used in off-road, daily driving, or performance applications. It replaces the factory shocks and coil springs with a bolt-on assembly that offers superior damping control and adjustability. The kit includes the coilover units and necessary mounting hardware, ensuring straightforward installation. Compatible with models equipped with the stock suspension setup, it provides an effective upgrade for those looking to improve ride quality, handling, and off-road capability without extensive modifications. Perfect for off-road adventures or enhanced street performance, this coilover assembly delivers reliable, position-sensitive damping tailored to your driving needs.

Overview

Bilstein B8 8112 (ZoneControl) CR Suspension Kit for the 2007-2009 Toyota FJ Cruiser are a direct fit, position sensitive coilover designed for light trucks and SUV's. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8 (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

Standard Features

  • ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
  • Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
  • 60mm remote reservoir for increased oil capacity and cooling
Specifications
Part Number 41-326329
Part Name Shock Absorber and Coil Spring Assembly
Vehicle 2007-2009 Toyota FJ Cruiser
UPC 651860916750
Front Lift Height 1.3 - 3.4 in.
Body Design Smooth Body (Coilover)
Body Diameter (ID) 60 mm
Body Material Steel
Boot Included No
Collapsed Length 17.99 in.
Collapsed Length 456.9 mm
Damping Adjustable No
Extended Length 22.80 in.
Extended Length 579.1 mm
Finish Dampers: EVO Grey / Springs: Black
Internal Design Monotube
Lower Mount Type Eye 14.1 mm
Optional Heavy Load Springs 53-291387, 53-332837
Reservoir Yes
Segment Light Truck
Series B8 8112 (ZoneControl CR)
Spring Seat Included Yes
Upper Mount Type Special
Notes Without X-REAS Suspension
Vehicle Fitment
  • 2007 Toyota FJ Cruiser
  • 2008 Toyota FJ Cruiser
  • 2009 Toyota FJ Cruiser
