| Year | Make | Model |
|---|---|---|
| 2010 - 2023 | Lexus | GX460 Base |
| 2023 | Lexus | GX460 Black Line Edition |
| 2023 | Lexus | GX460 Luxury |
| 2010 - 2023 | Lexus | GX460 Premium |
| 2010 - 2016 | Toyota | 4Runner Trail |
| 2017 - 2024 | Toyota | 4Runner TRD Off-Road |
| 2018 - 2024 | Toyota | 4Runner TRD Off-Road Premium |
| 2020 - 2021 | Toyota | 4Runner Venture |
1
/
of
4
Bilstein B8 8112 ZoneControl CR Coilover | Lexus GX460/4Runner (10-23) (41-324158)
Bilstein B8 8112 ZoneControl CR Coilover | Lexus GX460/4Runner (10-23) (41-324158)
SKU:41-324158
In stock
Regular price
$1,160.00 USD
Regular price
$1,264.85 USD
Sale price
$1,160.00 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
The Bilstein B8 8112 ZoneControl CR Coilover for Lexus GX460 and 4Runner models from 2010 to 2023 is a high-performance suspension component designed to enhance ride quality and handling. This direct-fit coilover features ZoneControl technology, which provides position-sensitive damping for improved control across different driving conditions. The triple piston design offers three stages of compression valving and two stages of rebound valving, allowing for precise adjustment and tailored performance. The coilover incorporates a threaded spring seat, enabling ride height adjustments from 0 to 3.8 inches depending on the application. Constructed with durable materials, it ensures longevity and consistent performance whether on-road or off-road.

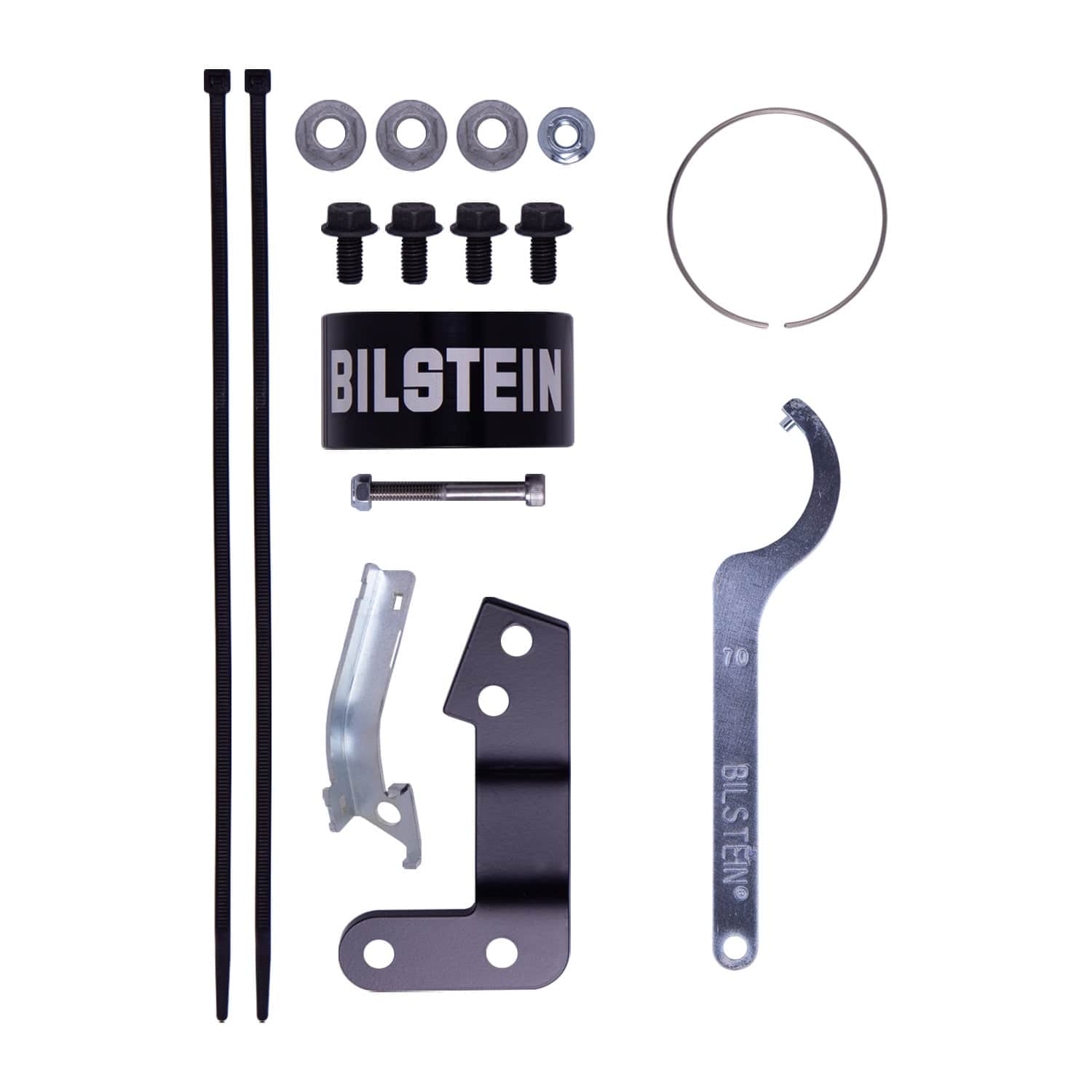

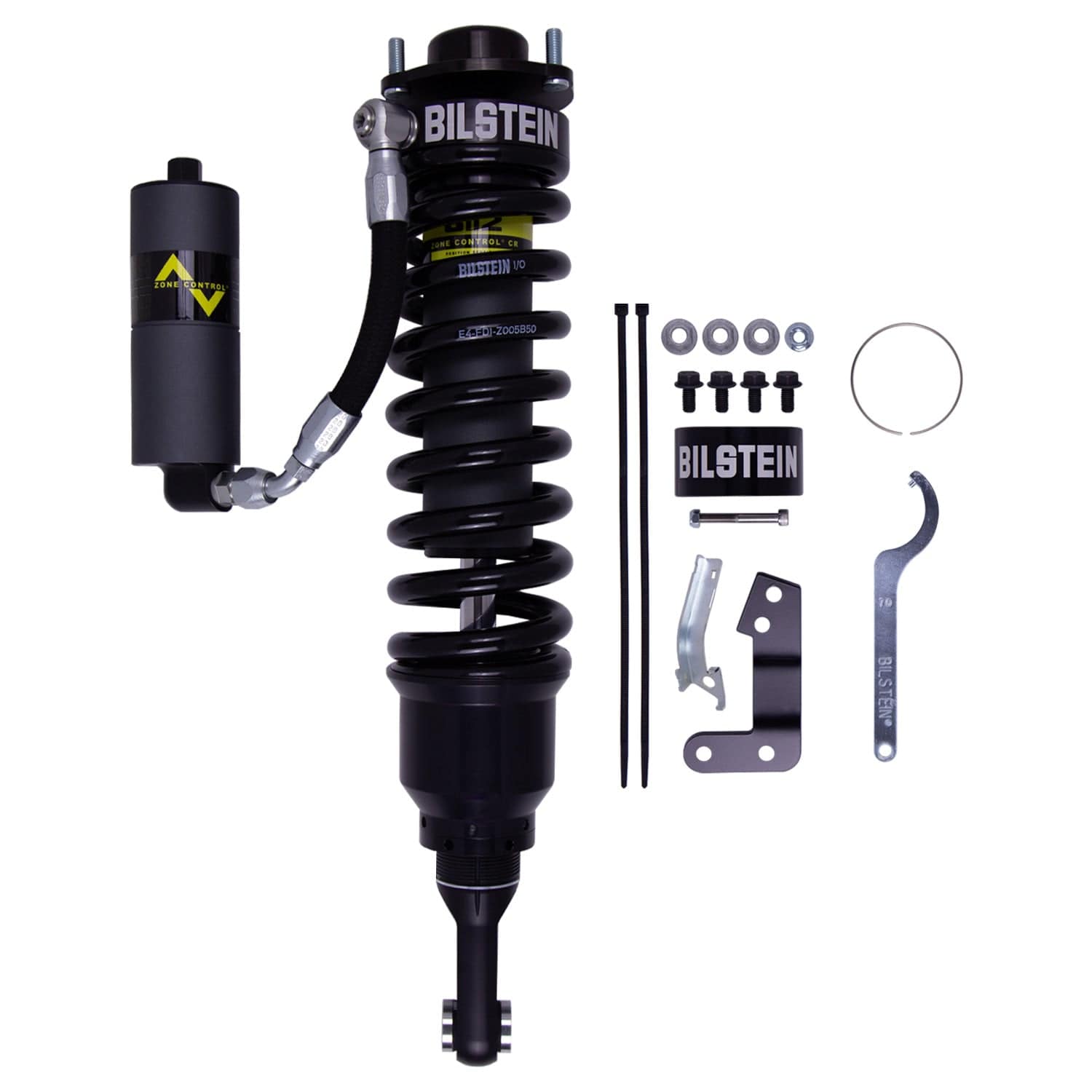

This coilover kit is specifically engineered for light trucks and SUVs, making it suitable for a range of Lexus GX460 and 4Runner models within the specified years. It is intended for enthusiasts seeking a versatile suspension upgrade that balances comfort and performance, whether for daily driving, off-road adventures, or spirited driving. Installation is a direct bolt-on process, with the kit including all necessary components for a straightforward upgrade. Compatible with vehicles equipped with the appropriate chassis and suspension setup, this coilover system offers customizable ride height and damping control to meet diverse driving needs.
Share
Overview
Overview

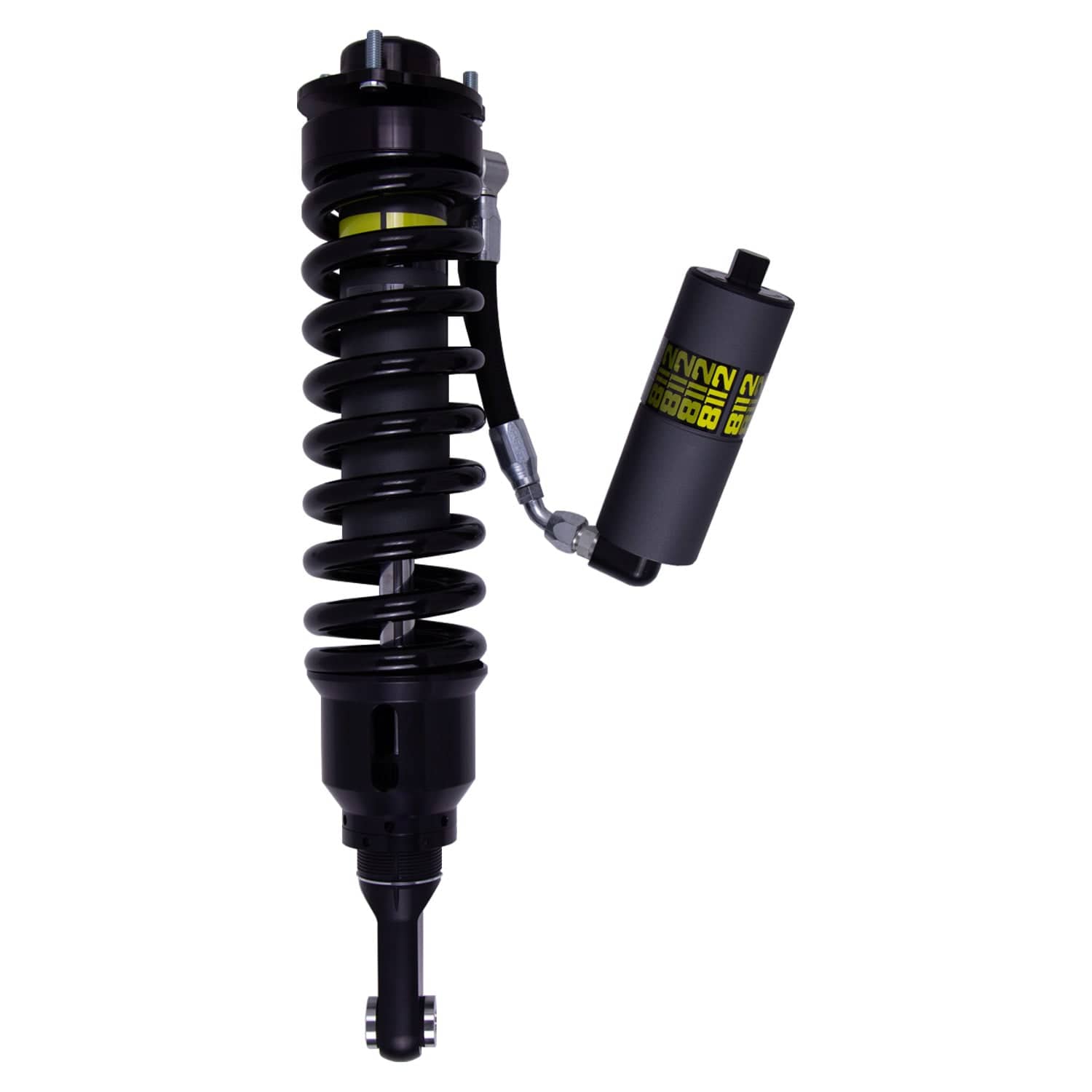

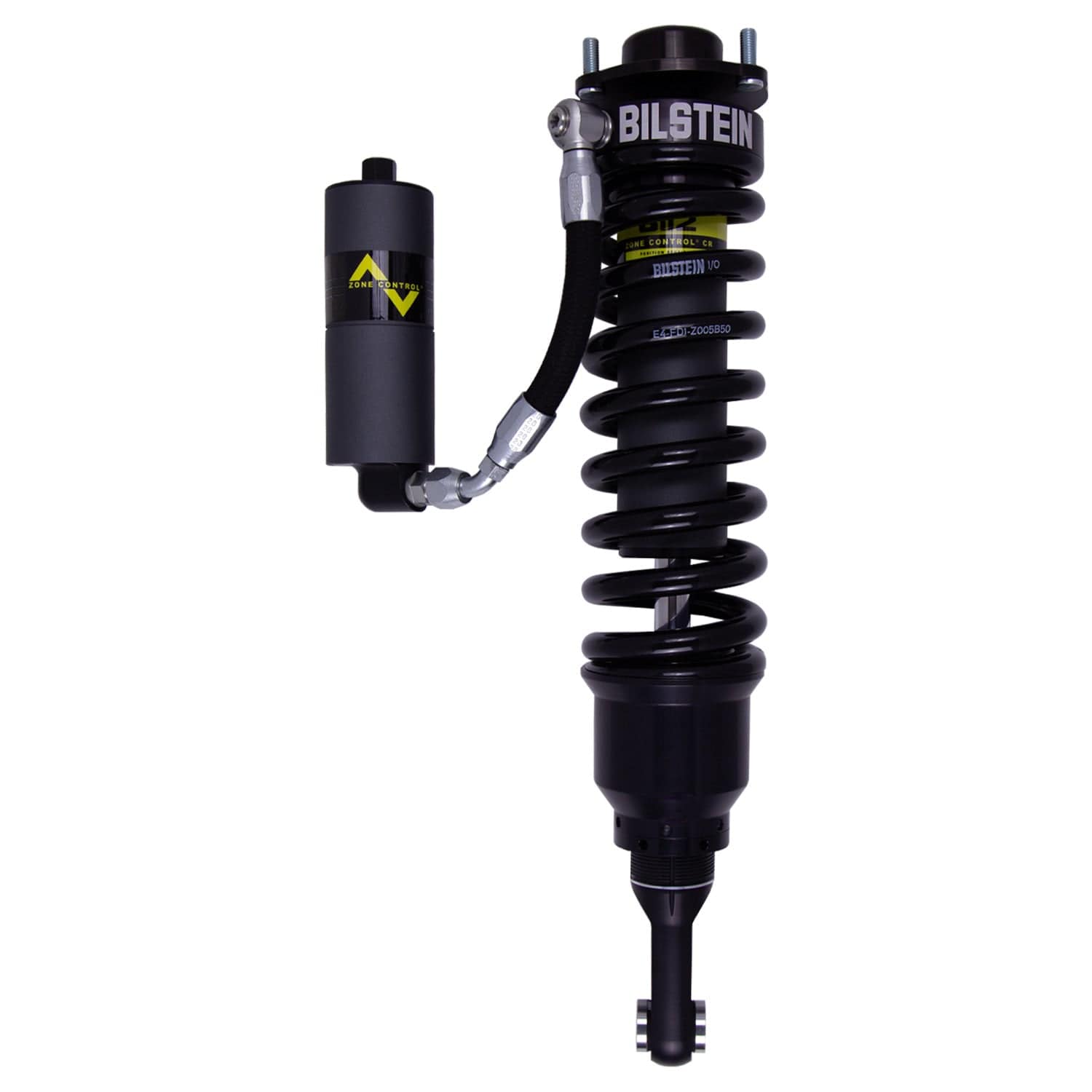

Bilstein B8 8112 (ZoneControl) CR Suspension Kit for the 2010-2023 Lexus GX460 are a direct fit, position sensitive coilover designed for light trucks and SUV's. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8 (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Standard Features
- ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Part Number | 41-324158 |
| Part Name | Shock Absorber and Coil Spring Assembly |
| Vehicle | 2010-2023 Lexus GX460 |
| UPC | 651860915760 |
| Front Lift Height | 1.2 - 3.5 in. |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 17.99 in. |
| Collapsed Length | 456.9 mm |
| Damping Adjustable | No |
| Extended Length | 22.80 in. |
| Extended Length | 579.1 mm |
| Finish | Dampers: EVO Grey / Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Optional Heavy Load Springs | 53-291387, 53-332837 |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8112 (ZoneControl CR) |
| Spring Seat Included | Yes |
| Upper Mount Type | Special |
| Notes | With Kinetic Dynamic Suspension System (KDSS) |
Vehicle Fitment
- 2010 Lexus GX460
- 2011 Lexus GX460
- 2012 Lexus GX460
- 2013 Lexus GX460
- 2014 Lexus GX460
- 2015 Lexus GX460
- 2016 Lexus GX460
- 2017 Lexus GX460
- 2018 Lexus GX460
- 2019 Lexus GX460
- 2020 Lexus GX460
- 2021 Lexus GX460
- 2022 Lexus GX460
- 2023 Lexus GX460
