Bilstein B8 8112 CR Coilover | Toyota 4Runner 10-24 (41-324172) (1.5-3 in lift, monotube)

Bilstein B8 8112 CR Coilover | Toyota 4Runner 10-24 (41-324172) (1.5-3 in lift, monotube)

41-324172

In stock

$1,160.00 USD
$1,264.85 USD $1,160.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Bilstein B8 8112 CR Coilover is a high-performance suspension component designed specifically for the Toyota 4Runner from 2010 to 2024. This monotube coilover features ZoneControl CR technology, which provides position-sensitive damping for optimized ride quality and handling across various driving conditions. Its triple piston design offers three stages of compression valving and two stages of rebound valving, ensuring precise control and stability. The coilover includes a threaded spring seat, allowing for ride height adjustments from 0 to 3.8 inches, making it suitable for light trucks and SUVs seeking improved off-road capability or a customized stance. Built with durable materials, this coilover enhances both ride comfort and performance, whether on-road or off-road.

Designed for 2010-2024 Toyota 4Runners, this coilover is a direct fit upgrade for models equipped with the appropriate chassis and suspension setup. It is intended for enthusiasts seeking to improve vehicle handling, ride height, and off-road performance. The coilover is a bolt-on replacement that does not require extensive modifications, simplifying installation. The kit includes the coilover assembly with adjustable ride height features, enabling users to tailor their vehicle’s stance and performance. Ideal for off-road adventures, daily driving, or performance upgrades, this coilover provides reliable damping control and durability for demanding applications.

Overview

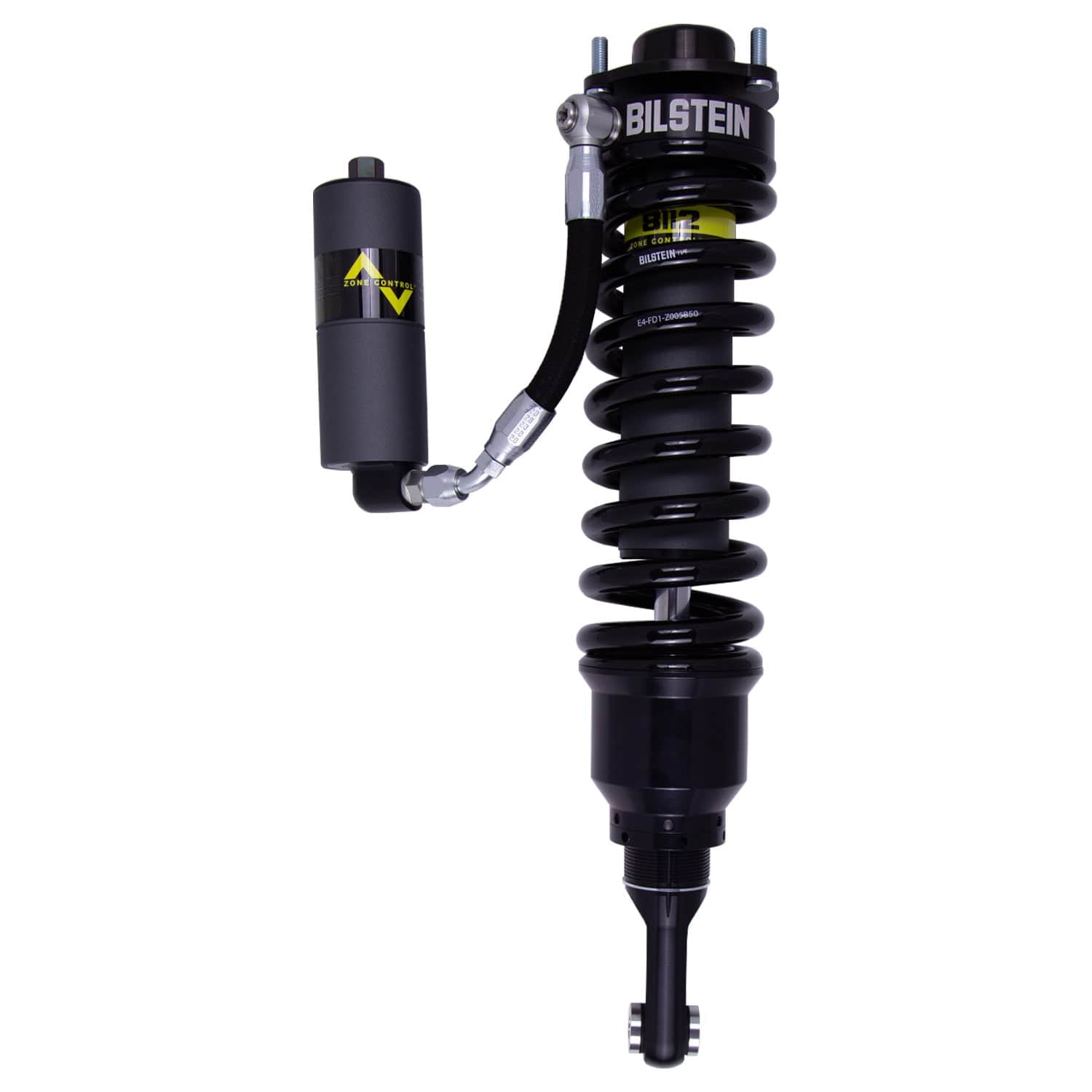

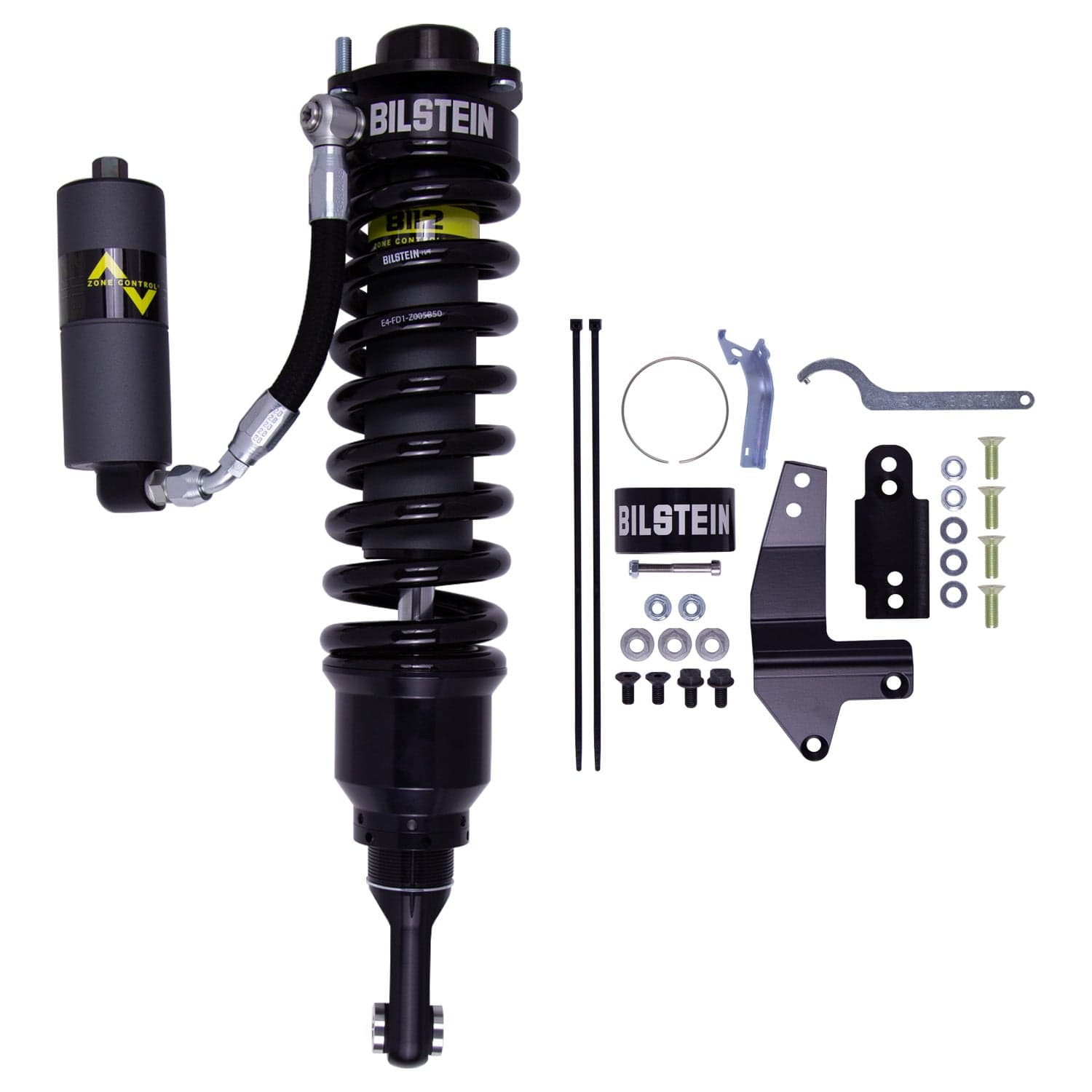

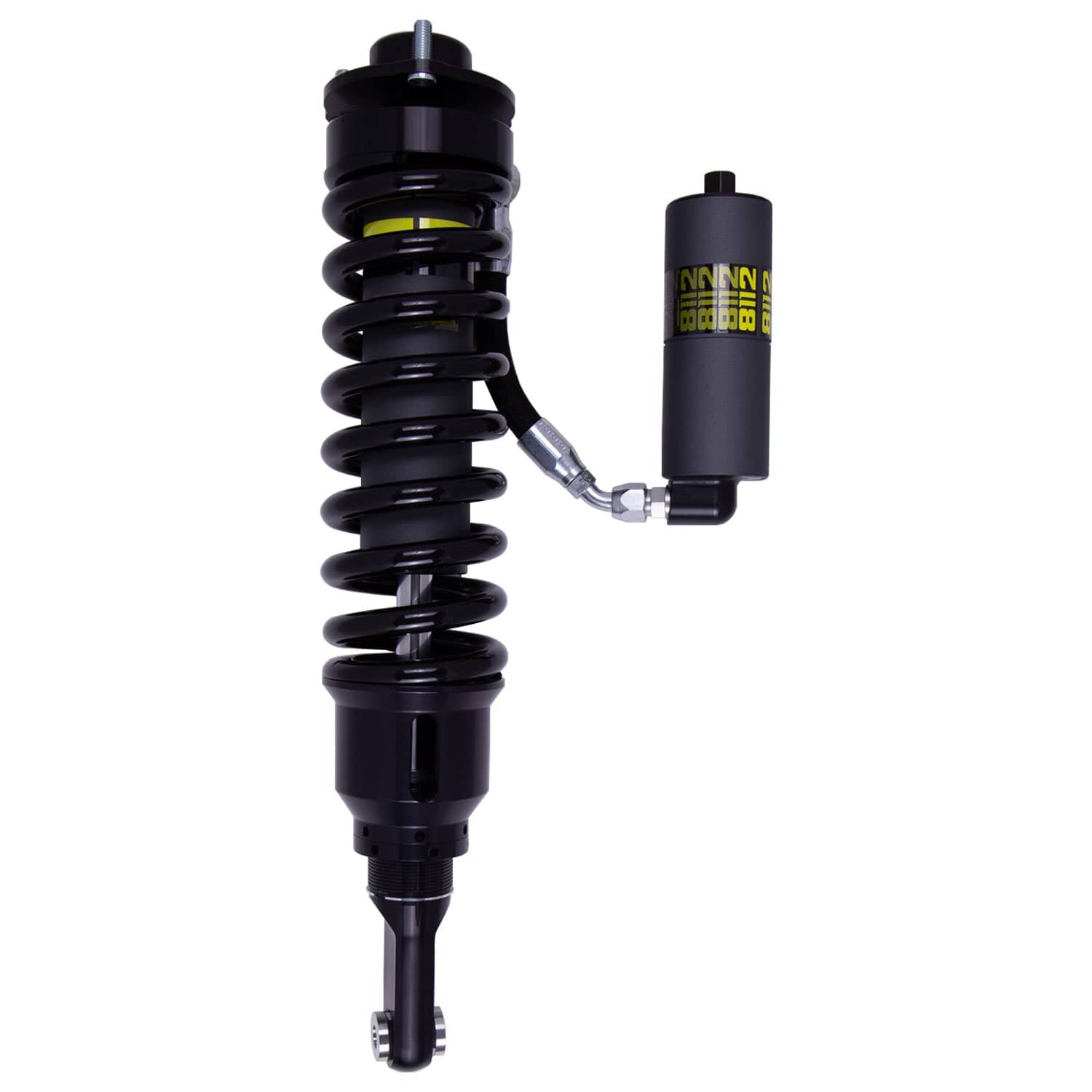

Bilstein B8 8112 (ZoneControl) CR Suspension Kit for the 2010-2024 Toyota 4Runner are a direct fit, position sensitive coilover designed for light trucks and SUV's. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8 (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

Standard Features

  • ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
  • Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
  • 60mm remote reservoir for increased oil capacity and cooling
Specifications
Part Number 41-324172
Part Name Shock Absorber and Coil Spring Assembly
Vehicle 2010-2024 Toyota 4Runner
UPC 651860896700
Front Lift Height 1.5 - 3 in.
Body Design Smooth Body (Coilover)
Body Diameter (ID) 60 mm
Body Material Steel
Boot Included No
Collapsed Length 17.99 in.
Collapsed Length 456.9 mm
Damping Adjustable No
Extended Length 22.80 in.
Extended Length 579.1 mm
Finish Dampers: EVO Grey / Springs: Black
Internal Design Monotube
Lower Mount Type Eye 14.1 mm
Optional Heavy Load Springs 53-291387, 53-332837
Reservoir Yes
Segment Light Truck
Series B8 8112 (ZoneControl CR)
Spring Seat Included Yes
Upper Mount Type Special
Notes Without Kinetic Dynamic Suspension System (KDSS)
Vehicle Fitment
  • 2010 Toyota 4Runner
  • 2011 Toyota 4Runner
  • 2012 Toyota 4Runner
  • 2013 Toyota 4Runner
  • 2014 Toyota 4Runner
  • 2015 Toyota 4Runner
  • 2016 Toyota 4Runner
  • 2017 Toyota 4Runner
  • 2018 Toyota 4Runner
  • 2019 Toyota 4Runner
  • 2020 Toyota 4Runner
  • 2021 Toyota 4Runner
  • 2022 Toyota 4Runner
  • 2023 Toyota 4Runner
  • 2024 Toyota 4Runner
