| Year | Make | Model |
|---|---|---|
| 2014 - 2021 | Toyota | Tundra 1794 Edition |
| 2007 - 2013 | Toyota | Tundra Base |
| 2007 - 2021 | Toyota | Tundra Limited |
| 2021 | Toyota | Tundra Nightshade |
| 2013 - 2021 | Toyota | Tundra Platinum |
| 2014 - 2021 | Toyota | Tundra SR |
| 2007 - 2011 | Toyota | Tundra SR5 |
| 2014 - 2021 | Toyota | Tundra SR5 |
| 2021 | Toyota | Tundra Trail |
| 2015 - 2017 | Toyota | Tundra TRD Pro |
| 2019 - 2021 | Toyota | Tundra TRD Pro |
Bilstein B8 8112 ZoneControl CR Coilover | Toyota Tundra (15-21) (41-326022)
Bilstein B8 8112 ZoneControl CR Coilover | Toyota Tundra (15-21) (41-326022)
SKU:41-326022
In stock
Couldn't load pickup availability
▶ Vehicle Fitments
The Bilstein B8 8112 ZoneControl CR Coilover for the Toyota Tundra (2015-2021) is a high-performance suspension component designed to enhance ride quality and handling. Engineered as a direct-fit, position-sensitive coilover, it features revolutionary ZoneControl technology that provides adaptive damping through a triple piston design, offering three stages of compression and two stages of rebound valving. The coilover module includes a threaded spring seat, allowing for ride height adjustments from 0 to 3.8 inches depending on the specific application. Constructed with durable materials, these coilovers deliver precise control, improved stability, and a comfortable ride across various driving conditions, making them suitable for both street and light off-road use.
Designed for 2015-2021 Toyota Tundra models, these coilovers are compatible with trucks and SUVs equipped with light truck chassis. They serve as a direct replacement for factory suspension components, providing an upgrade in damping performance and adjustability. The ZoneControl CR coilovers are ideal for drivers seeking improved handling, ride comfort, and customization options for on-road or light off-road adventures. Installation involves replacing existing struts with these coilovers, and the kit includes all necessary components for a straightforward bolt-on upgrade. Suitable for daily driving, towing, or performance applications, these coilovers enhance vehicle stability and driver confidence.
Share
Overview
Overview

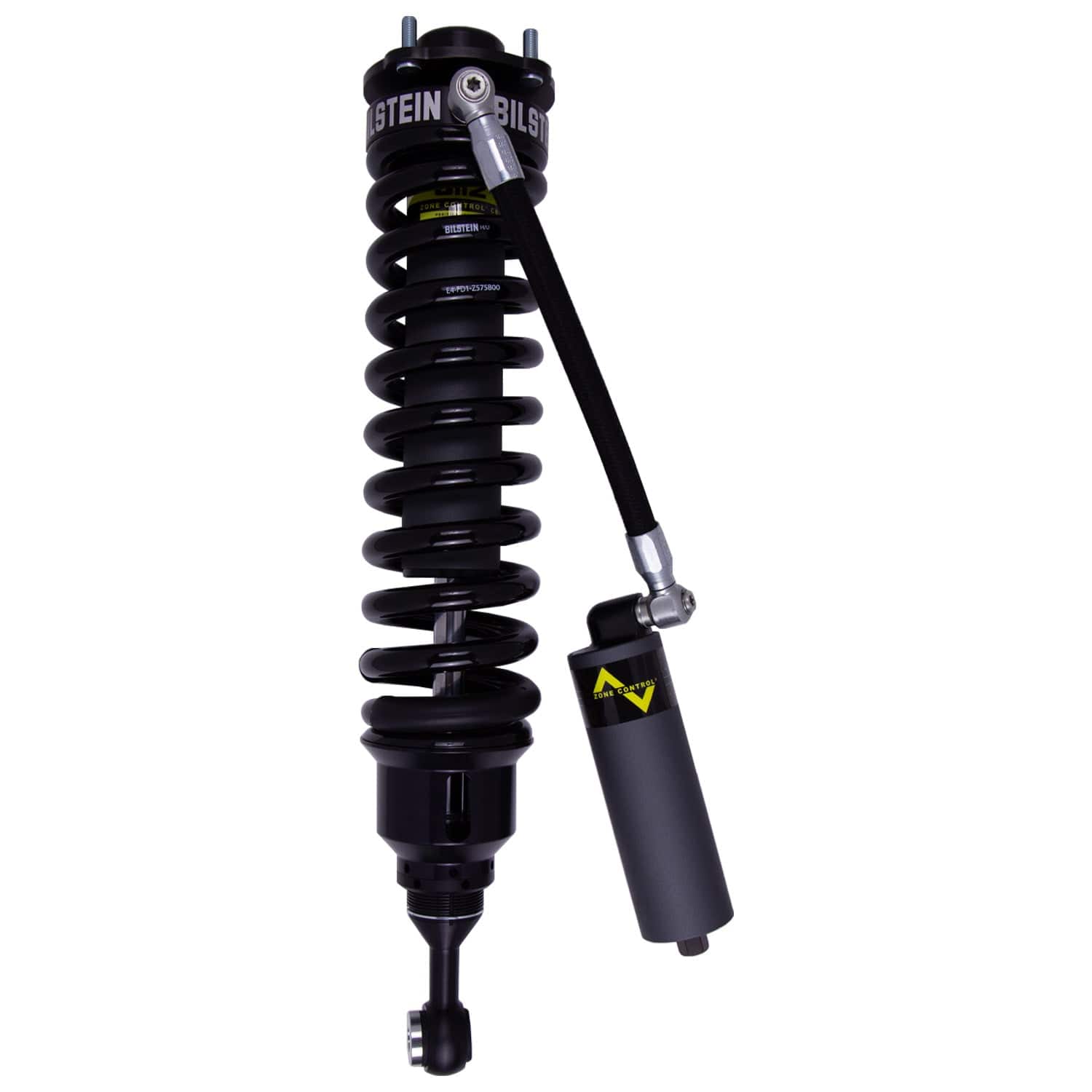

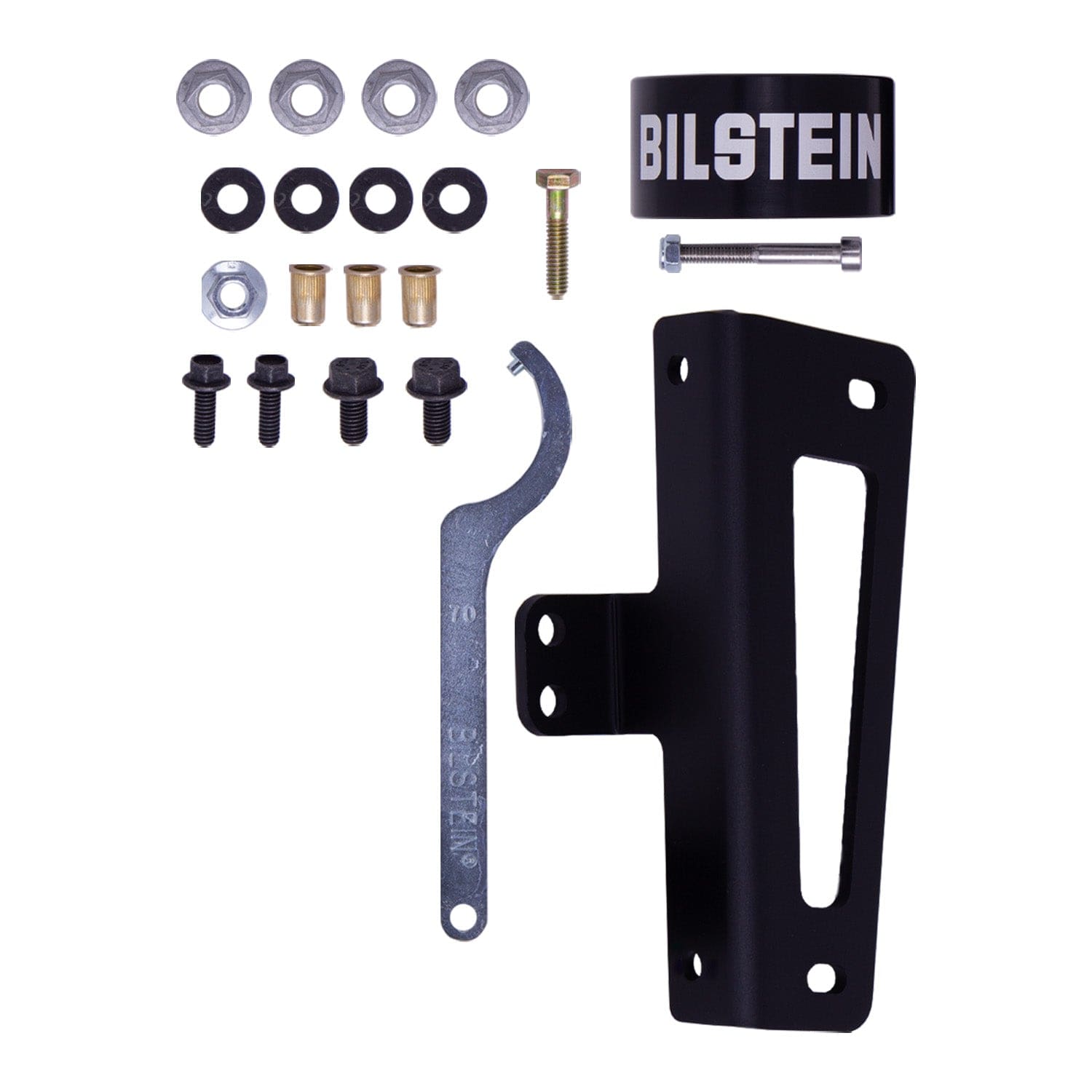

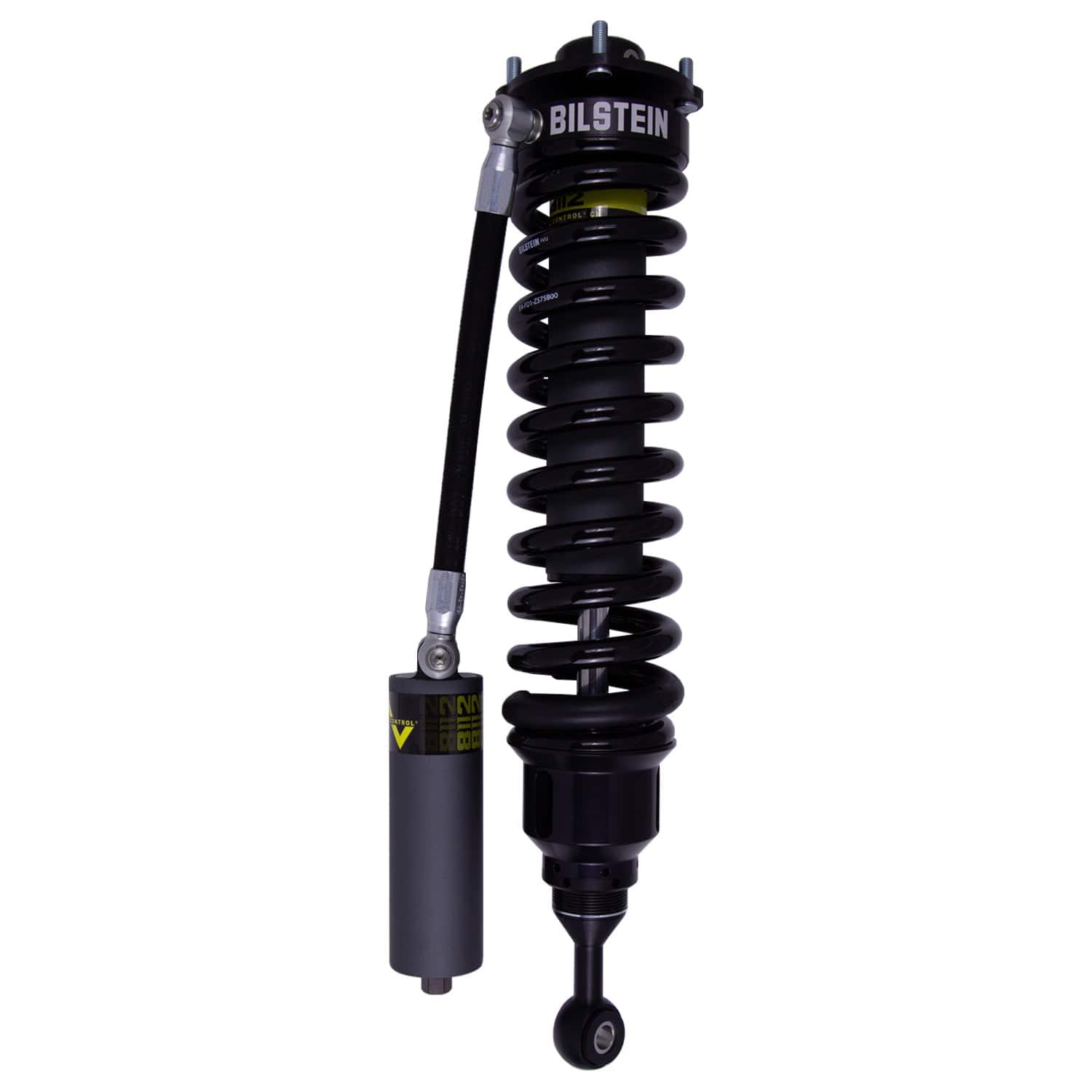

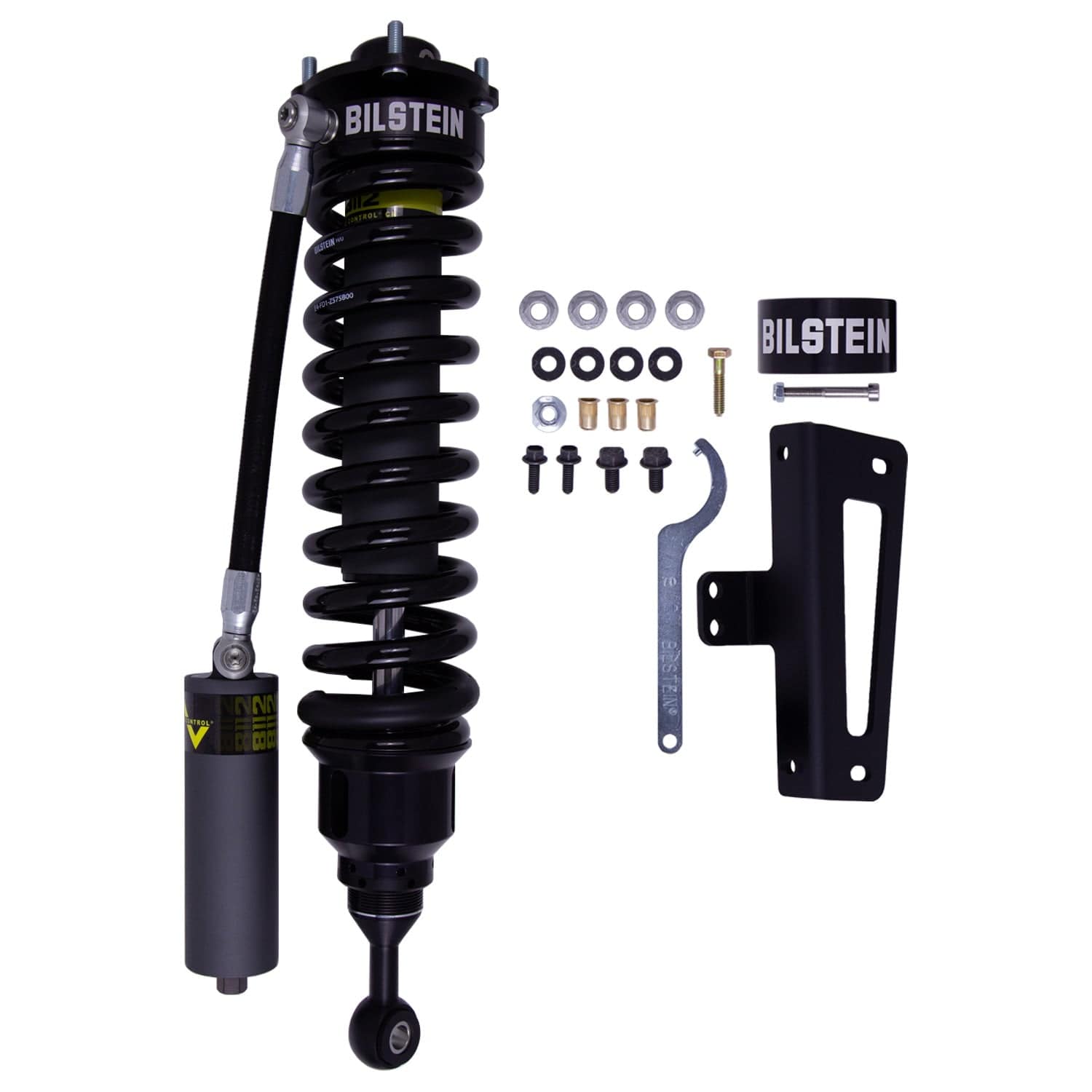

Bilstein B8 8112 (ZoneControl) CR Suspension Kit for the 2015-2021 Toyota Tundra are a direct fit, position sensitive coilover designed for light trucks and SUV's. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8 (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Standard Features
- ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Part Number | 41-326022 |
| Part Name | Shock Absorber and Coil Spring Assembly |
| Vehicle | 2015-2021 Toyota Tundra |
| UPC | 651860890982 |
| Front Lift Height | 2.25 - 3.25 in. |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 19.43 in. |
| Collapsed Length | 493.6 mm |
| Damping Adjustable | No |
| Extended Length | 25.79 in. |
| Extended Length | 655.1 mm |
| Finish | Dampers: EVO Grey / Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Eye 16.1 mm |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8112 (ZoneControl CR) |
| Spring Seat Included | Yes |
| Upper Mount Type | Special |
| Notes | Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended |
Vehicle Fitment
- 2015 Toyota Tundra
- 2016 Toyota Tundra
- 2017 Toyota Tundra
- 2018 Toyota Tundra
- 2019 Toyota Tundra
- 2020 Toyota Tundra
- 2021 Toyota Tundra
