| Year | Make | Model |
|---|---|---|
| 2005 - 2015 | Toyota | Tacoma Base |
| 2016 - 2023 | Toyota | Tacoma Limited |
| 2005 - 2015 | Toyota | Tacoma Pre Runner |
| 2016 - 2023 | Toyota | Tacoma SR |
| 2016 - 2023 | Toyota | Tacoma SR5 |
| 2021 | Toyota | Tacoma Trail |
| 2023 | Toyota | Tacoma Trail Special Edition |
| 2016 - 2023 | Toyota | Tacoma TRD Off-Road |
| 2015 | Toyota | Tacoma TRD Pro |
| 2017 - 2023 | Toyota | Tacoma TRD Pro |
| 2016 - 2023 | Toyota | Tacoma TRD Sport |

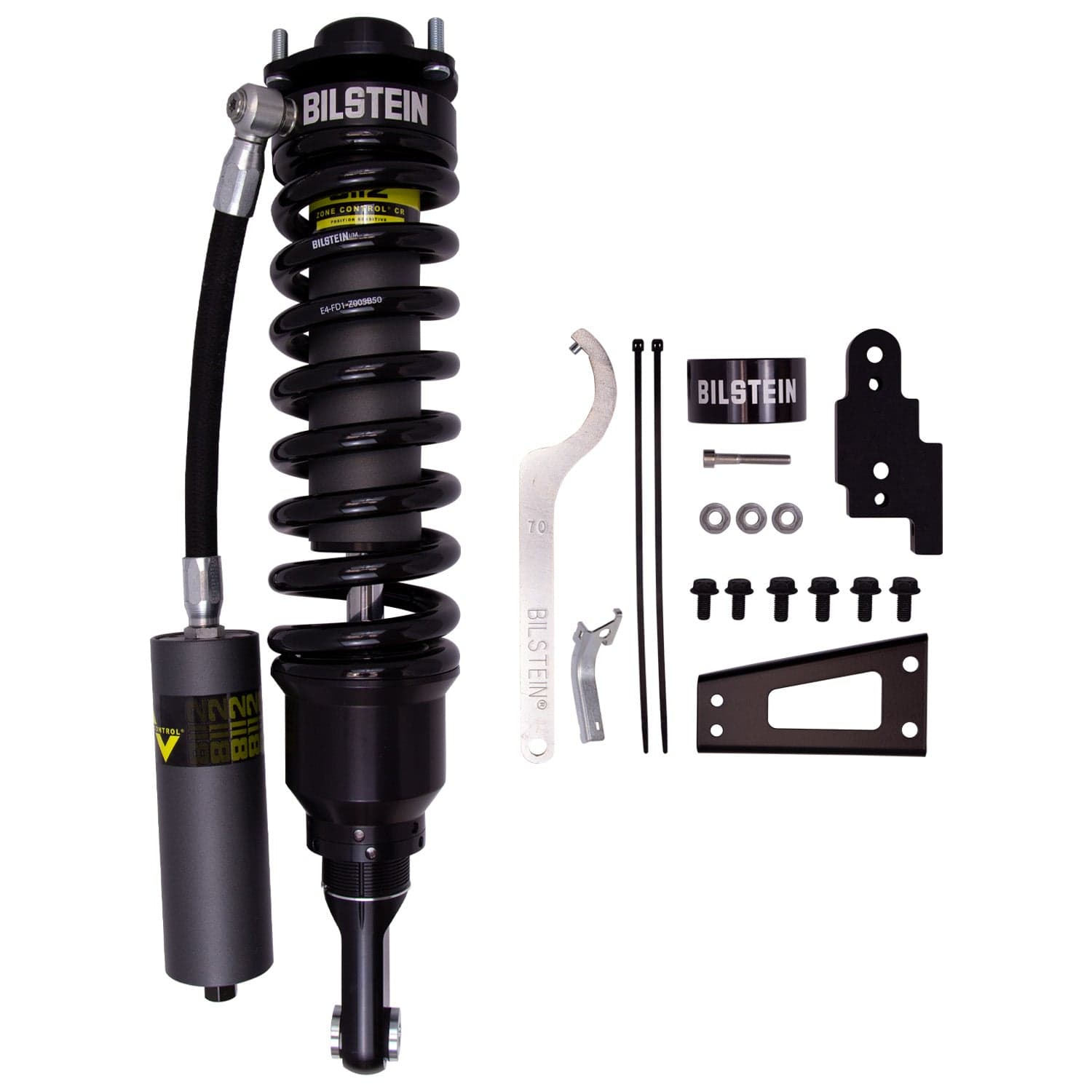

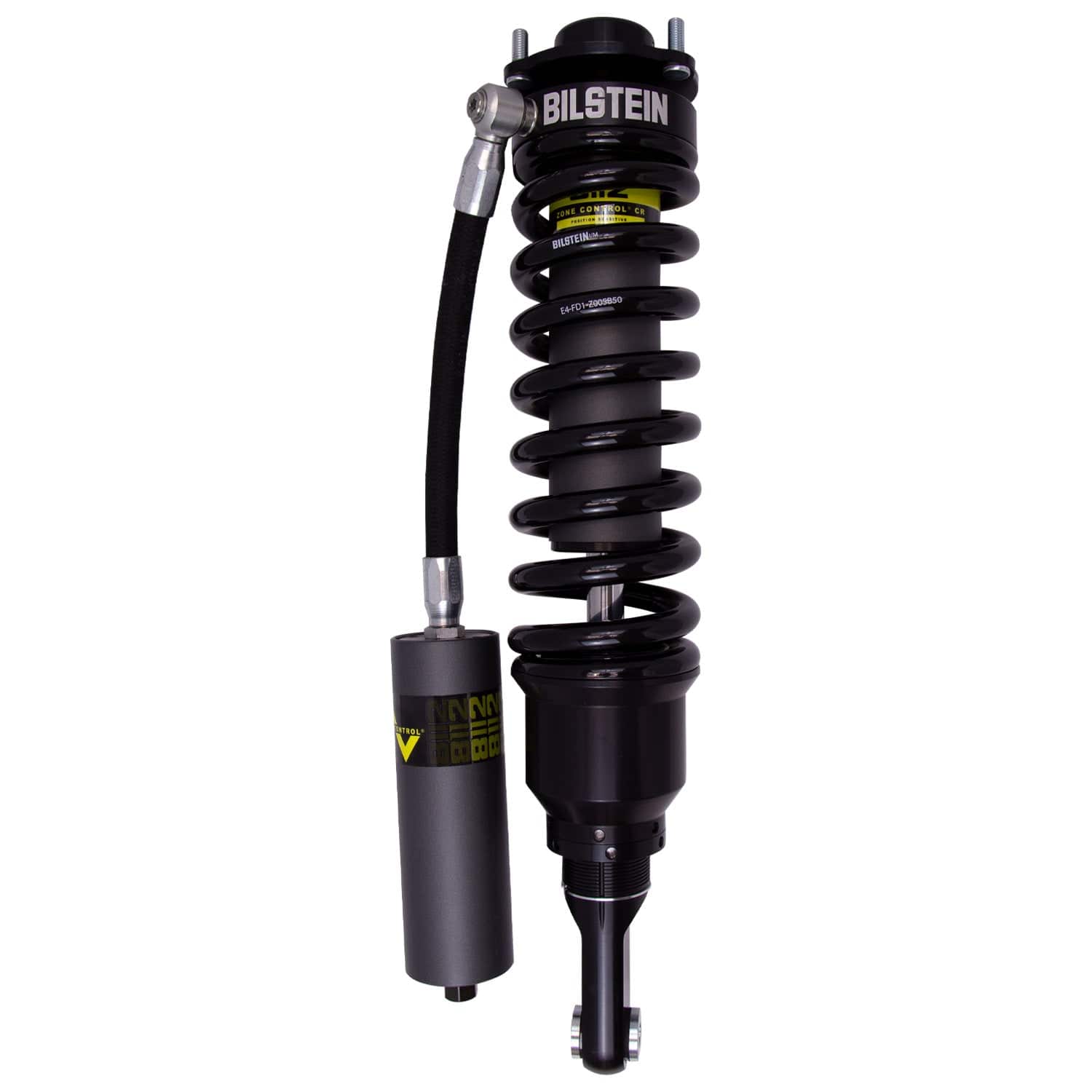

Bilstein B8 8112 ZoneControl CR Coilover | Toyota Tacoma 16-23 (41-322673) (CR)
Bilstein B8 8112 ZoneControl CR Coilover | Toyota Tacoma 16-23 (41-322673) (CR)
SKU:41-322673
In stock
Couldn't load pickup availability
▶ Vehicle Fitments
The Bilstein B8 8112 ZoneControl CR Coilover for the Toyota Tacoma is a high-performance suspension component designed to enhance ride quality and handling. Engineered specifically for light trucks and SUVs from 2016 to 2023, this coilover features ZoneControl CR technology that provides position-sensitive damping for optimal performance across various driving conditions. Its triple piston design offers three stages of compression damping and two stages of rebound damping, allowing for precise control and improved stability. The threaded spring seat enables ride height adjustment from 0 to 3.8 inches, giving users the flexibility to customize their vehicle's stance. Constructed with durable materials, this coilover ensures long-lasting performance and resistance to harsh environments, making it suitable for both street and off-road applications.
Designed as a direct fit for 2016-2023 Toyota Tacoma models, this coilover is ideal for drivers seeking a versatile upgrade that balances comfort and performance. It is compatible with Tacoma trucks equipped with various engine configurations and chassis codes within the specified years. The coilover serves as a replacement or upgrade for factory suspension components, providing improved handling, stability, and ride quality. Installation is straightforward for those familiar with suspension work, and the kit includes the coilover assembly with adjustable ride height features. Whether used for daily driving, off-road adventures, or performance tuning, the Bilstein B8 8112 ZoneControl CR Coilover delivers precise damping control and enhanced vehicle dynamics.
Share
Overview
Overview
Bilstein B8 8112 (ZoneControl) CR Suspension Kit for the 2016-2023 Toyota Tacoma are a direct fit, position sensitive coilover designed for light trucks and SUV's. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8 (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Standard Features
- ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Part Number | 41-322673 |
| Part Name | Shock Absorber and Coil Spring Assembly |
| Vehicle | 2016-2023 Toyota Tacoma |
| UPC | 651860882666 |
| Front Lift Height | 0.4 - 2 in. |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 17.43 in. |
| Collapsed Length | 442.6 mm |
| Damping Adjustable | No |
| Extended Length | 22.39 in. |
| Extended Length | 568.8 mm |
| Finish | Dampers: EVO Grey / Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Optional Heavy Load Springs | 53-291387, 53-332837 |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8112 (ZoneControl CR) |
| Spring Seat Included | Yes |
| Upper Mount Type | Special |
Vehicle Fitment
- 2016 Toyota Tacoma
- 2017 Toyota Tacoma
- 2018 Toyota Tacoma
- 2019 Toyota Tacoma
- 2020 Toyota Tacoma
- 2021 Toyota Tacoma
- 2022 Toyota Tacoma
- 2023 Toyota Tacoma
