| Year | Make | Model |
|---|---|---|
| 2003 - 2009 | Lexus | GX470 Base |
| 2003 - 2009 | Toyota | 4Runner Limited |
| 2003 - 2009 | Toyota | 4Runner SR5 |
| 2007 - 2009 | Toyota | FJ Cruiser Base |
| 2008 | Toyota | FJ Cruiser Trail Teams Special Edition |

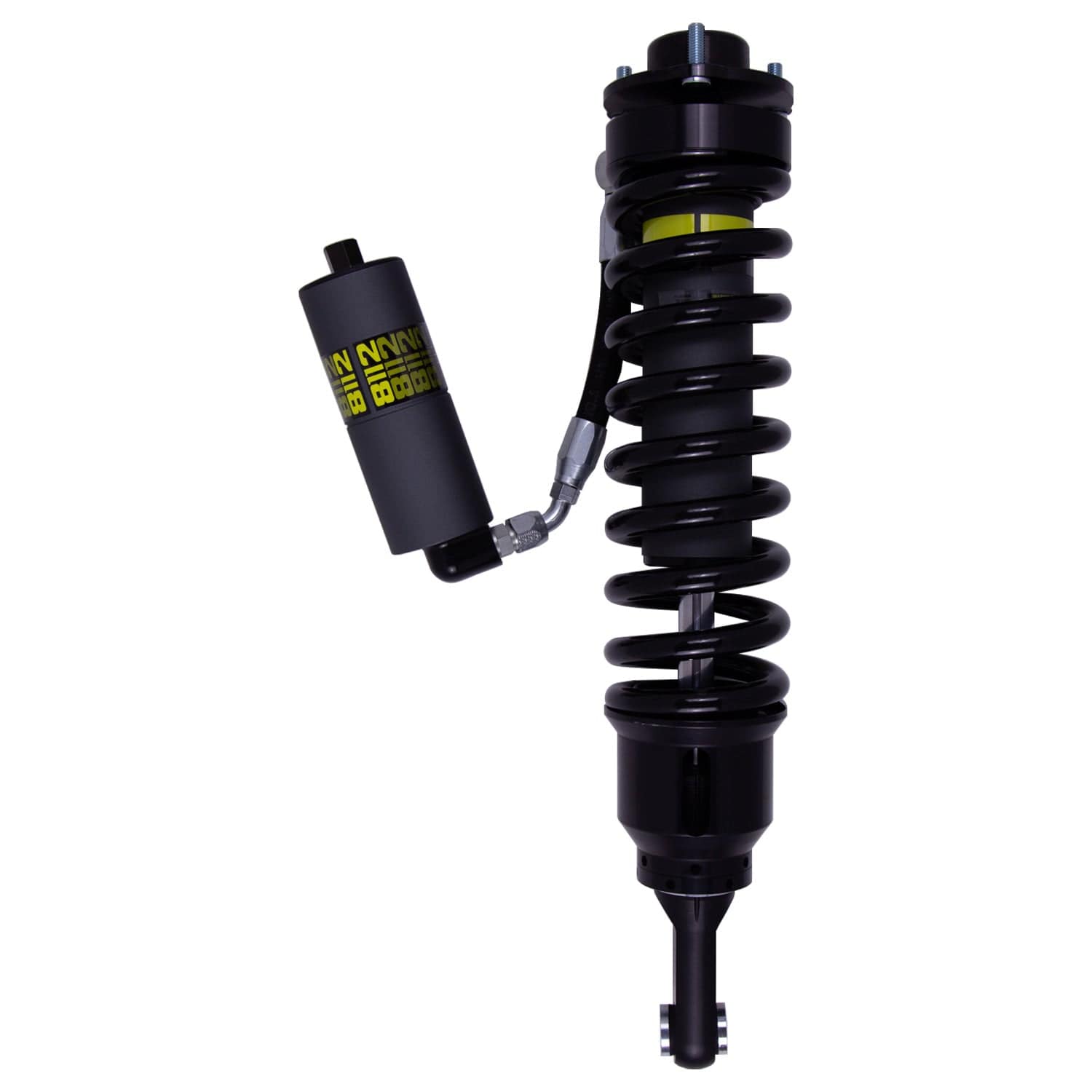

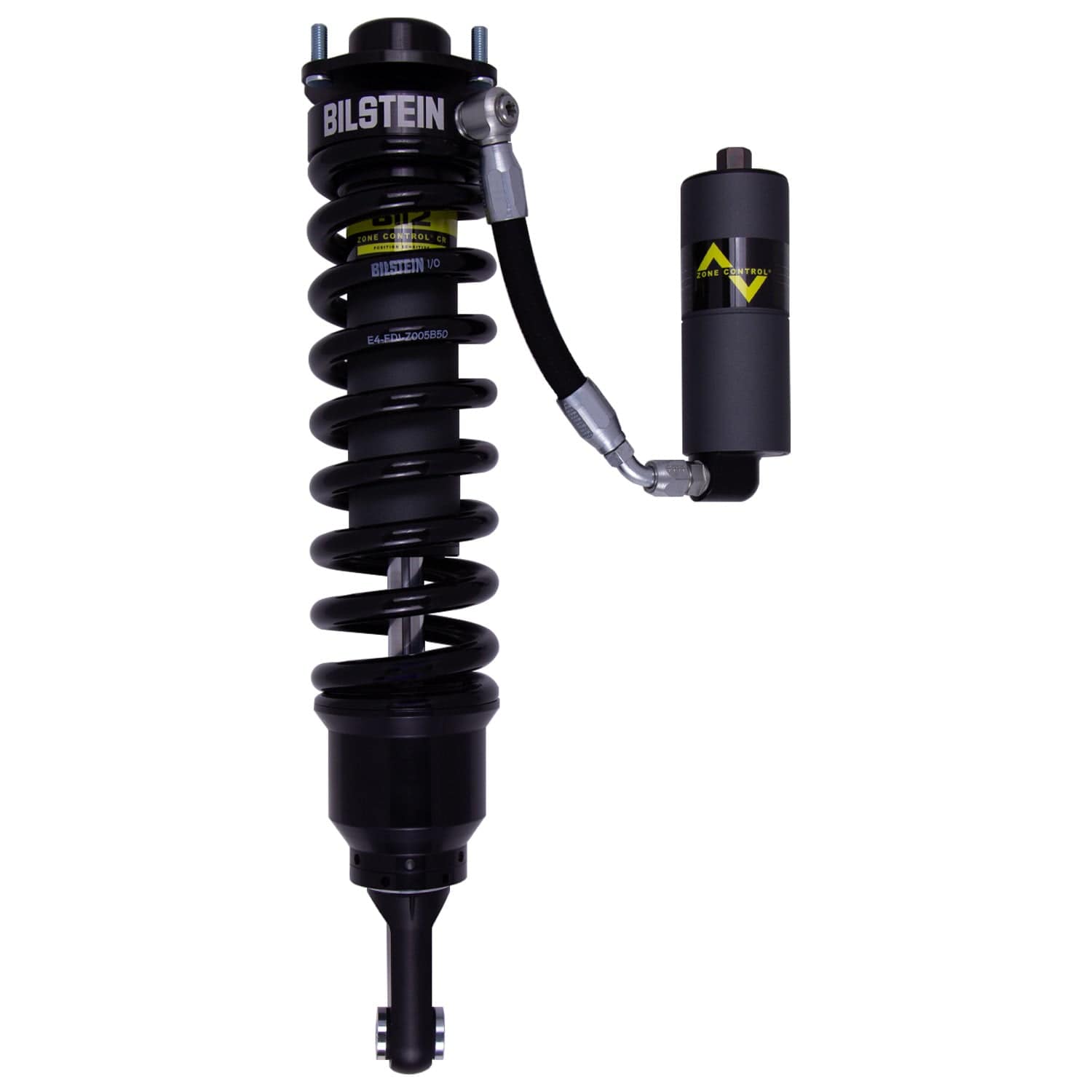

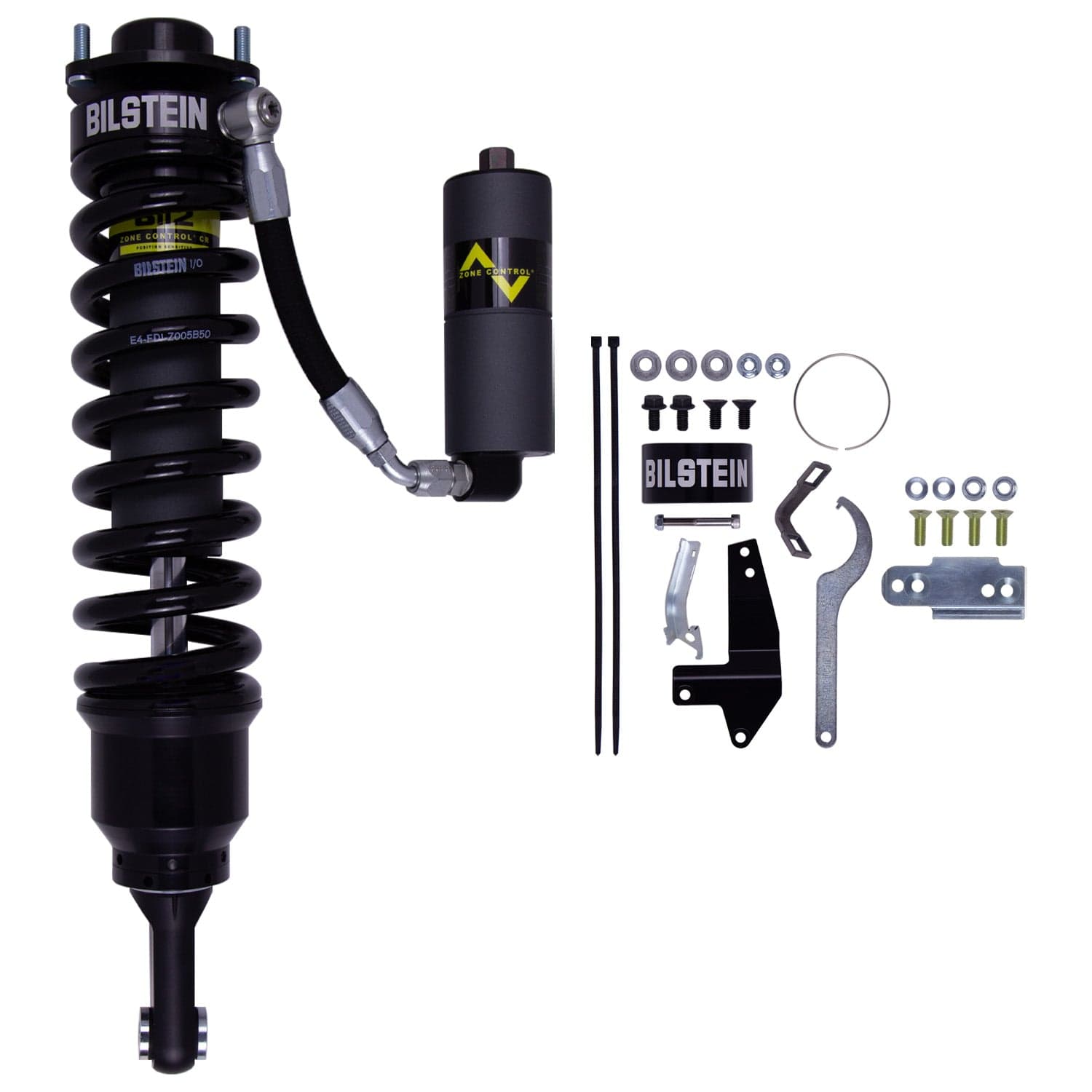

Bilstein B8 8112 EVO Coilover | Toyota 4Runner (03-09) (41-326336)
Bilstein B8 8112 EVO Coilover | Toyota 4Runner (03-09) (41-326336)
SKU:41-326336
Out of stock
Couldn't load pickup availability
â–¶ Vehicle Fitments
The Bilstein B8 8112 EVO Coilover for the Toyota 4Runner (2003-2009) is a high-performance suspension component designed to enhance ride quality and handling. Featuring ZoneControl CR technology, this coilover offers position-sensitive damping with a triple piston design that provides three stages of compression and two stages of rebound valving. The coilover module includes a threaded spring seat, allowing for ride height adjustments from 0 to 3.8 inches depending on the application. Constructed with durable materials, it ensures reliable performance under various driving conditions, whether on-road or off-road. The B8 8112 EVO coilover delivers improved stability, responsiveness, and comfort, making it an ideal upgrade for enthusiasts seeking precise suspension tuning.
Designed specifically for 2003-2009 Toyota 4Runners, this coilover kit is a direct fit for models equipped with light truck and SUV chassis. It is suitable for street driving, off-road adventures, and performance tuning, providing a versatile upgrade for daily drivers and off-road enthusiasts alike. Installation is a bolt-on process, with the kit including all necessary components for a straightforward upgrade. Compatibility is optimized for vehicles with stock or slightly modified suspensions, and the adjustable ride height allows for customization based on driving needs. This coilover system enhances vehicle stability and handling, offering a reliable solution for improved suspension performance.
Share
Overview
Overview
Bilstein B8 8112 (ZoneControl) CR Suspension Kit for the 2003-2009 Toyota 4Runner are a direct fit, position sensitive coilover designed for light trucks and SUV's. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8 (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Standard Features
- ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Part Number | 41-326336 |
| Part Name | Shock Absorber and Coil Spring Assembly |
| Vehicle | 2003-2009 Toyota 4Runner |
| UPC | 651860916767 |
| Front Lift Height | 1.3 - 3.4 in. |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 17.99 in. |
| Collapsed Length | 456.9 mm |
| Damping Adjustable | No |
| Extended Length | 22.80 in. |
| Extended Length | 579.1 mm |
| Finish | Dampers: EVO Grey / Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Optional Heavy Load Springs | 53-291387, 53-332837 |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8112 (ZoneControl CR) |
| Spring Seat Included | Yes |
| Upper Mount Type | Special |
| Notes | Without X-REAS Suspension |
Vehicle Fitment
- 2003 Toyota 4Runner
- 2004 Toyota 4Runner
- 2005 Toyota 4Runner
- 2006 Toyota 4Runner
- 2007 Toyota 4Runner
- 2008 Toyota 4Runner
- 2009 Toyota 4Runner
