| Year | Make | Model |
|---|---|---|
| 2005 - 2015 | Toyota | Tacoma Base |
| 2016 - 2023 | Toyota | Tacoma Limited |
| 2005 - 2015 | Toyota | Tacoma Pre Runner |
| 2016 - 2023 | Toyota | Tacoma SR |
| 2016 - 2023 | Toyota | Tacoma SR5 |
| 2021 | Toyota | Tacoma Trail |
| 2023 | Toyota | Tacoma Trail Special Edition |
| 2016 - 2023 | Toyota | Tacoma TRD Off-Road |
| 2015 | Toyota | Tacoma TRD Pro |
| 2017 - 2023 | Toyota | Tacoma TRD Pro |
| 2016 - 2023 | Toyota | Tacoma TRD Sport |
Bilstein B8 8112 ZoneControl CR Coilover | Toyota Tacoma 05-15 (41-322697)
Bilstein B8 8112 ZoneControl CR Coilover | Toyota Tacoma 05-15 (41-322697)
SKU:41-322697
In stock
Couldn't load pickup availability
▶ Vehicle Fitments

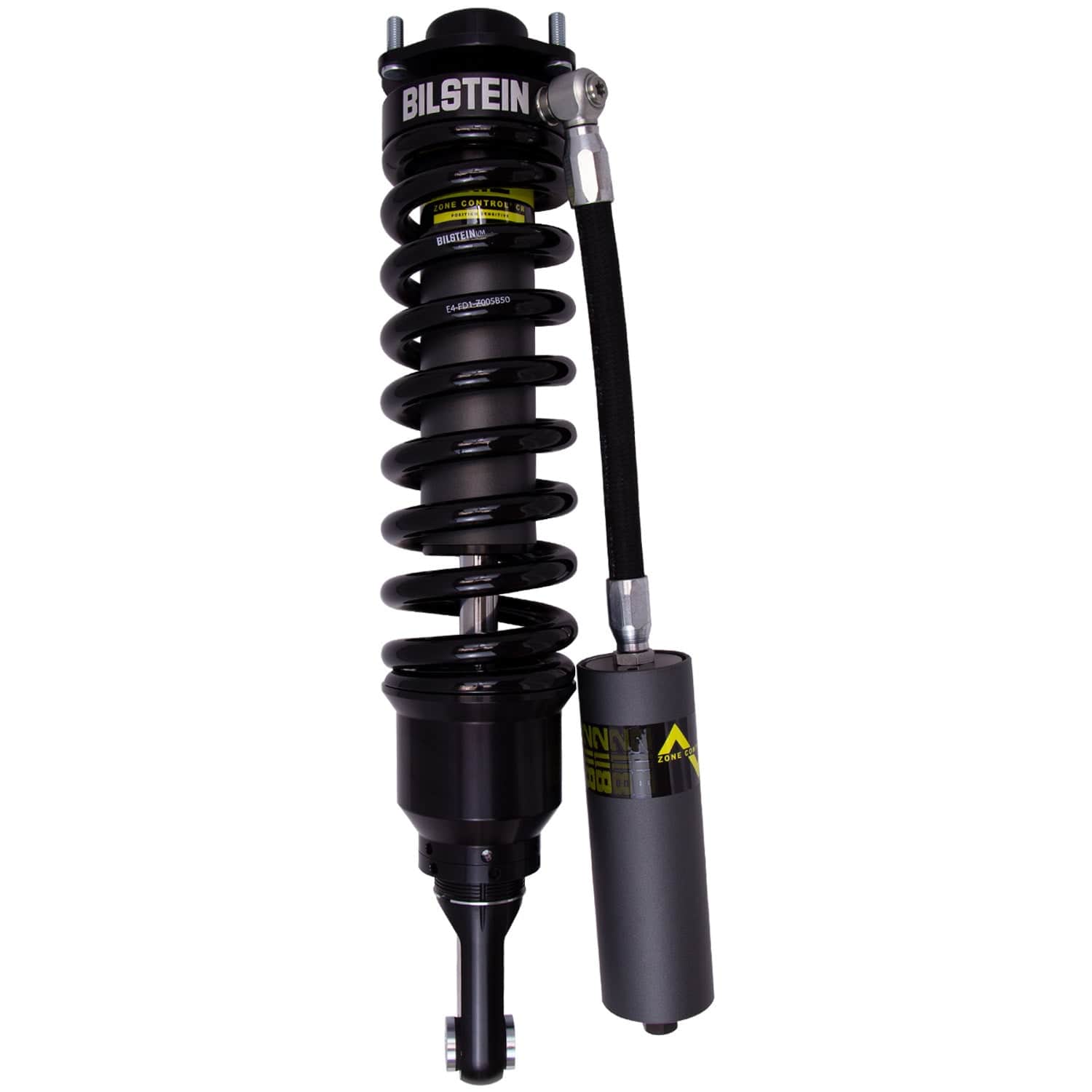

The Bilstein B8 8112 ZoneControl CR Coilover for the Toyota Tacoma is a high-performance suspension component designed to enhance ride quality and handling. Engineered specifically for the 2005-2015 models, this coilover features ZoneControl CR technology that provides position-sensitive damping, allowing for precise adjustment based on driving conditions. Its triple piston design offers three stages of compression valving and two stages of rebound valving, ensuring optimal control and stability across various terrains. The coilover module includes a threaded spring seat, enabling ride height adjustments from 0 to 3.8 inches, making it suitable for both street and off-road applications. Constructed with durable materials, this coilover delivers consistent performance, improved responsiveness, and enhanced vehicle control.

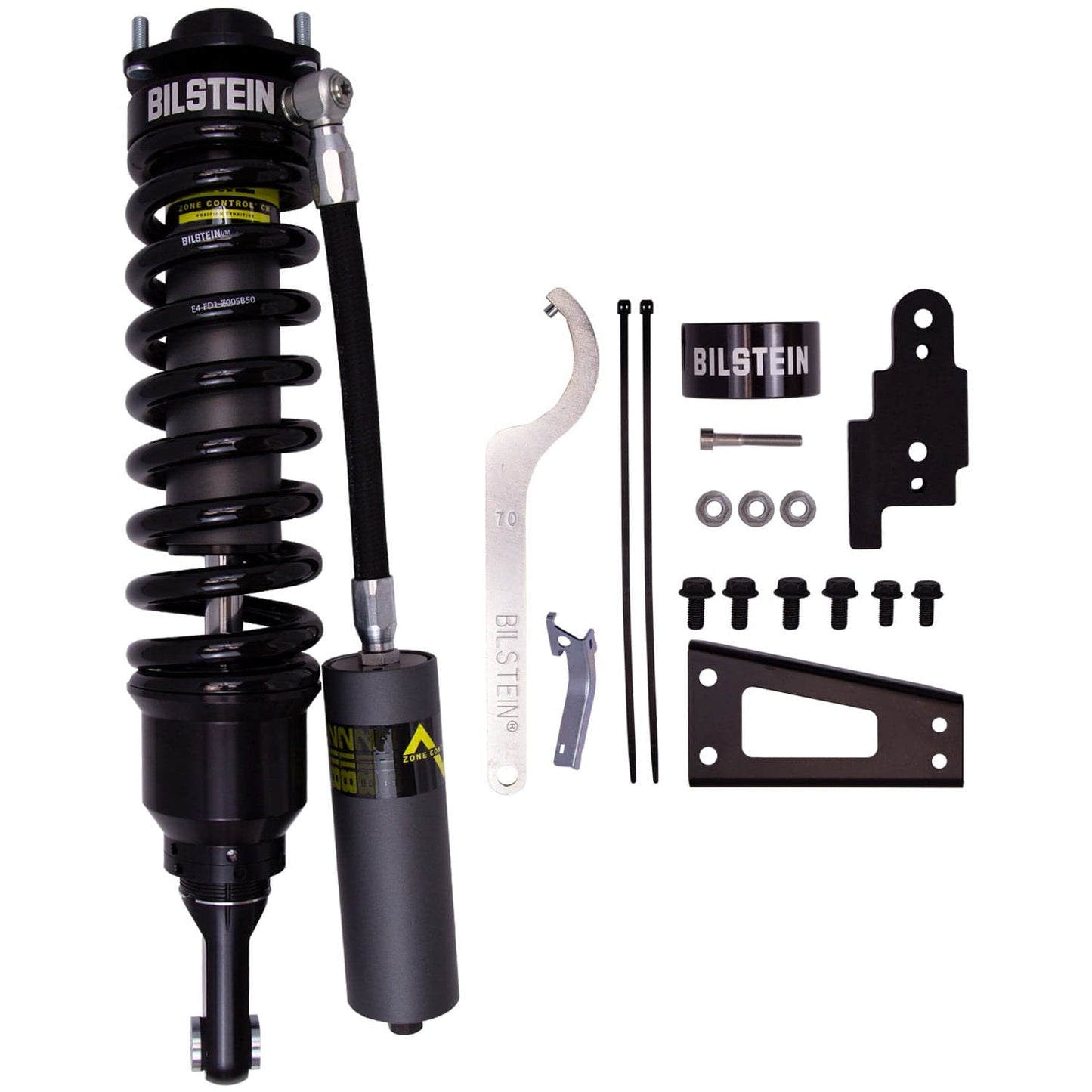

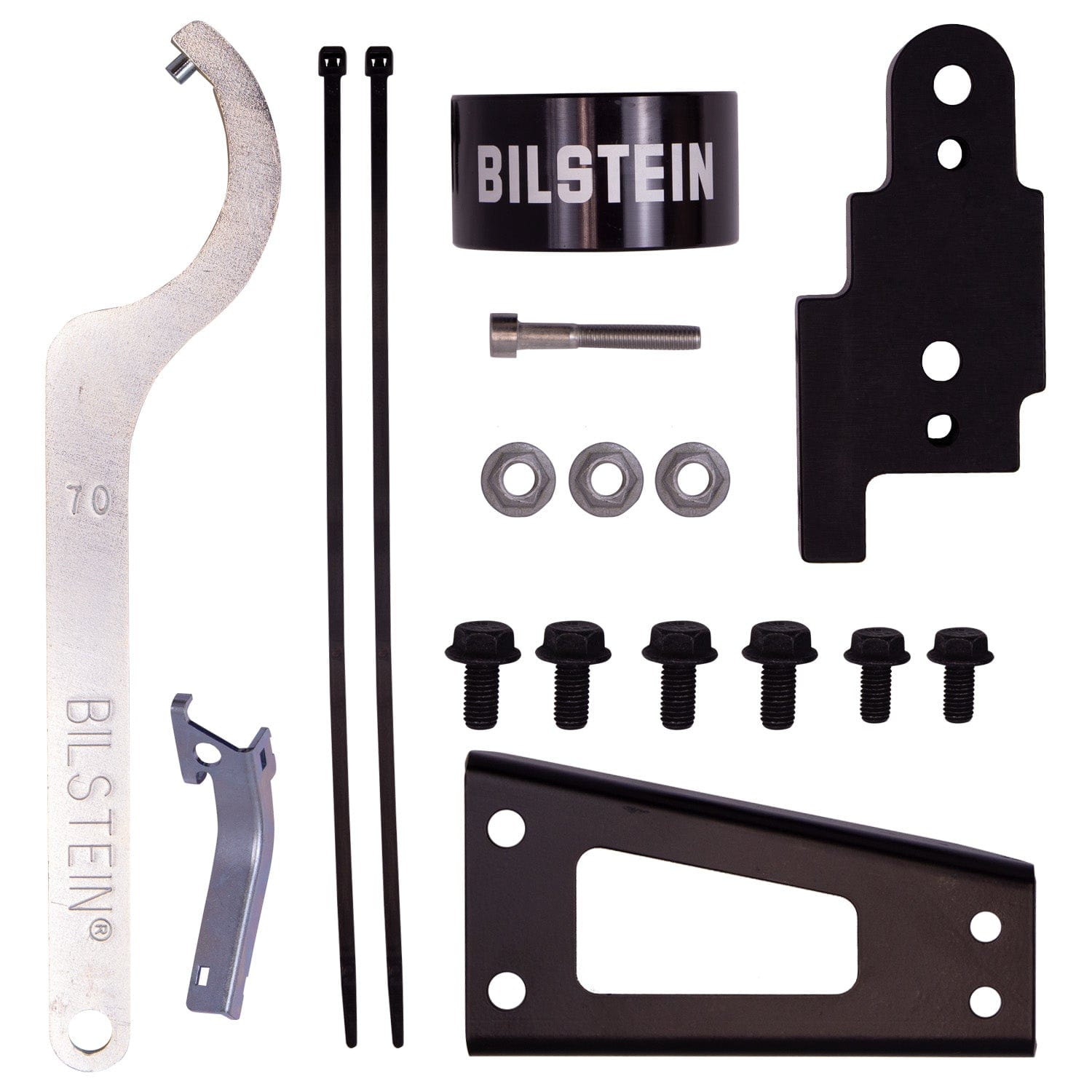

Designed as a direct fit for 2005-2015 Toyota Tacoma models, this coilover is ideal for light trucks and SUVs used in daily driving, off-road adventures, or performance tuning. It replaces the factory suspension components with a bolt-on installation that maintains compatibility with the vehicle’s chassis and suspension geometry. The adjustable ride height and damping settings make it versatile for various driving styles and conditions. The kit includes the coilover assembly and necessary mounting hardware, ensuring a straightforward installation process. Suitable for enthusiasts seeking improved handling, ride comfort, and customization, this coilover system elevates the Tacoma’s suspension performance for both street and off-road use.
Share
Overview
Overview
Bilstein B8 8112 (ZoneControl) CR Suspension Kit for the 2005-2015 Toyota Tacoma are a direct fit, position sensitive coilover designed for light trucks and SUV's. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8 (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Standard Features
- ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Part Number | 41-322697 |
| Part Name | Shock Absorber and Coil Spring Assembly |
| Vehicle | 2005-2015 Toyota Tacoma |
| UPC | 651860887128 |
| Front Lift Height | 0.4 - 2 in. |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 17.43 in. |
| Collapsed Length | 442.6 mm |
| Damping Adjustable | No |
| Extended Length | 22.39 in. |
| Extended Length | 568.8 mm |
| Finish | Dampers: EVO Grey / Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Optional Heavy Load Springs | 53-291387, 53-332837 |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8112 (ZoneControl CR) |
| Spring Seat Included | Yes |
| Upper Mount Type | Special |
Vehicle Fitment
- 2005 Toyota Tacoma
- 2006 Toyota Tacoma
- 2007 Toyota Tacoma
- 2008 Toyota Tacoma
- 2009 Toyota Tacoma
- 2010 Toyota Tacoma
- 2011 Toyota Tacoma
- 2012 Toyota Tacoma
- 2013 Toyota Tacoma
- 2014 Toyota Tacoma
- 2015 Toyota Tacoma
