| Year | Make | Model |
|---|---|---|
| 2005 - 2015 | Toyota | Tacoma Base |
| 2016 - 2023 | Toyota | Tacoma Limited |
| 2005 - 2015 | Toyota | Tacoma Pre Runner |
| 2016 - 2023 | Toyota | Tacoma SR |
| 2016 - 2023 | Toyota | Tacoma SR5 |
| 2021 | Toyota | Tacoma Trail |
| 2023 | Toyota | Tacoma Trail Special Edition |
| 2016 - 2023 | Toyota | Tacoma TRD Off-Road |
| 2015 | Toyota | Tacoma TRD Pro |
| 2017 - 2023 | Toyota | Tacoma TRD Pro |
| 2016 - 2023 | Toyota | Tacoma TRD Sport |
1
/
of
3

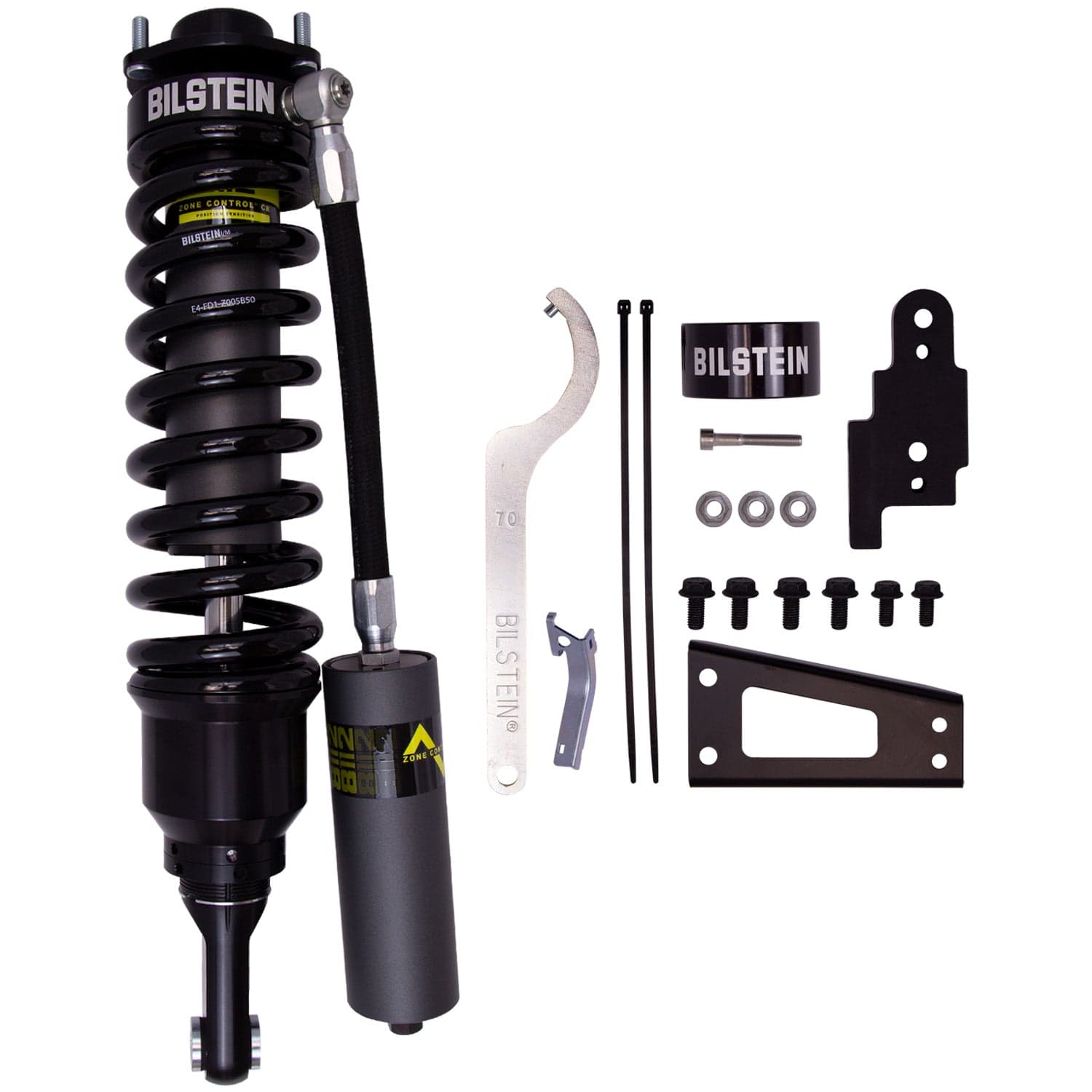

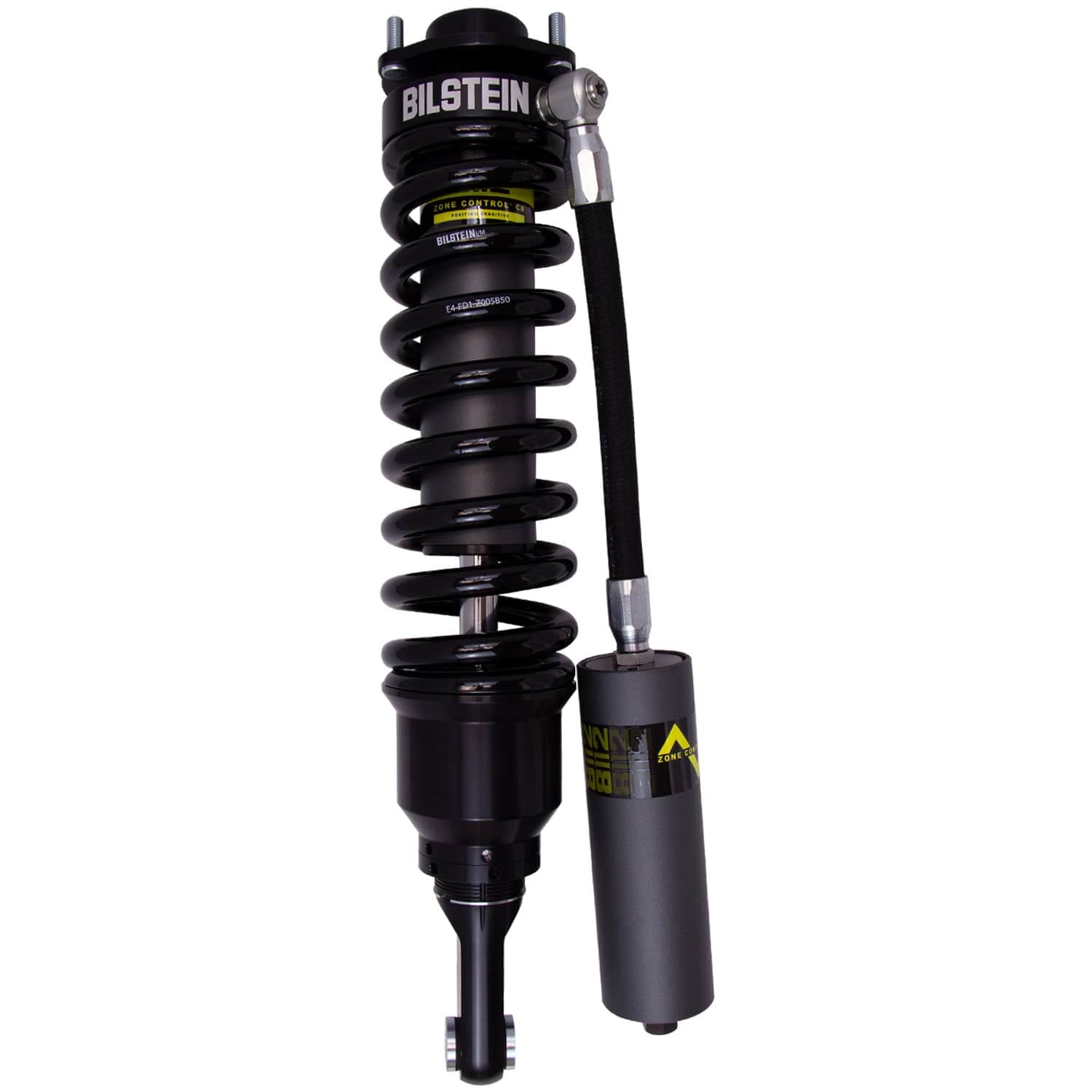

Bilstein B8 8112 ZoneControl CR Coilover | Toyota Tacoma 05-23 (41-322697)
Bilstein B8 8112 ZoneControl CR Coilover | Toyota Tacoma 05-23 (41-322697)
SKU:41-322697
In stock
Regular price
$1,160.00 USD
Regular price
$1,264.85 USD
Sale price
$1,160.00 USD
Unit price
/
per
Couldn't load pickup availability
â–¶ Vehicle Fitments
The Bilstein B8 8112 ZoneControl CR Coilover for the Toyota Tacoma is a high-performance suspension component designed to enhance ride quality and handling. Engineered specifically for the 2005-2023 model years, this coilover features ZoneControl CR technology, which provides position-sensitive damping for optimal comfort and stability across various driving conditions. Its triple piston design offers three stages of compression valving and two stages of rebound valving, allowing precise control over damping characteristics. The coilover module includes a threaded spring seat, enabling ride height adjustments from 0 to 3.8 inches depending on the application. Constructed with durable materials, it ensures long-lasting performance and improved vehicle dynamics, making it suitable for both street and off-road use.

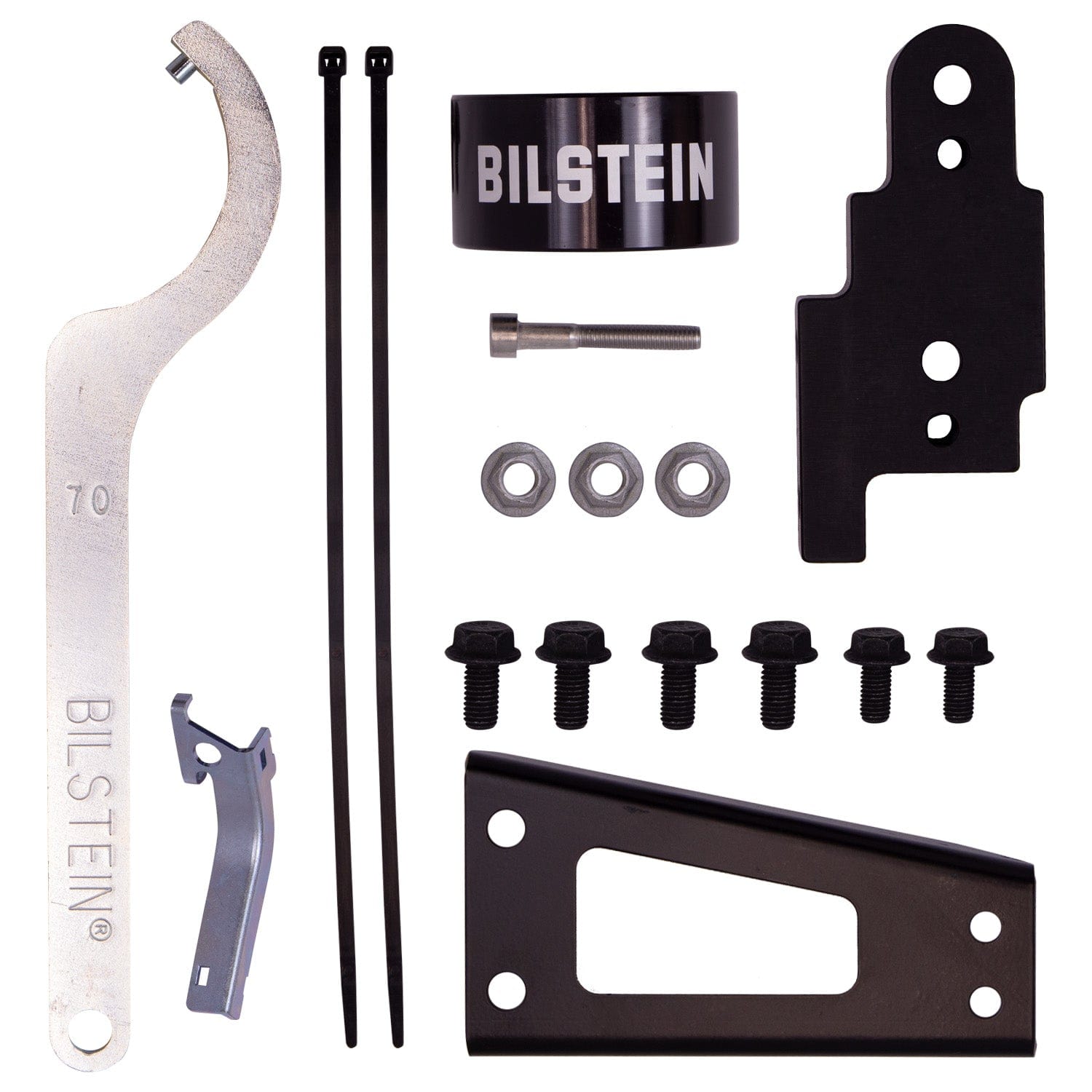

This coilover kit is a direct fit for 2005-2023 Toyota Tacoma models, compatible with various engine configurations and chassis codes. It is designed for light trucks and SUVs, providing an upgrade over stock suspension components to improve handling, stability, and load-carrying capacity. The installation is a bolt-on process, requiring no additional modifications. The kit includes the coilover units and necessary mounting hardware, offering a comprehensive solution for suspension tuning. Ideal for enthusiasts seeking enhanced performance on daily driving, off-road adventures, or spirited driving, this Bilstein coilover system delivers versatile and reliable suspension performance.
Share
Overview
Overview
Bilstein B8 8112 (ZoneControl) CR Suspension Kit for the 2005-2023 Toyota Tacoma are a direct fit, position sensitive coilover designed for light trucks and SUV's. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8 (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Standard Features
- ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Part Number | 41-322697 |
| Part Name | Shock Absorber and Coil Spring Assembly |
| Vehicle | 2005-2023 Toyota Tacoma |
| UPC | 651860887128 |
| Front Lift Height | 0.4 - 2 in. |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 17.43 in. |
| Collapsed Length | 442.6 mm |
| Damping Adjustable | No |
| Extended Length | 22.39 in. |
| Extended Length | 568.8 mm |
| Finish | Dampers: EVO Grey / Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Optional Heavy Load Springs | 53-291387, 53-332837 |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8112 (ZoneControl CR) |
| Spring Seat Included | Yes |
| Upper Mount Type | Special |
Vehicle Fitment
- 2005 Toyota Tacoma
- 2006 Toyota Tacoma
- 2007 Toyota Tacoma
- 2008 Toyota Tacoma
- 2009 Toyota Tacoma
- 2010 Toyota Tacoma
- 2011 Toyota Tacoma
- 2012 Toyota Tacoma
- 2013 Toyota Tacoma
- 2014 Toyota Tacoma
- 2015 Toyota Tacoma
- 2016 Toyota Tacoma
- 2017 Toyota Tacoma
- 2018 Toyota Tacoma
- 2019 Toyota Tacoma
- 2020 Toyota Tacoma
- 2021 Toyota Tacoma
- 2022 Toyota Tacoma
- 2023 Toyota Tacoma
