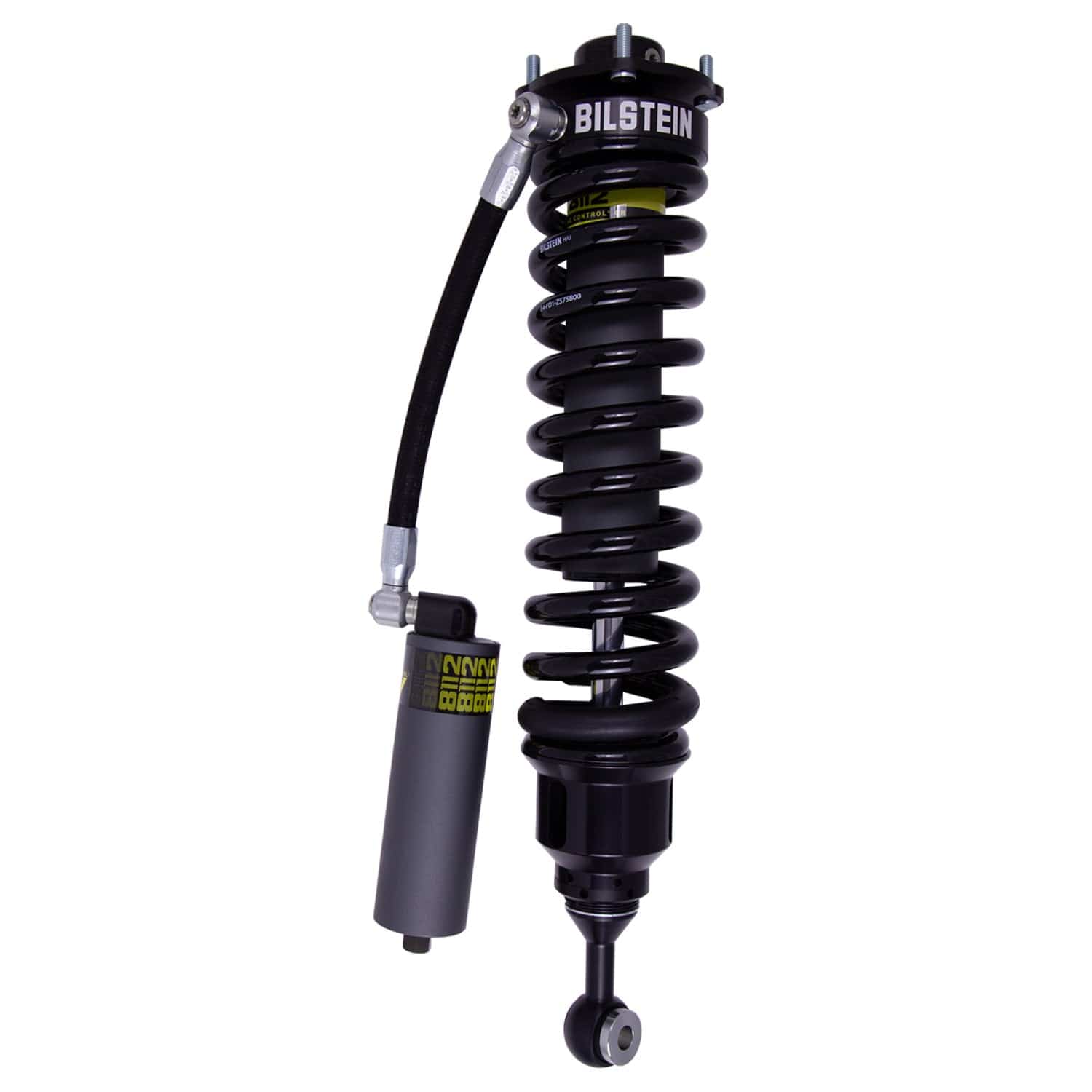

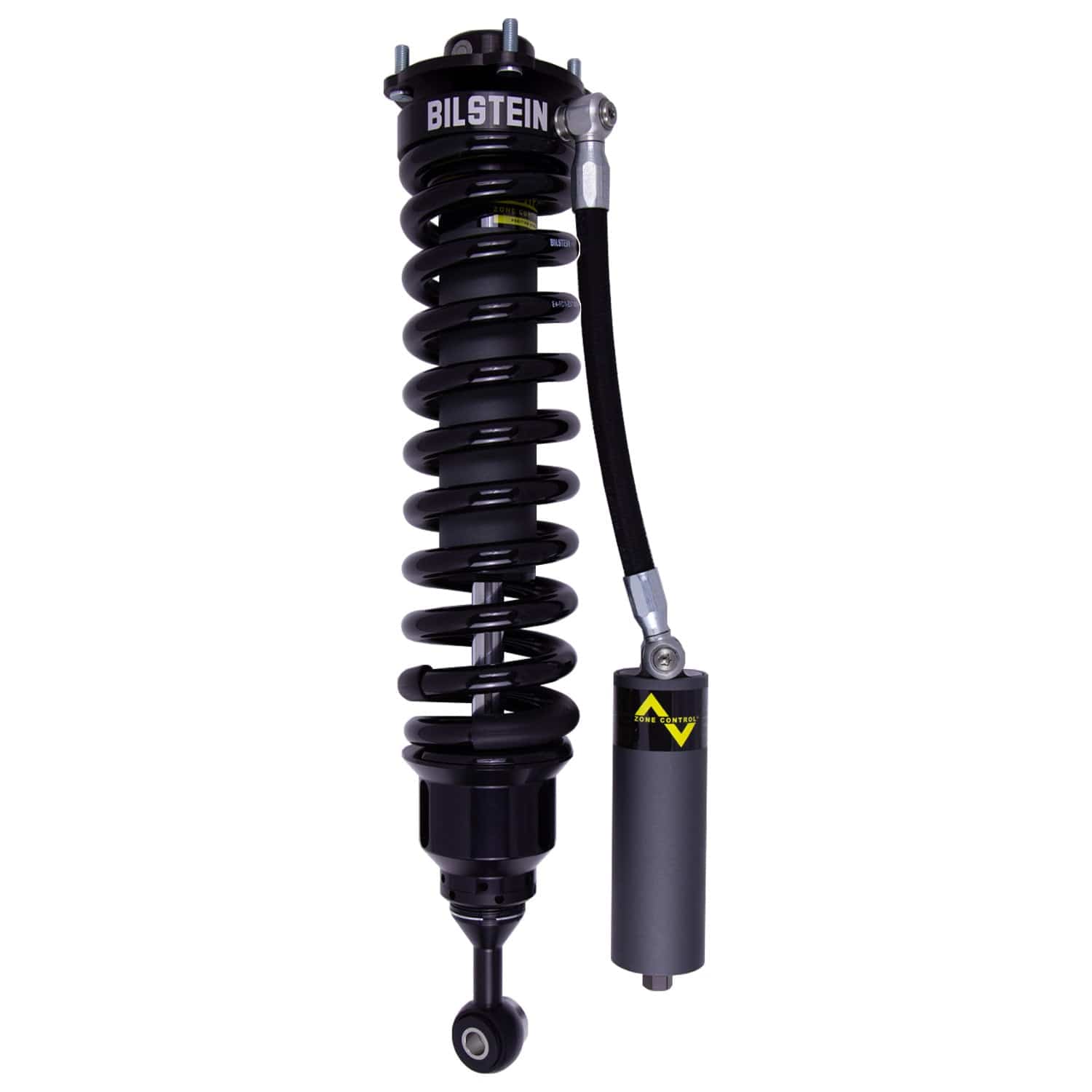

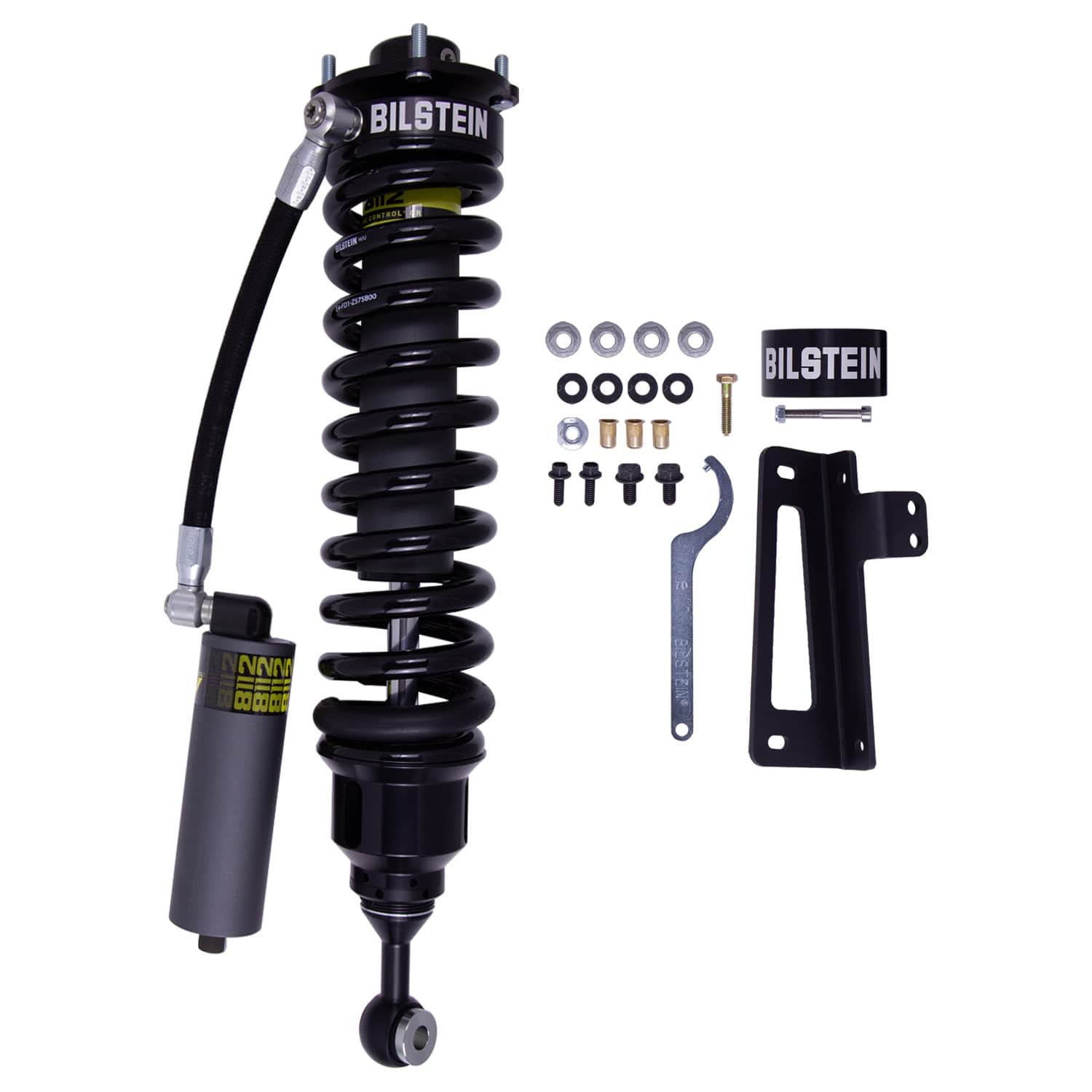

Bilstein B8 8112 (ZoneControl CR) Front Right Shock Absorber and Coil Spring Assembly for 2007-2021 Toyota Tundra RWD - 25.79 in. Extended, EVO Grey

Bilstein B8 8112 (ZoneControl CR) Front Right Shock Absorber and Coil Spring Assembly for 2007-2021 Toyota Tundra RWD - 25.79 in. Extended, EVO Grey

41-326039

In stock

$1,109.58 USD
$1,213.60 USD $1,109.58 USD
vADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

Bilstein B8 8112 (ZoneControl) CR Suspension Kit for the 2007-2021 Toyota Tundra are a direct fit, position sensitive coilover designed for light trucks and SUV's. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8 (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

Standard Features

  • ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
  • Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
  • 60mm remote reservoir for increased oil capacity and cooling
Specifications
Part Number 41-326039
Part Name Shock Absorber and Coil Spring Assembly
Vehicle 2007-2021 Toyota Tundra
UPC 651860891866
Front Lift Height 2.25 - 3.25 in.
Body Design Smooth Body (Coilover)
Body Diameter (ID) 60 mm
Body Material Steel
Boot Included No
Collapsed Length 19.43 in.
Collapsed Length 493.6 mm
Damping Adjustable No
Extended Length 25.79 in.
Extended Length 655.1 mm
Finish Dampers: EVO Grey / Springs: Black
Internal Design Monotube
Lower Mount Type Eye 16.1 mm
Reservoir Yes
Segment Light Truck
Series B8 8112 (ZoneControl CR)
Spring Seat Included Yes
Upper Mount Type Special
Notes Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended
Vehicle Fitment
  • 2007 Toyota Tundra
  • 2008 Toyota Tundra
  • 2009 Toyota Tundra
  • 2010 Toyota Tundra
  • 2011 Toyota Tundra
  • 2012 Toyota Tundra
  • 2013 Toyota Tundra
  • 2014 Toyota Tundra
  • 2015 Toyota Tundra
  • 2016 Toyota Tundra
  • 2017 Toyota Tundra
  • 2018 Toyota Tundra
  • 2019 Toyota Tundra
  • 2020 Toyota Tundra
  • 2021 Toyota Tundra
