Bilstein B8 8112 ZoneControl CR Coilover | Toyota FJ Cruiser (10-14) (41-324363)

Bilstein B8 8112 ZoneControl CR Coilover | Toyota FJ Cruiser (10-14) (41-324363)

SKU:41-324363

Out of stock

Regular price $1,160.00 USD
Regular price $1,264.85 USD Sale price $1,160.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Bilstein B8 8112 ZoneControl CR Coilover for the Toyota FJ Cruiser (2010-2014) is a high-performance suspension component designed to enhance ride quality and handling. Engineered as a direct-fit, position-sensitive coilover, it features Bilstein's revolutionary ZoneControl technology that provides adaptive damping for varying driving conditions. The triple piston design offers three stages of compression valving and two stages of rebound valving, allowing for precise control over suspension response. The coilover module includes a threaded spring seat, enabling ride height adjustments from 0 to 3.8 inches, tailored to individual preferences and load conditions. Constructed with durable materials, this coilover system ensures improved stability, comfort, and off-road capability for light trucks and SUVs.

Designed specifically for 2010-2014 Toyota FJ Cruiser models, this coilover kit is compatible with vehicles equipped with the stock suspension setup. It serves as an upgrade for improved handling on and off-road, suitable for daily driving, trail use, or performance applications. Installation is a direct replacement for factory components, providing a straightforward bolt-on upgrade. The kit includes coilover units with integrated damping and height adjustment features, ensuring optimal suspension tuning. Ideal for enthusiasts seeking enhanced control and ride quality, this Bilstein B8 8112 system offers versatile performance tailored to the unique demands of light truck and SUV owners.

Overview

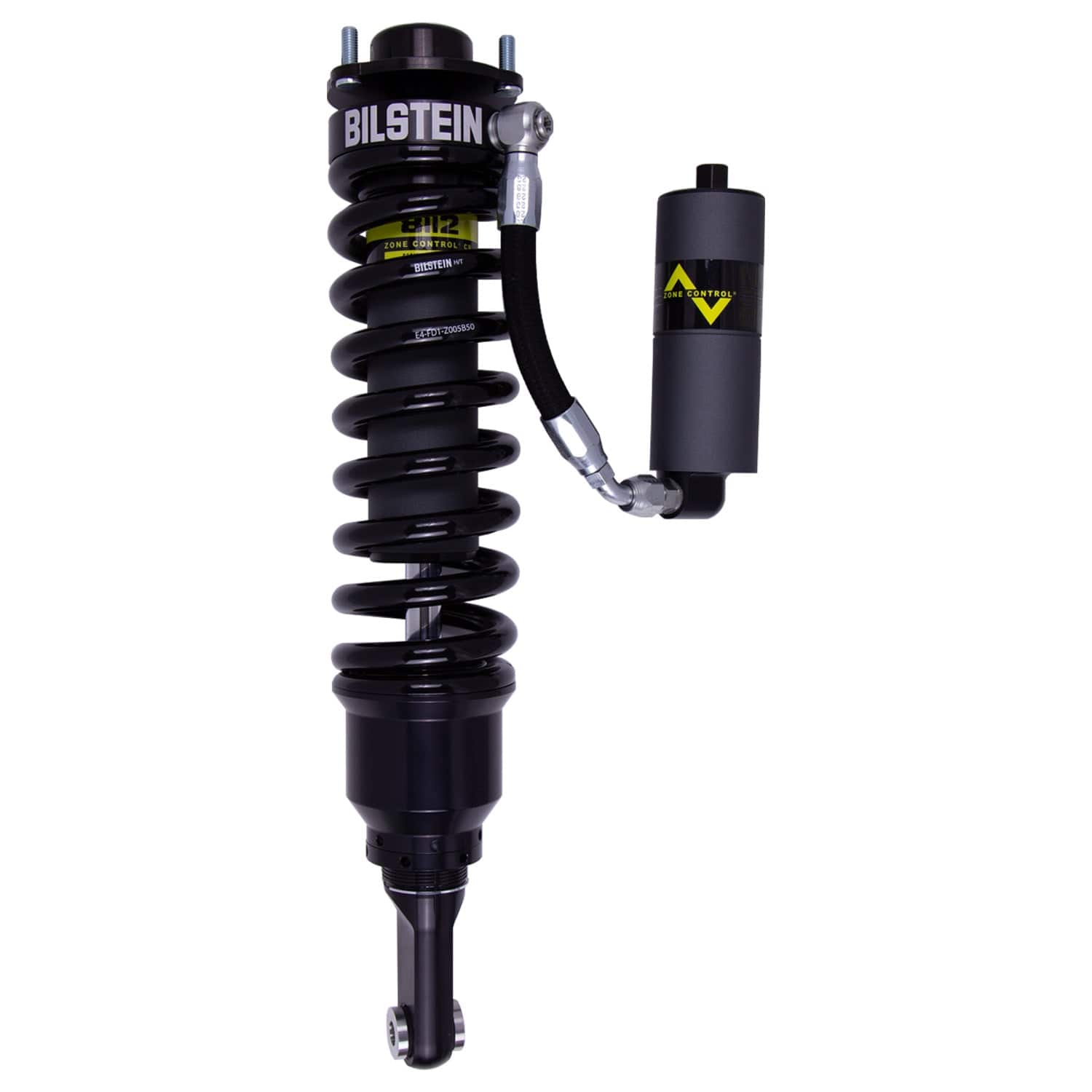

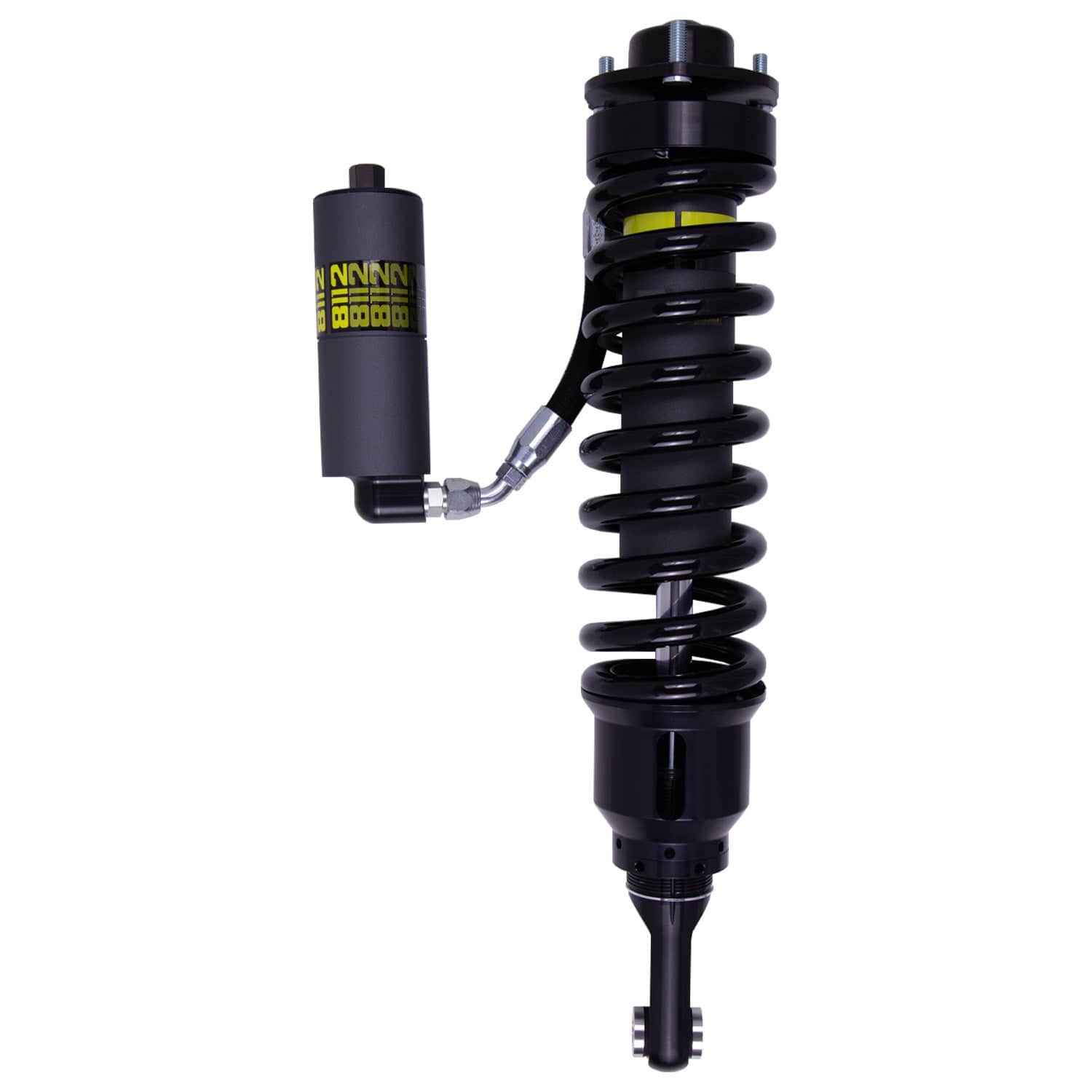

Bilstein B8 8112 (ZoneControl) CR Suspension Kit for the 2010-2014 Toyota FJ Cruiser are a direct fit, position sensitive coilover designed for light trucks and SUV's. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8 (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

Standard Features

  • ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
  • Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
  • 60mm remote reservoir for increased oil capacity and cooling
Specifications
Part Number 41-324363
Part Name Shock Absorber and Coil Spring Assembly
Vehicle 2010-2014 Toyota FJ Cruiser
UPC 651860915685
Front Lift Height 1.5 - 3 in.
Body Design Smooth Body (Coilover)
Body Diameter (ID) 60 mm
Body Material Steel
Boot Included No
Collapsed Length 17.99 in.
Collapsed Length 456.9 mm
Damping Adjustable No
Extended Length 22.80 in.
Extended Length 579.1 mm
Finish Dampers: EVO Grey / Springs: Black
Internal Design Monotube
Lower Mount Type Eye 14.1 mm
Optional Heavy Load Springs 53-291387, 53-332837
Reservoir Yes
Segment Light Truck
Series B8 8112 (ZoneControl CR)
Spring Seat Included Yes
Upper Mount Type Special
Notes Without Kinetic Dynamic Suspension System (KDSS)
Vehicle Fitment
  • 2010 Toyota FJ Cruiser
  • 2011 Toyota FJ Cruiser
  • 2012 Toyota FJ Cruiser
  • 2013 Toyota FJ Cruiser
  • 2014 Toyota FJ Cruiser
