| Year | Make | Model |
|---|---|---|
| 2010 - 2023 | Lexus | GX460 Base |
| 2023 | Lexus | GX460 Black Line Edition |
| 2023 | Lexus | GX460 Luxury |
| 2010 - 2023 | Lexus | GX460 Premium |
| 2010 - 2016 | Toyota | 4Runner Trail |
| 2017 - 2024 | Toyota | 4Runner TRD Off-Road |
| 2018 - 2024 | Toyota | 4Runner TRD Off-Road Premium |
| 2020 - 2021 | Toyota | 4Runner Venture |

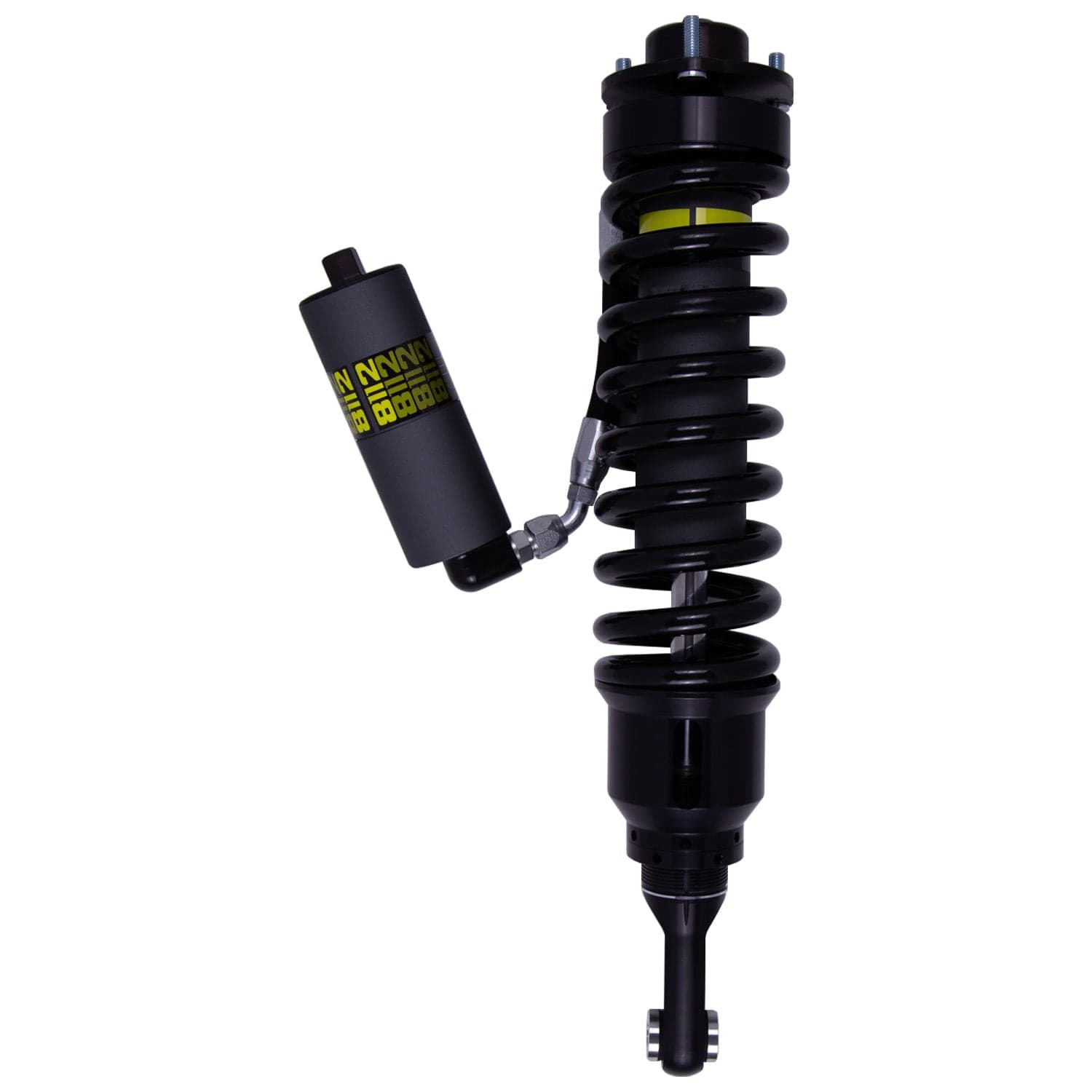

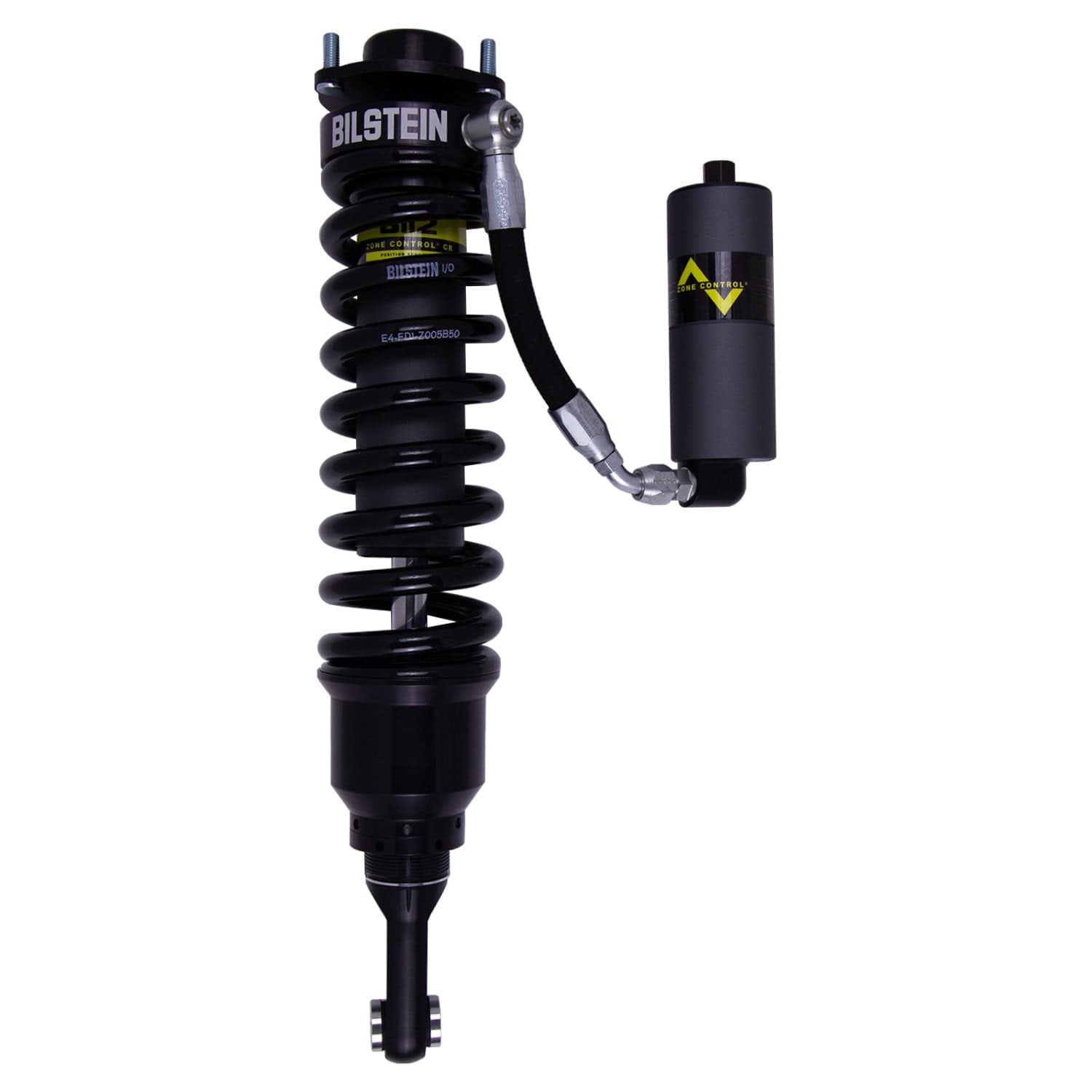

Bilstein B8 8112 ZoneControl CR Coilover Front Shock & Spring 4Runner (10-24) (41-324165)
Bilstein B8 8112 ZoneControl CR Coilover Front Shock & Spring 4Runner (10-24) (41-324165)
SKU:41-324165
In stock
Couldn't load pickup availability
â–¶ Vehicle Fitments
The Bilstein B8 8112 ZoneControl CR Coilover Front Shock & Spring is a high-performance suspension component designed specifically for the 2010-2024 Toyota 4Runner. This coilover system features Bilstein's innovative ZoneControl technology, which provides position-sensitive damping for enhanced ride quality and handling. Built with a triple piston design, it offers three stages of compression valving and two stages of rebound valving, allowing for precise control over different driving conditions. The threaded spring seat enables ride height adjustment from 0 to 3.8 inches, making it suitable for various off-road and on-road applications. Constructed from durable materials, this coilover ensures long-lasting performance and improved stability for light trucks and SUVs.

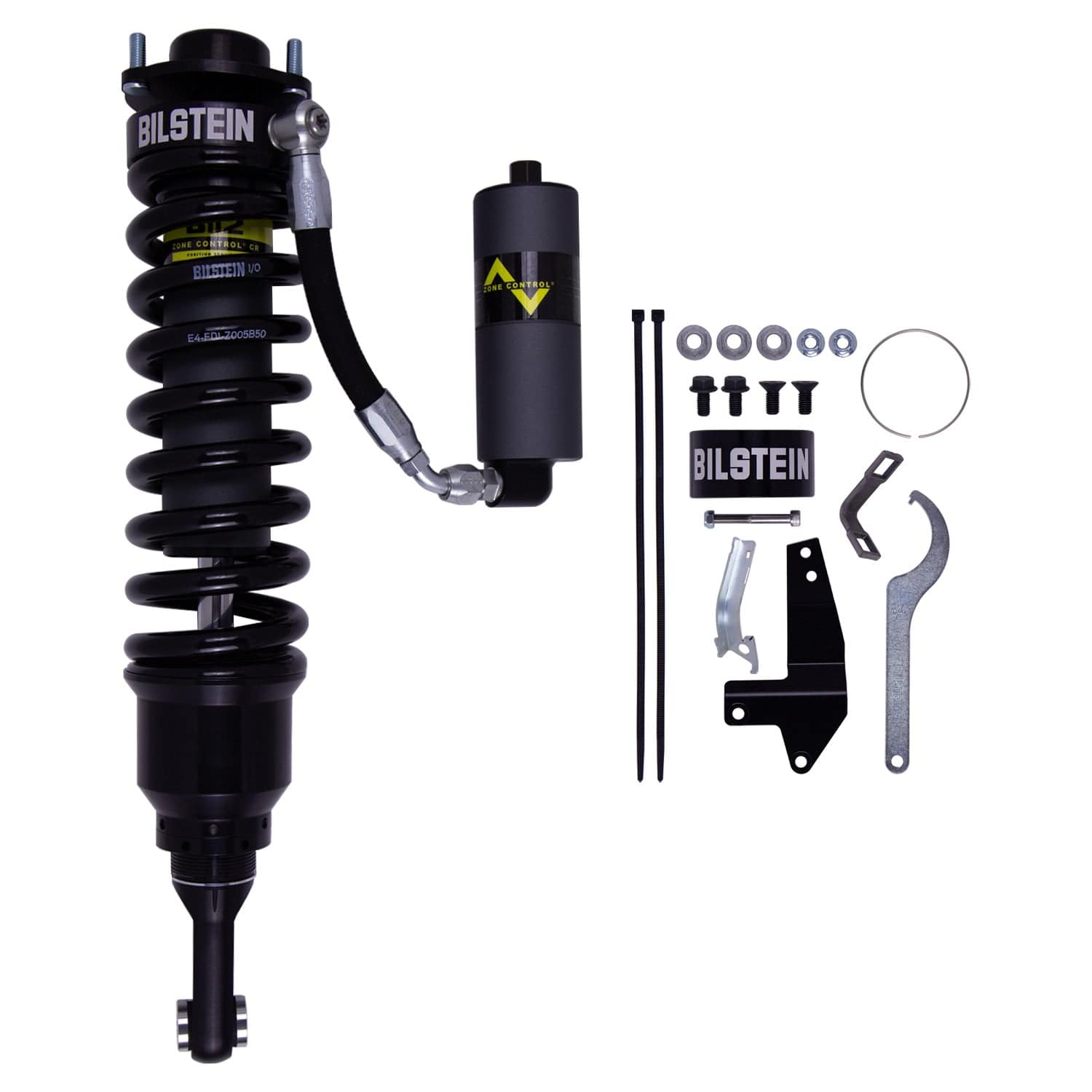

Designed for 2010-2024 Toyota 4Runner models, this coilover kit is a direct fit upgrade that enhances both ride comfort and handling dynamics. It is ideal for off-road enthusiasts, daily drivers, and those seeking improved suspension performance. The kit includes front shocks and springs, with installation designed to be straightforward for those familiar with suspension upgrades. Compatible with models equipped with light truck chassis, this coilover system provides adjustable ride height and damping control, making it suitable for a range of terrains and driving styles. It serves as a reliable, performance-oriented upgrade for drivers looking to optimize their vehicle’s suspension capabilities.
Share
Overview
Overview
Bilstein B8 8112 (ZoneControl) CR Suspension Kit for the 2010-2024 Toyota 4Runner are a direct fit, position sensitive coilover designed for light trucks and SUV's. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8 (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Standard Features
- ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Part Number | 41-324165 |
| Part Name | Shock Absorber and Coil Spring Assembly |
| Vehicle | 2010-2024 Toyota 4Runner |
| UPC | 651860915753 |
| Front Lift Height | 1.2 - 3.5 in. |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 17.99 in. |
| Collapsed Length | 456.9 mm |
| Damping Adjustable | No |
| Extended Length | 22.80 in. |
| Extended Length | 579.1 mm |
| Finish | Dampers: EVO Grey / Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Optional Heavy Load Springs | 53-291387, 53-332837 |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8112 (ZoneControl CR) |
| Spring Seat Included | Yes |
| Upper Mount Type | Special |
| Notes | With Kinetic Dynamic Suspension System (KDSS) |
Vehicle Fitment
- 2010 Toyota 4Runner
- 2011 Toyota 4Runner
- 2012 Toyota 4Runner
- 2013 Toyota 4Runner
- 2014 Toyota 4Runner
- 2015 Toyota 4Runner
- 2016 Toyota 4Runner
- 2017 Toyota 4Runner
- 2018 Toyota 4Runner
- 2019 Toyota 4Runner
- 2020 Toyota 4Runner
- 2021 Toyota 4Runner
- 2022 Toyota 4Runner
- 2023 Toyota 4Runner
- 2024 Toyota 4Runner
